    Code: GP102807

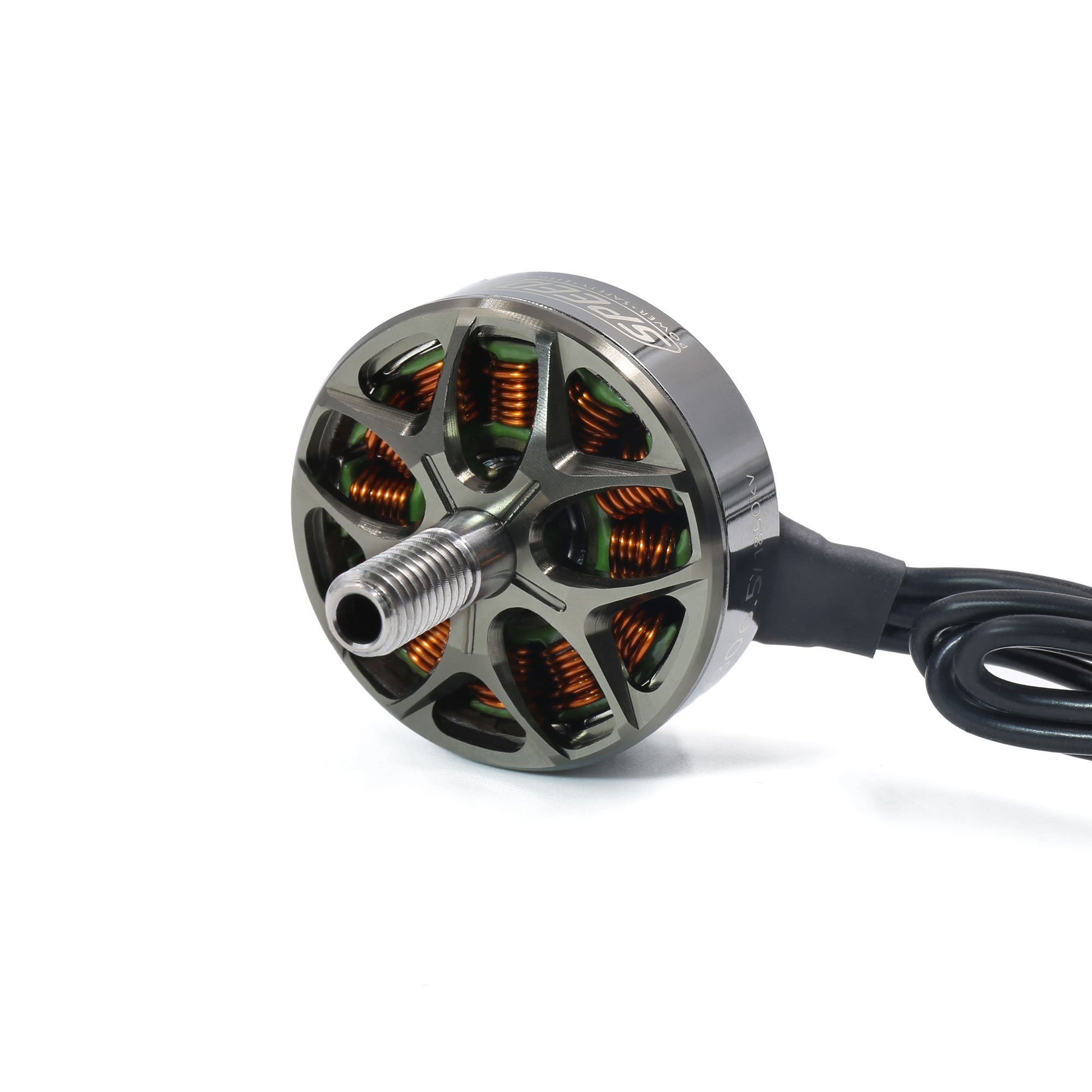

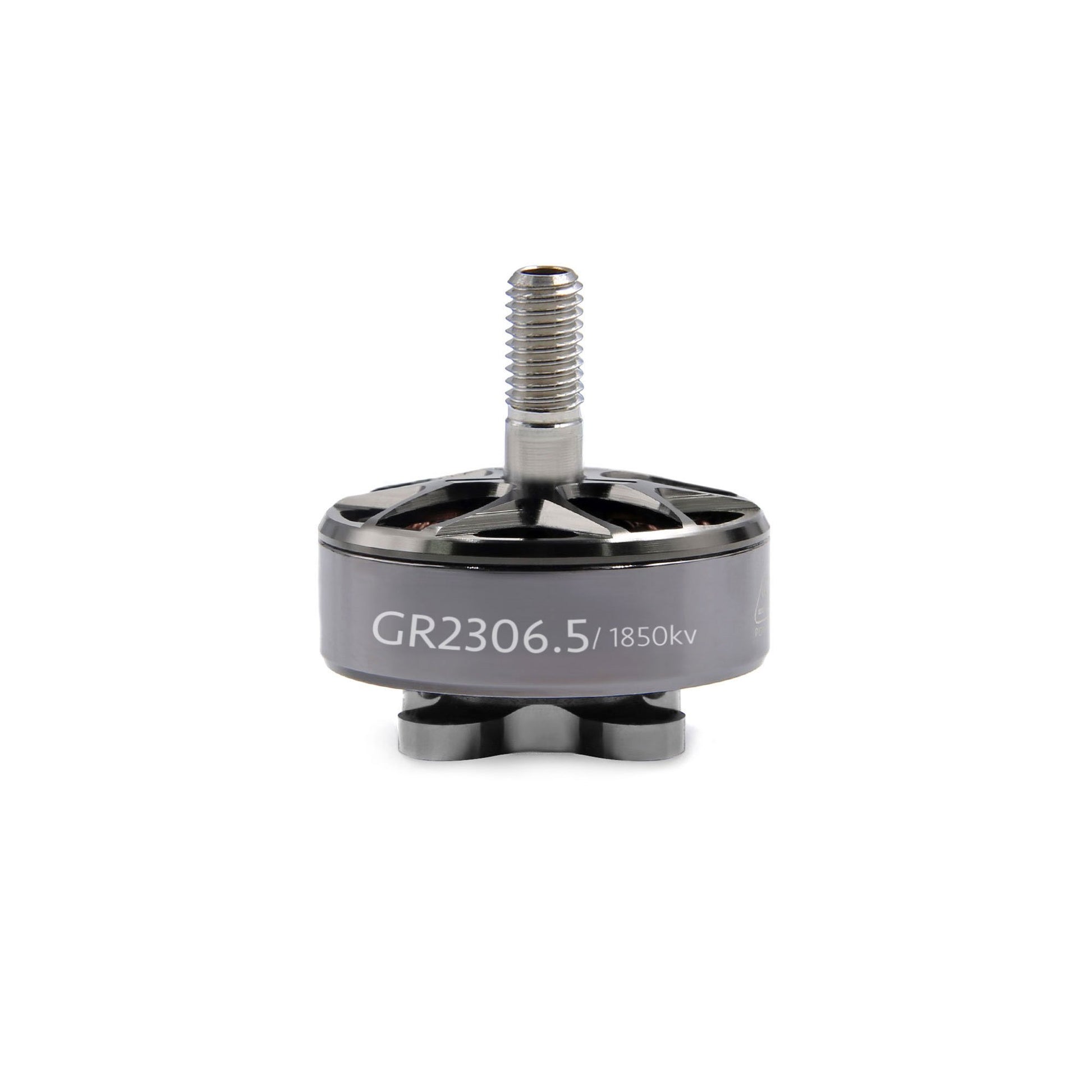

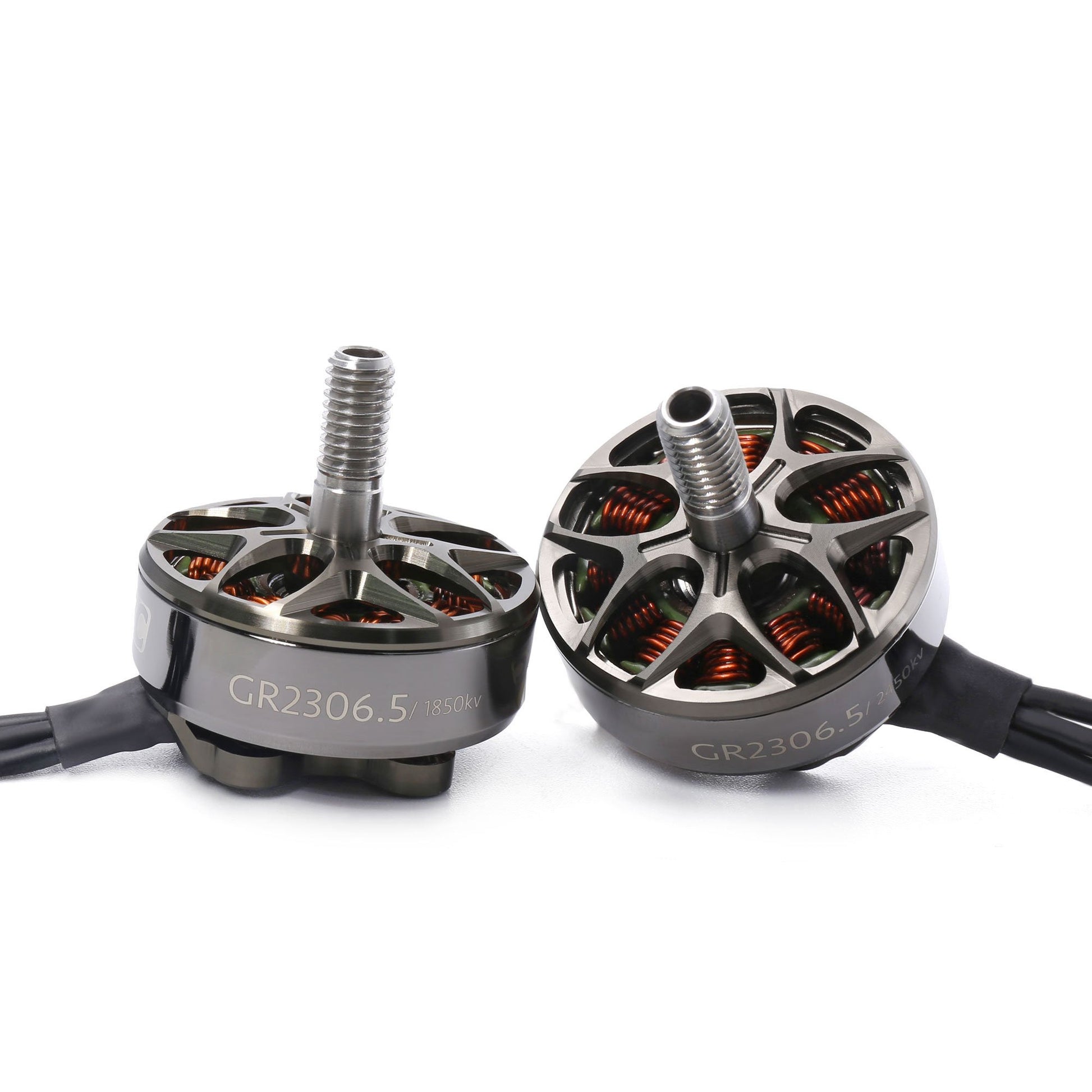

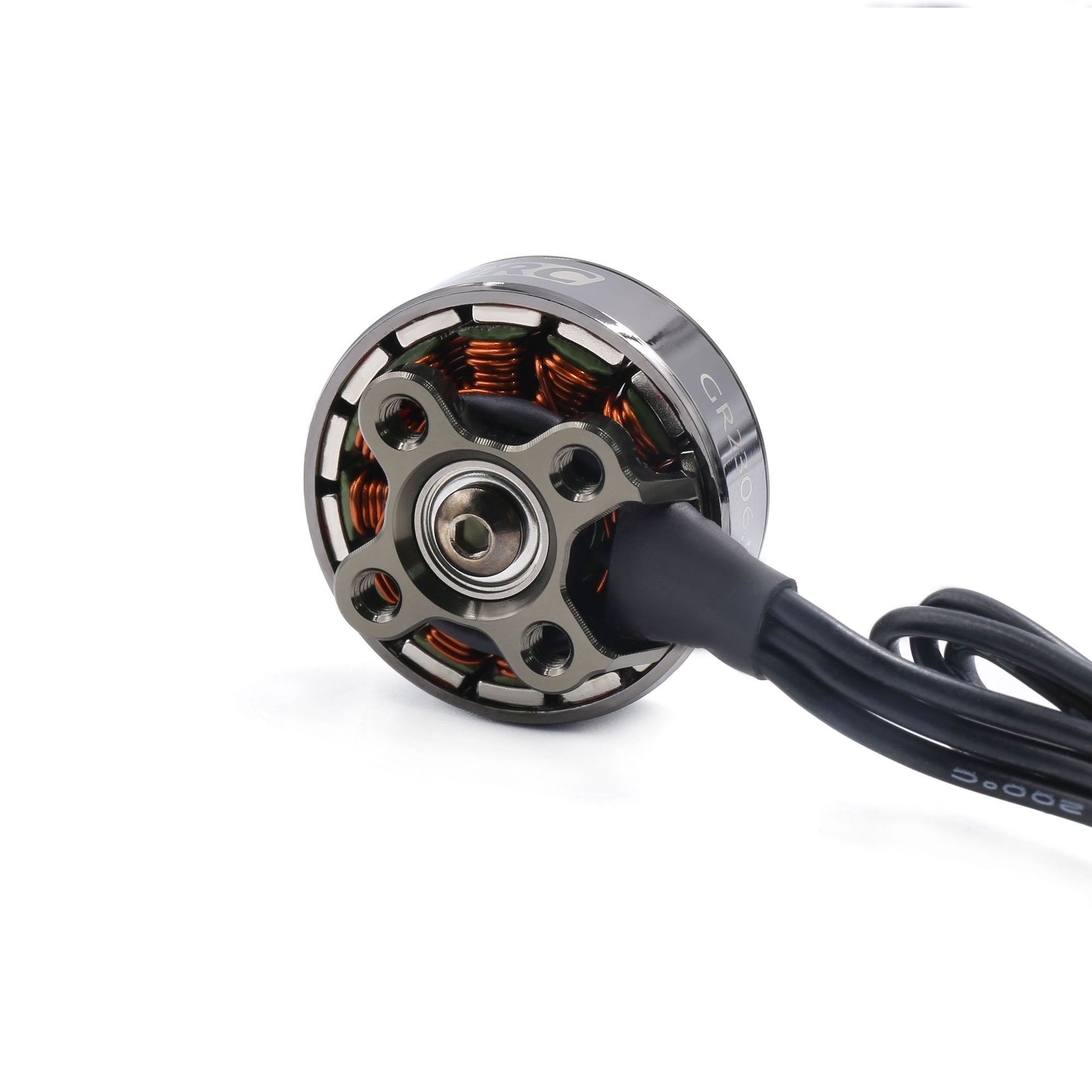

    Motor GEPRC GR2306.5 1850KV

    Motor GEPRC GR2306.5 1850KV

    Brand: GEPRC

    €19,99
    €19,99 €19,99
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    GEP-GR2306.5 (1850 KV)

Specifications:
Item Name: GR2306.5 Motors
KV: 1850 KV
Configuration: 12N14P
Stator diameter: 23 mm
Stator length: 6.5 mm
Shaft diameter: 4 mm (hollow)
Motor (dimension (diameter*lens)): Φ28.2*29.2mm
No load current(10)@10V(A): 1.95
cells (Lipo): 4-5S
Max. continuous (power (W) 15S): 1000
Internal resistance: 38mΩ
Maximum current (15S): 49A
Effective current: (3-7A)>85%
Rotor: Arc magnets N52H
Bearings: JAPAN ISC
Base case: Al 7075
Wire AWG: 20AWG
Weight (g): 31g (without wire)
