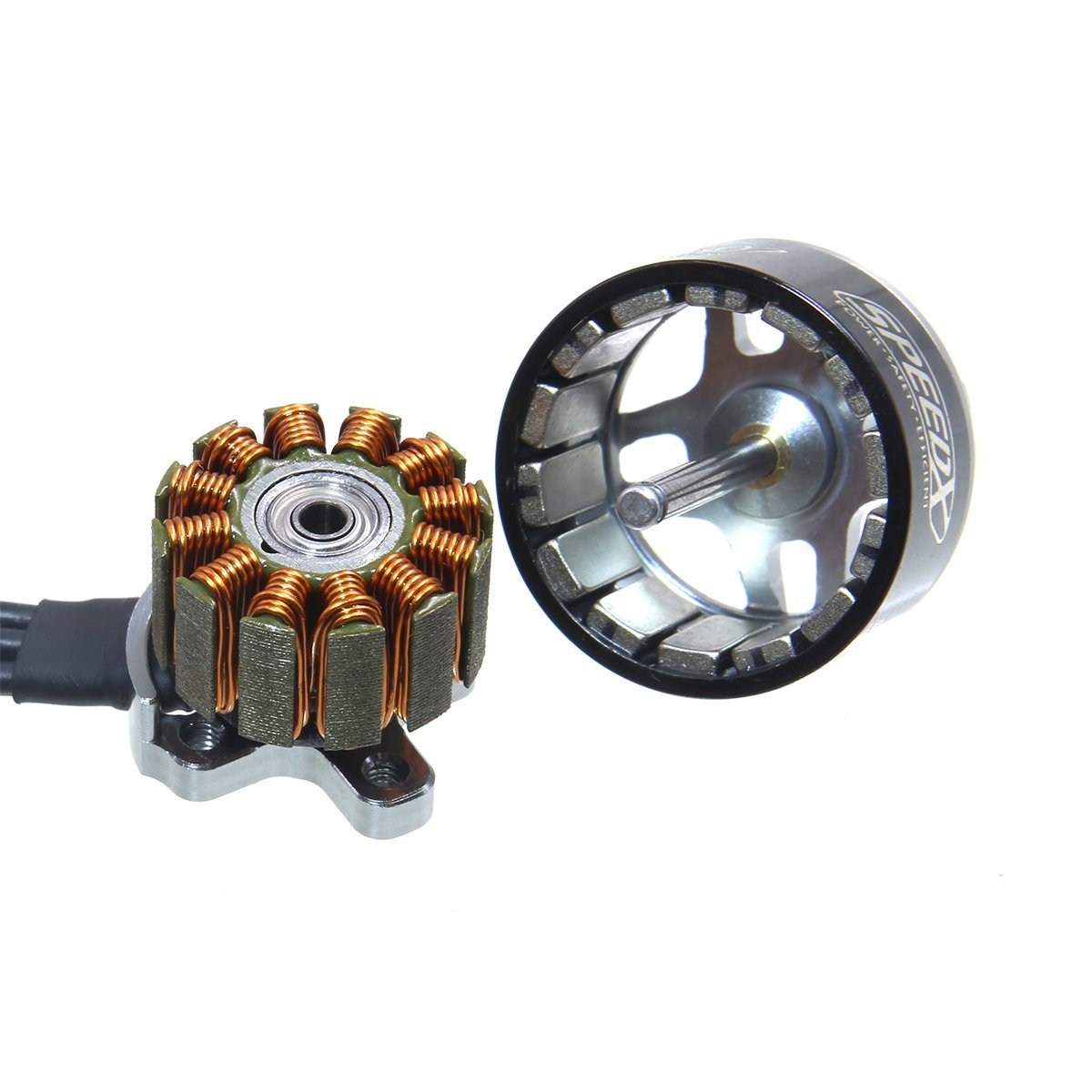

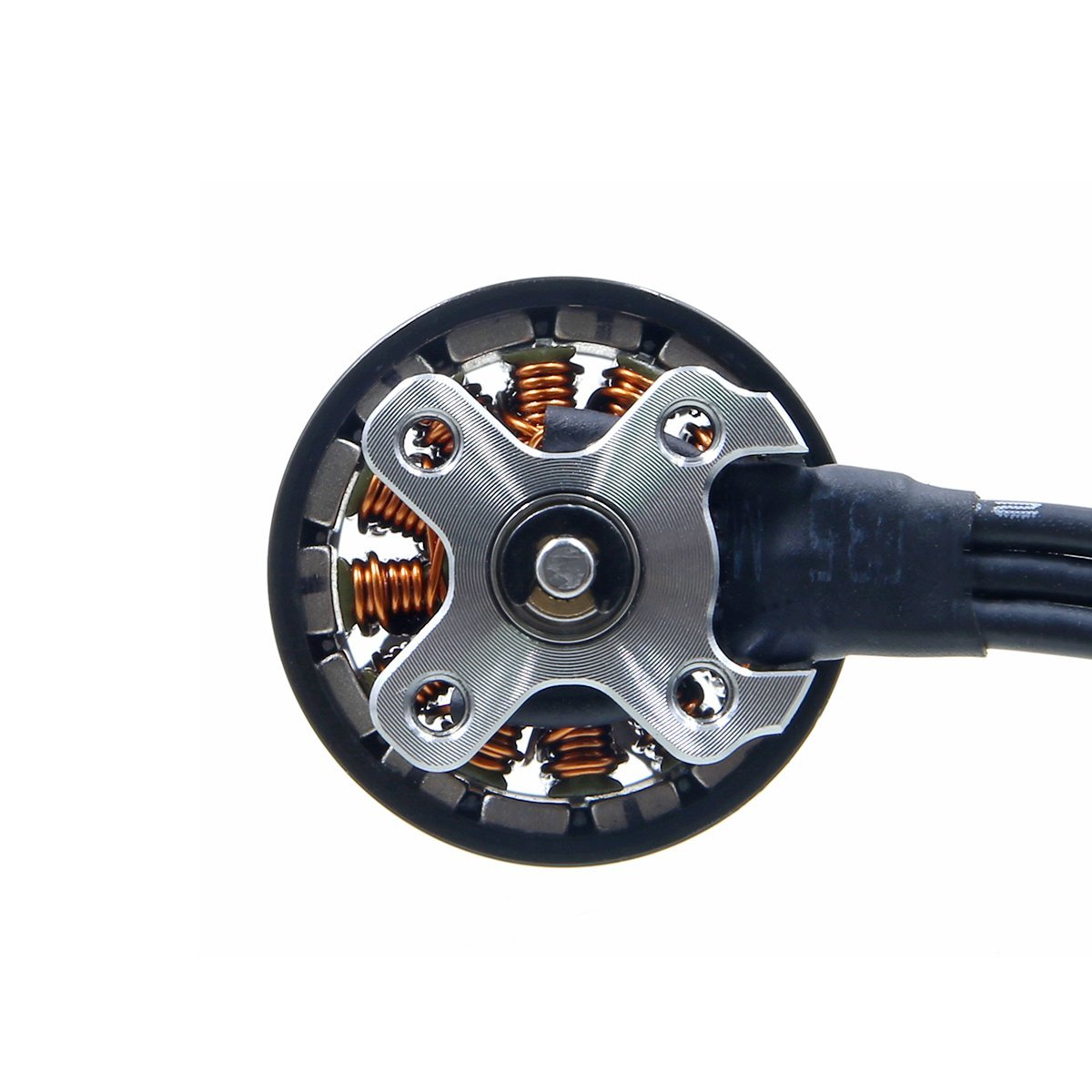

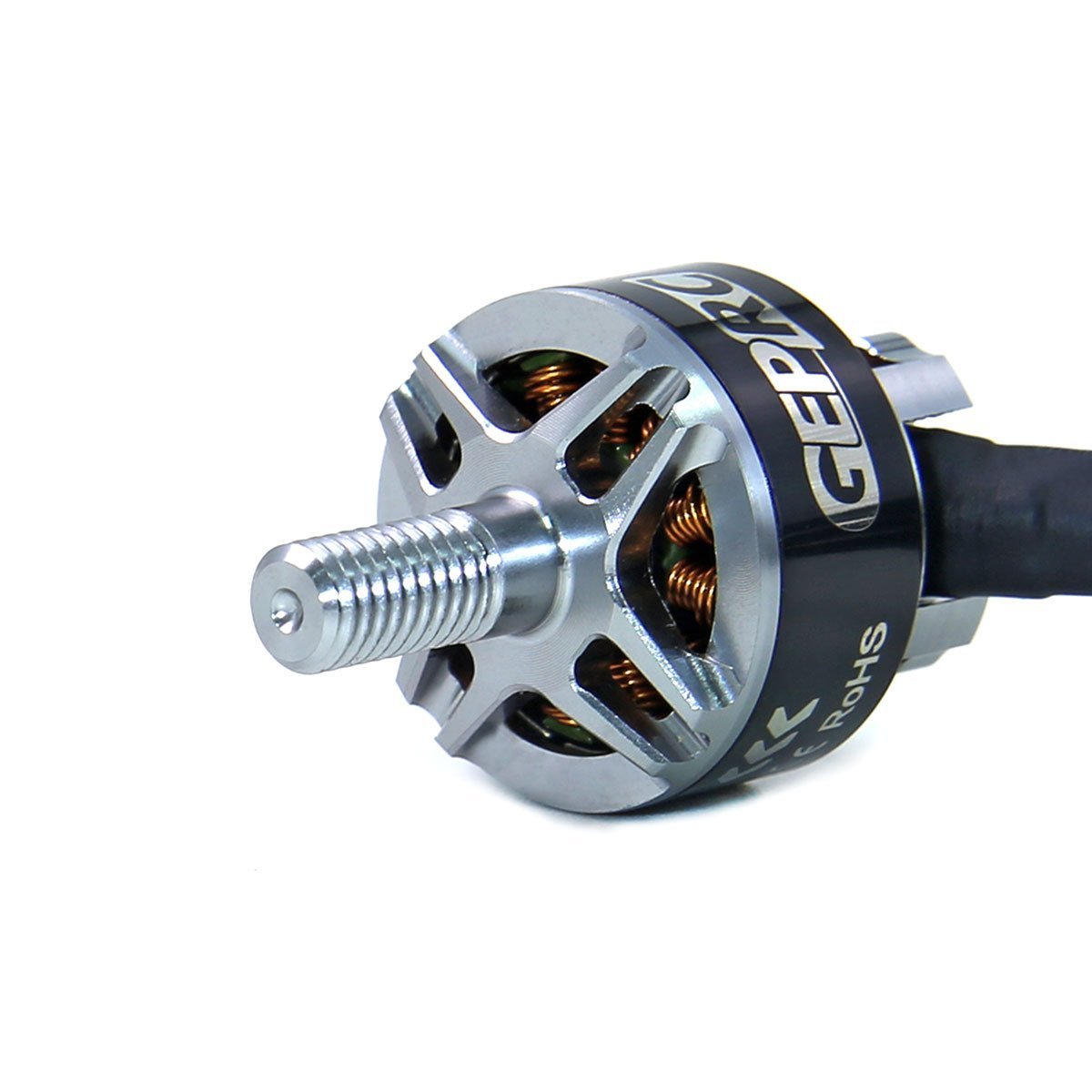

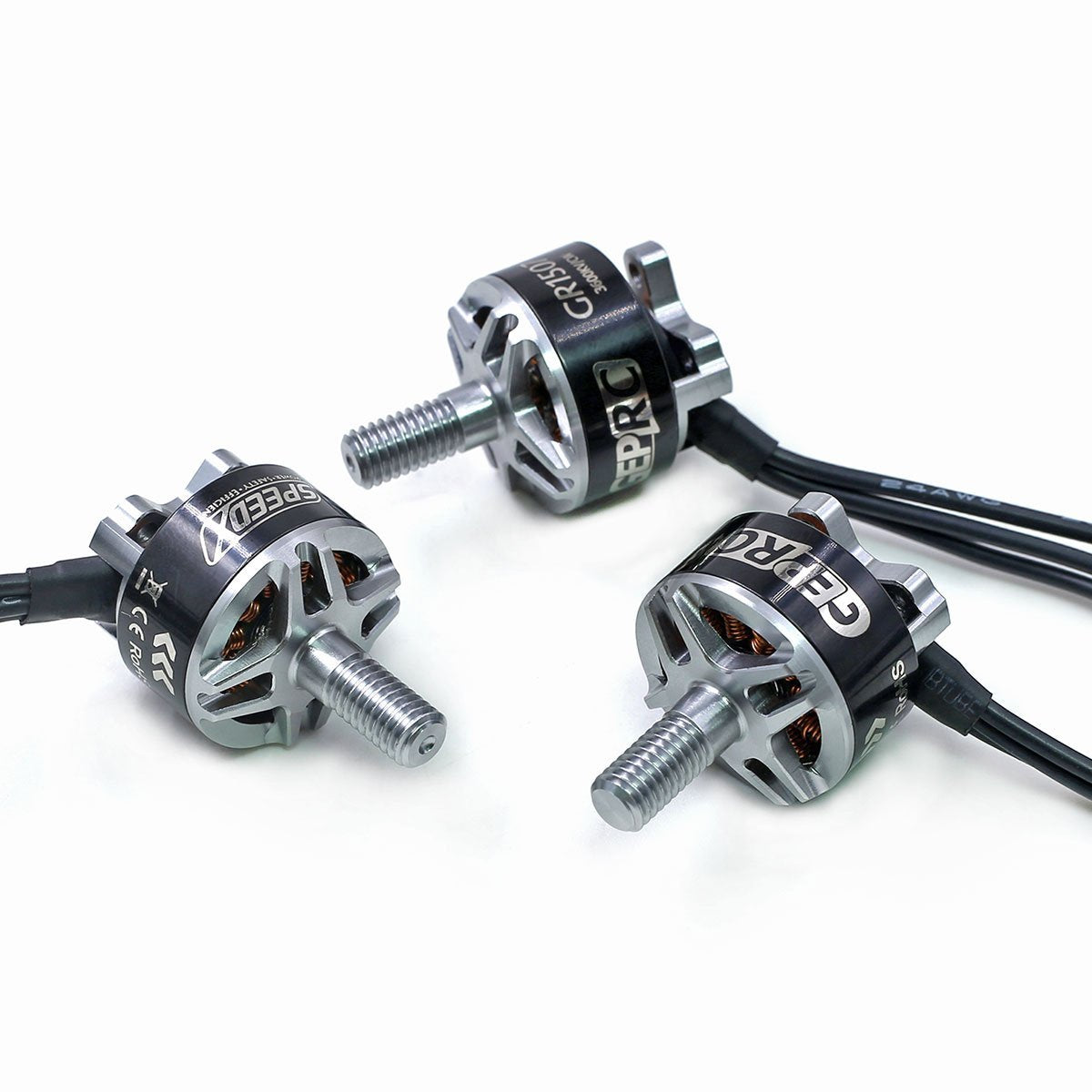

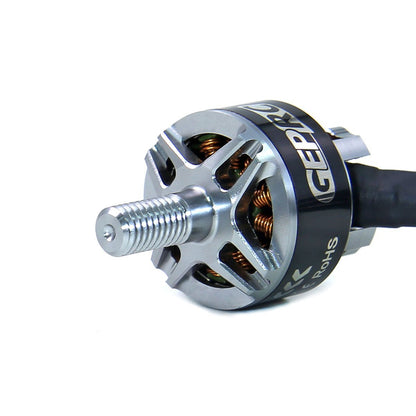

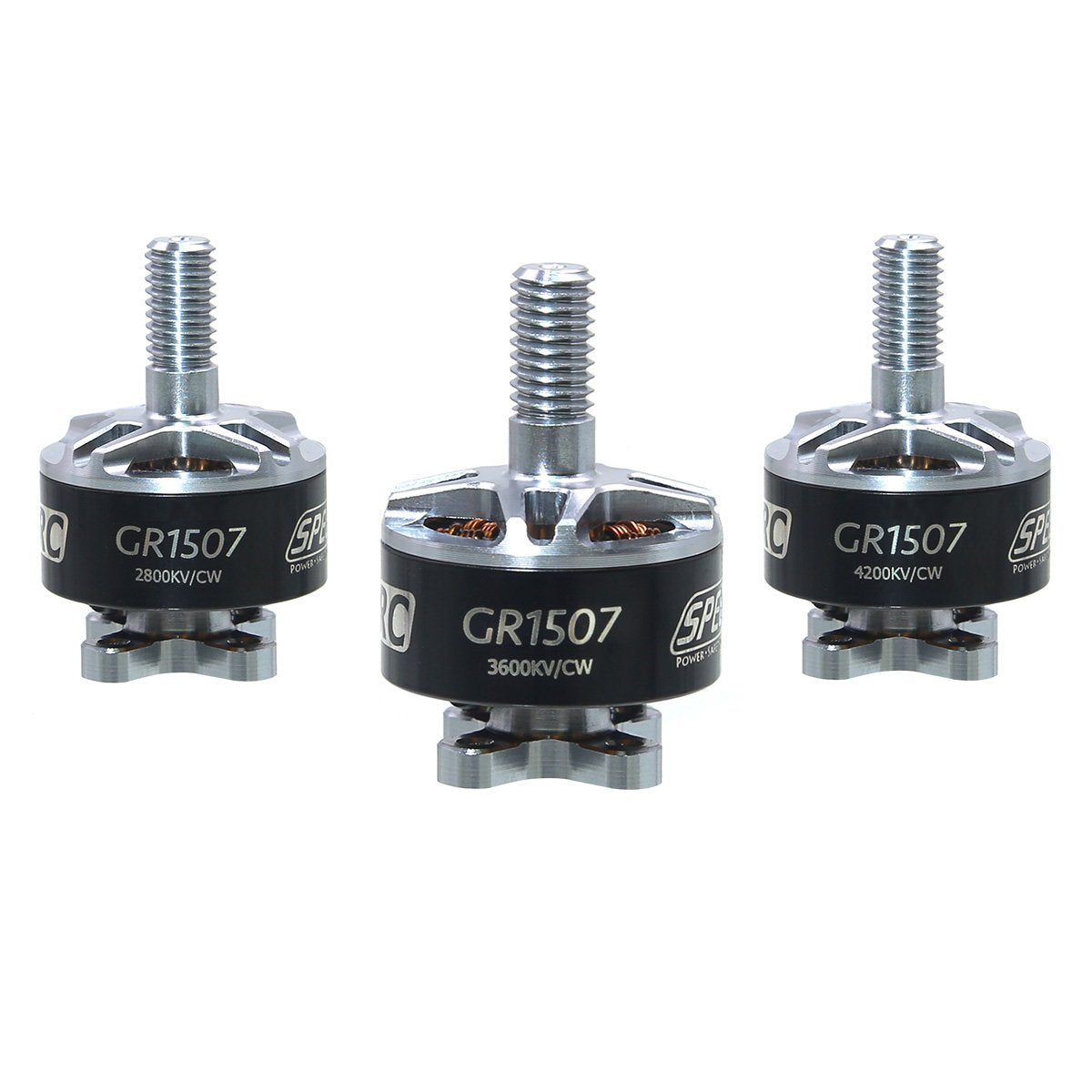

GEP-GR1507 (3600 KV) The GEP-GR1507 motor is designed to offer improved performance and cooling for 3-inch and 4-inch drone models. It provides more KV options and includes a number of features for efficiency and reliability: - High precision CNC machining and use of 7075 aluminum alloy materials results in high precision and strength. - N52H magnets guarantee torque, high temperature resistance and magnet retention. - Designed for optimal power delivery in the range of 50% to 90% throttle. - Precise dynamic balancing of the engine body reduces vibration and noise at high speeds. - Japanese NSK bearings ensure smooth engine operation. - Tile-shaped magnets and 0.15mm air gap improve power delivery. - Heat radiation design reduces temperature by 20% compared to same type motors. Specifications: Item name: GEP-GR1507 Option KV: 3600KV Configuration: 12N14P Stator diameter: 15mm Stator length: 7 mm Shaft diameter: 2 mm (hollow) Motor dimensions (diameter x length): 19.6 mm x 29.1 mm Battery (LiPo): 2-4S Rotor: Arc magnets N52H Bearings: NSK Base case: Al 7075 Wire AWG: 24AWG Weight: 15.5g
