    Code: GP107275

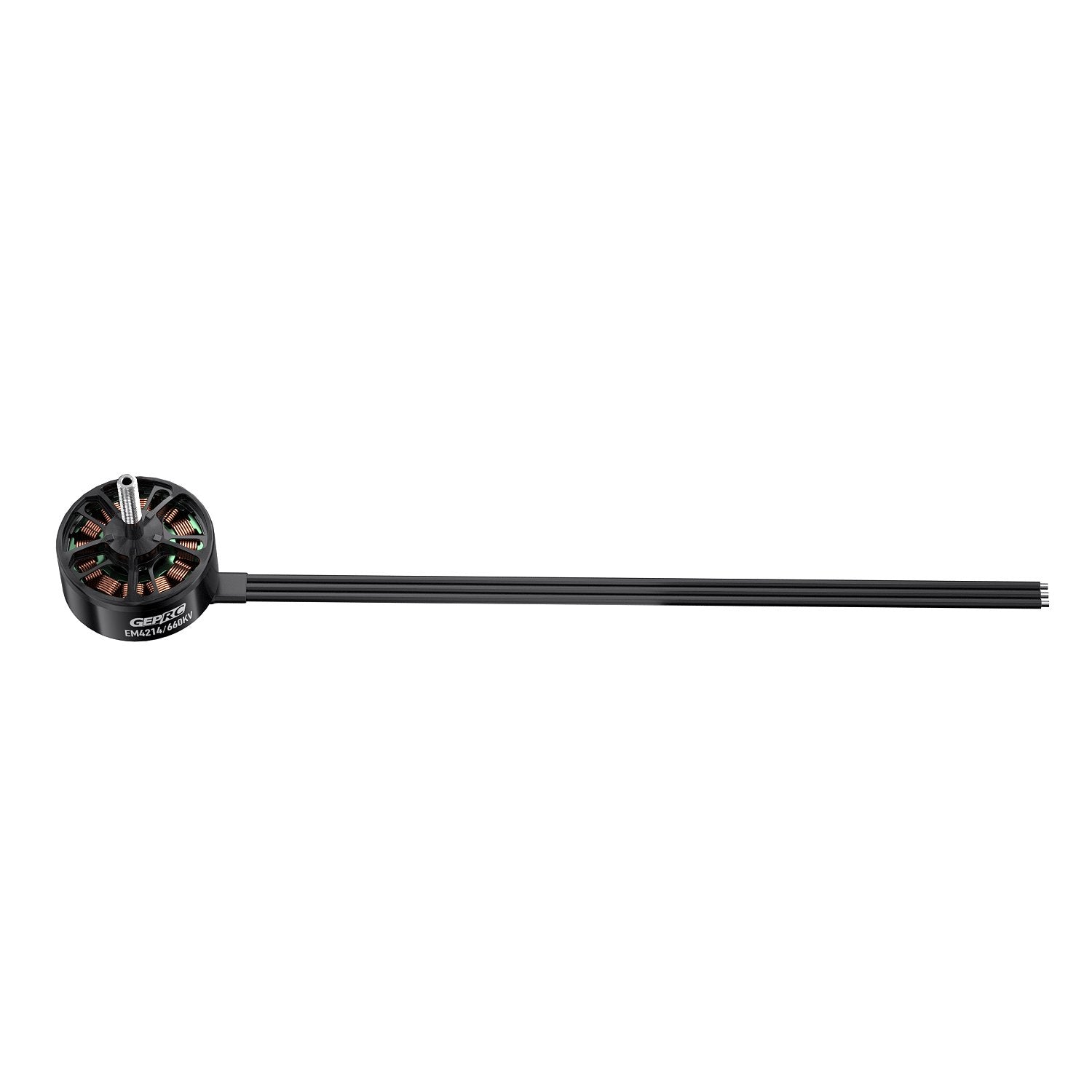

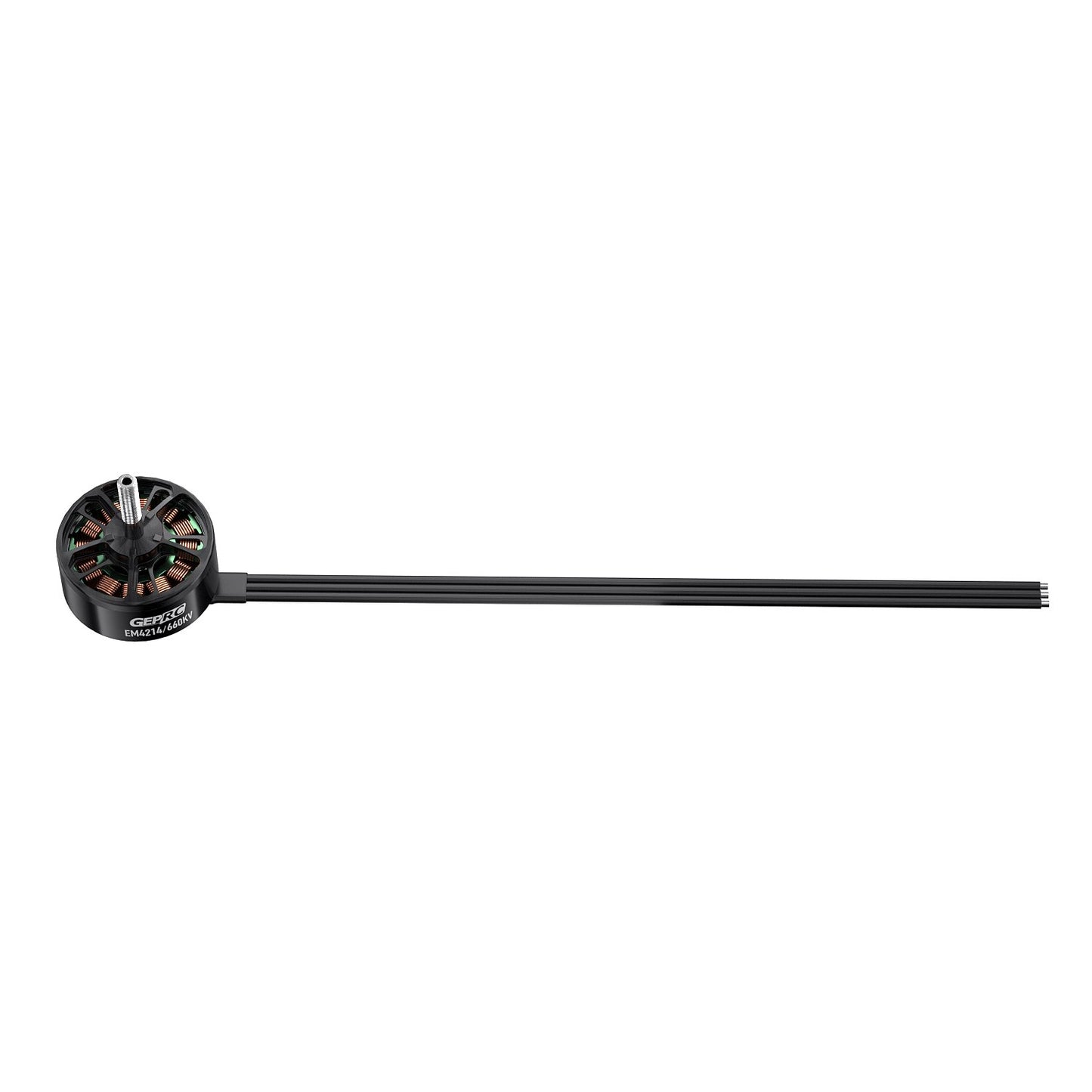

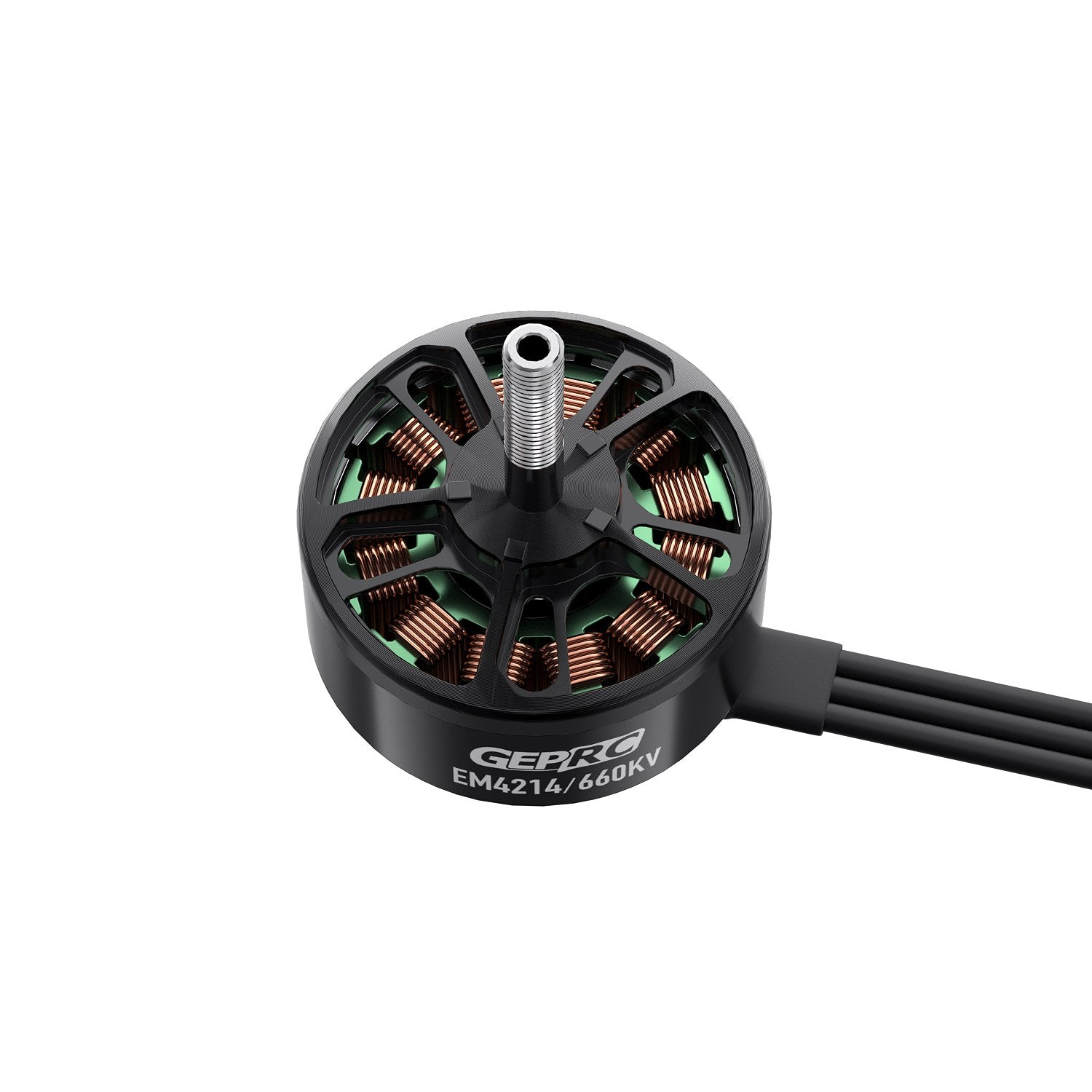

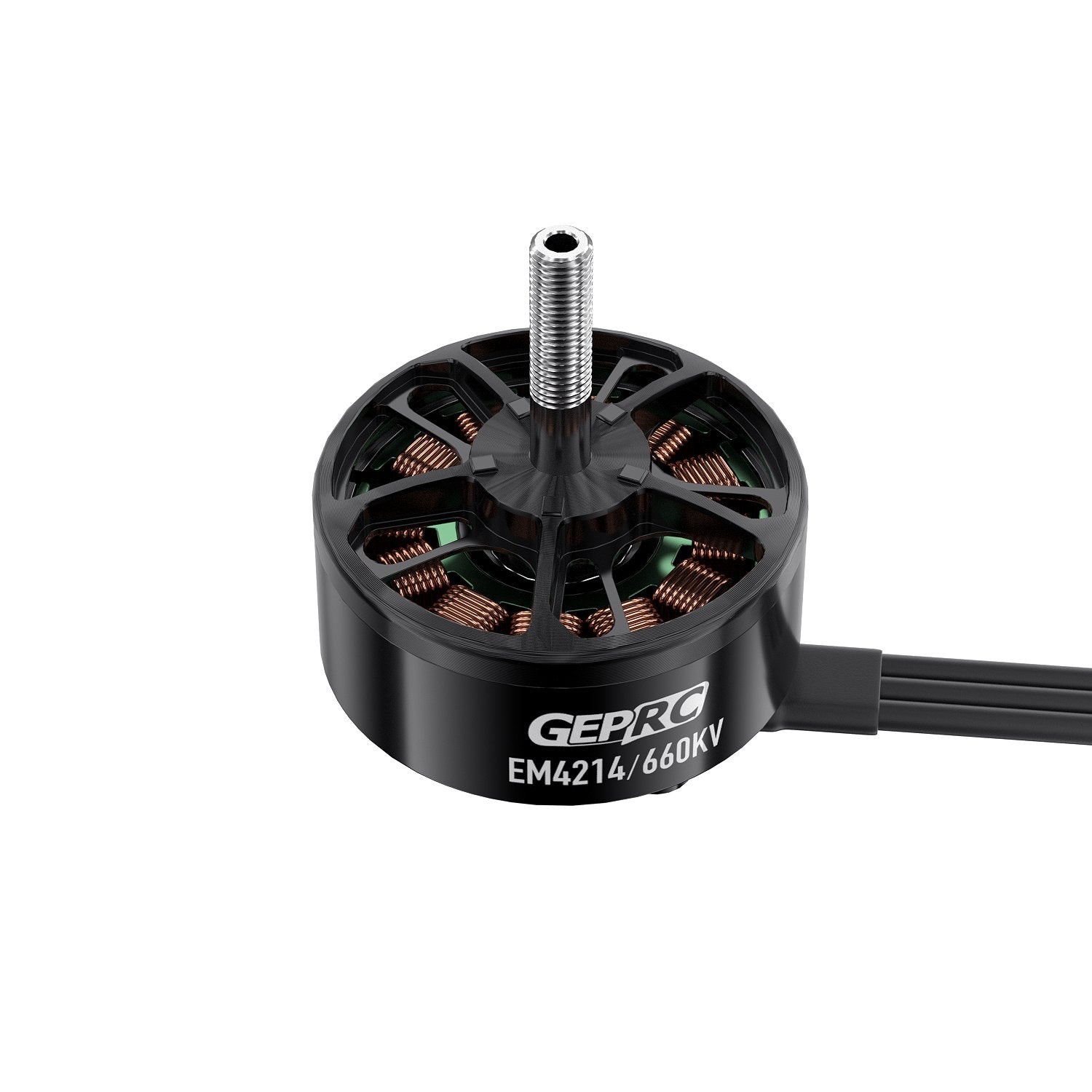

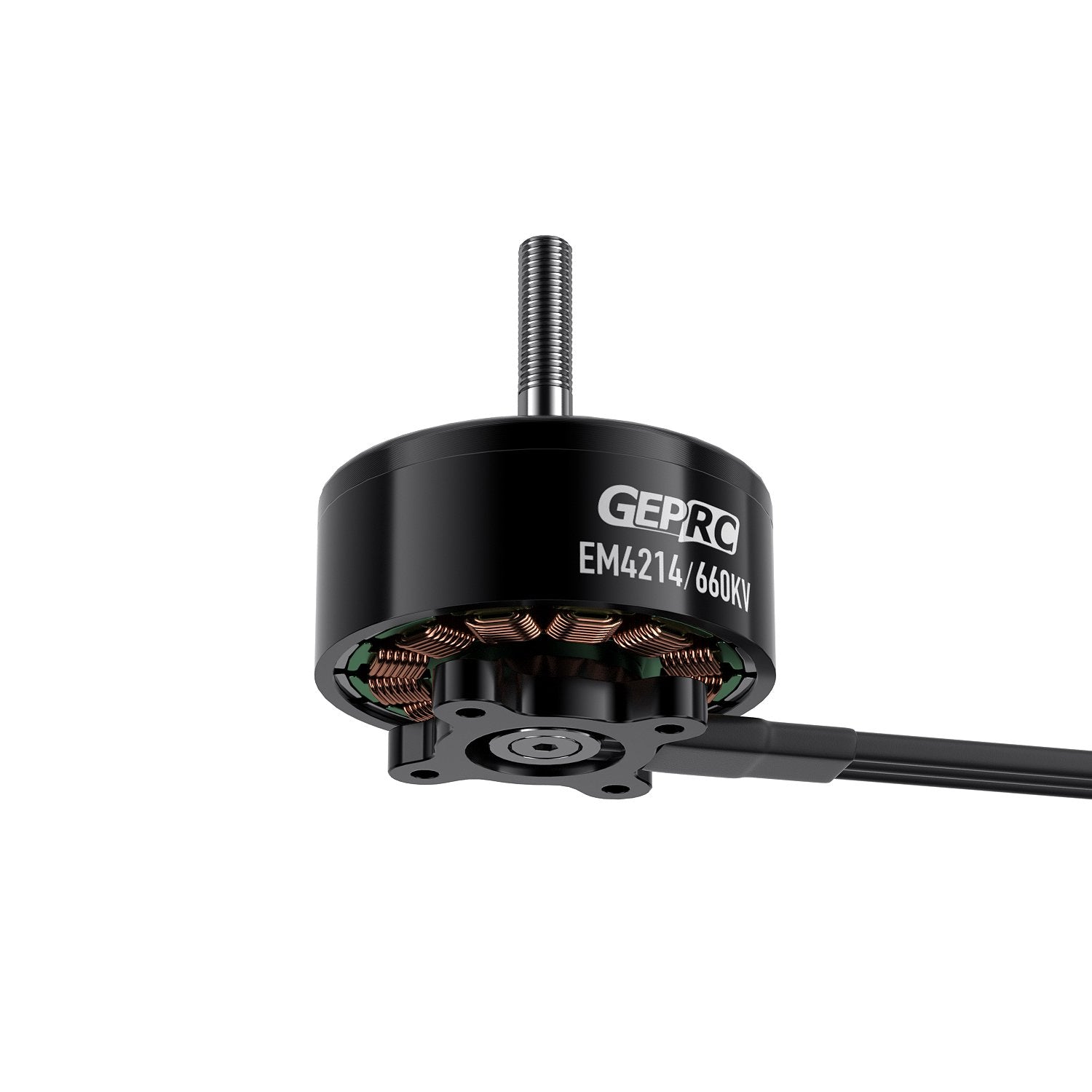

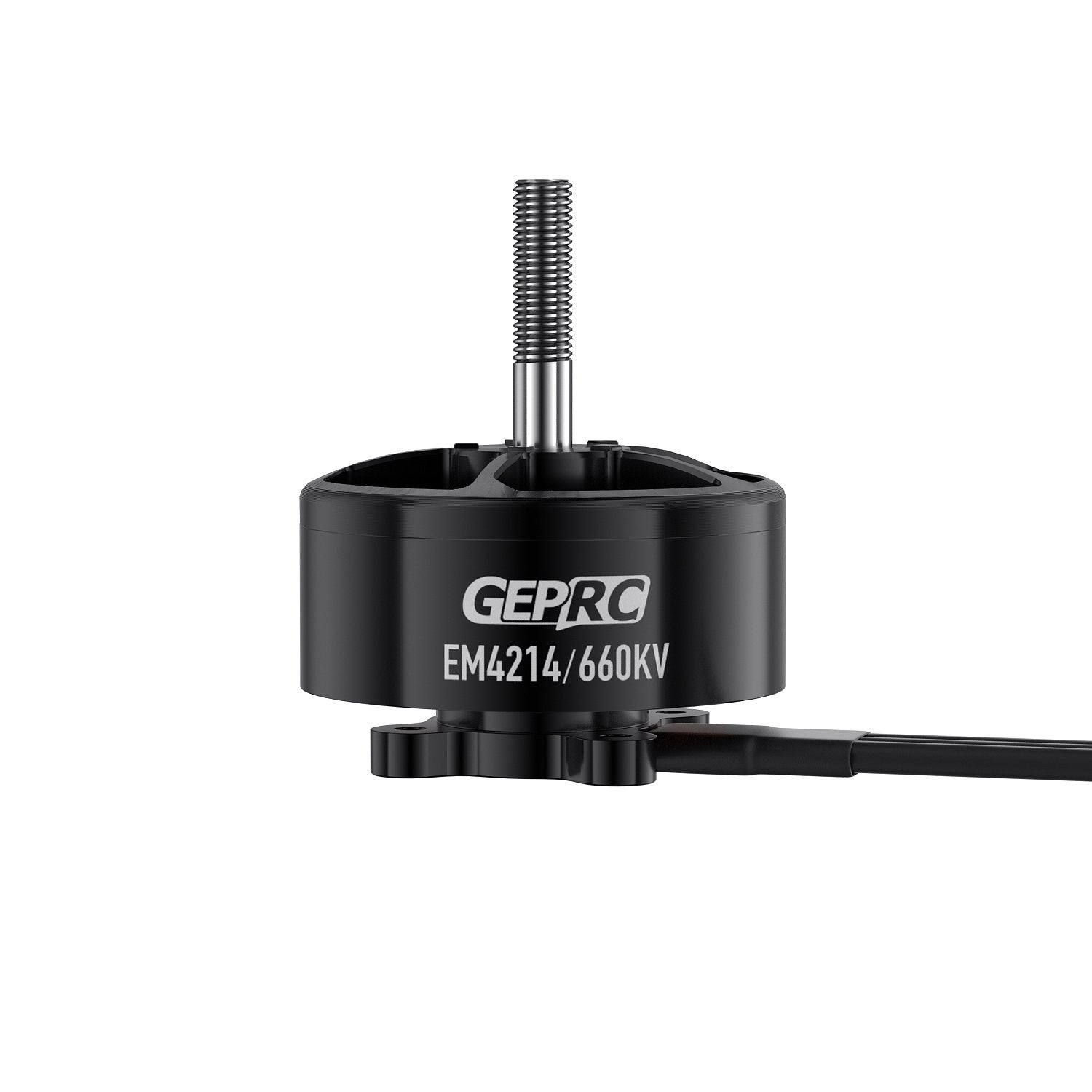

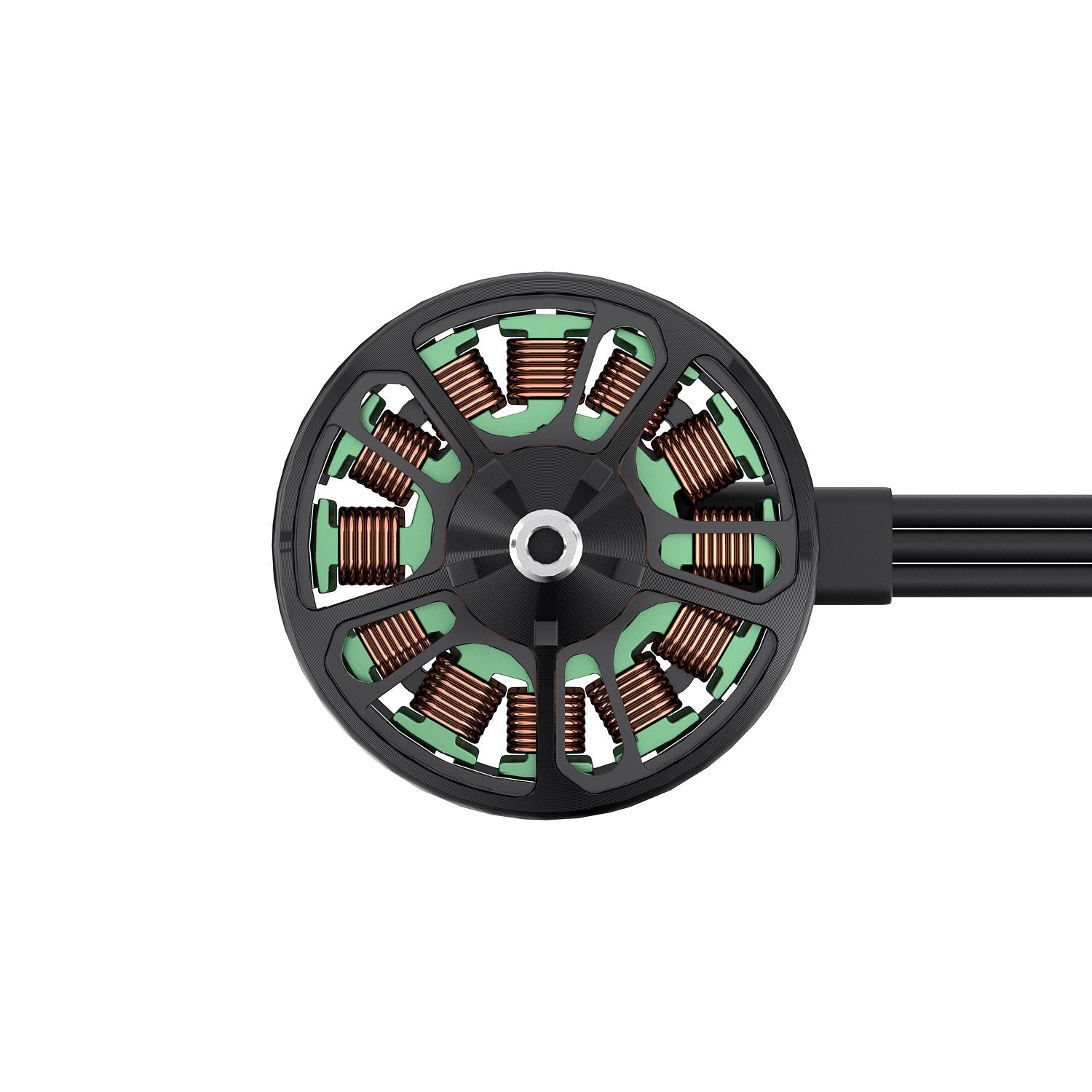

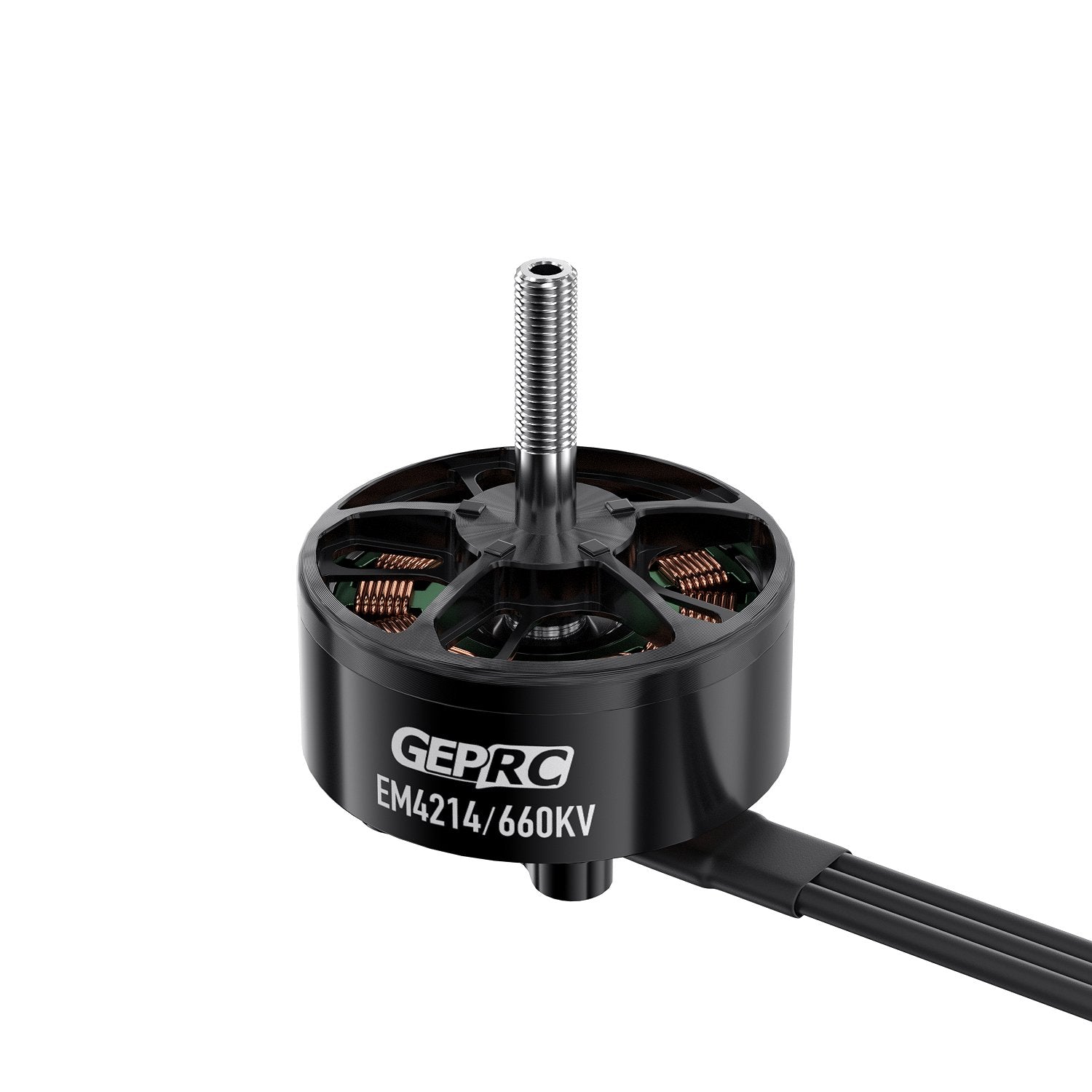

    Motor GEPRC EM4214 660KV

    Motor GEPRC EM4214 660KV

    Brand: GEPRC

    €58,88
    €58,88 €58,88
    -0% View Product
    Taxes included.
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

    The EM4214 660KV motor is part of the EM series, designed specifically for long-range FPV drones. It features a high-strength M6 steel shaft and a high-torque magnetic circuit for increased performance. Ideal for drones with 12-14 inch diameter propellers, this motor offers reliable performance for demanding applications.

    Key features:

    • Designed for long range FPV: Ideal for drones with 12-14 inch propellers.
    • M6 high-strength steel shaft: Ensures durability and long life of the motor.
    • High Torque Magnetic Circuit: Provides higher power for better flight characteristics.

    Specifications:

    • Model: EM4214 660KV motor
    • KV: 660KV
    • Maximum power: 2120W
    • Maximum current: 90A
    • Limited resistance between phases: 25mΩ
    • Propeller: 12-14 inches
    • Magnet: N52H
    • Bearing type: NMB
    • Configuration: 12N14P
    • Dimensions: φ49mm x 32.5mm
    • Shaft diameter: φ6mm
    • Length of protruding shaft: 25.5mm
    • Mounting holes: 30mm x 30mm
    • Wires: 800mm/14AWG
    • Compatible ESC: 80A-100A
    • Supply voltage: 25.2V (6S LiPo)
    • Winding: Single-filament copper winding
    • Including screws: M4*10 (4 pcs), M6 flange nut (1 pc)
    • Weight: 246g (including cables)
    • Compatible models: Drones with 12-14 inch propellers

    Package contents:

    1 x EM4214 motor
    4 x Round head screws M4*10
    1 x Anti-slip nut M6
