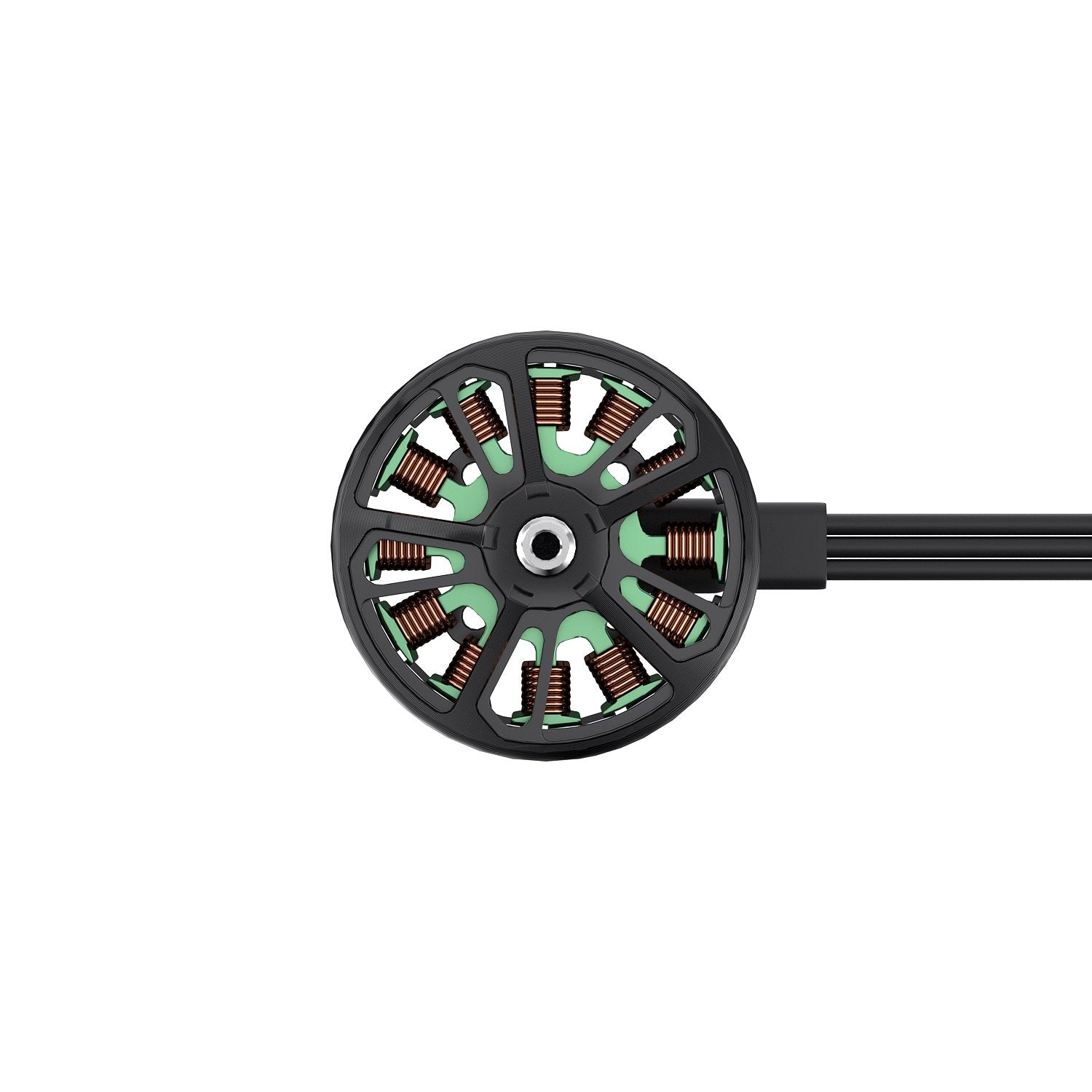

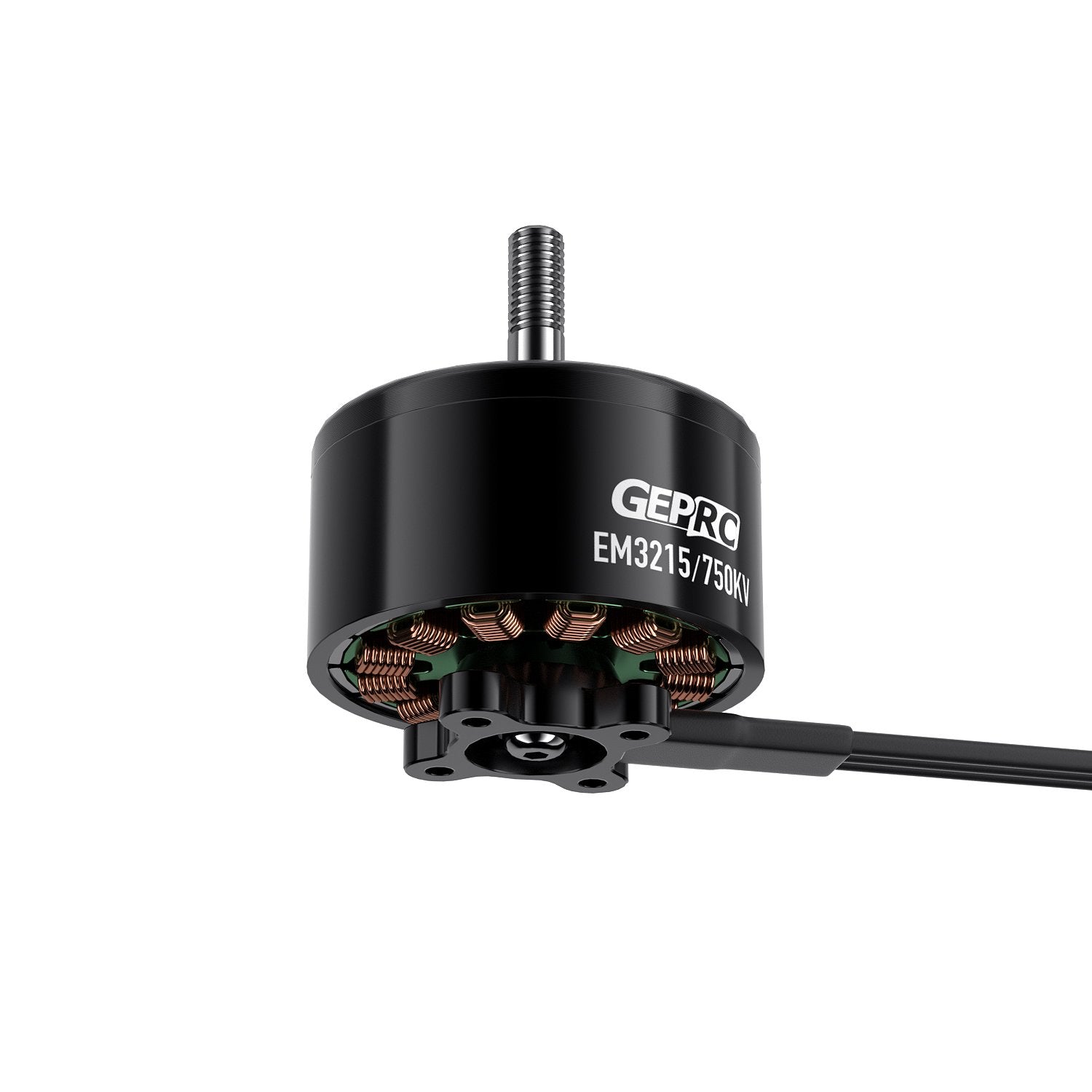

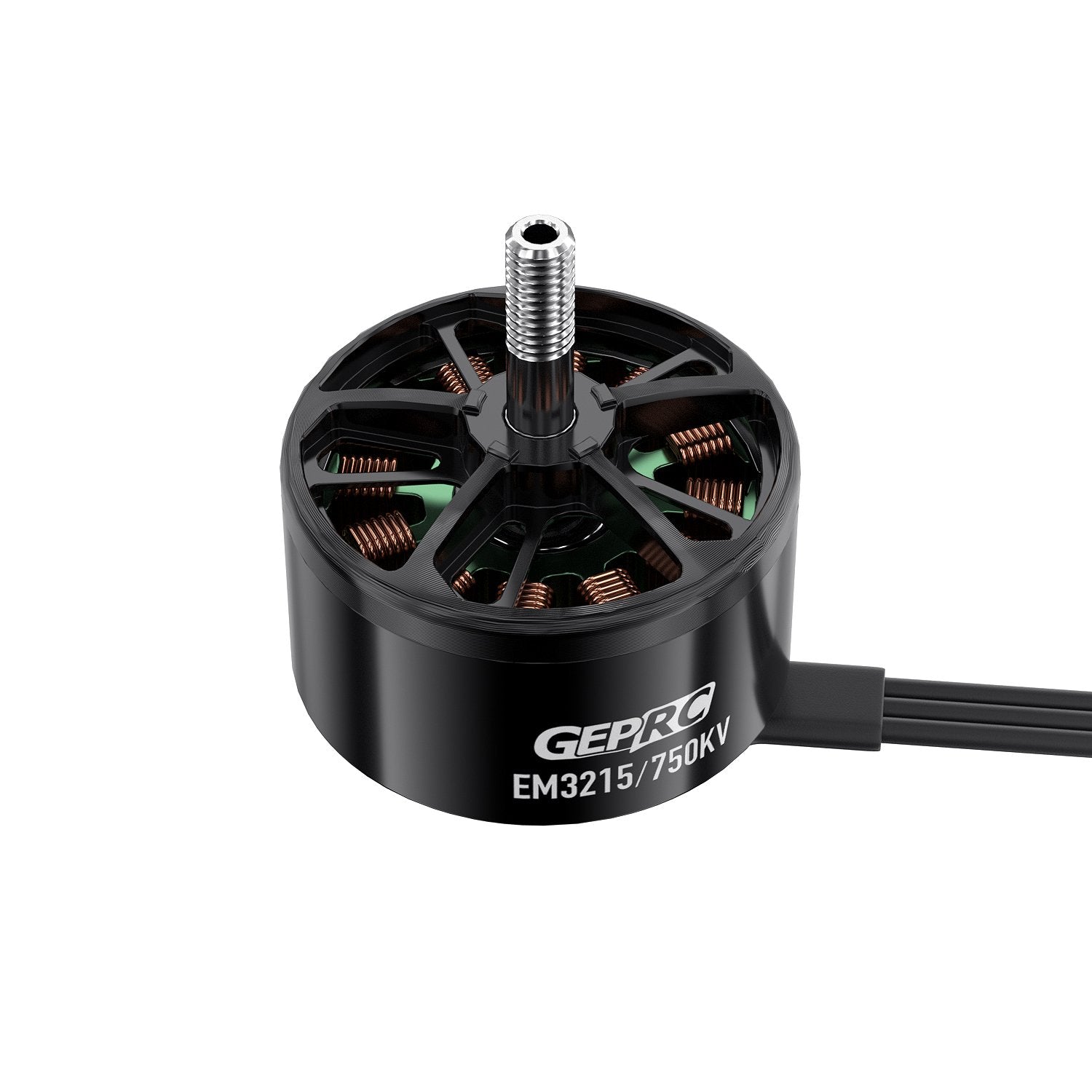

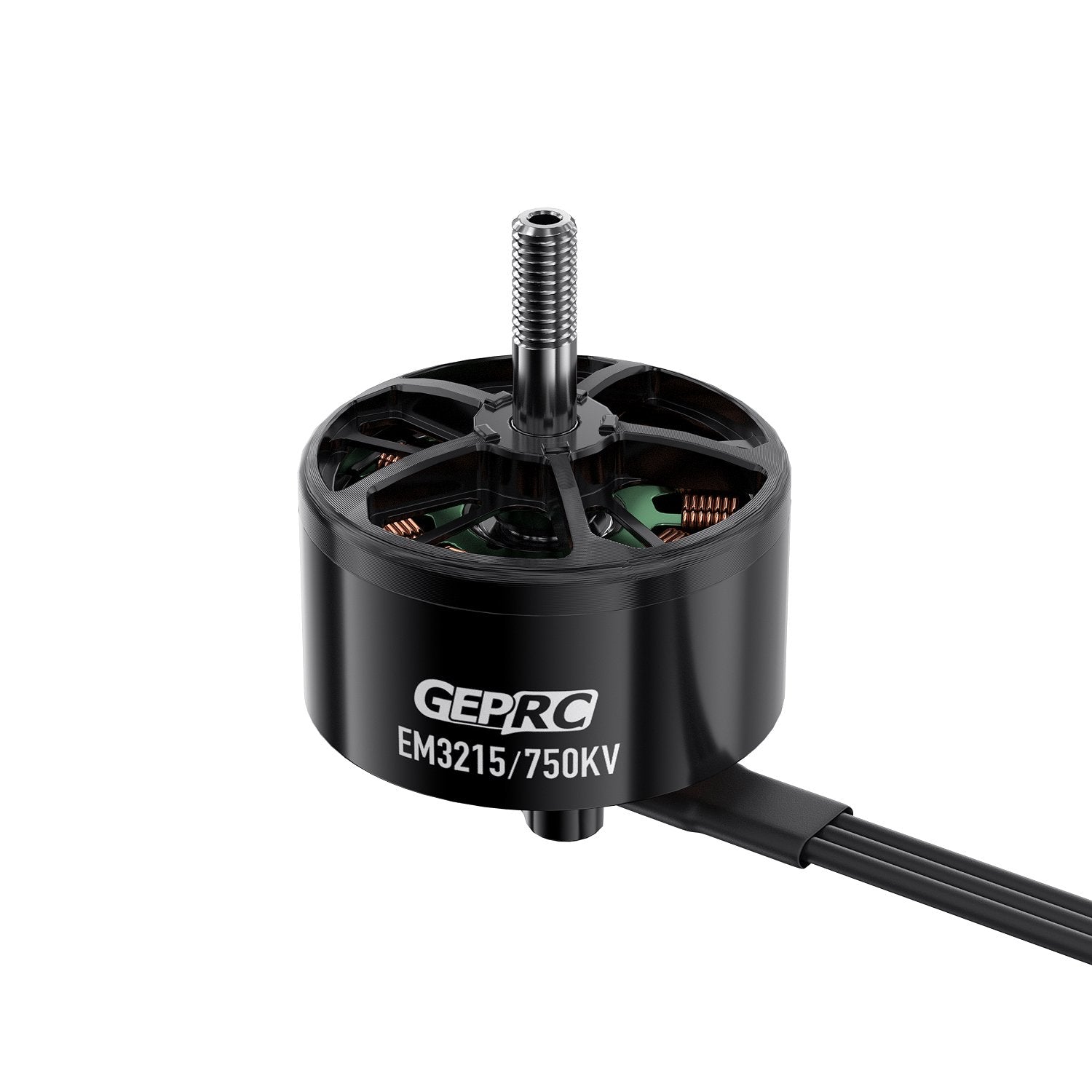

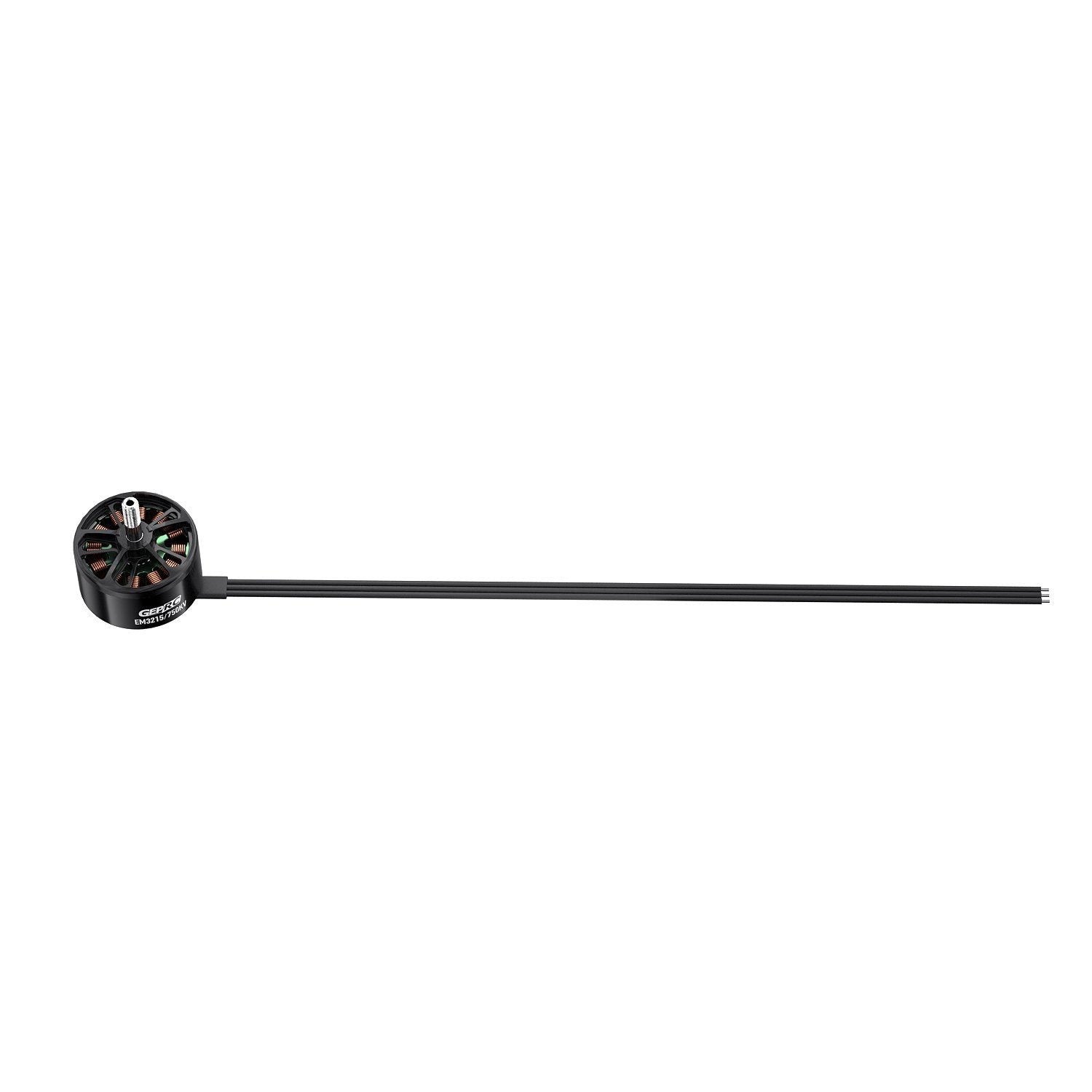

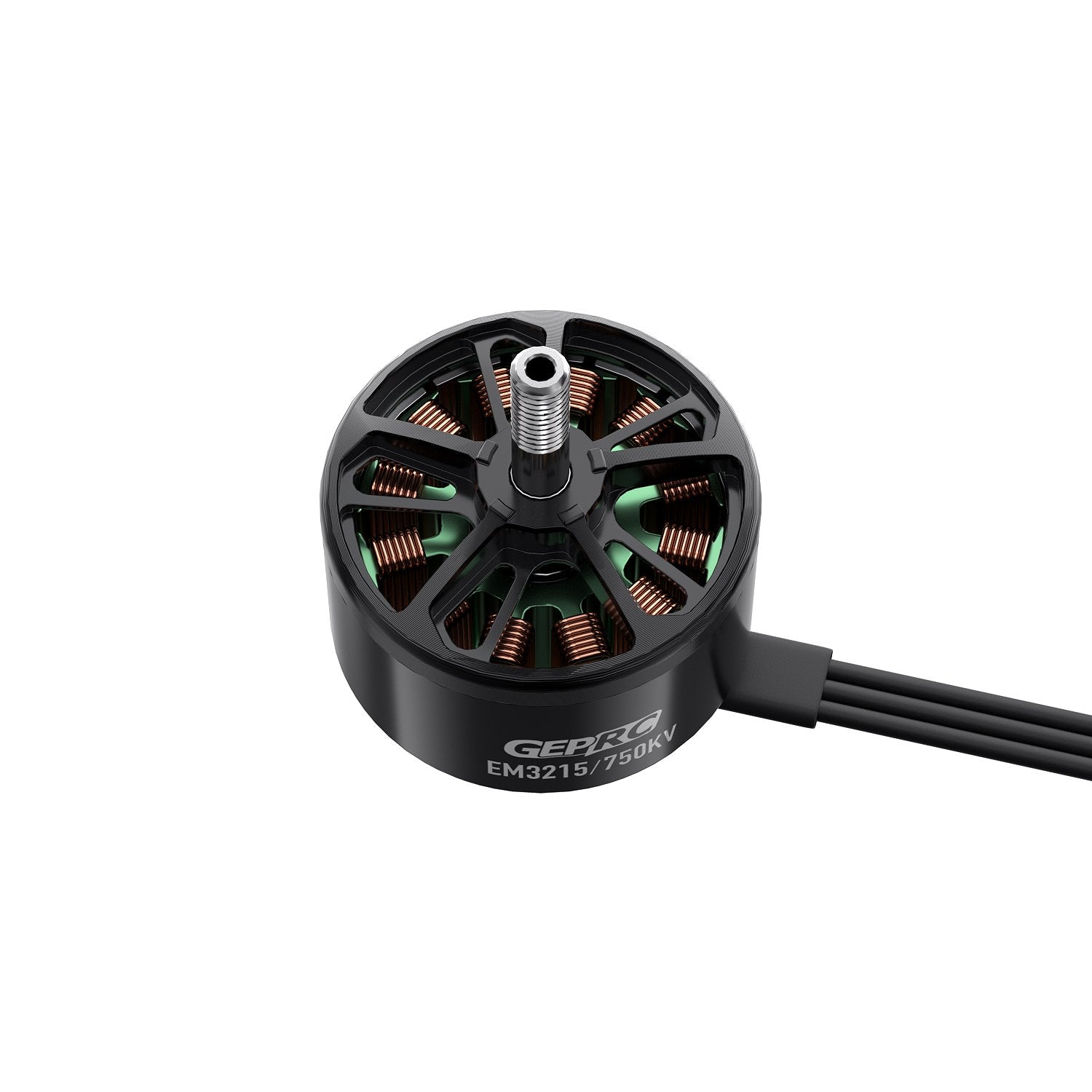

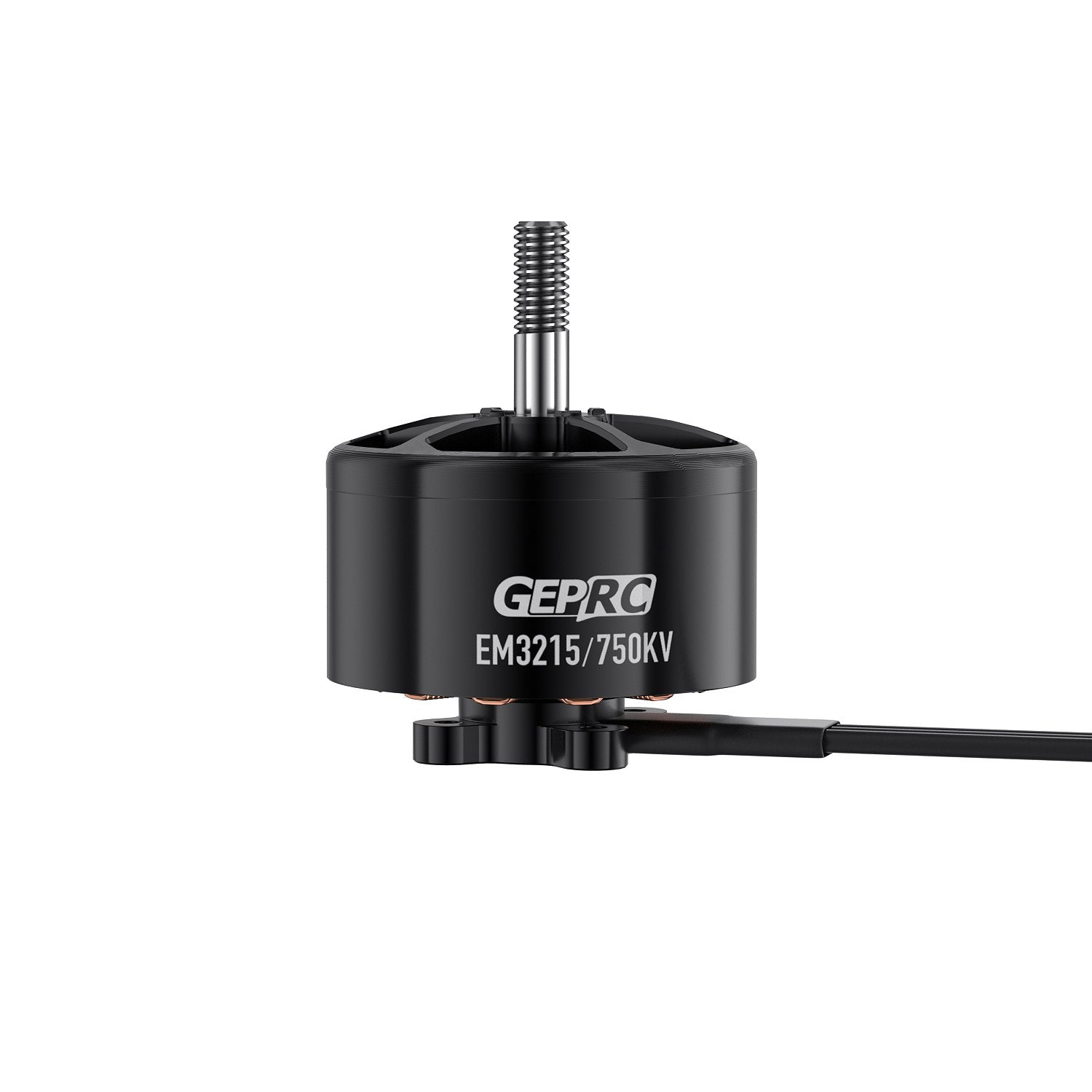

GEPRC EM3215 750KV Motor
Features:
- New series of EM motors, designed for long range FPV
- High quality M5 steel shaft
- High torque magnetic circuit design
- 19mm x 19mm base
Specifications:
- EM3215 750KV
- Model: EM3215 750KV motor
- KV: 750KV
- Maximum power: 1450W
- Peak current: 61A
- Resistance between phases: 43mΩ
- Propeller: 10 inch propeller
- Magnet: N52H
- Bearing type: NMB
- Configuration: 12N14P
- Dimension: φ38.6mm x 30.7mm
- Shaft diameter: φ5 mm
- Length of protruding shaft: 17.2 mm
- Size of mounting holes: 19 mm x 19 mm
- Wire: 300mm/18AWG
- ESC: 60A-80A
- Input voltage: 25.2V (6S LiPo)
- Winding: Multi-strand copper winding
- Screws included: Ball head M3*8 (4 pieces) / M5 nut (1 piece)
- Weight (including wire): 122g
- Compatible models: 10 inch long range FPV
Contains:
- 1 x EM3215 motor
- 4 x M3*8 ball head screws
