    Code: GP106332

    Motor GEPRC EM2807 1350KV

    Motor GEPRC EM2807 1350KV

    Brand: GEPRC

    €17,69
    €17,69 €17,69
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

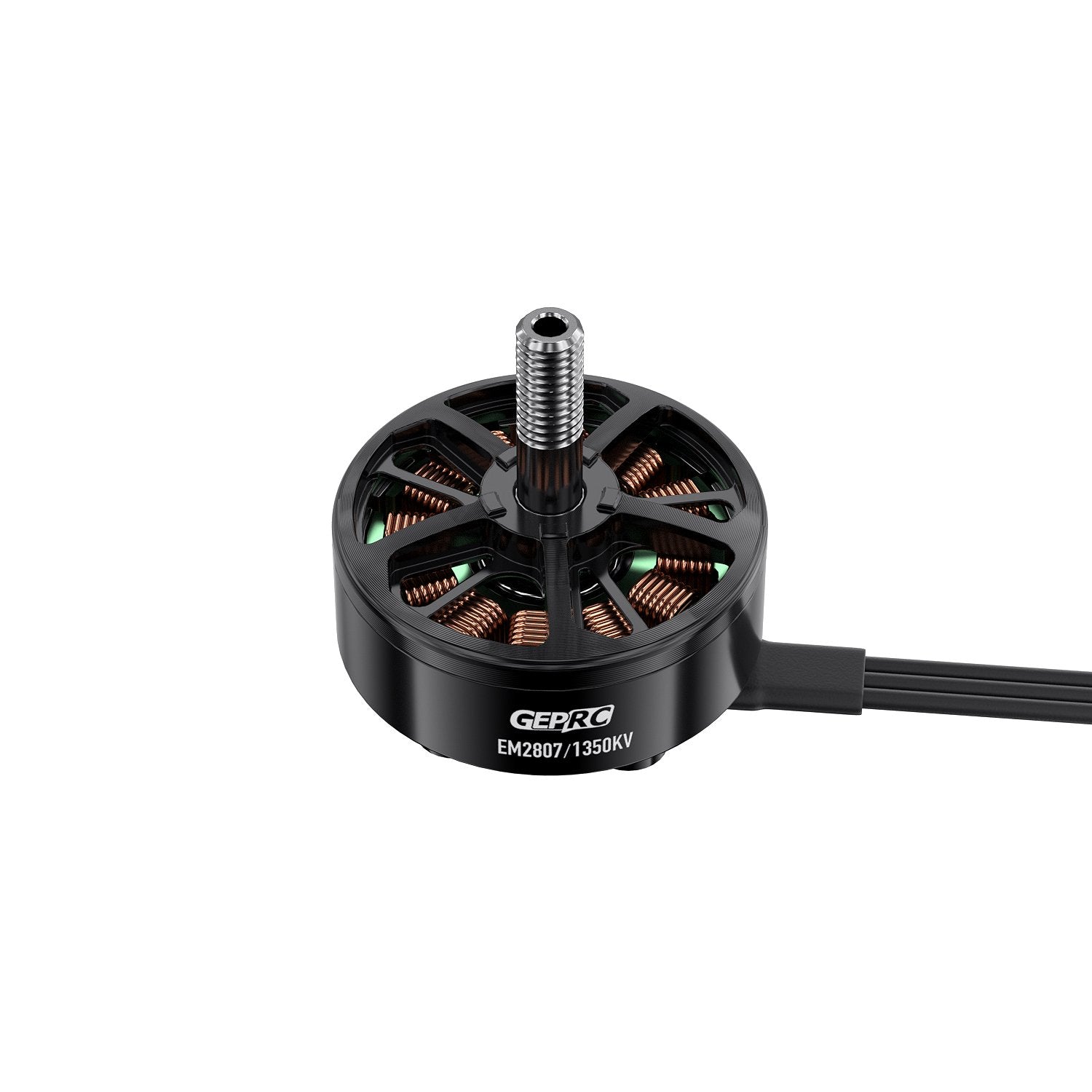

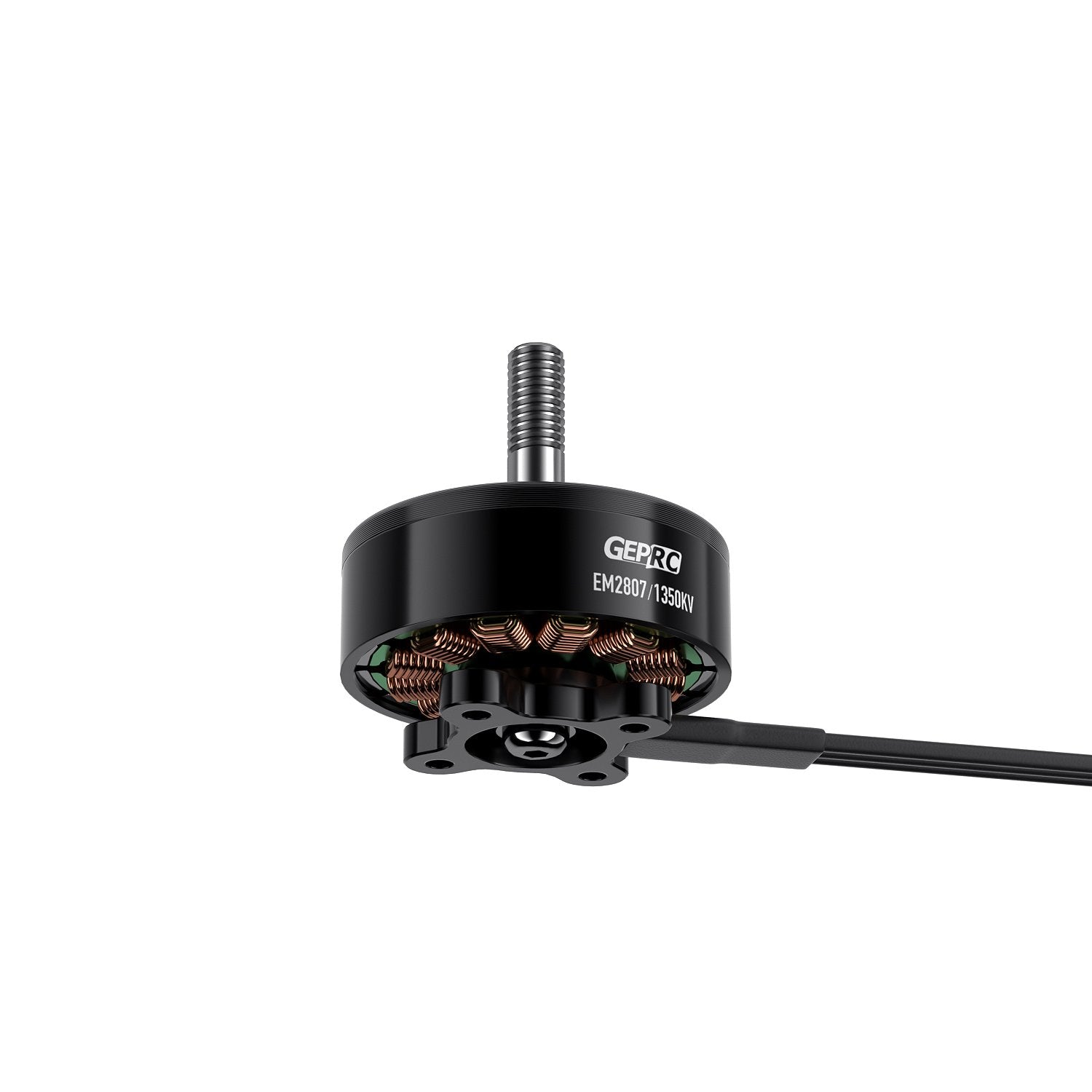

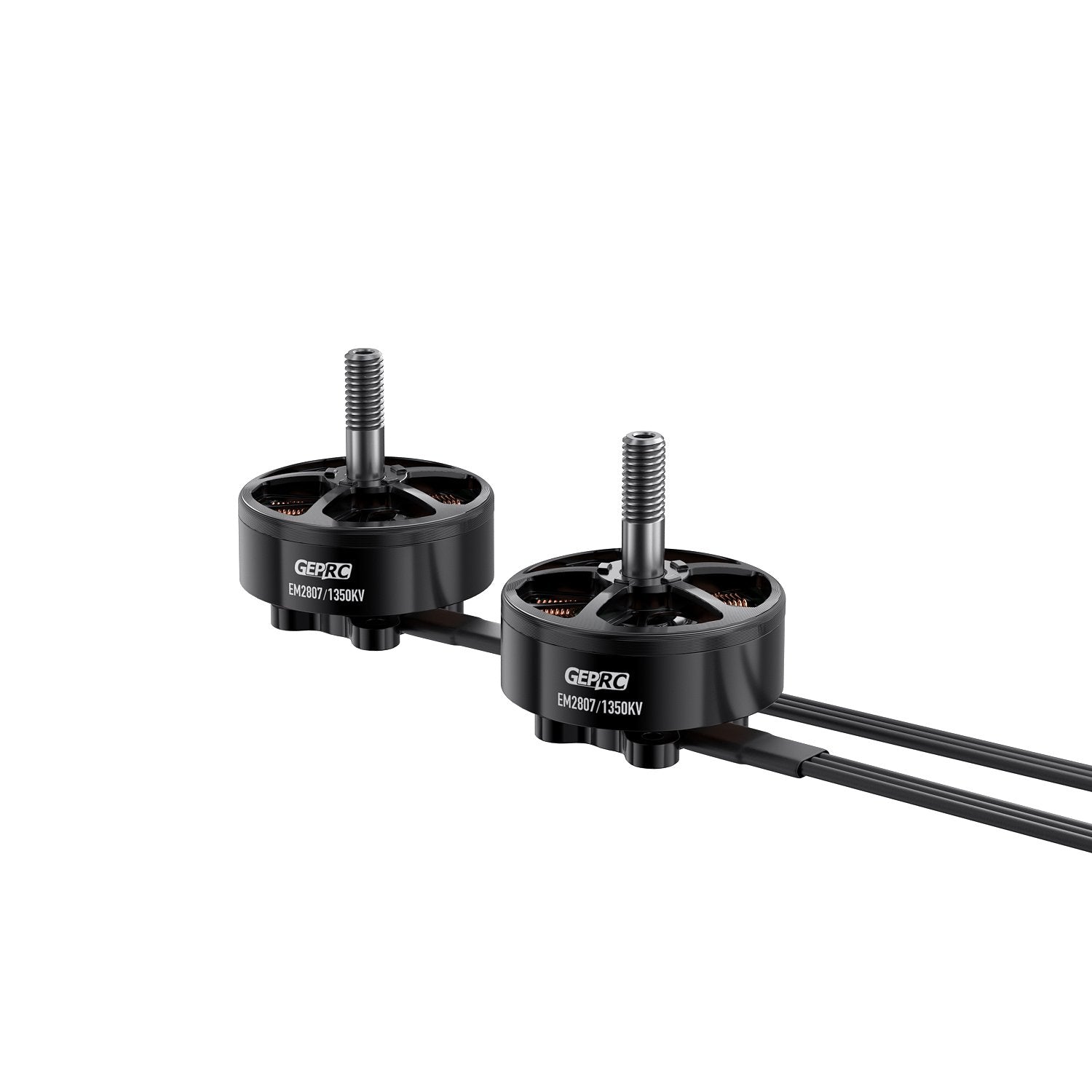

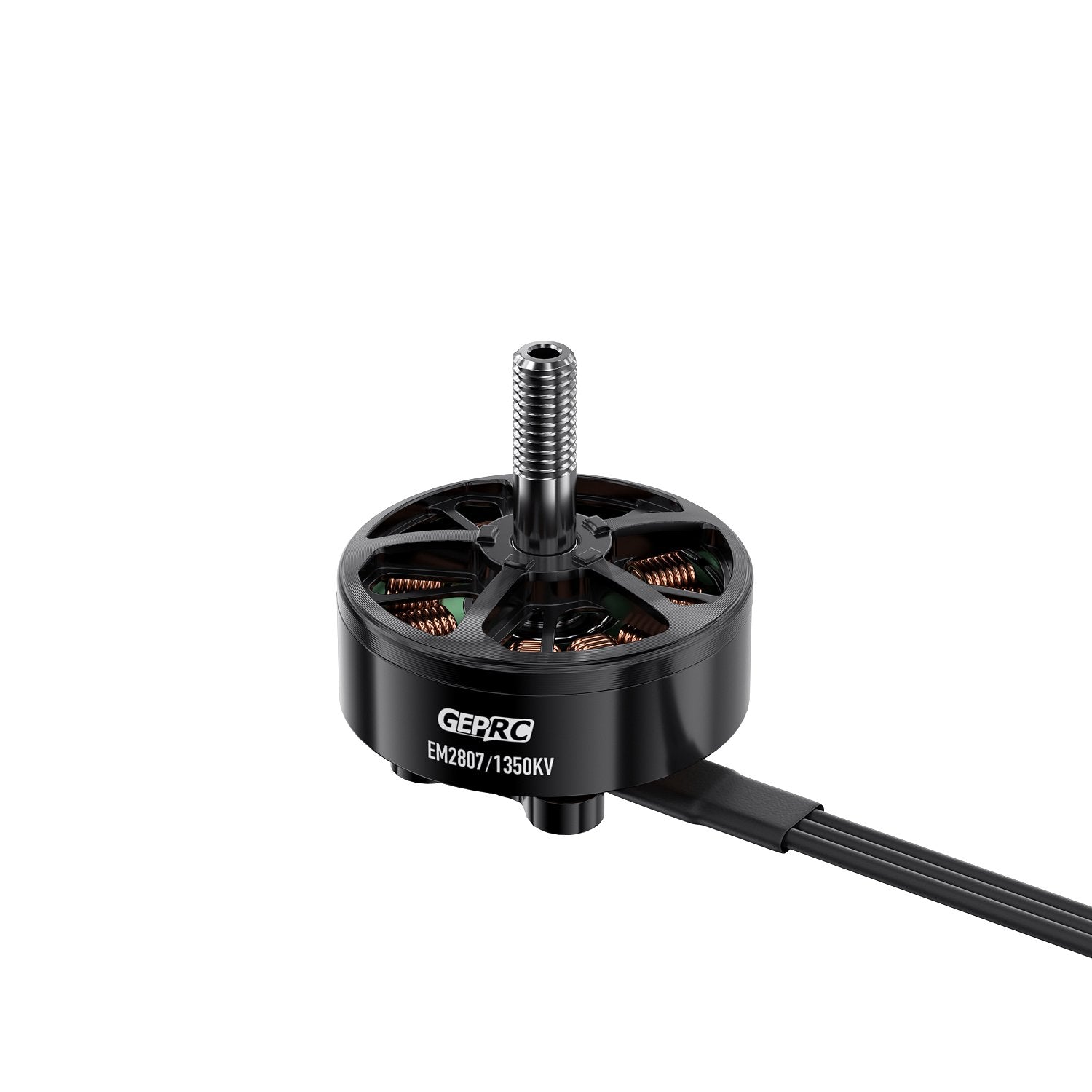

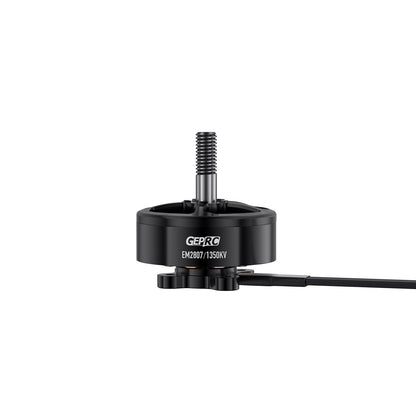

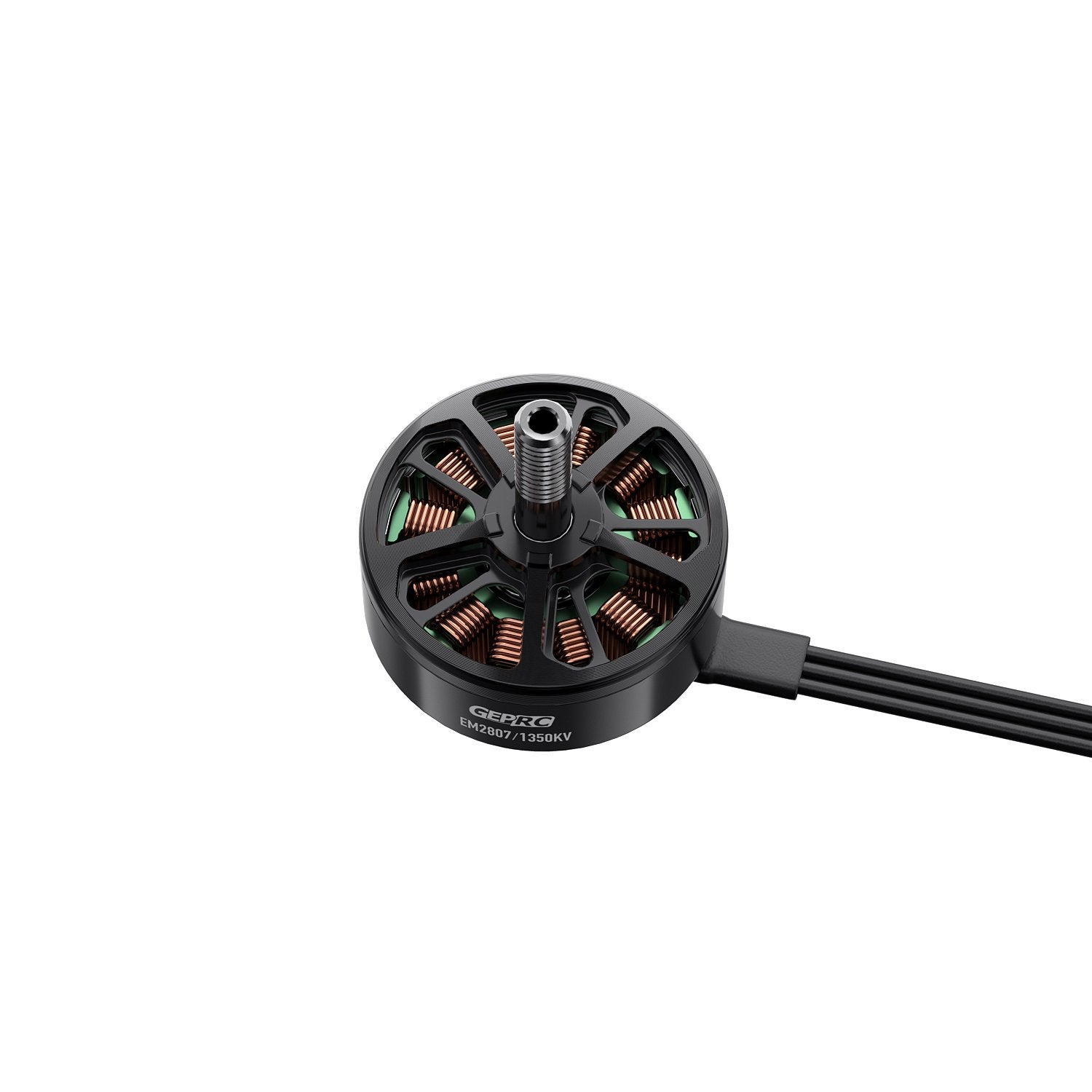

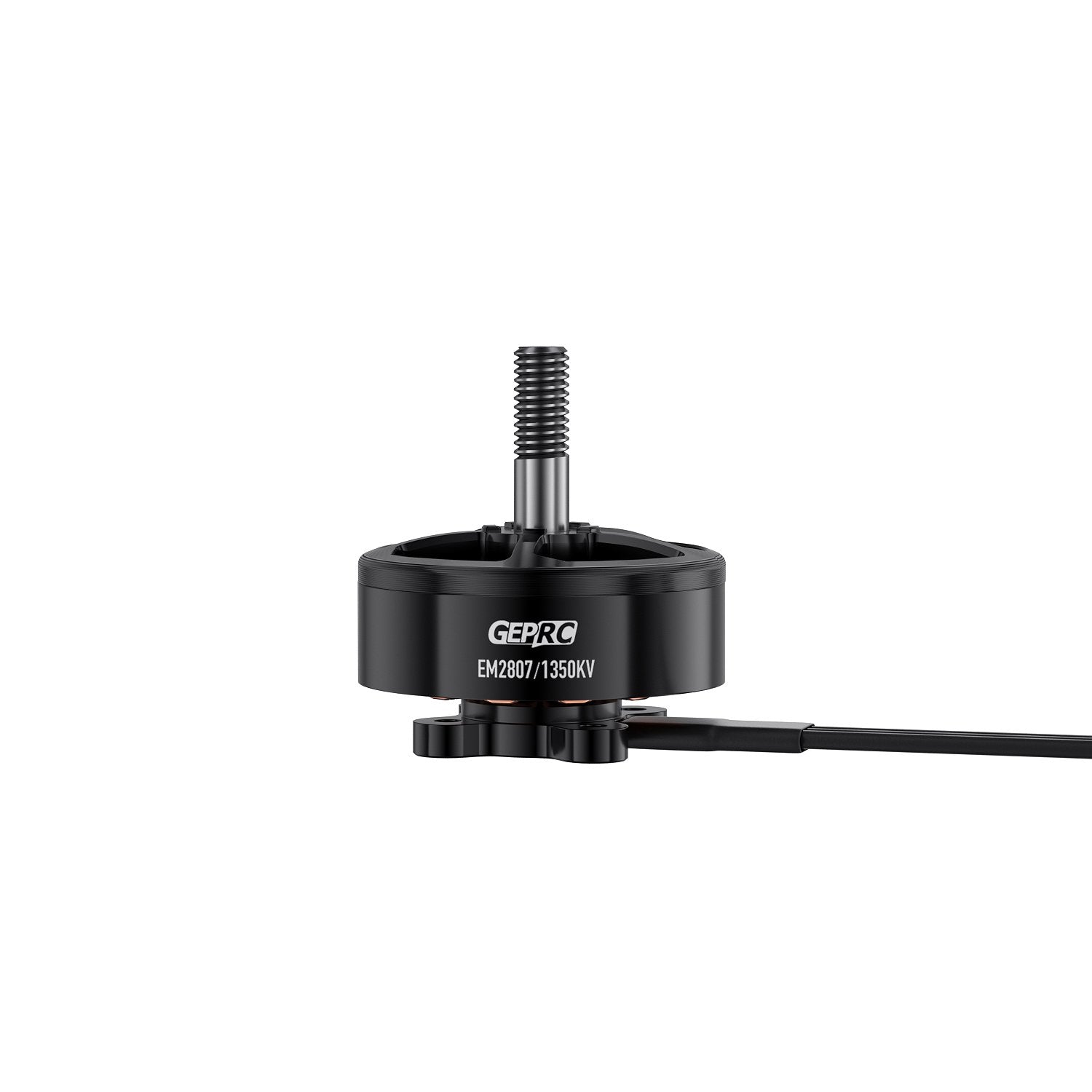

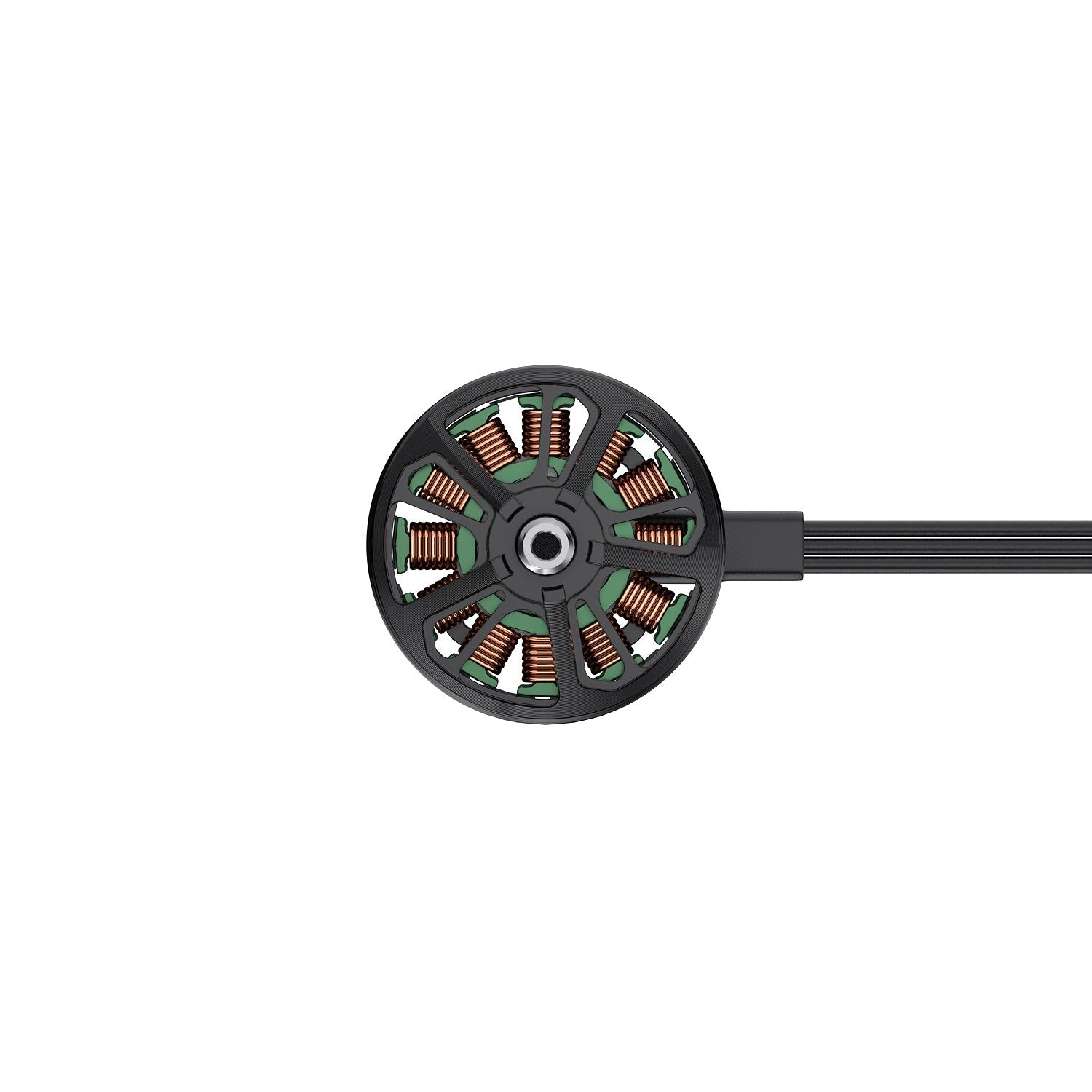

    GEPRC EM2807 1350KV motor

EM series motors are designed for long range FPV drones. They have M5 high strength steel shaft and high torque magnetic circuit design.

Specifications

Model: EM2807 1350KV motor
KV: Motor 1350KV
Maximum power: 1080W
Peak current: 47A
Interphase resistance: 45mΩ
Propeller: 6-8 inch propeller
Magnet: N52H
Bearing type: NSK/NMB
Configuration: 12N14P
Size: φ33mmx20.1mm
Shaft diameter: φ5mm
Length of protruding shaft: 16 mm
Mounting holes: 19mm x 19mm
Lead: 260mm/18AWG
ESC: 50A-60A
Input Voltage: 25.2V (6S LiPo)
Winding: Single-core copper winding
Weight: 57g (including wire)
Suitable for: 7-8 inch long range FPV

The package includes:
1x EM2807 motor
4 x M3*9 round head screws
1 x M5 anti-slip nut
