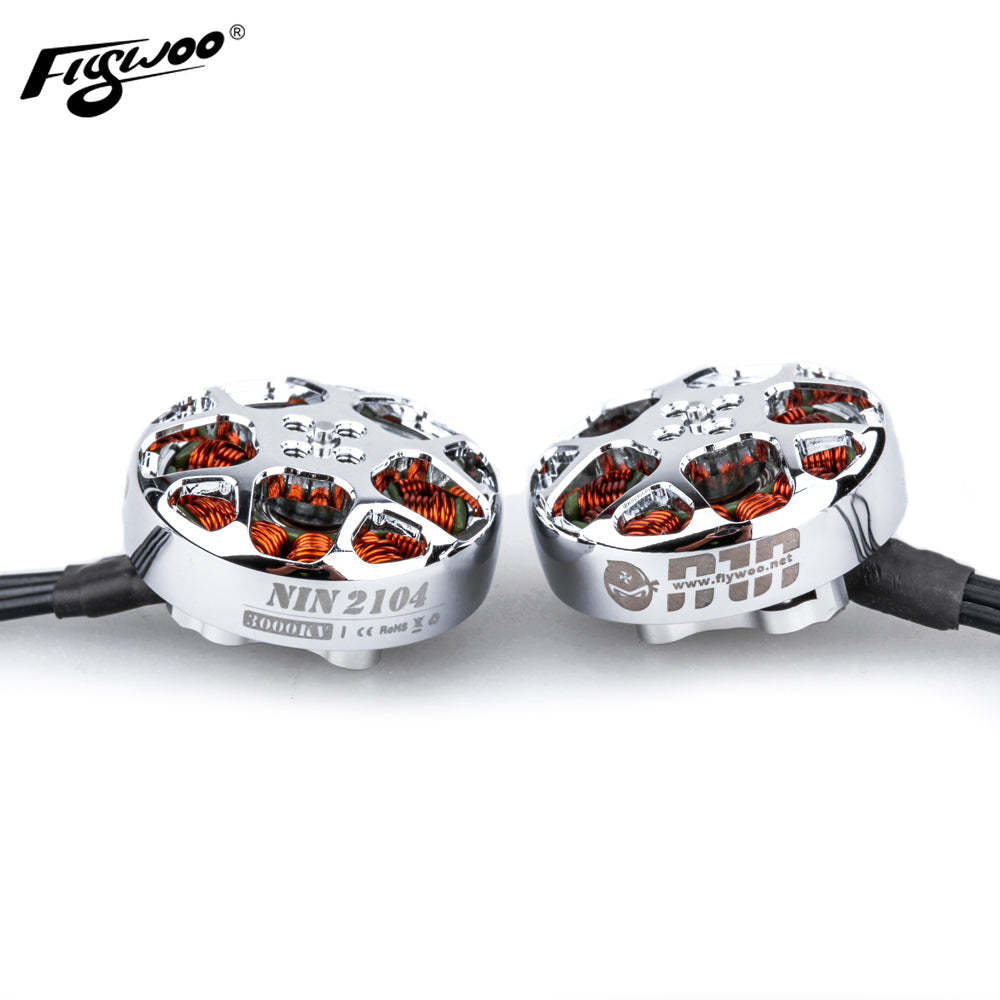

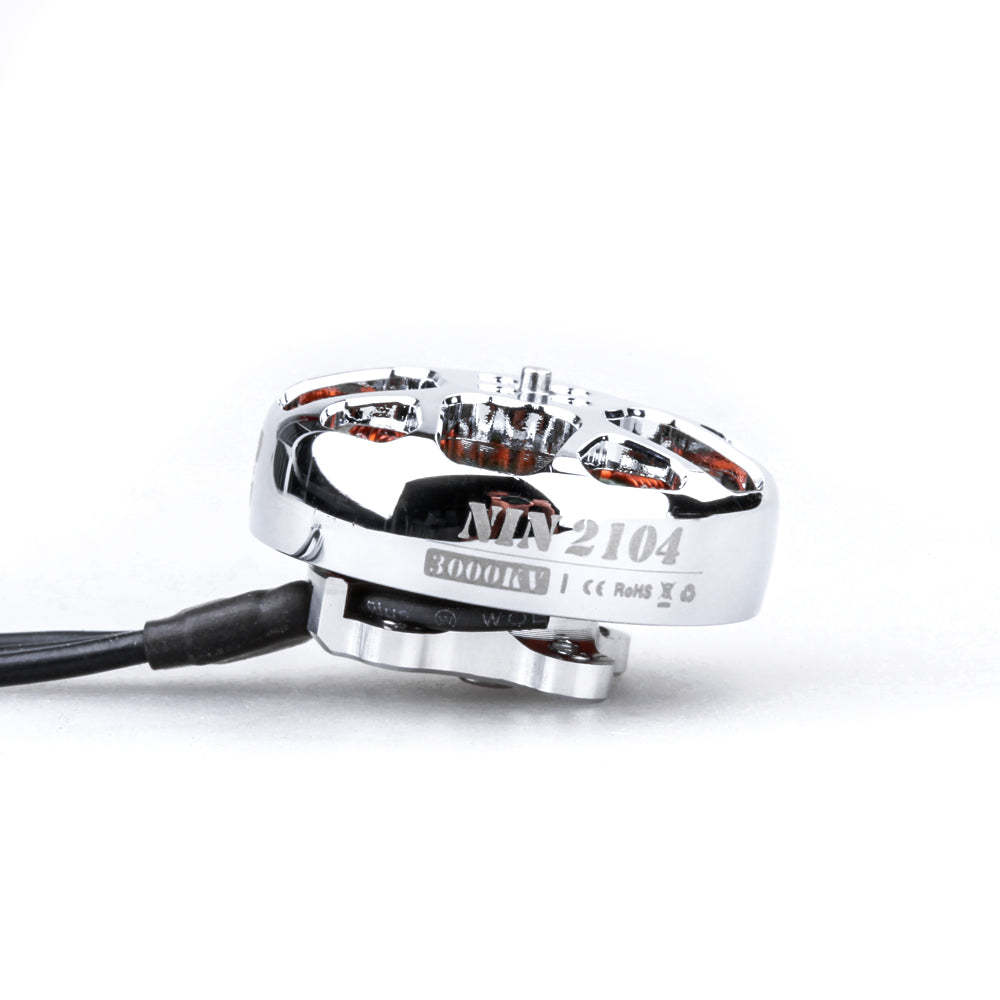

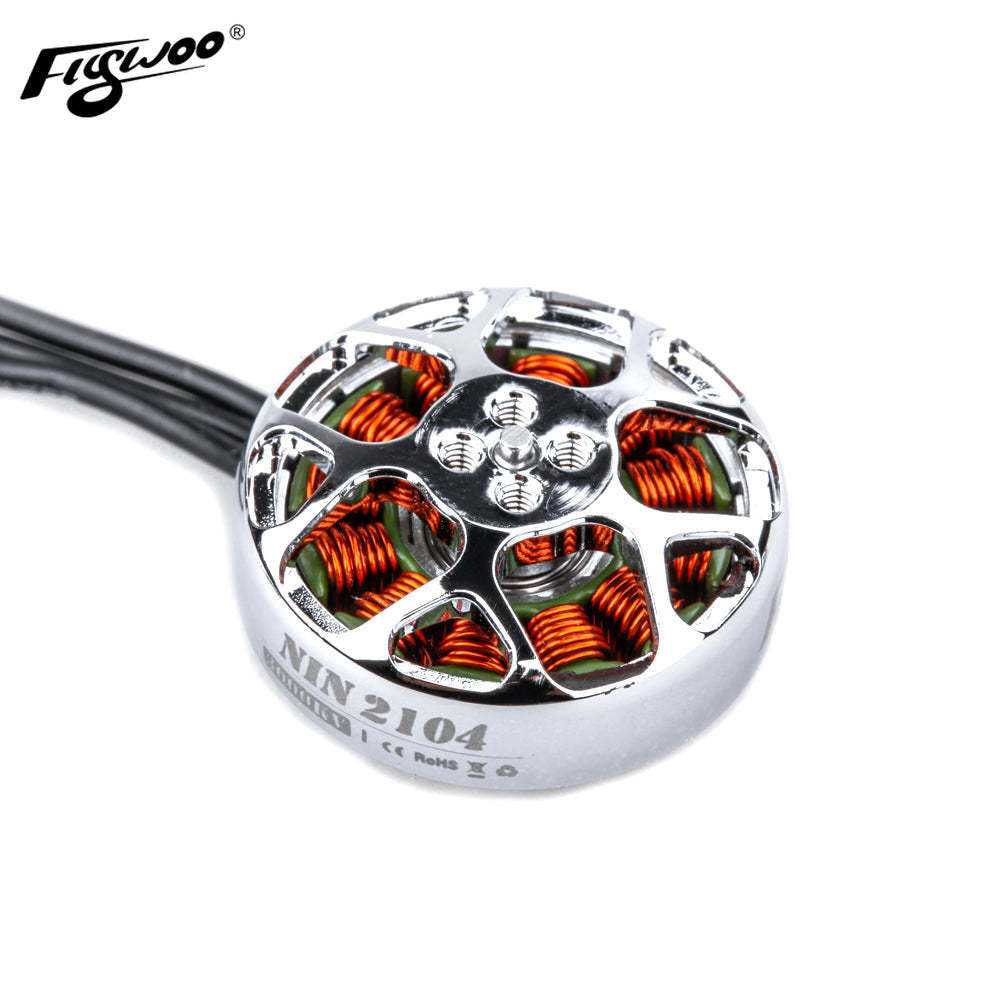

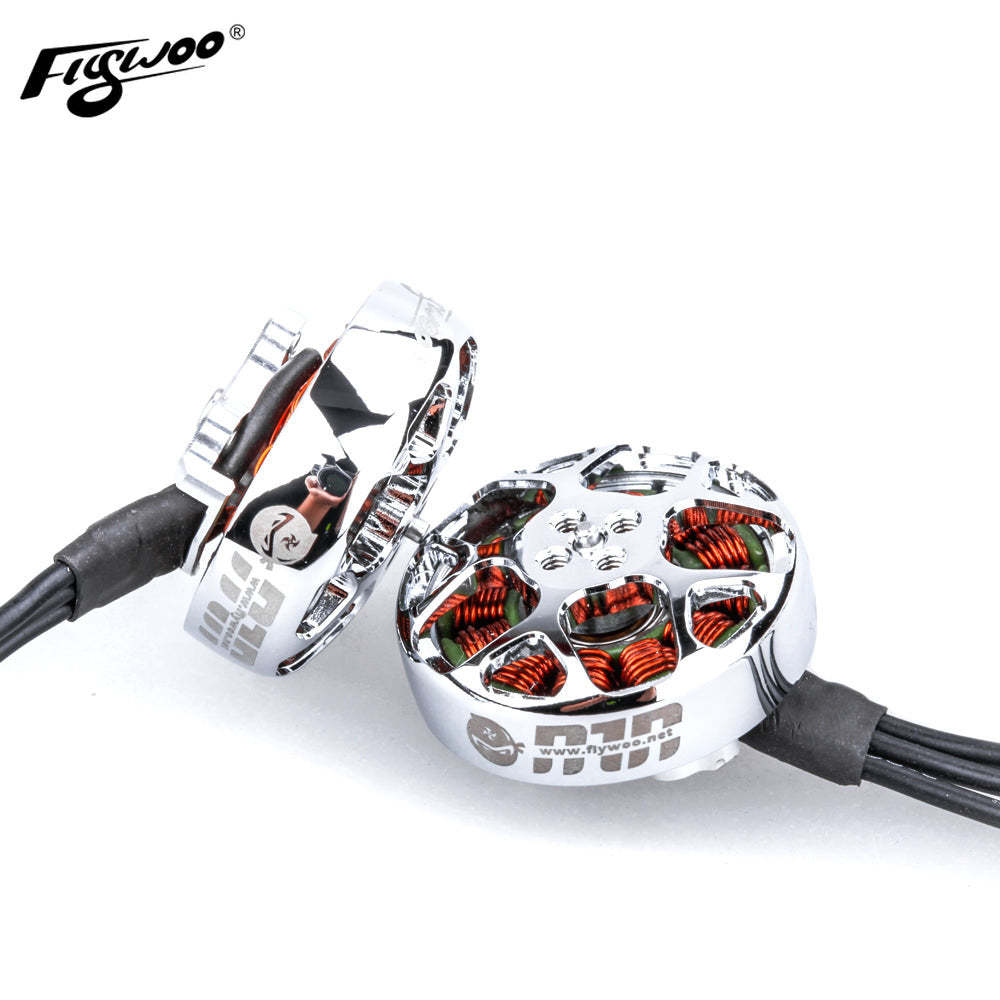

Flywoo Nin V2 2104 3000KV motor The Flywoo NIN V2 2104 3000KV motor is designed for top performance in freestyle FPV and combines a lightweight design with exceptional performance. Featuring unibell construction and a stylish electroplated finish, this motor features high quality N52H curved magnets and precision Japanese NSK bearings for smooth and efficient operation. It supports 3S-4S LiPo configurations and delivers up to 581W of continuous power with excellent throttle response. Its light weight of only 16g makes it ideal for agile and responsive quadcopters. Whether you're aiming for cinematic shots or tight freestyle tricks, the NIN 2104 3000KV will give you the control and power you need. Specifications: KV: 3000KV Configuration: 12N14P Stator diameter: 21 mm Stator length: 4 mm Shaft diameter: 3mm (inner), 1.5mm (outer) Engine dimensions: 25.57 x 13.5 mm Weight: 16g (with 3cm wire) Quiescent current at 10 V: 0.9 A Input voltage: 3-4S LiPo Maximum continuous power (3S): 581 W Maximum current (3S): 36.3 A Maximum current efficiency: 2.5-5 A (>85%) Internal resistance: 110 mΩ Bearings: NSK (Japan) Magnet: Curved N52H The package contains: 1 × Flywoo Nin V2 2104 3000KV Motor
