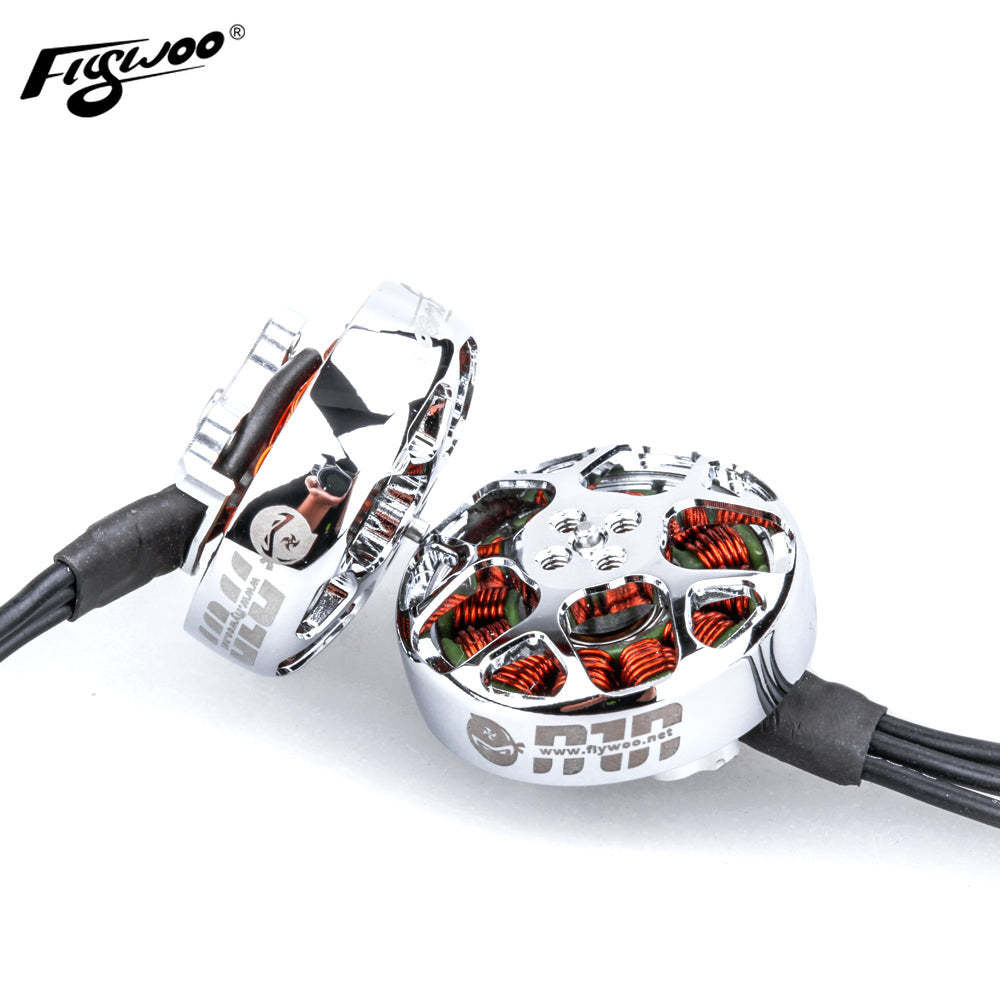

Flywoo Nin V2 2104 1800KV motor The Flywoo NIN V2 2104 1800KV is a high performance ultralight brushless motor built for demanding FPV freestyle pilots and racing pilots. Thanks to the unibell's precision construction and galvanic finish, it offers stunning aesthetics and excellent durability. The motor features Japan-made NSK bearings and N52H curved magnets for smooth running and high torque. Weighing just 16g, it supports 4S to 6S LiPo configurations and delivers over 500W of continuous power. Designed with reliability and efficiency in mind, the NIN 2104 V2 motor is ideal for agile, power-hungry builds where every gram and millisecond matters. Specifications: KV: 1800KV Configuration: 12N14P Stator diameter: 21 mm Stator length: 4 mm Shaft diameter: 3mm (inner), 1.5mm (outer) Engine dimensions: 25.57 x 13.5 mm Weight: 16g (with 3cm lead) Idle at 10V: 0.5A Input Voltage: 4-6S LiPo Maximum continuous power (3S): 533 W Maximum current (3S): 22.2 A Maximum current efficiency: 0.6-2A (>86%) Internal resistance: 210 mΩ Bearings: NSK (Japan) Magnet: Curved N52H The package contains: 1 × Flywoo Nin V2 2104 1800KV motor
