    Code: 0101096020

    Motor Emax ECO II 2306 2400KV

    Motor Emax ECO II 2306 2400KV

    Brand: Emax

    €15,99
    €15,99 €15,99
    -0% View Product
    In stock
    Limited stock available. Order soon!
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

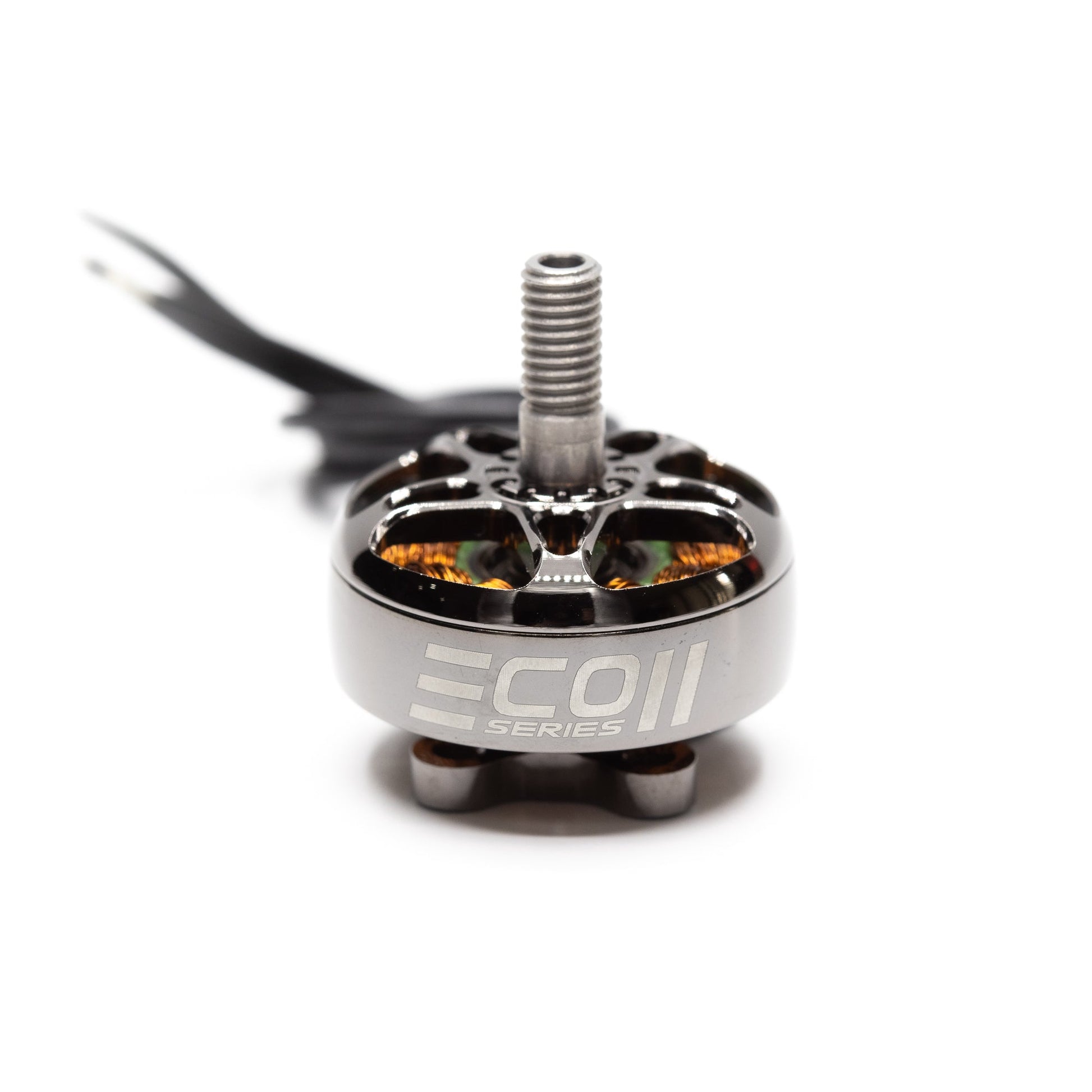

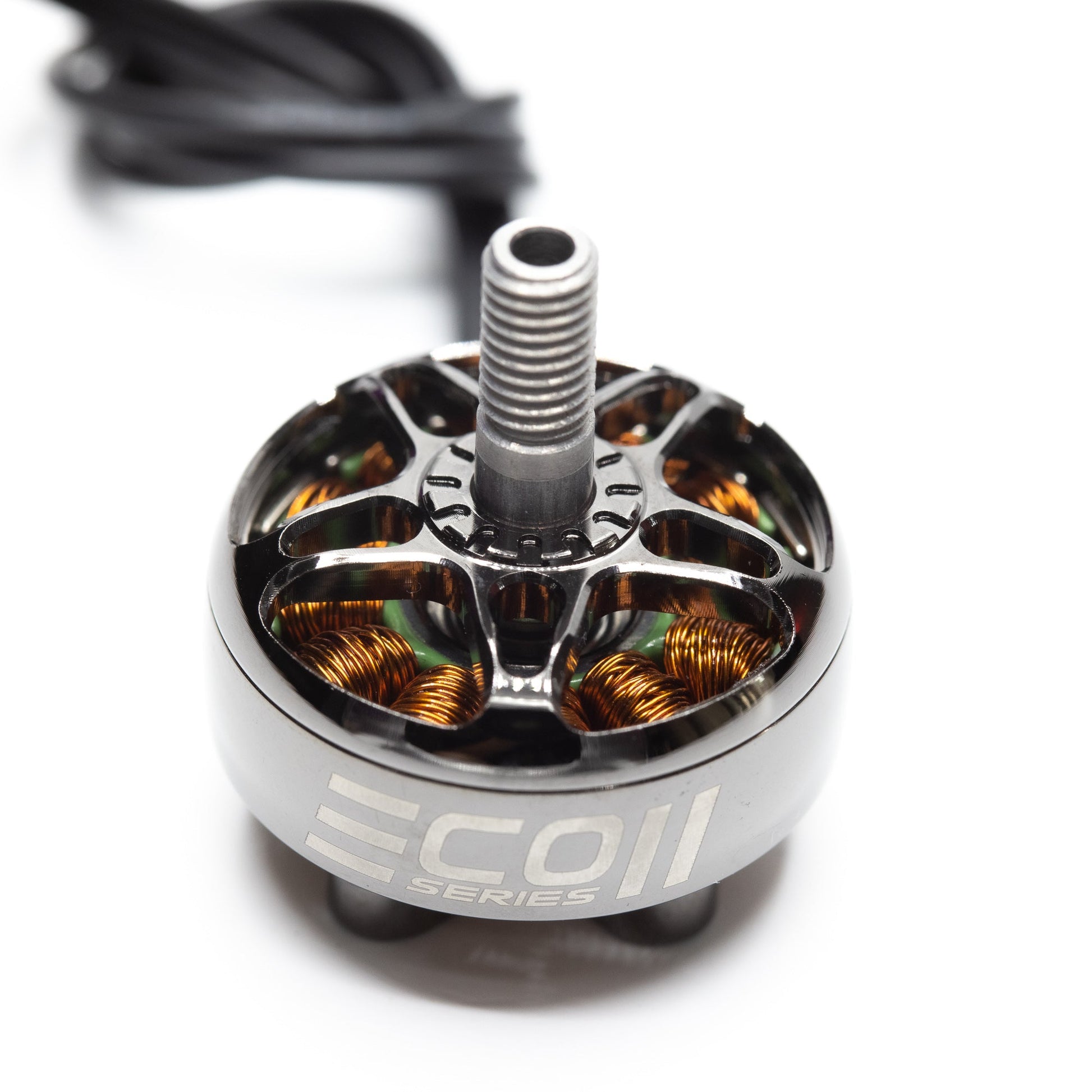

    ECO II 2306 2400KV

Emax ECO II Series 2306 brushless motors with improved performance and durability are compatible with 5-6 inch propellers. They are perfect for freestyle racing and film drones with HD cameras. Emax ECO II offers three variants: 1700KV, 1900KV, 2400KV.

Function:
- All new design with rounded bell and stronger attachment points for increased durability.
- Improved N52SH curved arc magnets for tighter air gap and better performance.
- EZO 9mm bearing for smooth operation.

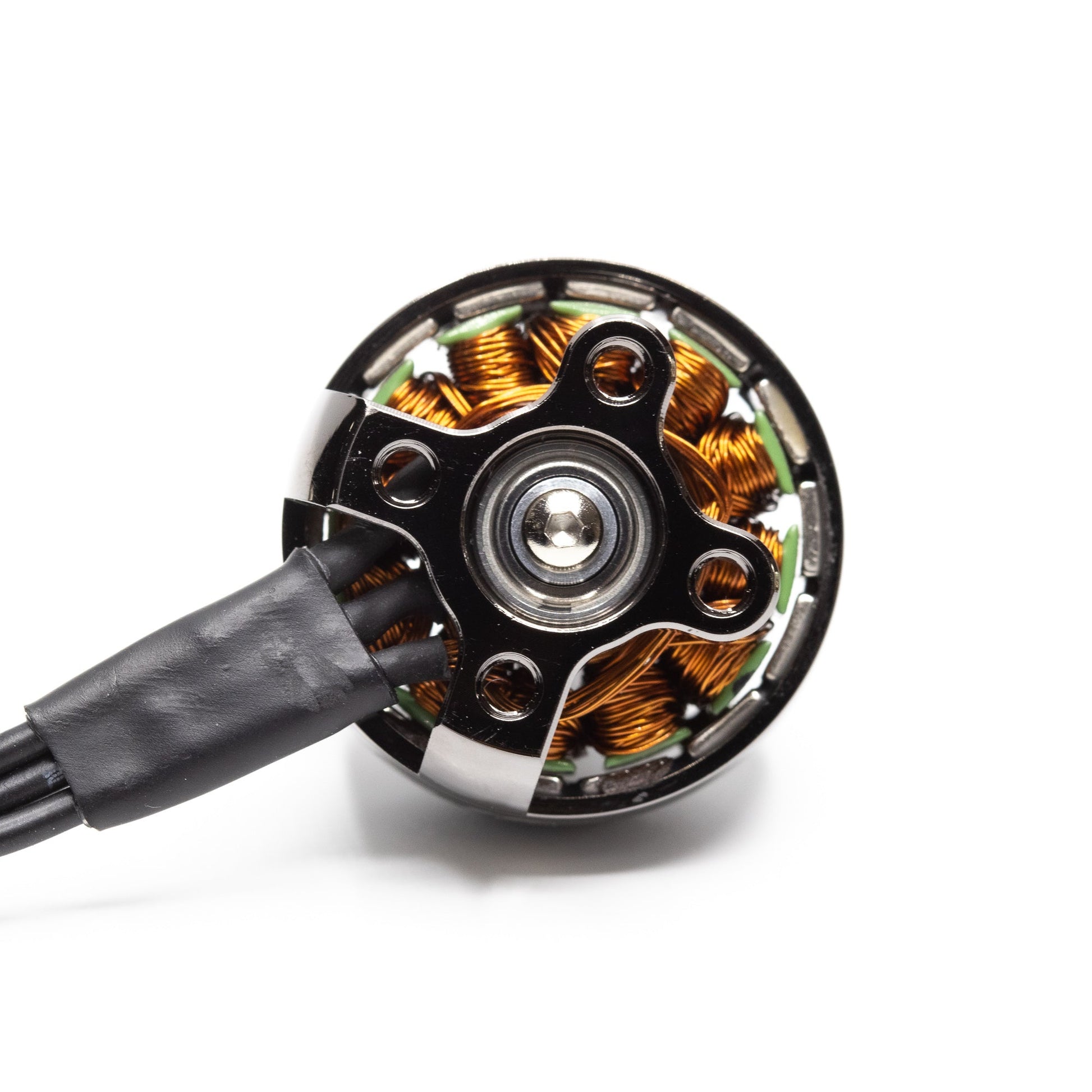

- Motor mounting 16x16mm

Specifications:
Motor KV: 2400KV
Length: 31.6 mm
Diameter: 28mm
Frame: 12N14P
Propeller Adapter Shaft Diameter: M5
Terminal: 20#AWG 120mm
Weight: 30.2g
No load current (10V): 1.8A
Internal resistance: 47mΩ
Number of articles: 3-4S
Propeller: 5-5.5 inches
Peak current (6S): 44A
Maximum power (6S): 740W
Mounting holes: 16x16mm

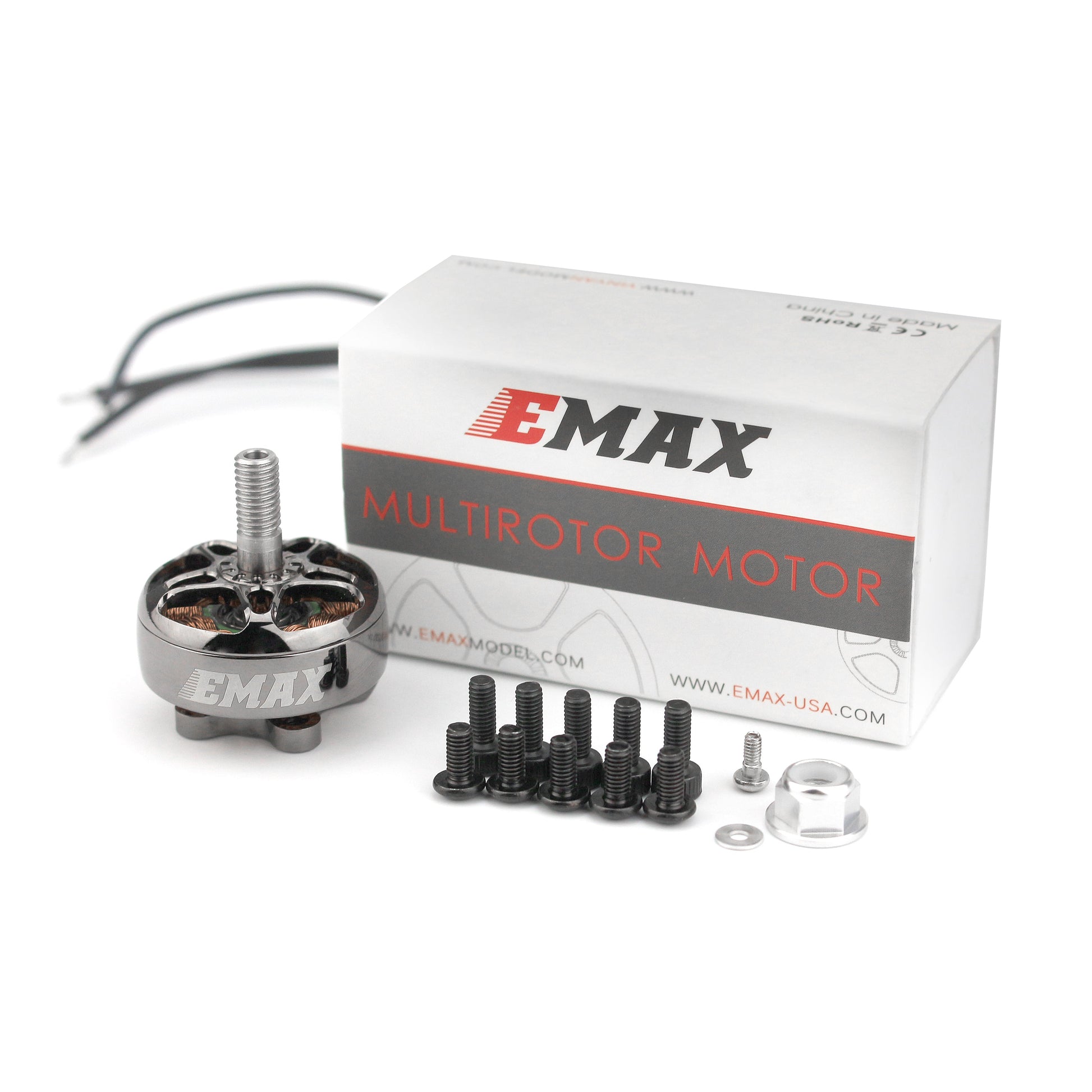

The package includes:
1x 2306 motor 2400KV
5x МЗ*8 Ѕсrеw
5x M3*7 screw
5x МЗ*6 Ѕсrеw
1x M5 aluminum nut
1x washer and screw for the shaft
