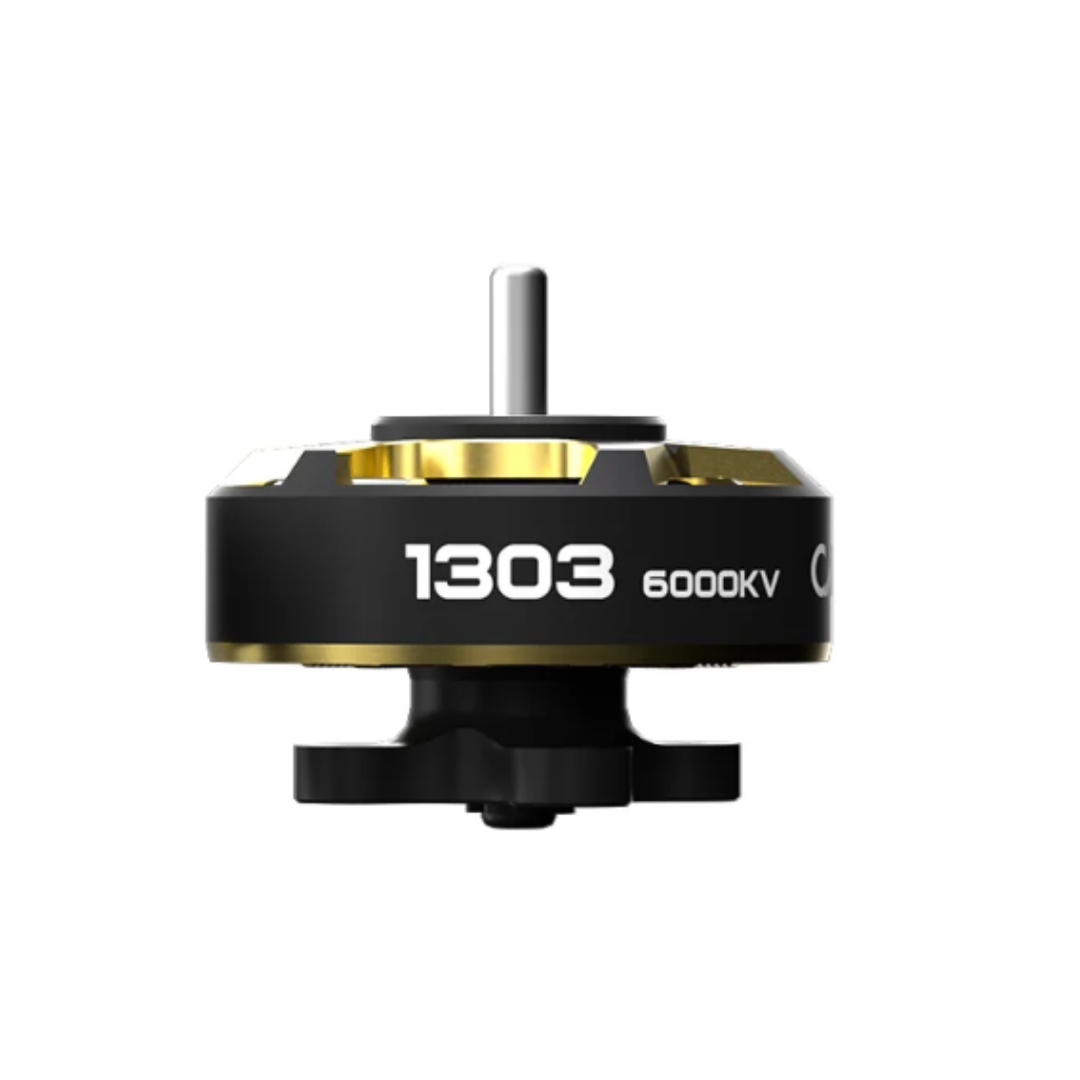

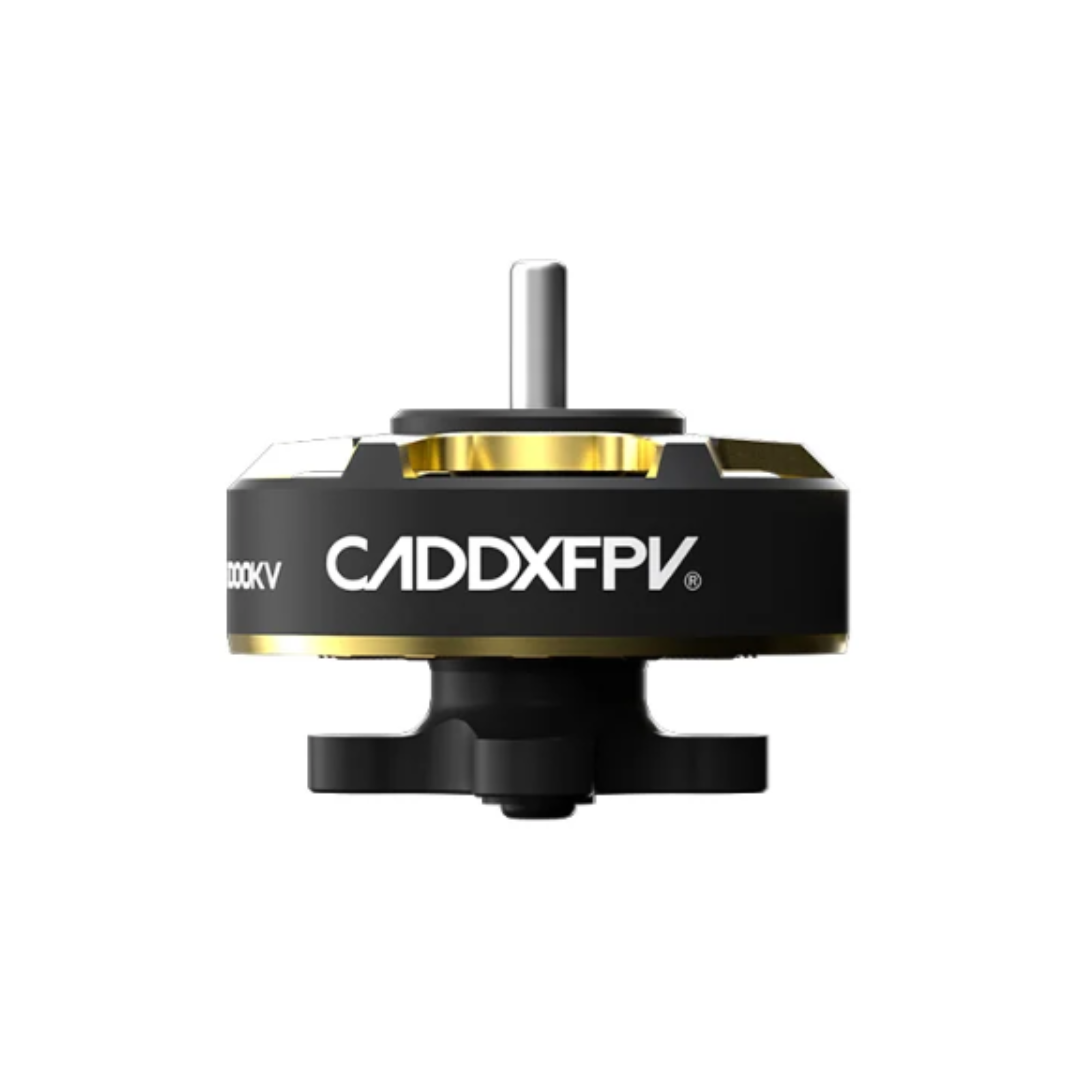

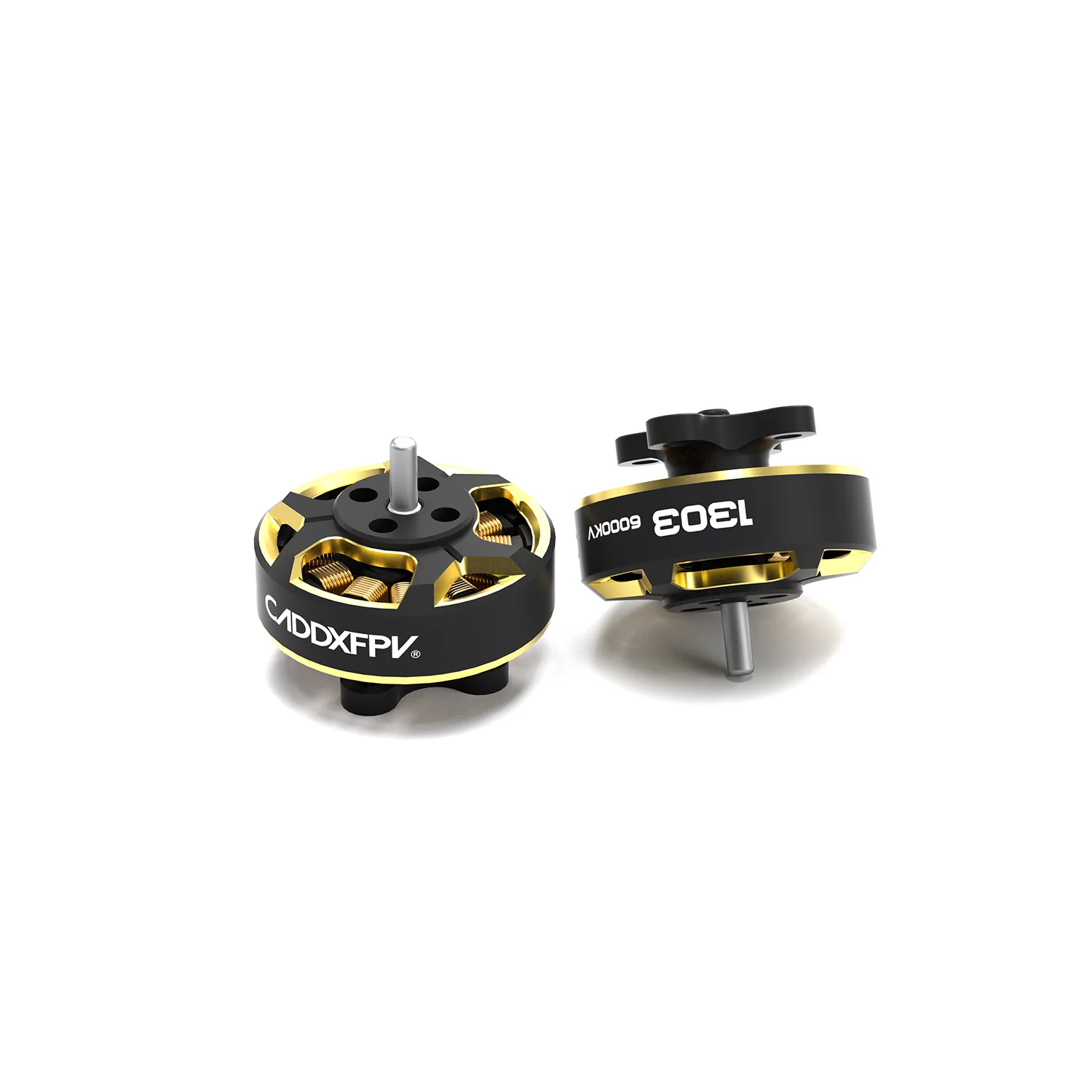

CADDXFPV 1303 6000KV Brushless motor
The CADDXFPV 1303 engine is an ideal candidate for lightweight 2S to 4S assemblies. It can be assembled using conventional one-shot injection molding for use with 2-inch propellers. And take it to the next level with our GoFilm 20 Brushless Whoop Quadcopter. The CADDXFPV T2-2-3 3-bladed 1.3mm shaft propellers will be the best match for the CADDXFPV 1303 Brushless Motors, forming a highly efficient propulsion system that guarantees strong flight capabilities and reduced noise levels. Perfectly matched with the Super F405HD ELRS AIO, this engine will bring pilots a powerful flight experience.
Specifications:
Model: 1303 6000KV Brushless Motors
KV: 6000
Configuration: 12N14P
Stator diameter: 13mm
Stator length: 3.2mm
Shaft diameter: 1.5mm
Motor dimensions: Ф 16.5*10.1mm
Weight(g): 5.6 (5cm wire)
Idle current(5)@5V(A): 0.7
Number of cells(Lipo): 2-4S
Maximum continuous power(W) 3s: 250
Internal resistance: 166mΩ
Maximum current (3S): 16.9A
Maximum effective current: (2-5A)>85%
The package contains:
1pc x CADDXFPV 1303 6000KV Brushless Motor
