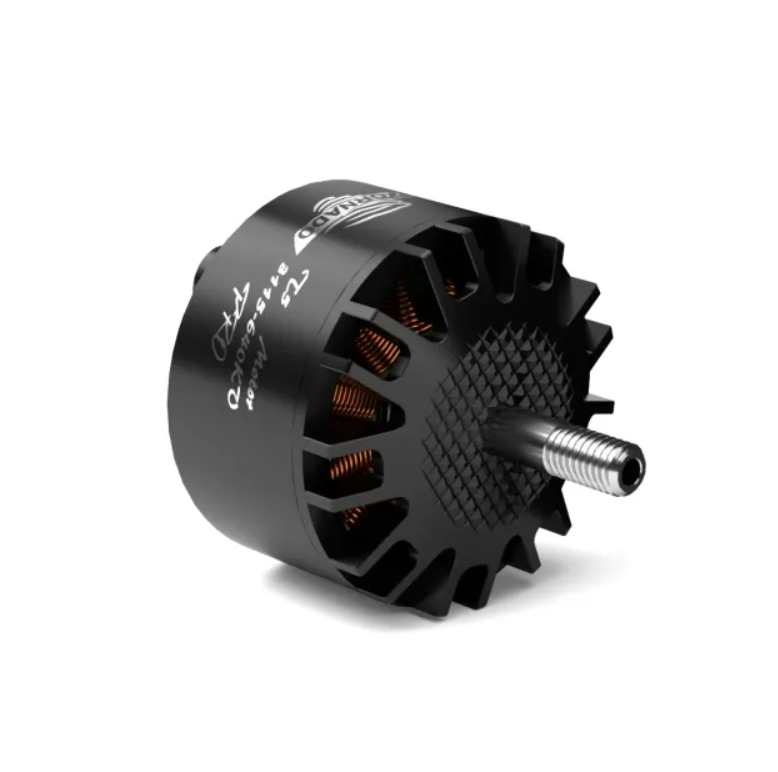

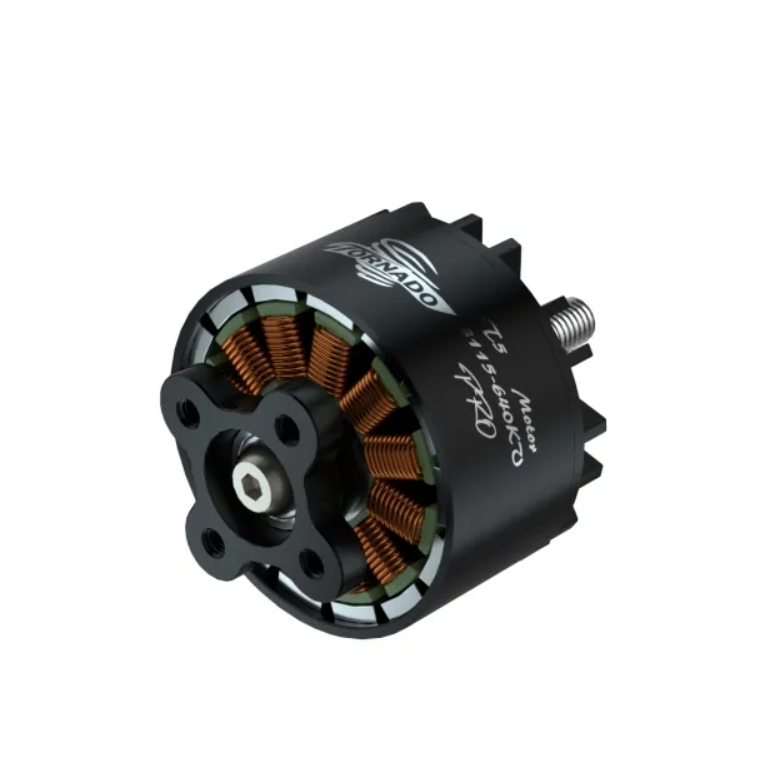

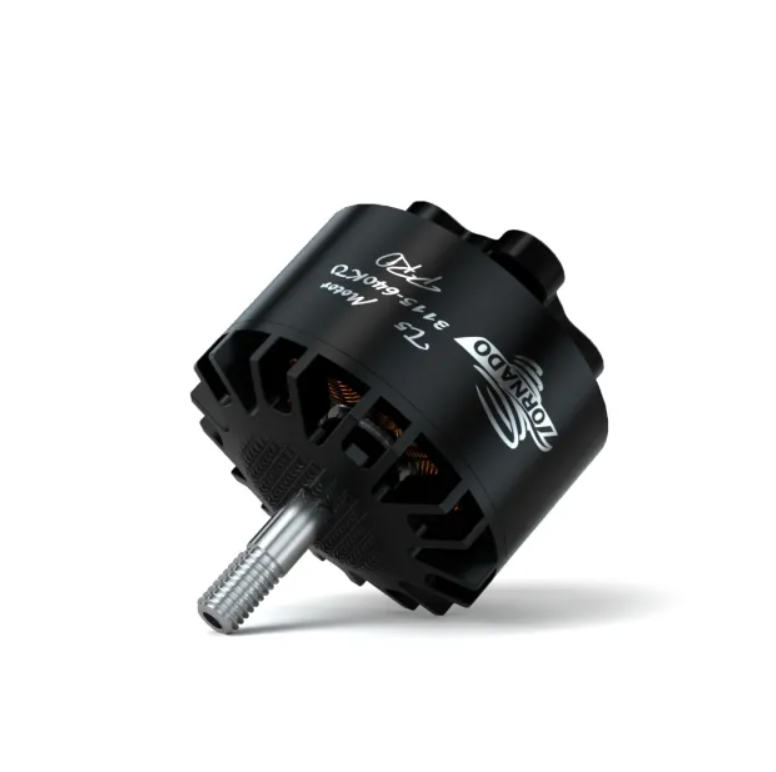

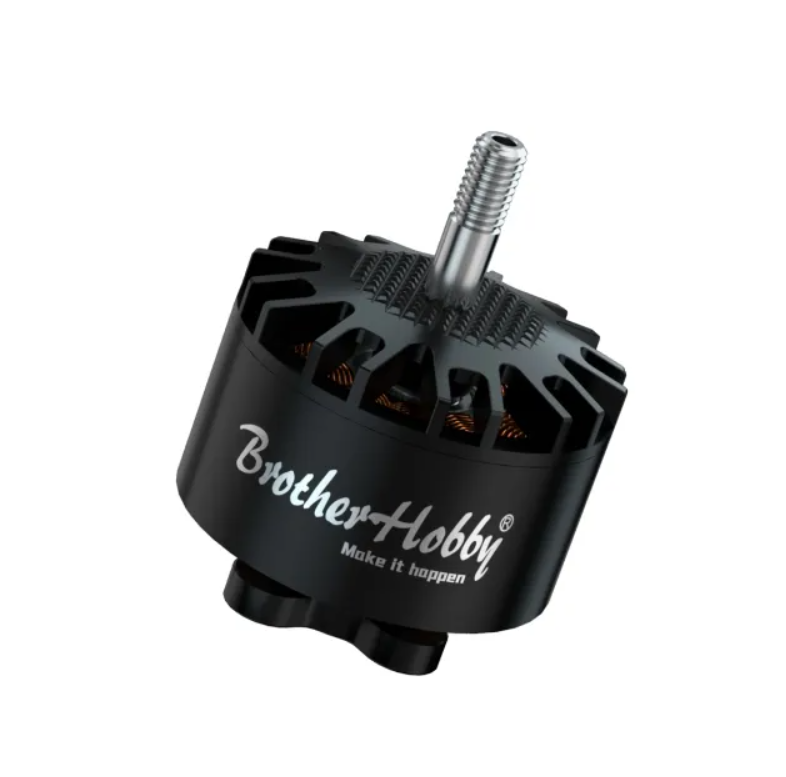

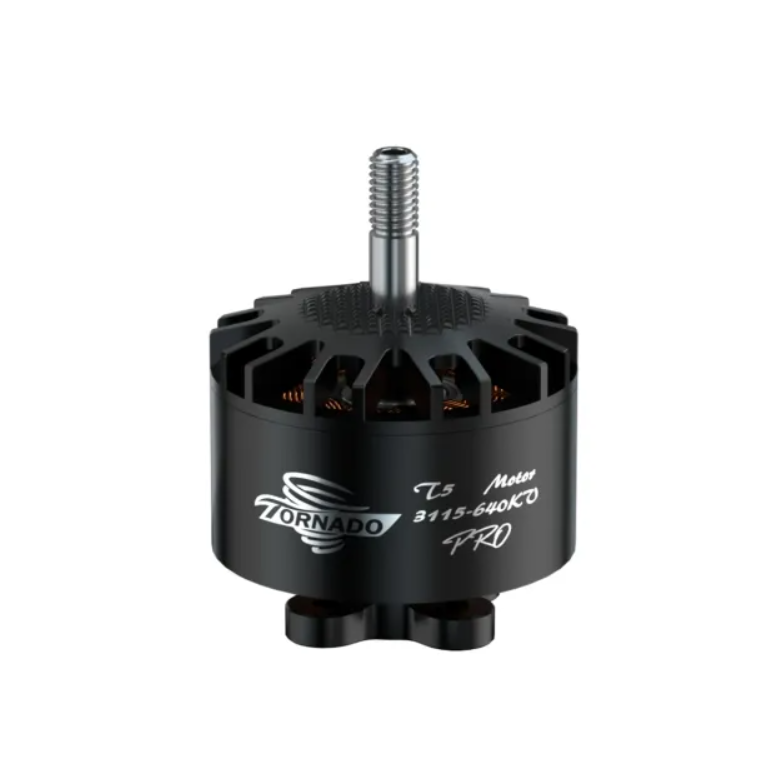

Brotherhobby Tornado T5 Pro 3115 1520KV Motor
Brotherhobby Tornado T5 Pro 3115 1520KV is a motor designed for drones that require power and controllability. It provides stable and responsive performance even under heavy loads, making it a reliable choice for demanding multicopters.
Thanks to high-quality materials and careful balance, the T5 Pro runs smoothly and stays cool during long flights. It is pre-wired and ready to pair with 5-8S assemblies and is designed to handle high thrust without loss of efficiency.
Reliable, durable and built for real flight conditions – this engine does the job without a hitch.

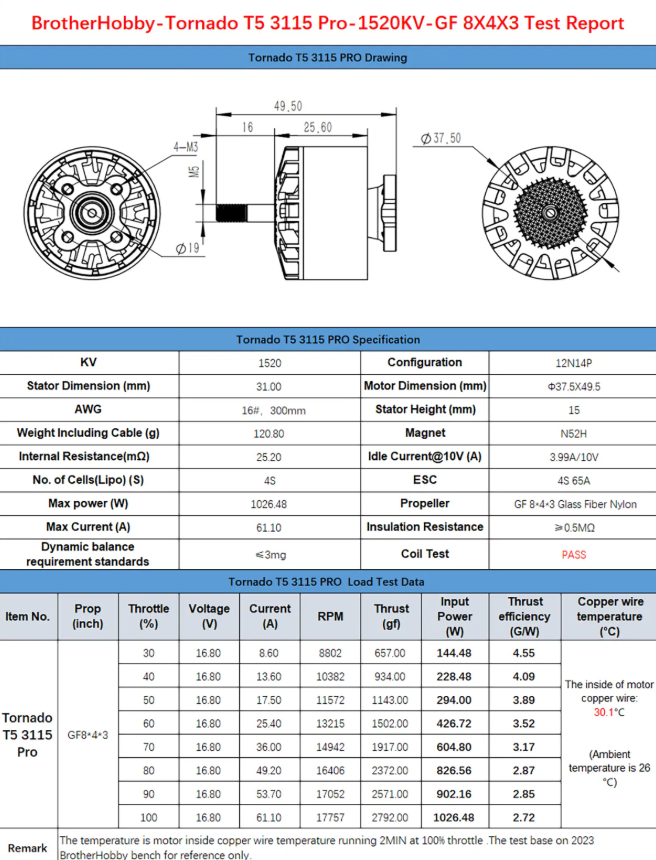

Specifications:
KV: 1520
Configuration: 12N14P
Stator Material: 0.2mm Kawasaki Silicon Steel
Stator Dimensions (mm): 31.00
Motor Dimensions (mm): Φ37.5 × 49.5
AWG: 16#, 300mm
Stator Height (mm): 15
Weight Included of cable (g): 120.80
Magnet: NS2H
Shaft: titanium alloy hollow shaft
Cover material: aluminum 7075
Bearings: Japanese NMB (11 × 5 × 5mm)
Mounting pattern: M3 (19 × 19mm)
Weight (including 30cm cable): 116g
Wire: 16 AWG, length 300mm
Propeller adapter thread: M5
Number of cells (LiPo): 5-8S
Quiet current at 10V: 3.99A
Internal resistance: 25.2mΩ
Maximum current: 61.10A
Maximum power: 1026.48W
Isolation resistance: ≥0.5 MΩ
Dynamic balance requirements: ≤3mg
Coil test: PASS
The package contains:
1x Brotherhobby Tornado T5 Pro 3115 1520KV motor
