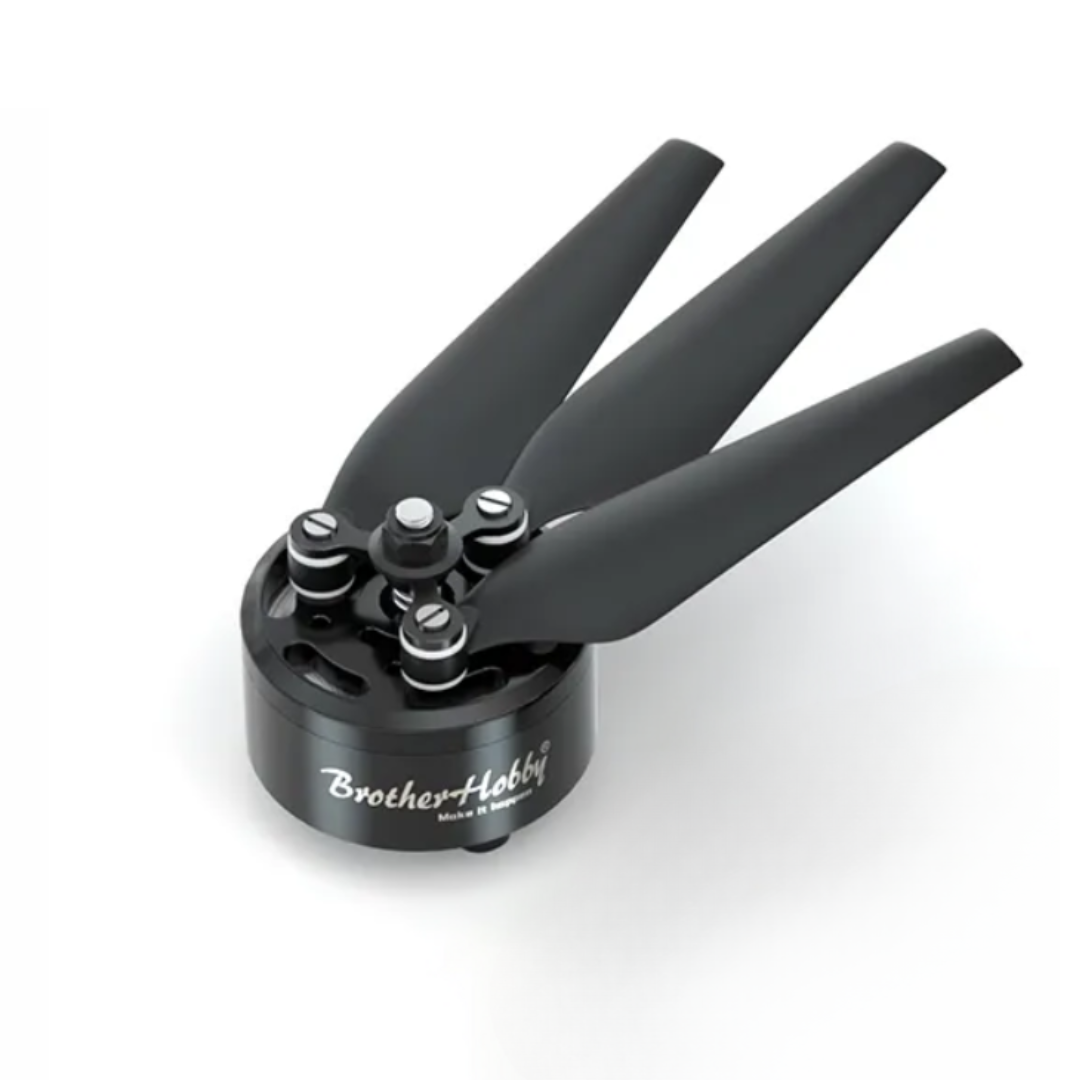

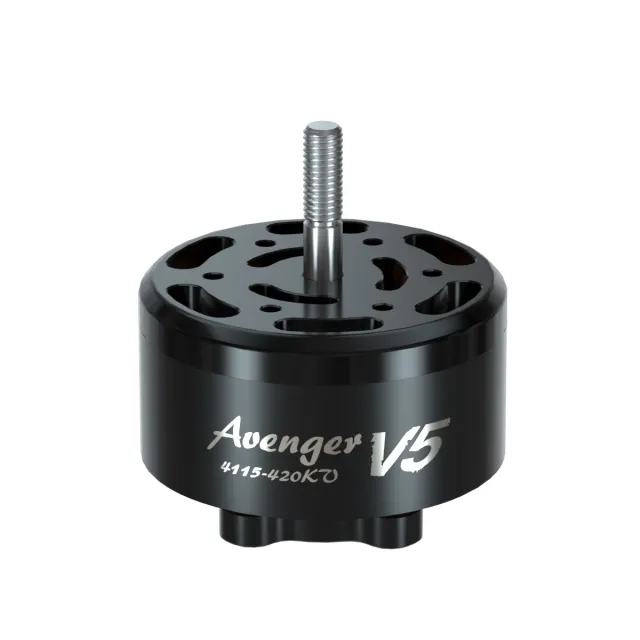

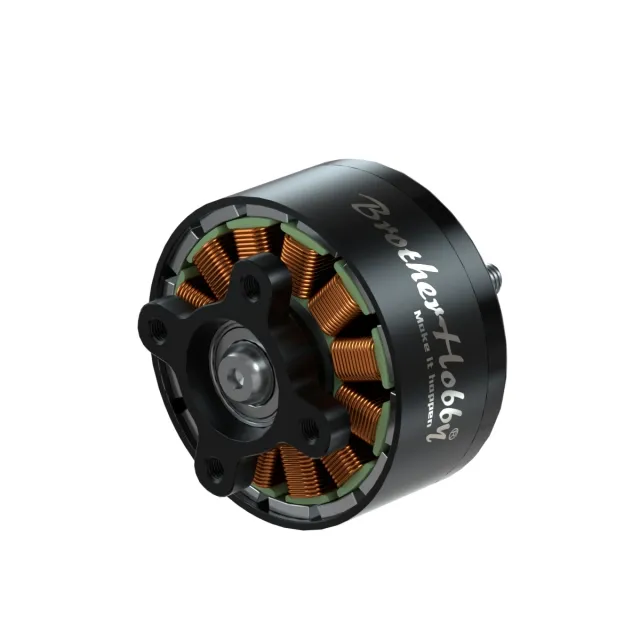

    Brotherhobby Avenger 4115 V5 490KV Engine

    The Brotherhobby Avenger 4115 490KV brushless motor is compact and powerful. Its high torque and efficiency ensure stable performance, making it reliable for various RC models.

    Specifications:

    KV: 490KV
    Base Case: Al 7075
    Stator: 15mm
    Configuration: 12N14P
    Propeller Adapter Shaft Thread: M5
    Shaft: SUS420
    Number of Cells (Lipo): 6-8S
    Bolt Spacing: M3 (25X25mm)
    Bearing: 12X6X4
    Rotor: N52H arc magnets
    Weight: 193g with 30cm SR wires
    AWG conductor: 16# length 30cm
    Bell cover: Al 7075
    Max. thrust: 6731 g
    Propeller: folding 1865 Triblade
    ESC: 6S 80A
    Throttle: 100
    Max. current: 67.8 A
    Max. power: 1708 W
    Voltage: 25.2 V
    Speed: 7281 rpm
    Traction efficiency: 3.94

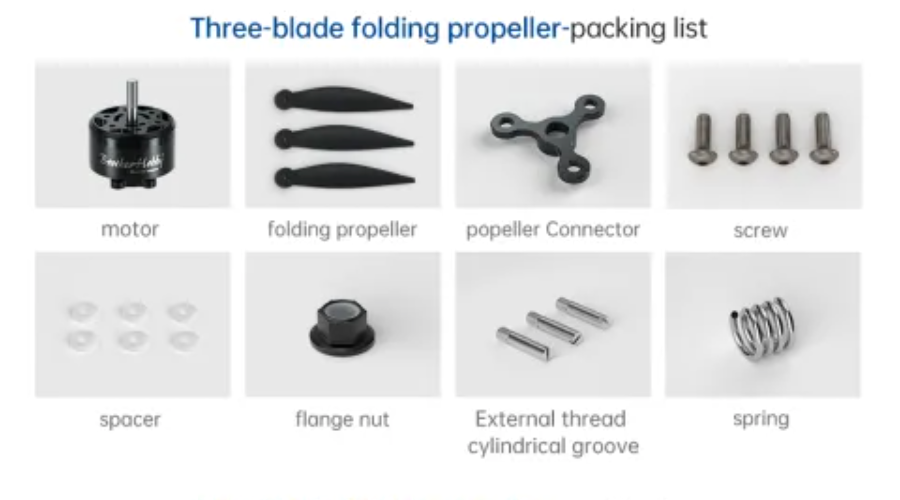

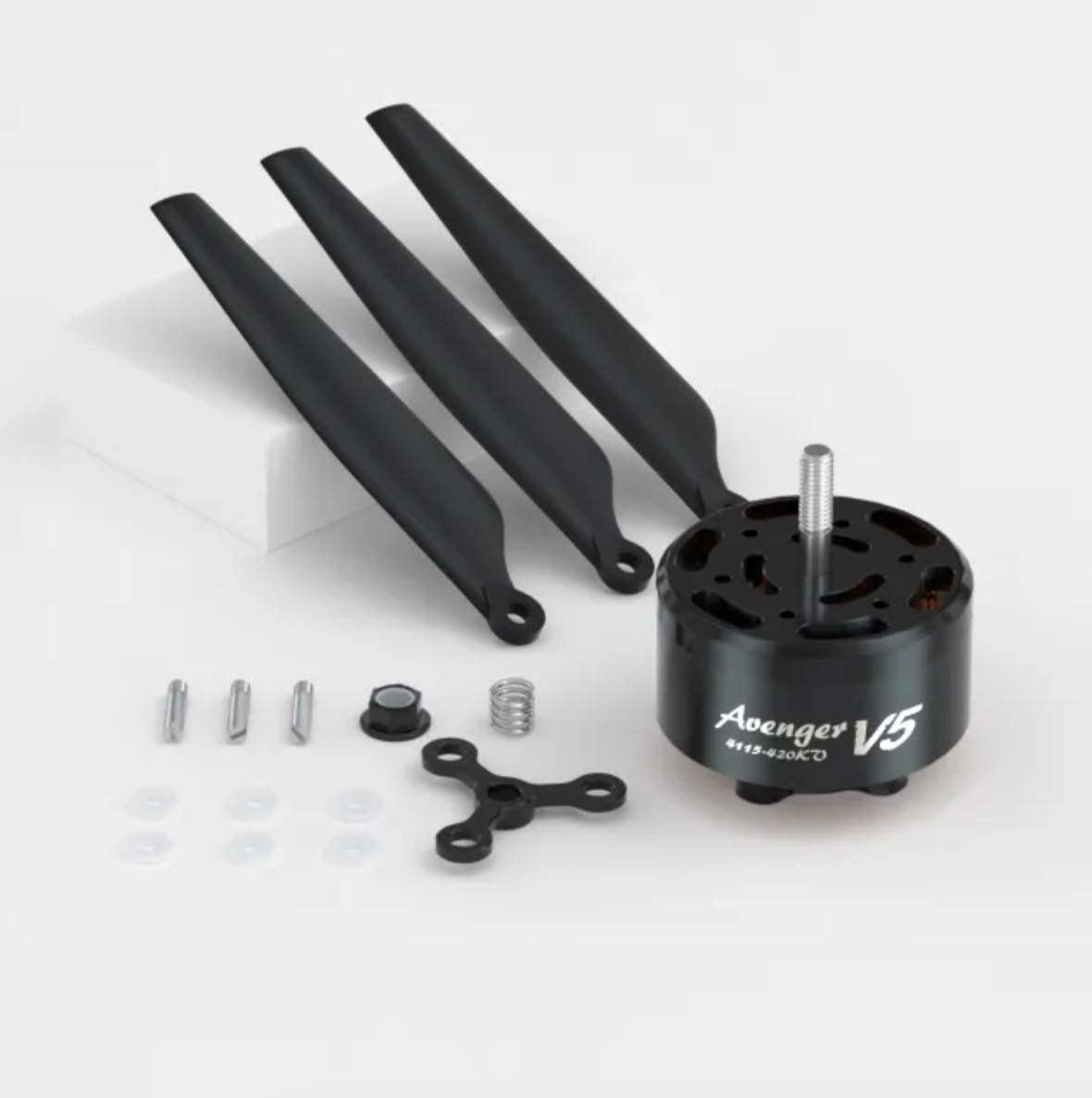

    Package includes:
    1x Brotherhobby Avenger 4115 V5 490KV Motor
    1 x Folding 3-blade Propeller
    1 x Propeller Connector
    4 x Screw
    4 x Spacer
    1 x Flange Nut
    3 x External Threaded Cylindrical Groove
    1 x Spring
