    Code: SZM5F

    Monitor SKYZONE 5 inch M5 FPV with DVR

    Monitor SKYZONE 5 inch M5 FPV with DVR

    Brand: SKYZONE

    €215,62
    €158,39 €215,62
    --36% View Product
    Taxes included.
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    SKYZONE M5 FPV monitor with DVR

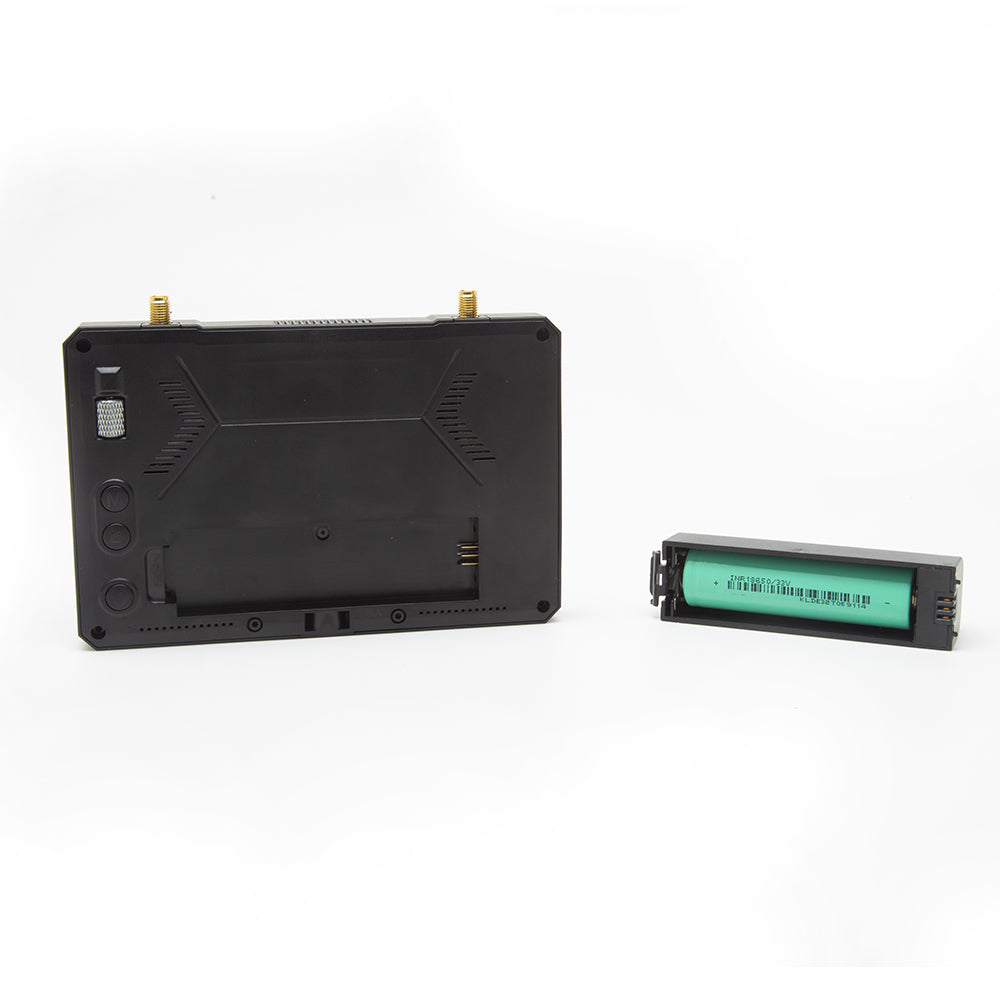

SKYZONE M5F 5.8GHZ FPV Monitor with DVR is a 5 inch high brightness monitor integrated with Steadyview receiver. The receiver combines the two signals into one, preventing image tearing and scrolling and making the image more stable and clear. The monitor supports 1 cell 18650 battery and also supports 2-6S Lipo.

Function:
- Built-in fan with cooler

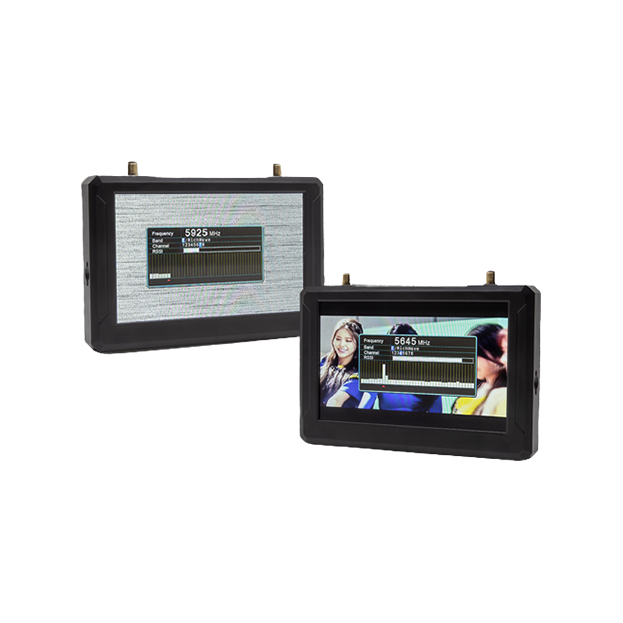

- Channel scanning

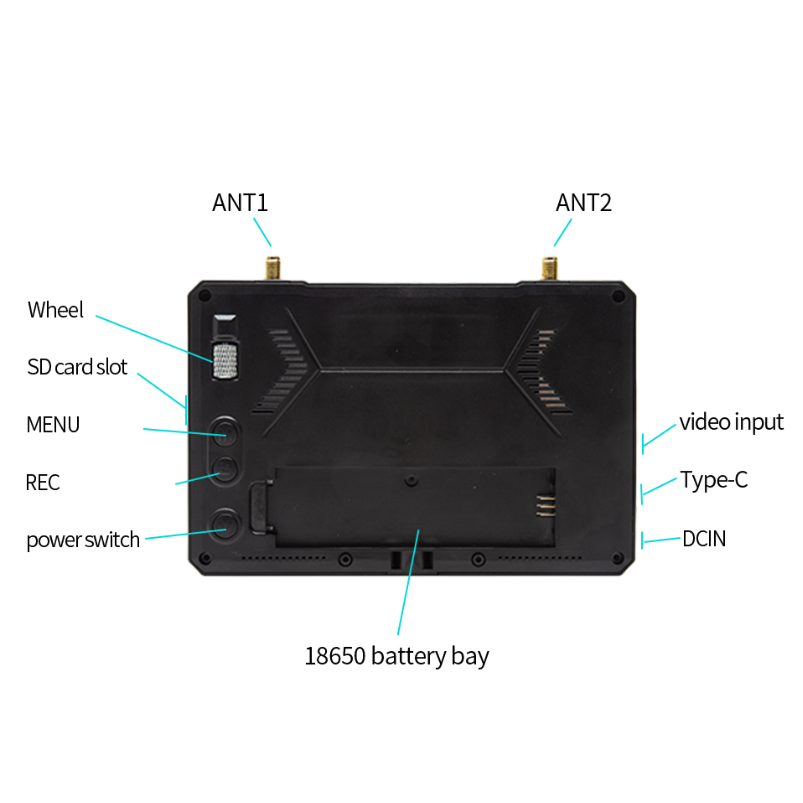

- Type-C connector for upgrading firmware or power glasses
- Support Chinese and English
- Pendulum wheel control
- Built-in Steadyview receiver
- Multiple power supply

Specifications:
Name: Skyzone M5F
Display: 5-inch LCD
Resolution: 800x480
Steadyview receiver: 5.8G 48CH
FOV: up to 50°
Latency: <20 ms
Power supply: 2S-6S DC IN; 18680 Lion; USB Type-C
DVR: MJPEG 60FPS
Antenna: LHCP
Dimensions: 135 x 88 x 16 mm
Weight: 165
