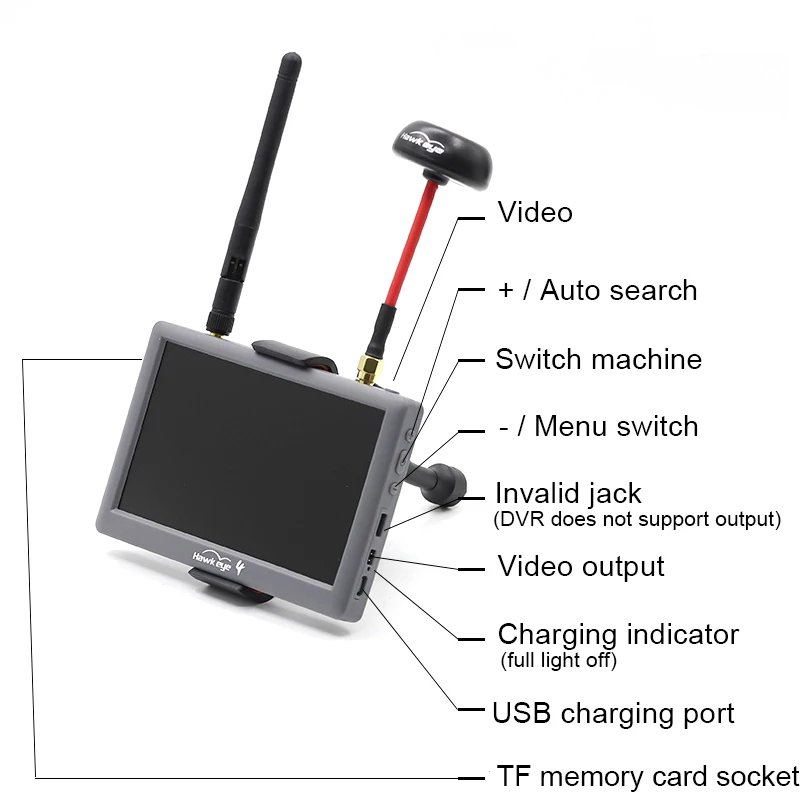

Hawkeye Little Pilot 4 5 inch gray monitor

The latest Hawkeye Little Pilot 4 is a 5-inch monitor with built-in DVR (720*288/720*240) and has dual receivers: 5.8GHZ 48CH. The duration of the internal battery is 2.5-3 hours.

Function:
- Specially designed for RC quadcopters
- Integrated battery
- Built-in dual receivers
- High brightness 700 Lux
- Automatic/manual channel search without the need for a DIP switch

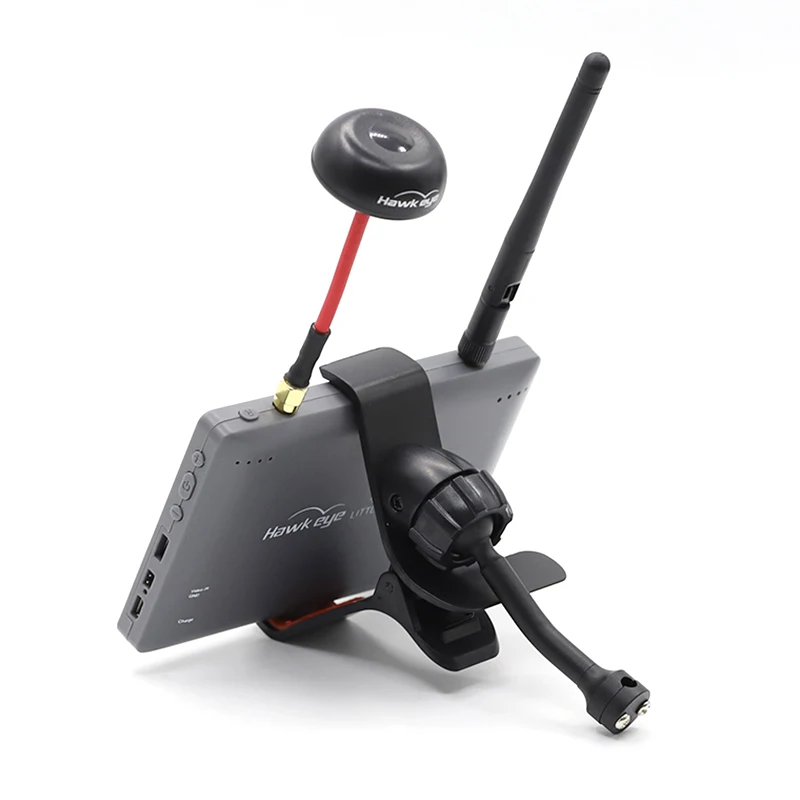

- Equipped with a mounting bracket, easy to install

Reminder: Please set the camera to NTSC format for better display/recording quality.

You can select the desired frequency from 6 groups: A, B, C, D, E and F.

A B C D E F
1 5.645G 5.740G 5.725G 5.733G 5.658G 5.362G
2 5.665G 5.760G 5.745G 5.752G 5.695G 5.399G
3 5.865G 5.780G 5.765G 5.771G 5.732G 5.436G
4 5.705G 5.800G 5.785G 5.790G 5.769G 5.473G
5 5.885G 5.820G 5.805G 5.809G 5.806G 5.510G
6 5.905G 5.840G 5.825G 5.828G 5.843G 5.547G
7 5.925G 5.860G 5.845G 5.847G 5.880G 5.584G
8 5.945G 5.880G 5.865G 5.866G 5.917G 5.621G

Specifications:

Color: Grey
Display resolution: 800x480
Backlight: LED
Adjustable brightness: 700 and 450 lux
Aspect ratio: 16:9 / 4:3
Response time: <10 ms
Color system: PAL/NTSC
Battery life: 5000 mAh, approximately 2.5 hours
No Black Blue Screen: Yes
Receiver (pcs): 2
HDMI input: No
HDMI output: No
Video input/output: Yes
RP-SMA: SMA
LHCP/RHCP: LHCP
Frequency: 5.8 GHz
Channels: 48CH
TV (PAL/NTSC): PAL/NTSC/Auto
Voltage: USB-C, 5V
Automatic search: Yes
5.8G Sensitivity: -94dB
DVR Resolution:
PAL: 720*288
NTSC: 720*240
SD card: Support 8-32G C10 (not included)
Dimensions: 12.8 x 8.3 x 1.6 cm
Net weight: 220g

The package includes:
1 x Hawkeye 4 gray FPV monitor
1 x mounting bracket
1 x mushroom antenna
1 x Video input cable
1x stickers
1 x Manual
