Code: SKU:6806

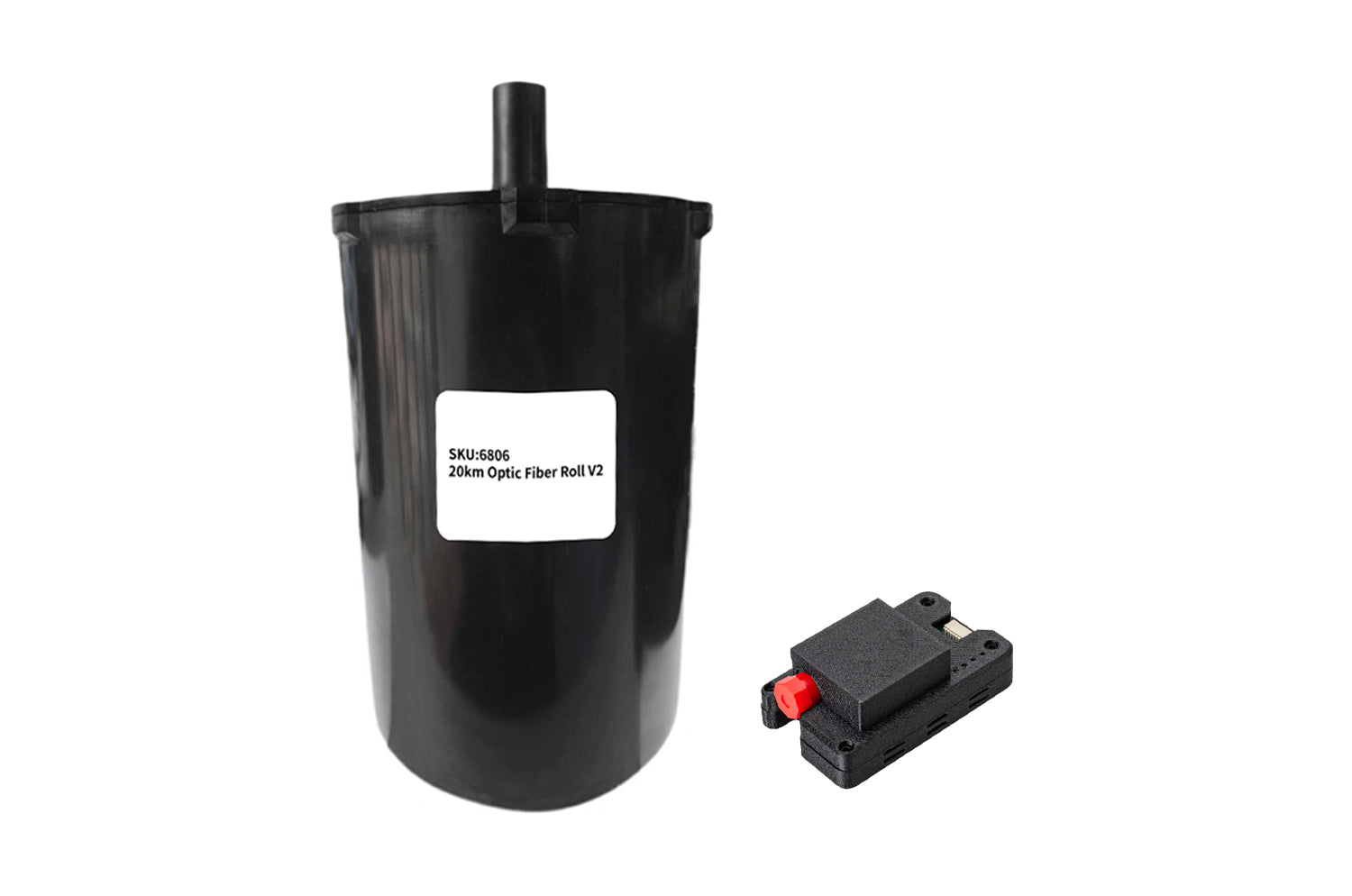

Module Pilotix with 20km Optic Fiber Roll SE V2
Module Pilotix with 20km Optic Fiber Roll SE V2
Brand: Pilotix
Regular price
€590,00
Regular price
€590,00
Sale price
€590,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Pilotix module with 20km roll of optical fiber SE V2 Fiber optic communication is a reliable and efficient solution for land, underwater and aerial systems where large amounts of image data need to be transmitted with minimal loss or in the absence of radio communication. The Pilotix optical communication kit includes a 20-kilometer optical cable and the Sky End SE V2 communication module, which ensures fast and stable data transmission. Features: - Low latency, which is critical for real-time control. - Immunity to radio interference, ensuring 100% uninterrupted communication quality. - High bandwidth, enabling HD video transmission and large data transfers. - No additional drone receiver or video transmission system required. - Secure connection that makes it difficult to intercept the signal. This kit is an ideal choice for professional applications of continuous communication and video surveillance, especially in demanding environments. Important notes: - For reliable communication at a distance of 5 km, 10 km or 15 km, we recommend choosing a transmitter with a range of up to 20 km. For communication systems with a range of 20 km and more, a transceiver with a range of 40 km is recommended. - Pilotix optical communication modules are only compatible with transceivers of the same series. We do not guarantee compatibility or take responsibility for correct operation when using devices from other series. Specifications: Optical cable Model: 20km Optic Fiber Roll SE V2 Optical fiber type: G657A2 Fiber diameter: 0.28 mm ±0.01 Fiber length: 20 km Fiber weight: 80 g/km Optical attenuation: - 1310 nm: ≤0.35 dB/km, WT 0.329 - 1550 nm: ≤0.25 dB/km, WT 0.185 Optical interface: FC Shell Material: Resin Working temperature: -40 ~ +85 °C Material: ABS Color: black Size: 147 x 276 mm Weight: 2150 g Digitizer module with optical fibers Device Name: Air Unit SE V2 Power supply: POWER SUPPLY: 5.5V~26V Body size: 63x37x23mm Body weight: 31±2g Optical interface: FC interface Fiber type: Single mode fiber Data interface: SH1.0 Video format: NTSC/PAL/SECAM Data direction: Bi-directional Data format: TTL/SBUS Speed: 0~1Mbps Single wavelength mode: 1310 (9/125 μm) +1550 Transmission distance: single-mode fiber up to 20 km The package contains: 1x Sky End SE V2 fiber optic module 1x 20km roll of optical fiber SE V2
