Code: SKU:6807
Module Pilotix With 15km Optic Fiber Roll SE V2
Module Pilotix With 15km Optic Fiber Roll SE V2
Brand: Pilotix
Couldn't load pickup availability
- Description
- Related Files
- Discussion
Pilotix module with 15km optical fiber Roll SE V2
Communication using optical fibers is a reliable and efficient solution for land, underwater and aerial systems where a large amount of image data needs to be transmitted with minimal loss or in the absence of radio communication. The Pilotix optical communication set includes a 15-kilometer optical cable and the Sky End SE V2 communication module, which ensures fast and stable data transmission.
Features: The kit allows you to connect to a network that is equipped with a data transmission system:
- Low latency, which is critical for real-time control.
- Immunity to radio interference, ensuring 100% uninterrupted communication quality.
- High bandwidth, enabling HD video transmission and large data transmissions.
- No additional drone receiver or video transmission system is required.
- Secure connection, which makes it difficult to capture the signal.
This kit is an ideal choice for professional applications of continuous communication and video surveillance, especially in demanding environments.
Important notes:
- For reliable communication at a distance of 5 km, 10 km or 15 km, we recommend choosing a transmitter with a range of up to 20 km. For communication systems with a range of 20 km and more, a transceiver with a range of 40 km is recommended.
- Pilotix optical communication modules are only compatible with transceivers of the same series. We do not guarantee compatibility or assume responsibility for correct operation when using devices from other series.
Specifications:

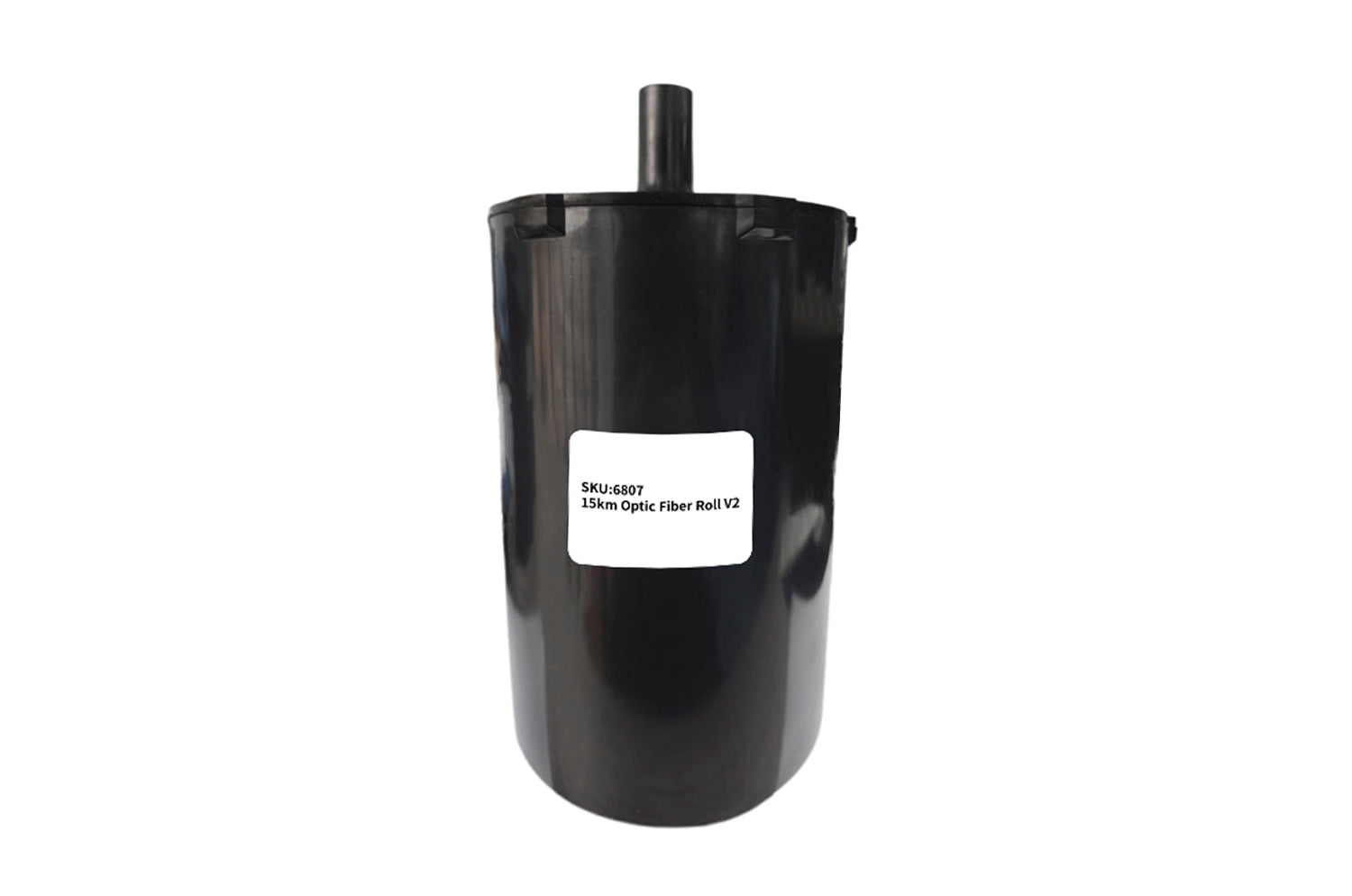

Optic cable
Model: 15km Optic Fiber Roll SE V2
Optic fiber type: G657A2
Fiber diameter: 0.28mm ±0.01
Fiber length: 15km
Fiber weight: 80g/km
Optical attenuation:
- 1310nm: ≤0.35dB/km, WT 0.329
- 1550 nm: ≤0.25 dB/km, WT 0.185
Optical interface: FC
Shell material: Resin
Working temperature: -40 ~ +85 °C
Material: ABS
Color: black
Size: 147 × 276 mm
Weight: 1650 g

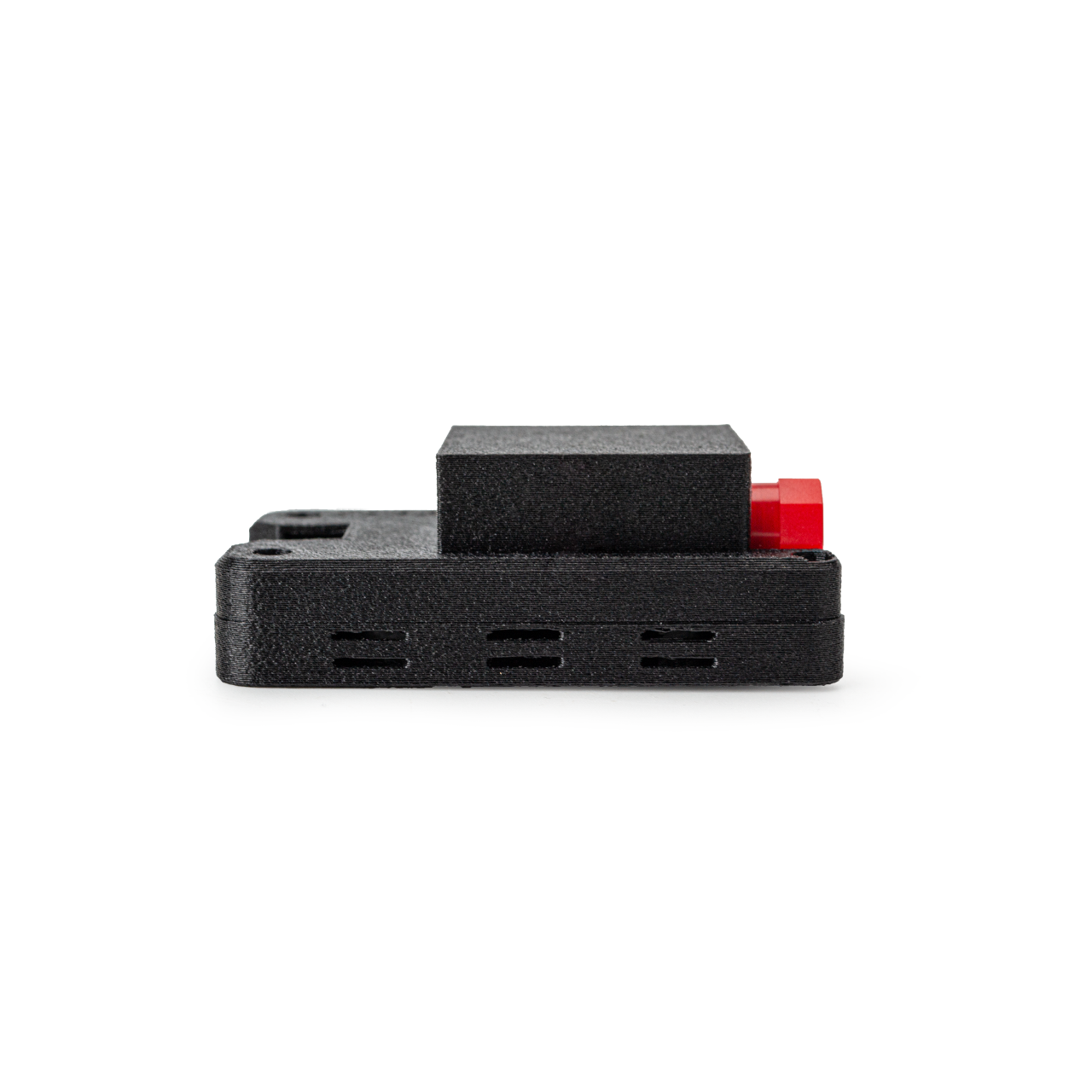

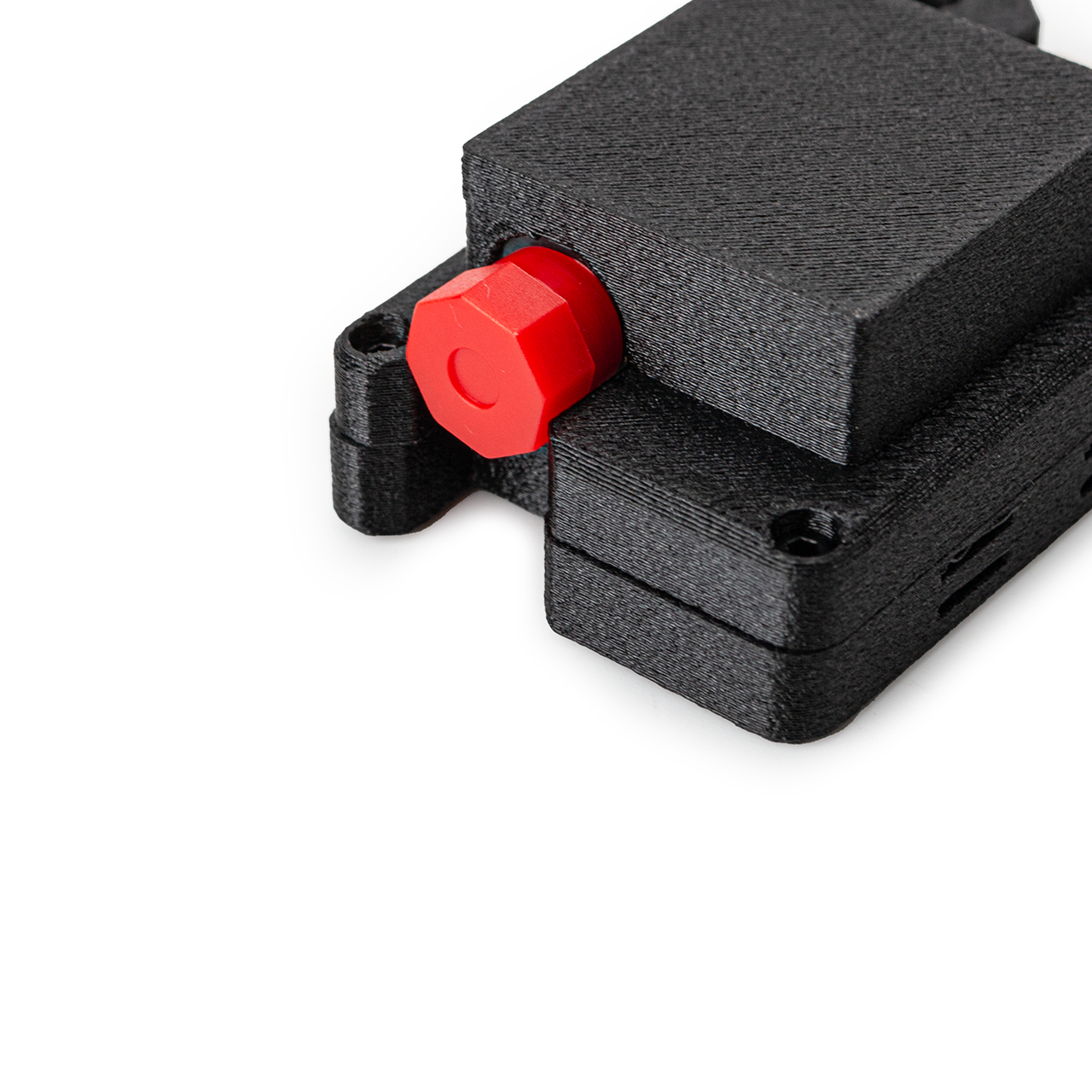

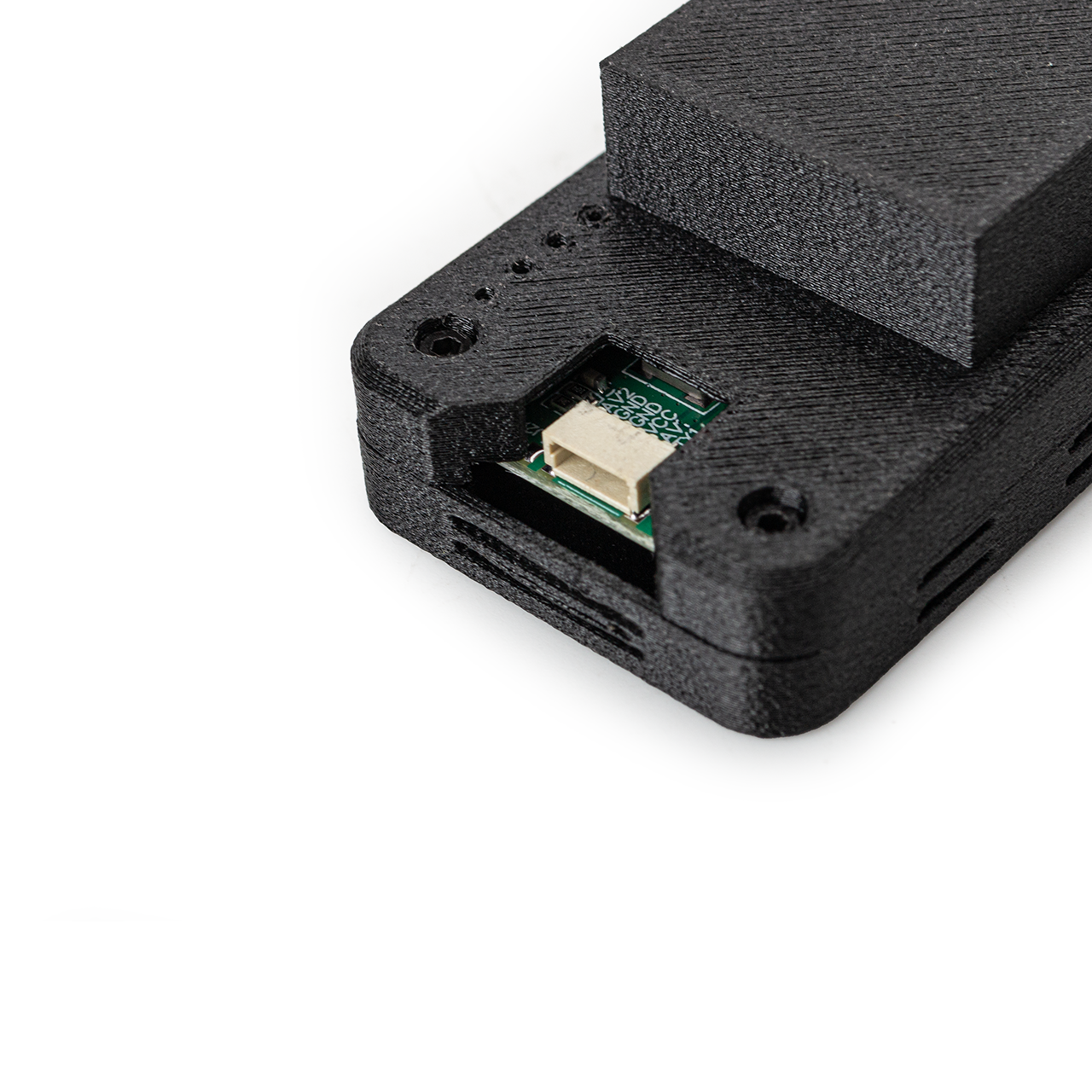

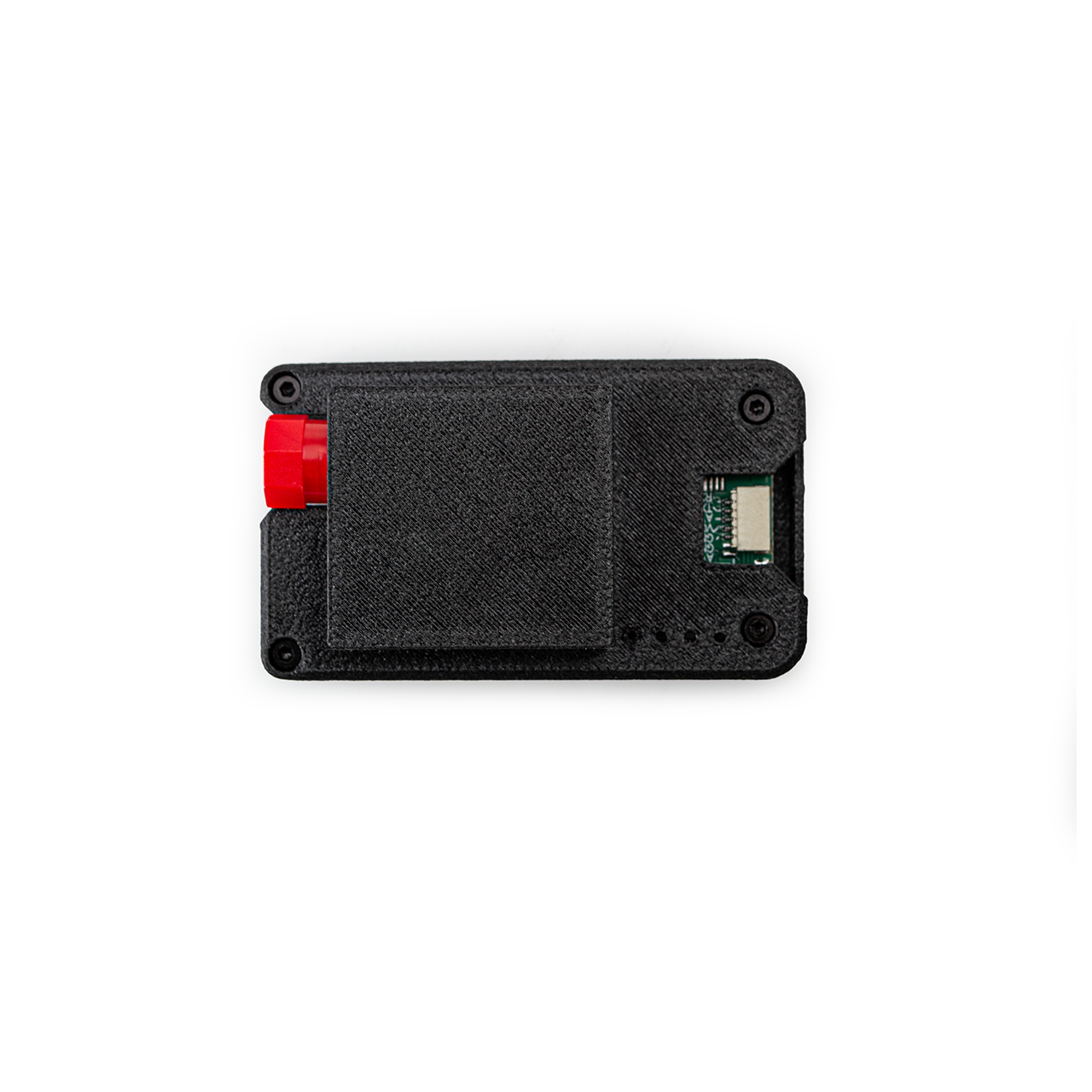

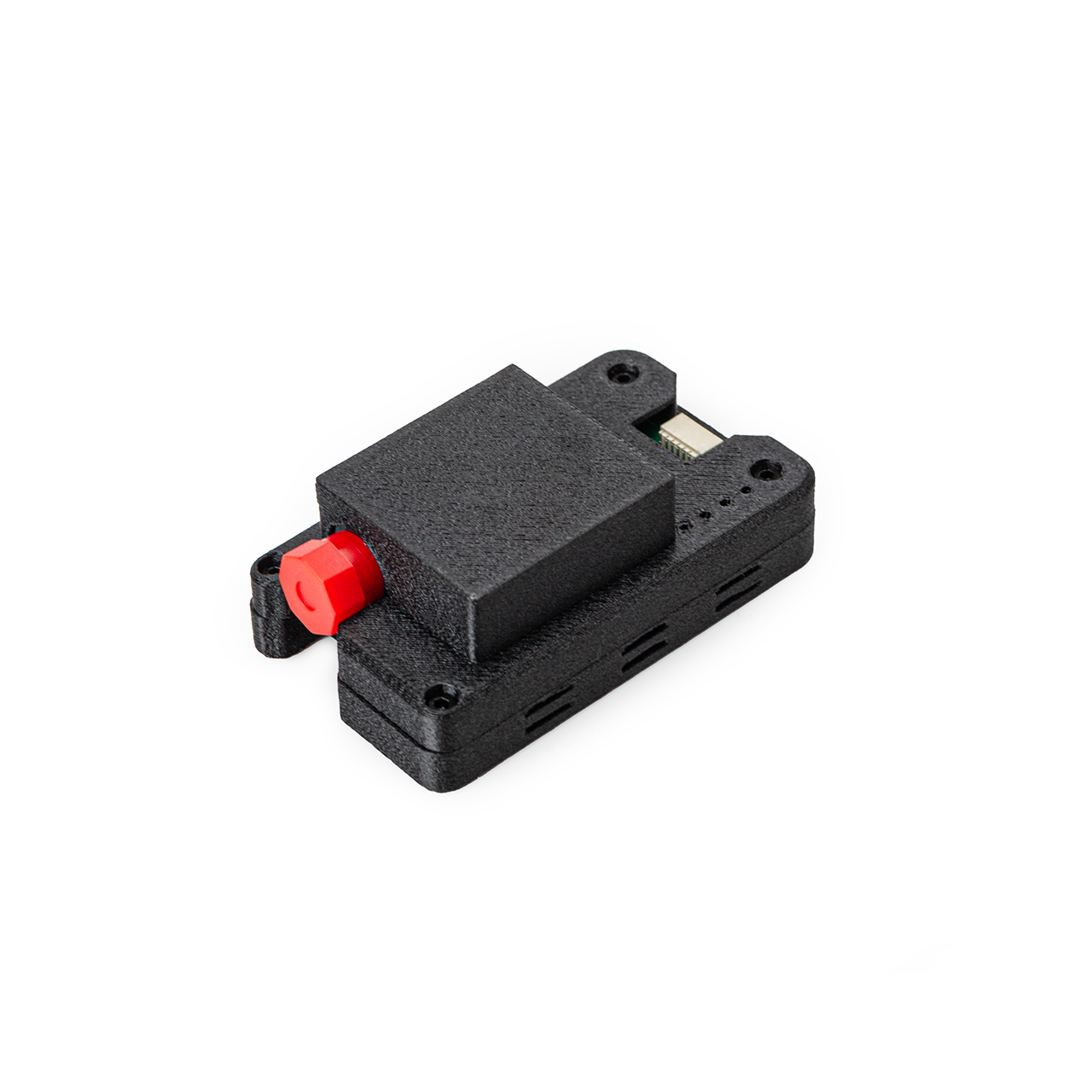

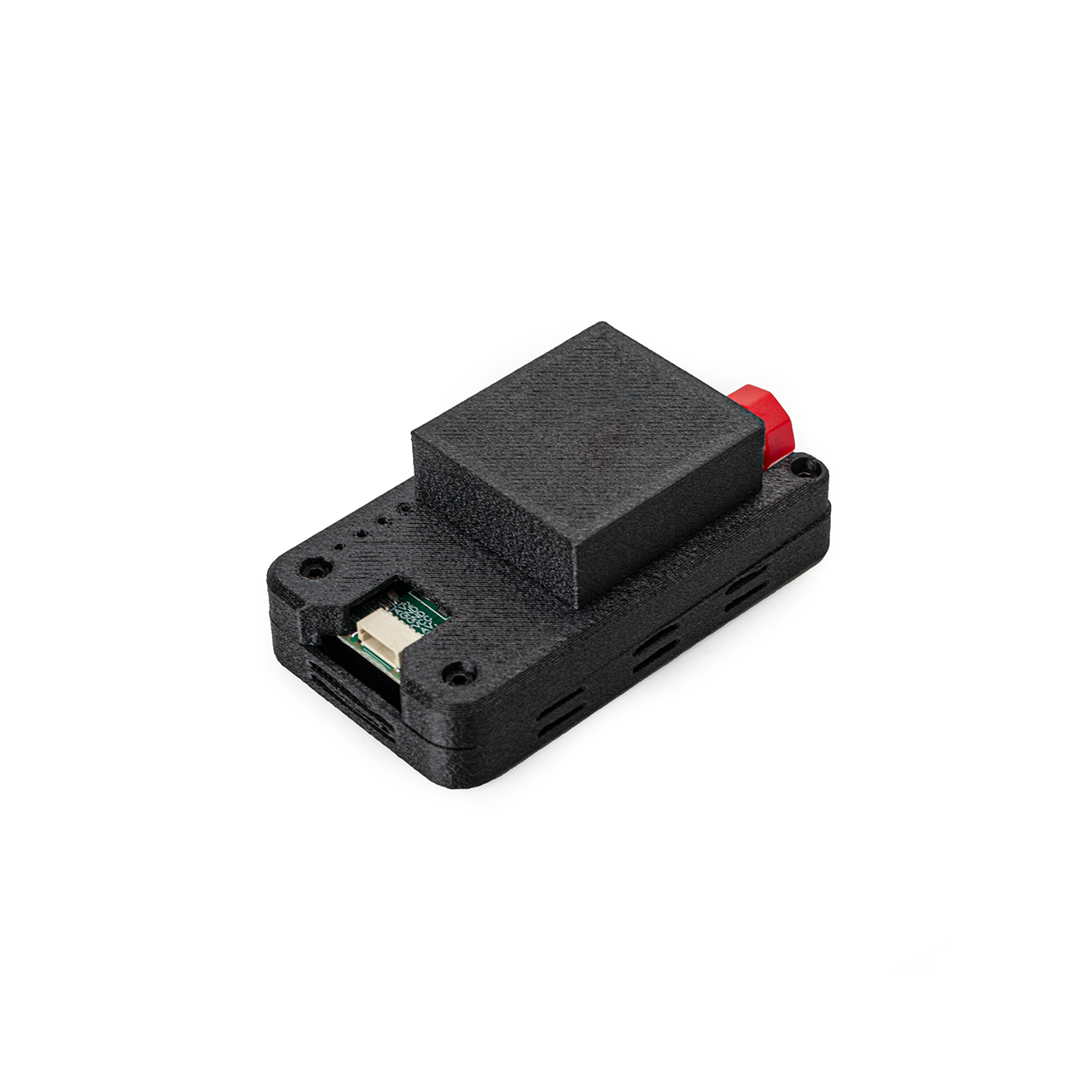

Fiber Optic Digitizer Module
Device Name: Air Unit SE V2
Power Supply: 5.5V~26V
Body Size: 63x37x23mm
Body Weight: 31±2g
Optical Interface: FC Interface
Fiber Type: Single Mode Fiber
Data Interface: SH1.0
Video Format: NTSC/PAL/SECAM
Data Direction: Bidirectional
Data Format: TTL/SBUS
Speed: 0~1Mbps
Single Mode Wavelength: 1310 (9/125μm) +1550
Transmission distance: single-mode fiber up to 20 km

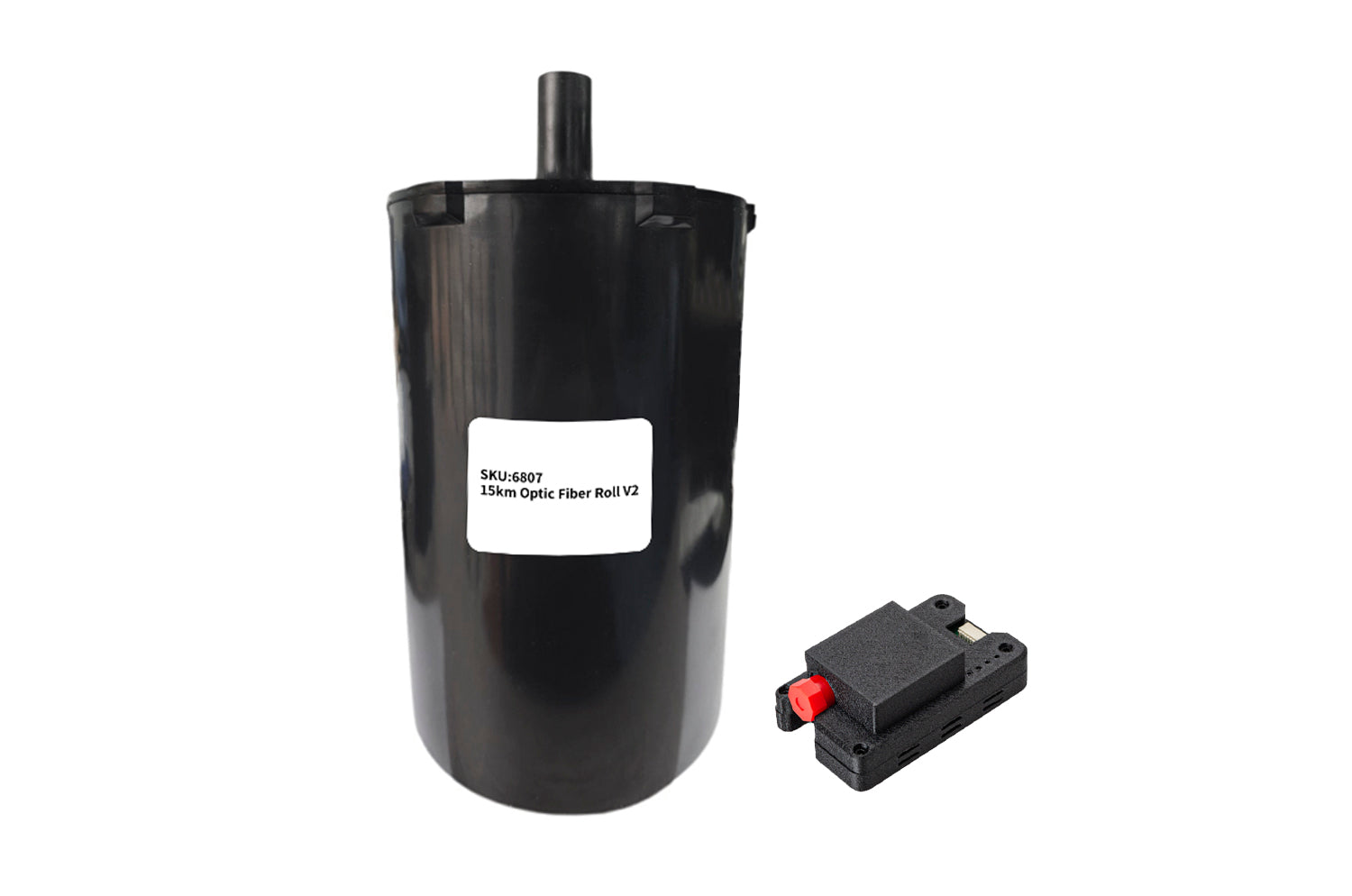

Package includes:
1x Sky End SE V2 fiber optic module
1x 15km SE V2 fiber optic roll
