Pilotix module with 10km optical fiber Roll SE
Communication using optical fibers is a reliable and efficient solution for land, underwater and aerial systems where a large amount of image data needs to be transmitted with minimal loss or in the absence of radio communication. The Pilotix optical communication set includes a 10-kilometer optical cable and the Sky End SE communication module, which ensures fast and stable data transmission.
Features:
- Low latency, which is critical for real-time control.
- Immunity to radio interference, ensuring 100% uninterrupted communication quality.
- High bandwidth, enabling HD video transmission and large data transfers.
- No additional drone receiver or video transmission system is required.
- Secure connection that makes it difficult to intercept the signal.
This kit is an ideal choice for professional applications of continuous communication and video surveillance, especially in demanding environments.
Important notes:
- For reliable communication at a distance of 5 km, 10 km or 15 km, we recommend choosing a transmitter with a range of up to 20 km. For communication systems with a range of 20 km and more, a transceiver with a range of 40 km is recommended.
- Pilotix optical communication modules are only compatible with transceivers of the same series. We do not guarantee compatibility or assume responsibility for correct operation when using devices from other series.
Specifications:

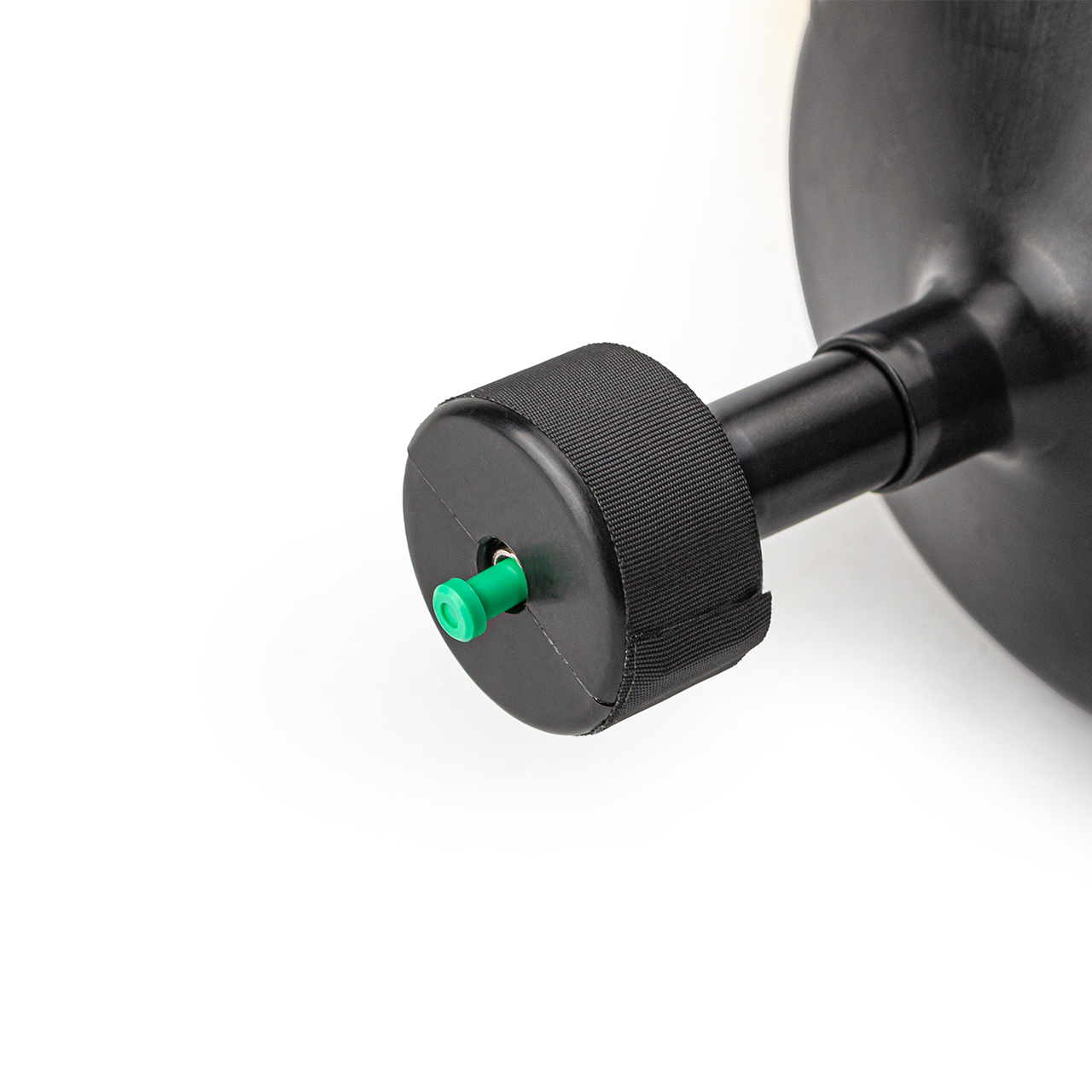

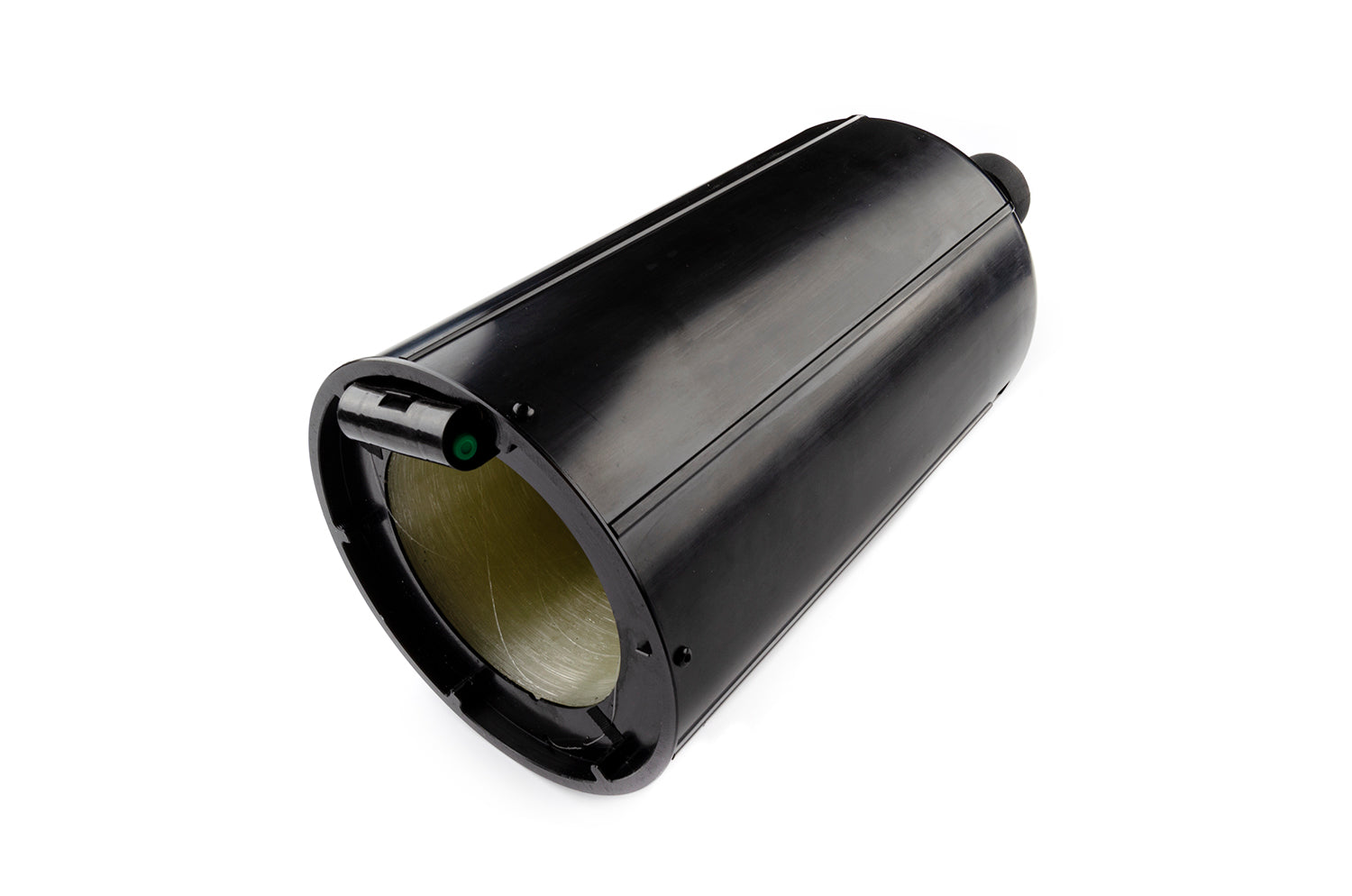

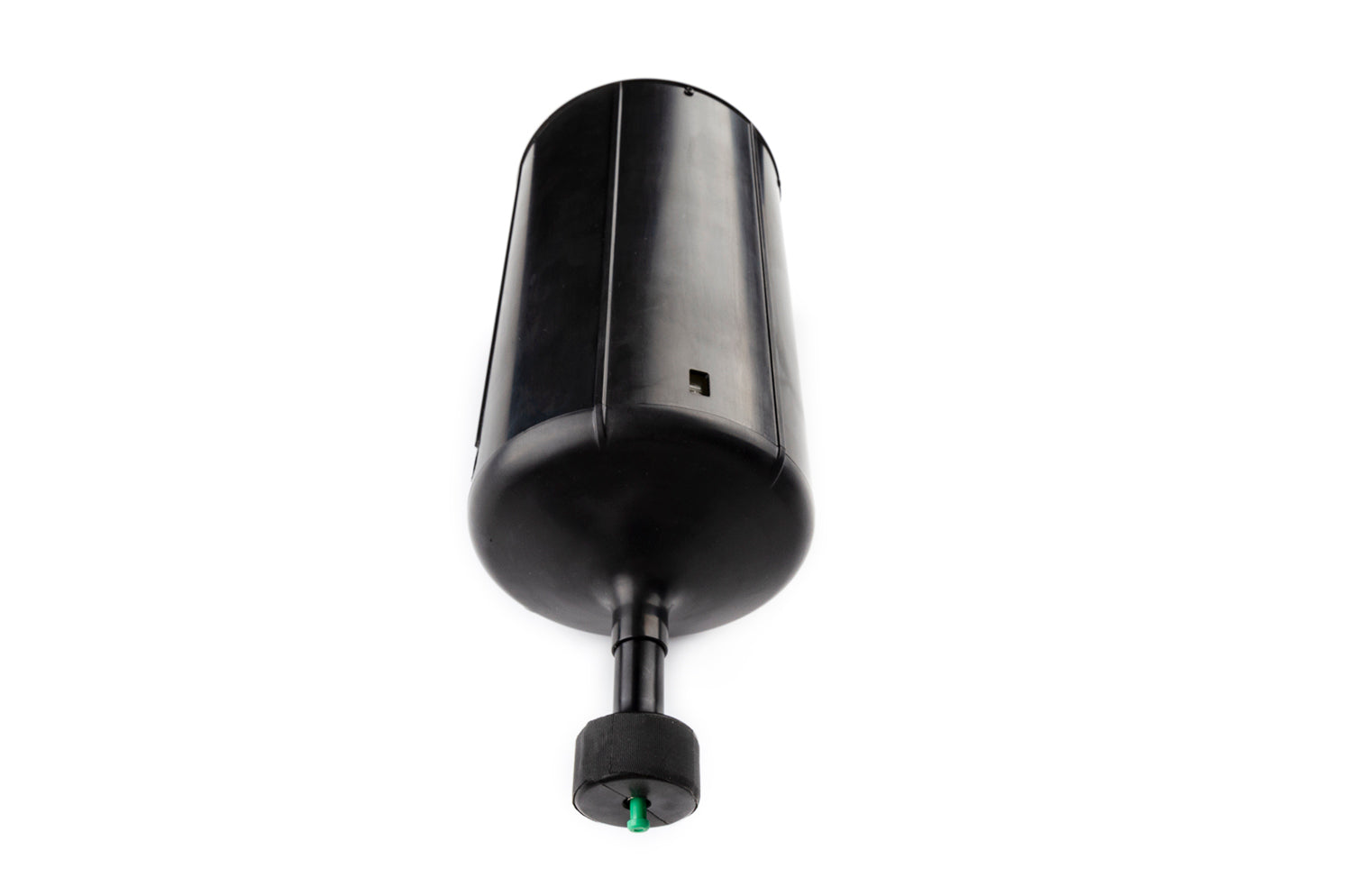

Optical cable
Model: 10km SE roll optical fiber
Length: 10.1km
Fiber diameter: 0.25mm
Disintegration: 2.5mm
- 1310nm ≤0.35dB/km
- 1550nm ≤0.21dB/km
Weight: 1000g
Dimensions: 108mm x 271.5mm

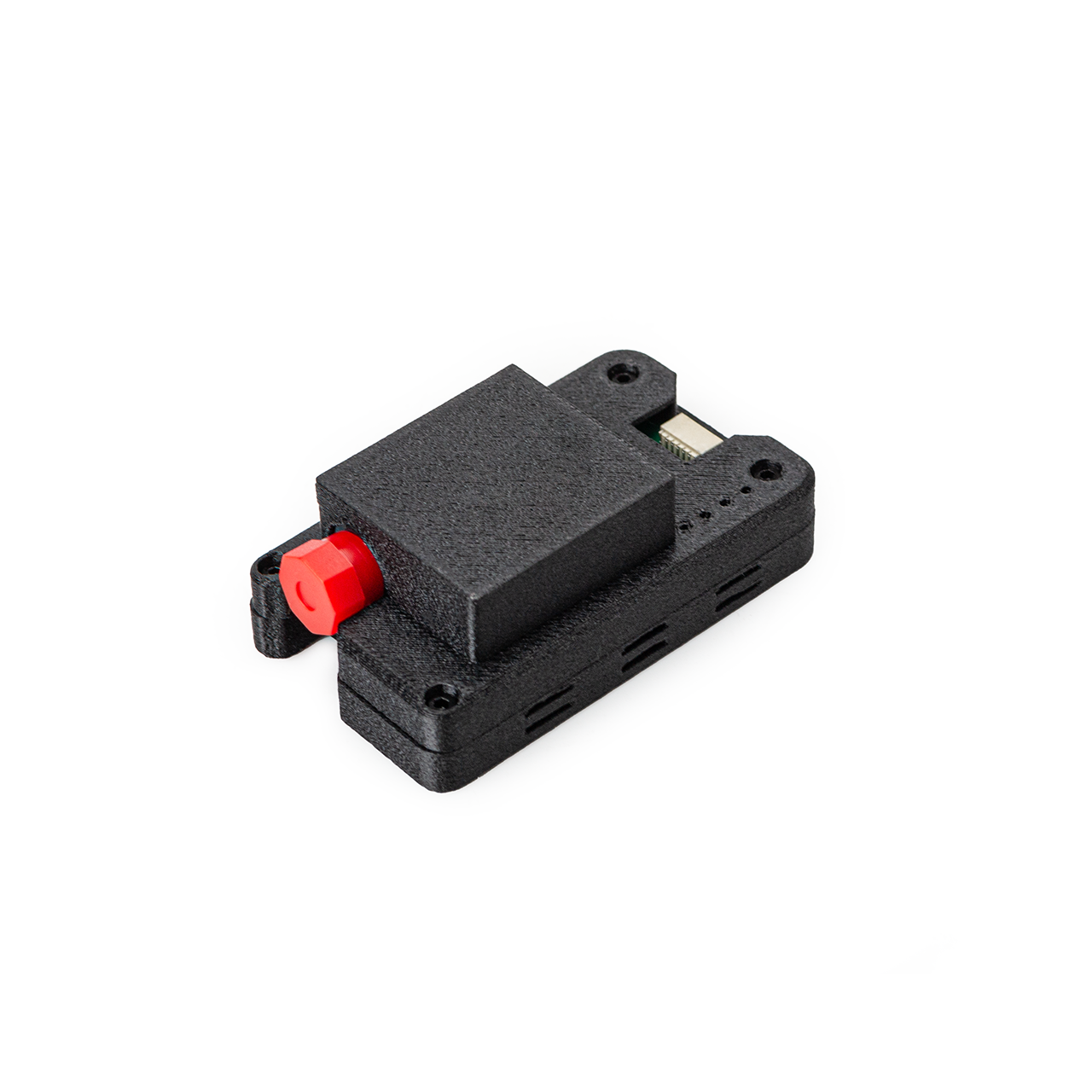

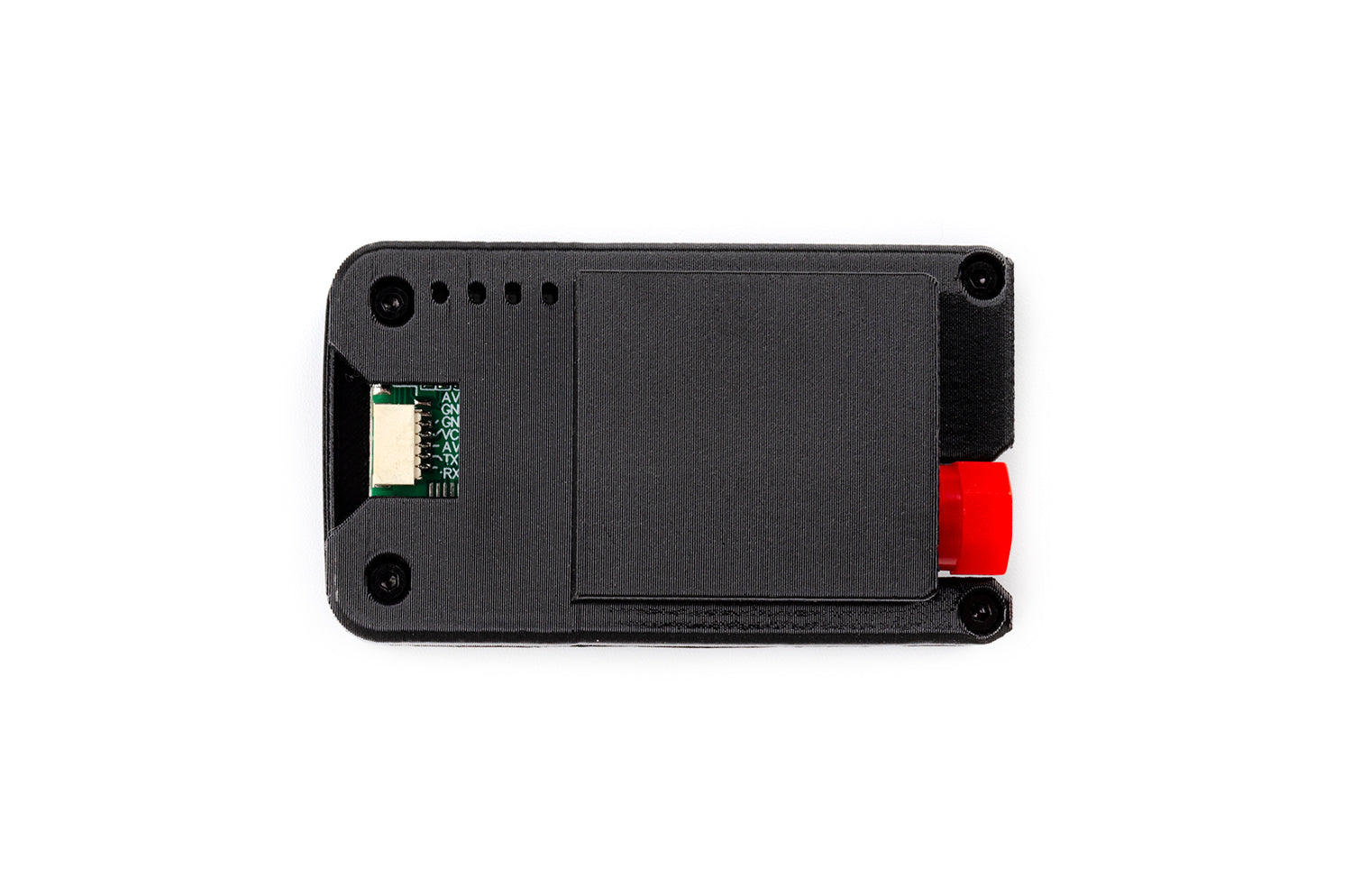

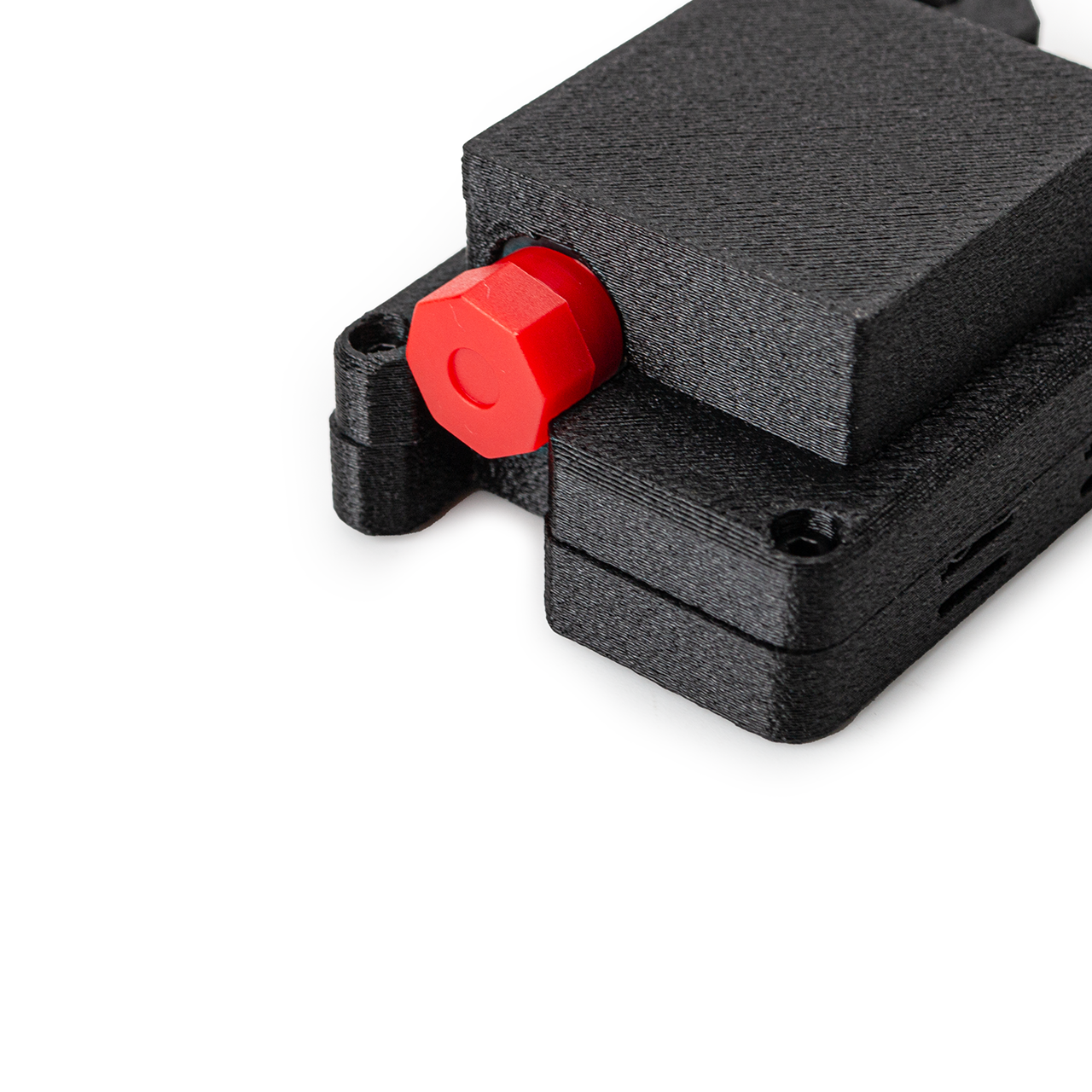

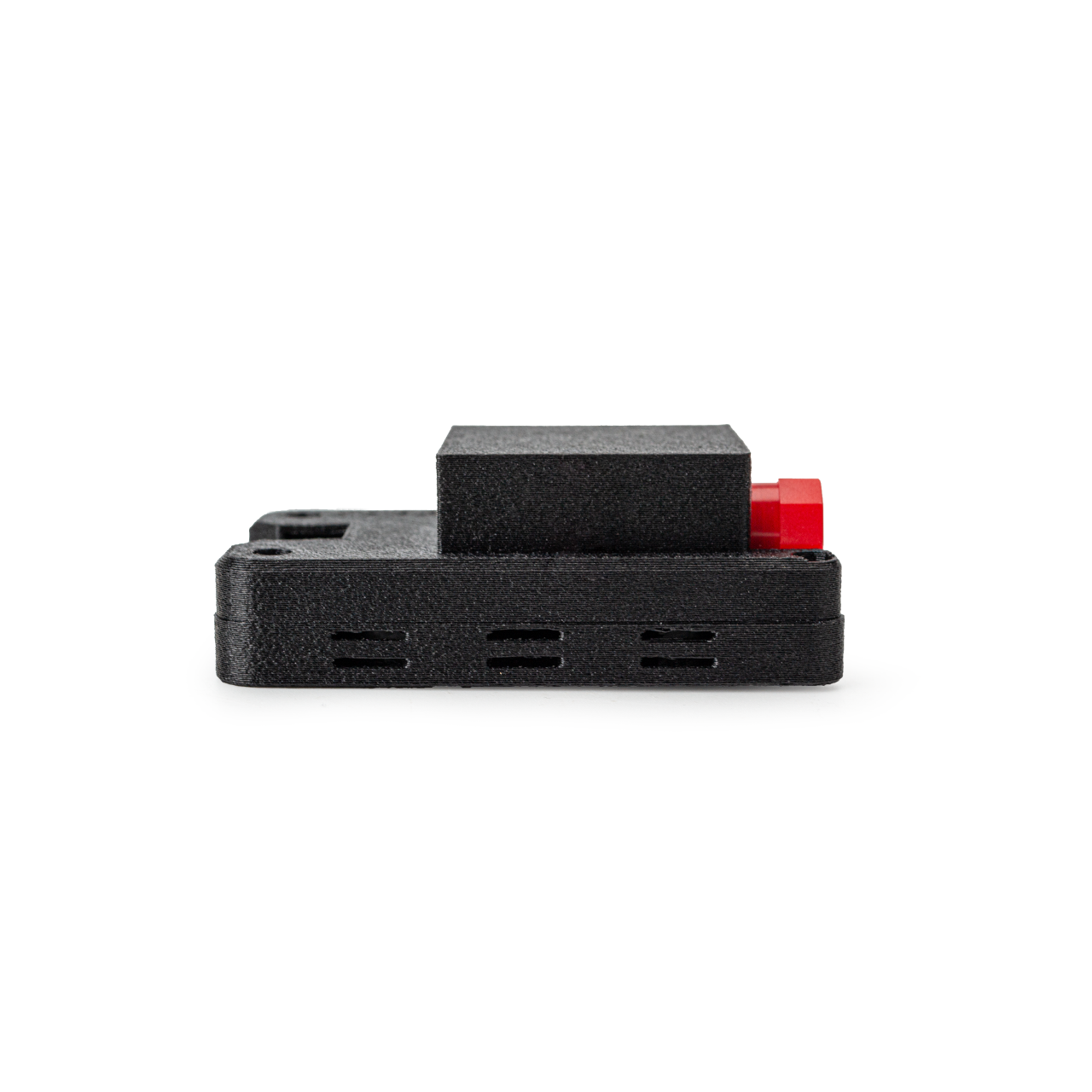

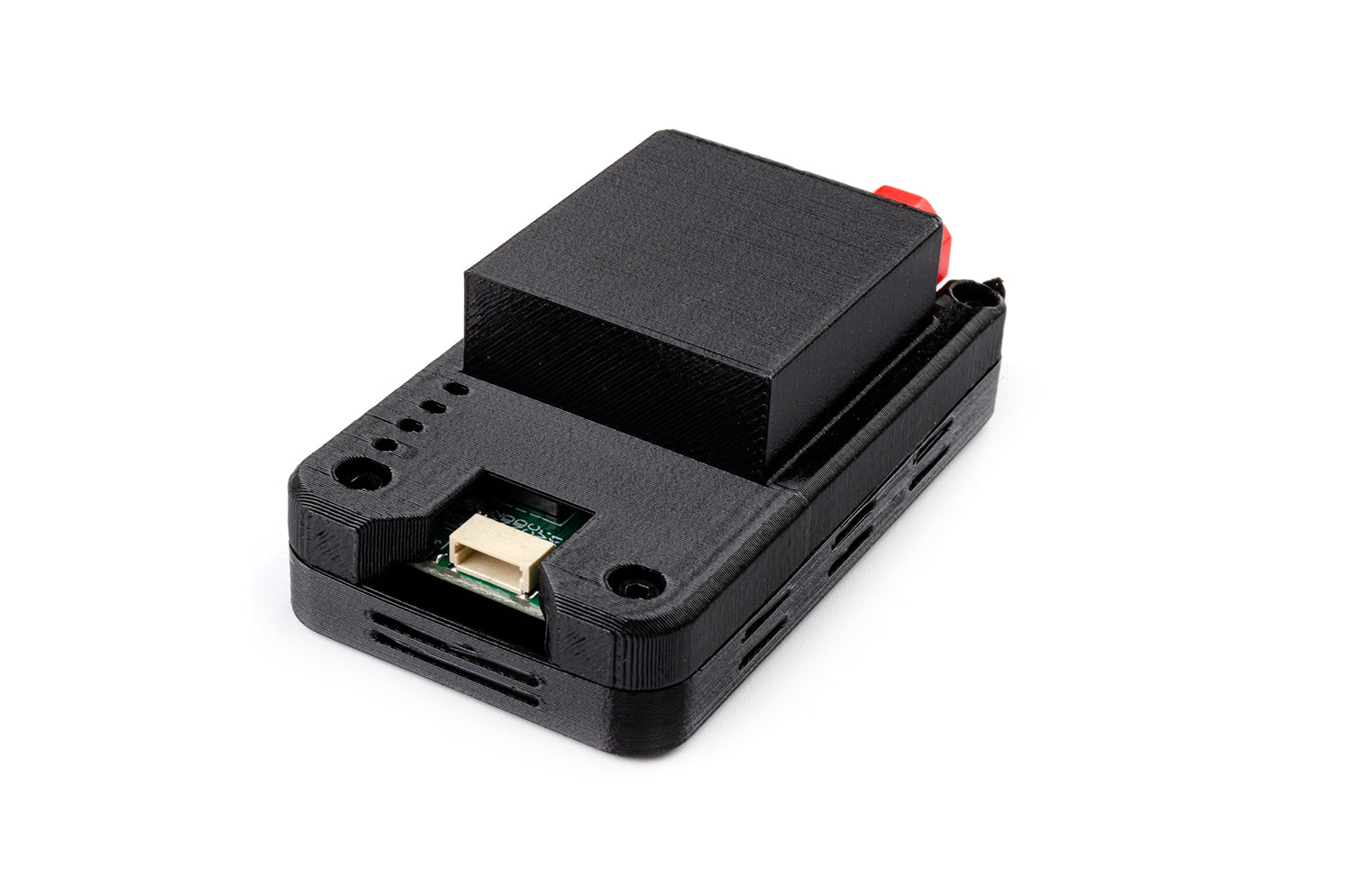

Fiber Optical Digitizer Module
Device Name: Sky End SE
Power Supply: 5.5V~26V
Body Size: 63x37x23mm
Body Weight: 31±2g
Optical Interface: FC Interface
Fiber Type: Single Mode Fiber
Data Interface: SH1.0
Video Format: NTSC/PAL/SECAM
Data direction: Bidirectional
Data format: Bidirectional: TTL/SBUS
Speed: 0~1Mbps
Single wavelength mode: 1310 (9/125μm) +1550
Transmission distance: single mode fiber up to 20km

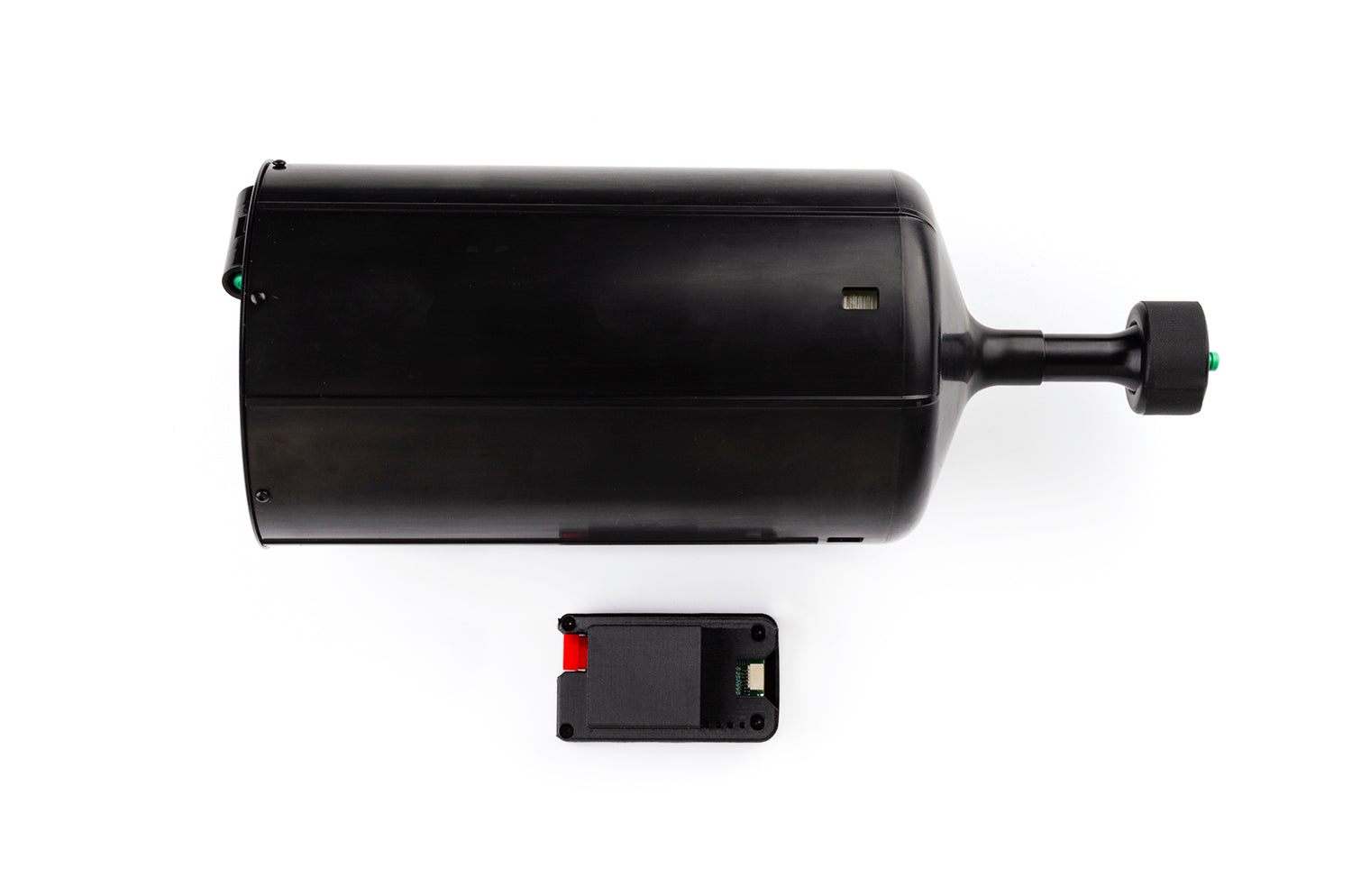

The package contains:
1x Sky End SE fiber optic module
1x 10km SE fiber optic roll
