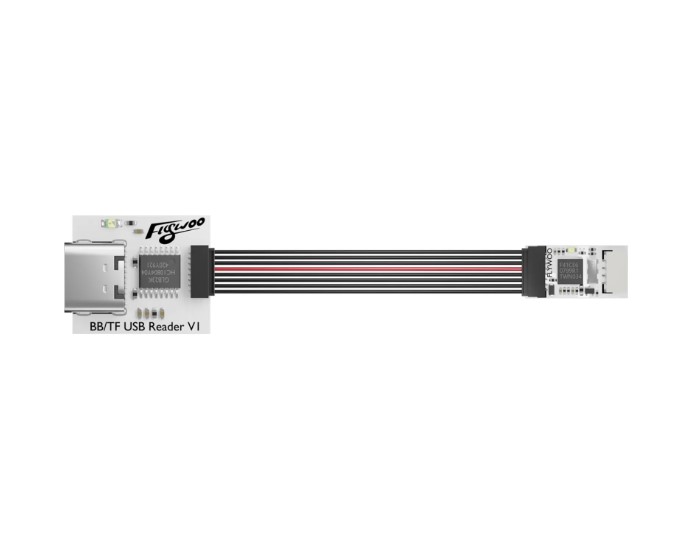

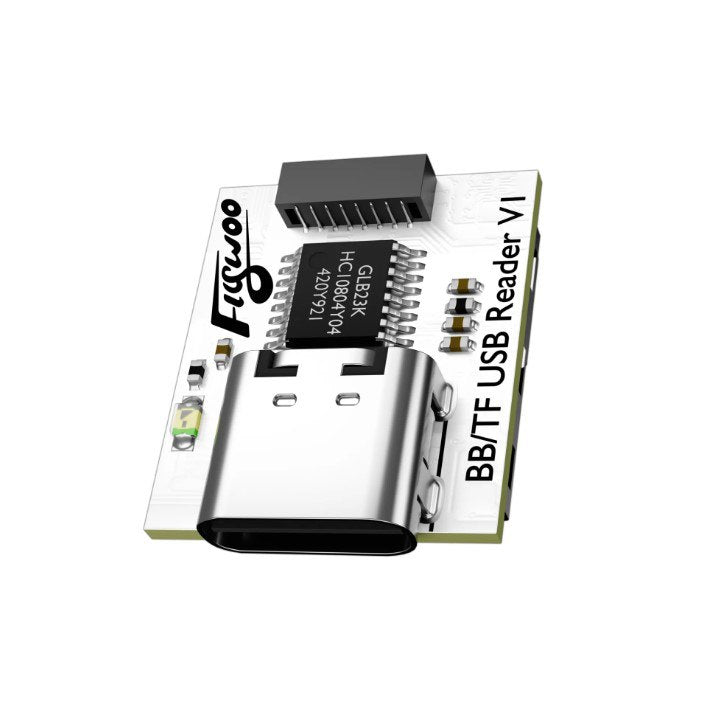

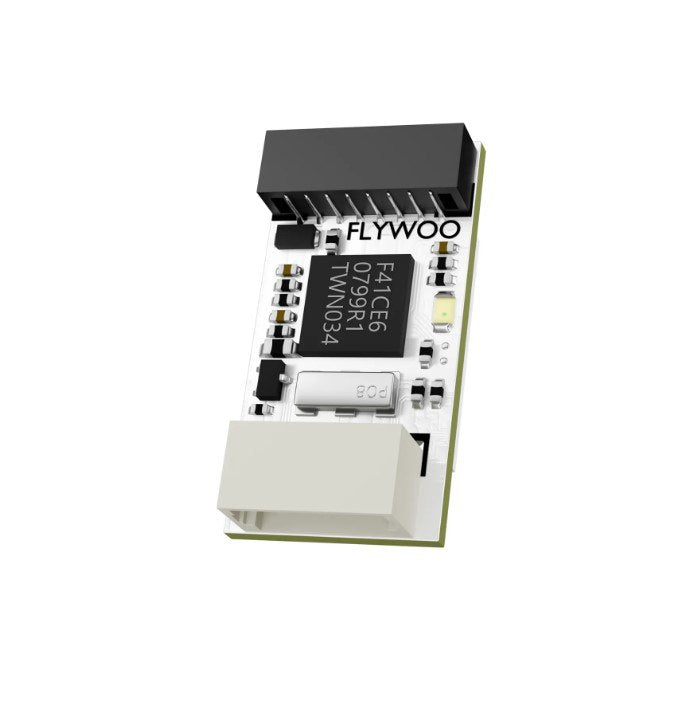

Black Box Module FLYWOO OpenLager Nano (512MB) FLYWOO OpenLager Nano is the world's smallest black box, designed specifically for micro and FPV drones where space and weight matter. It weighs only 0.4 g and has dimensions of only 14 x 7 x 3.5 mm. Contains 512MB of highly reliable SLC NAND Flash memory for recording detailed flight data. The built-in USB-C 3.0 reader enables very fast data transfer and supports hot swapping. Whether you're tuning PIDs or diagnosing problems in flight, this compact recorder is your ideal tool. With LED indicators for easy status monitoring and plug-and-play simplicity, the OpenLager Nano offers performance, efficiency and convenience in an ultra-small package. Specifications: Memory: 512MB SLC NAND Flash Interface: USB-C 3.0 (backward compatible with USB 2.0) Voltage: 4.5V Module dimensions: 14 x 7 x 3.5 mm Reader dimensions: 18.2 x 15.4 x 6.2 mm Weight: 0.4g Operating temperature: –10°C to +40°C The package contains: 1 x FLYWOO OpenLager Nano black box module 1 × BBITF USB Reader V1 1 x cable connector between the black box and the USB reader 1 × 4P-0.8mm 10cm cable
