Compatible batteries:
We have a suitable battery for purchase in our store. Using unqualified batteries will damage the spot welder. If you do not understand the choice of battery, you can buy the battery in our store or consult our customer service.
SQ-SW1 5000mAh 3S 60C Lithium Battery with XT90 Connector a>

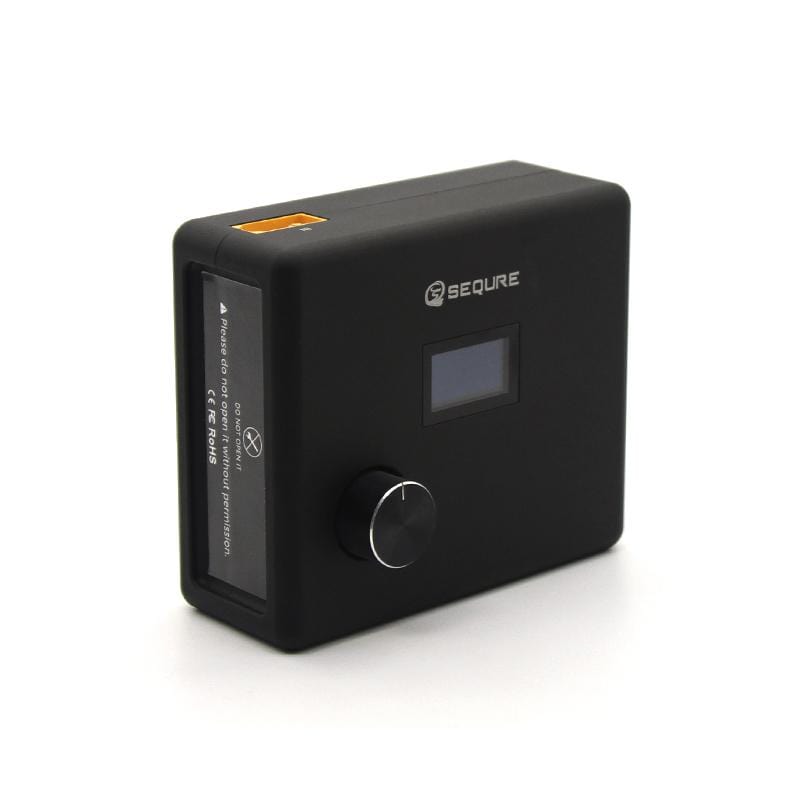

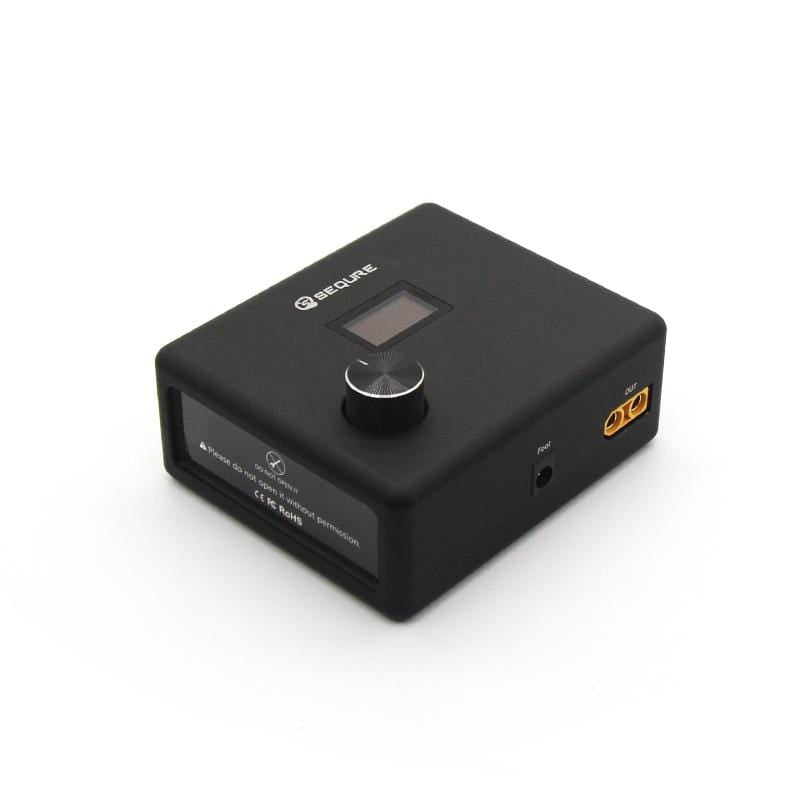

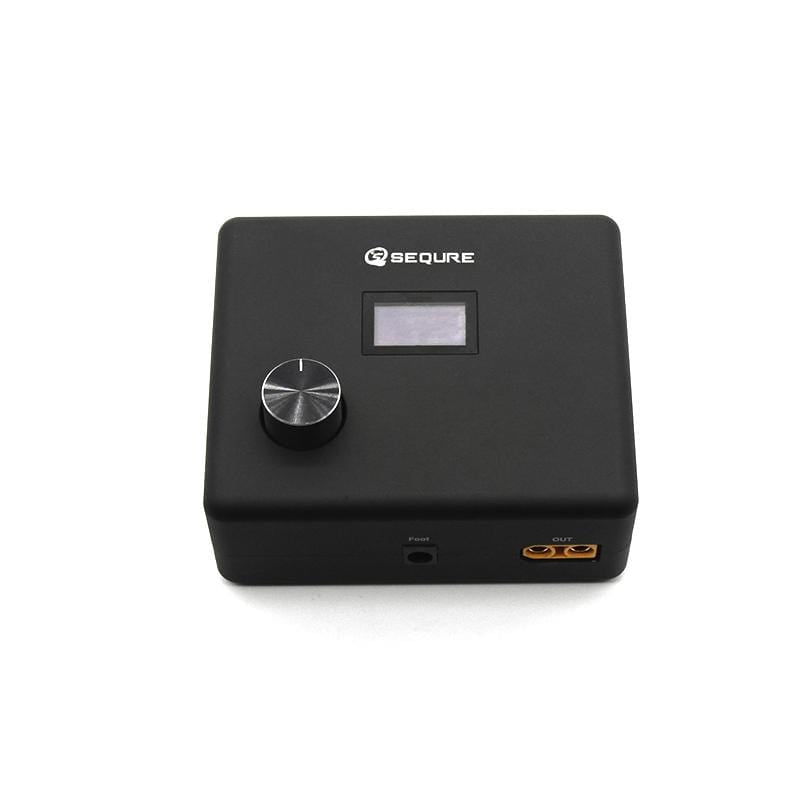

Battery Spot Welder Introduction

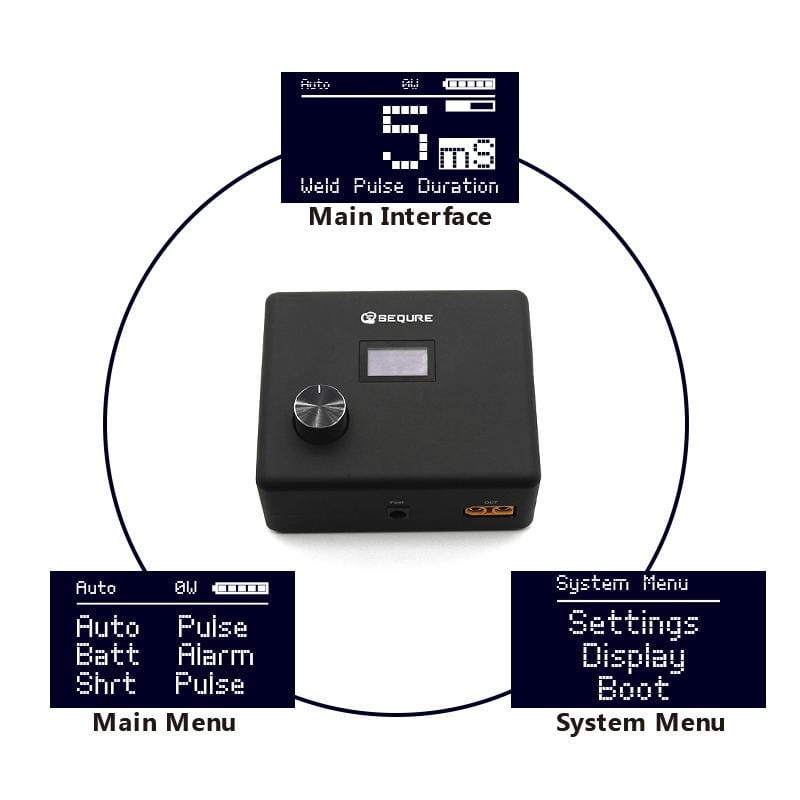

At present, lithium batteries are widely used in electronic products, rechargeable batteries, electric vehicles, balance vehicles, model airplanes, model ships, electronic instruments, and so on. Due to the diversity of the shape and volume of the battery and the limitation of the power supply mode, the traditional welding machine lacks flexibility. SQ-SW1 is battery powered, OLED display can show high and low voltage warning. Using new spot welding technology and intelligent switching of automatic or manual working mode to meet different needs. It is a flexible and efficient welding tool.
Technical parameters of spot soldering
- Input voltage: 10-14V
- Weld thickness: 0.1-0.3 mm
- Launcher delay: 0.5-3s
- Flip screen: 180°
- Pulse time: 1-100ms(default), 1-500ms）(setting)
- Short pulse: 0-100%
- Working model: Automatic/manual
- Voltage Warning: Low Voltage/High Voltage

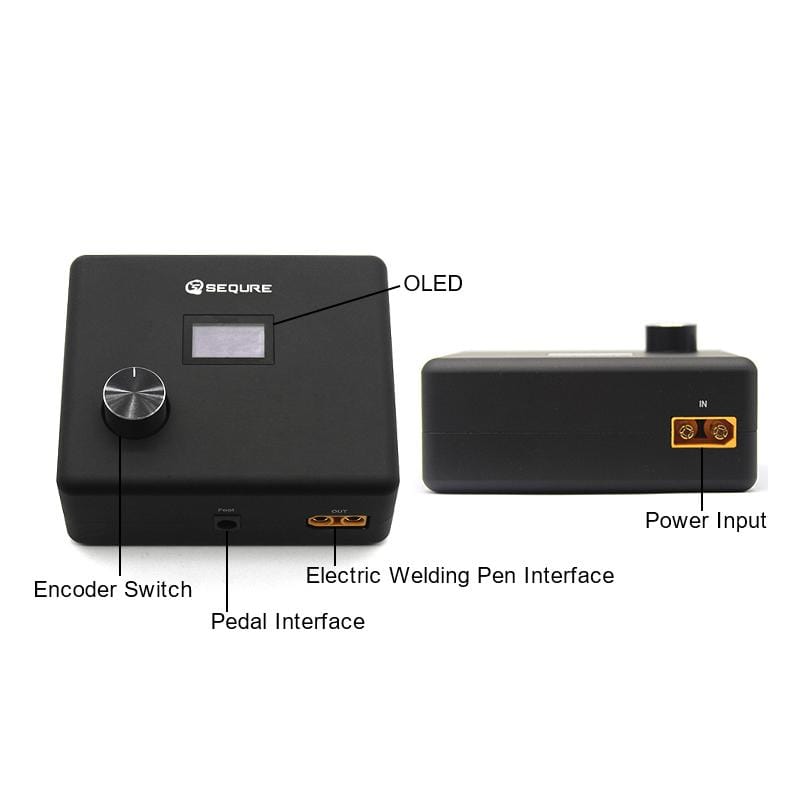

- Power supply interface: XT90
- Recommended battery: lithium battery (3S 5000-8000mAh 60-75C), car battery (12V 0CAli-80) 800
Note: For batteries with a discharge coefficient lower than 60C, only 0.1 thick nickel strip can be spot welded; If the discharge coefficient is higher than 75C, the internal base plate of the host may be burned.
>
>
>>
>
< /p>
>
Safety Tips
1. The two electrodes and the solder pins should not touch to avoid short circuit.
2. Pay attention to the correct connection. You can find the specific connection method in the manual.
3. When using for the first time, set the duration of the welding pulse to 2 ms and check the welding result. According to the current welding situation, set the appropriate welding pulse duration step by step to achieve good welding.
4. If you use higher current parts or non-factory parts, you have to take your own risk.

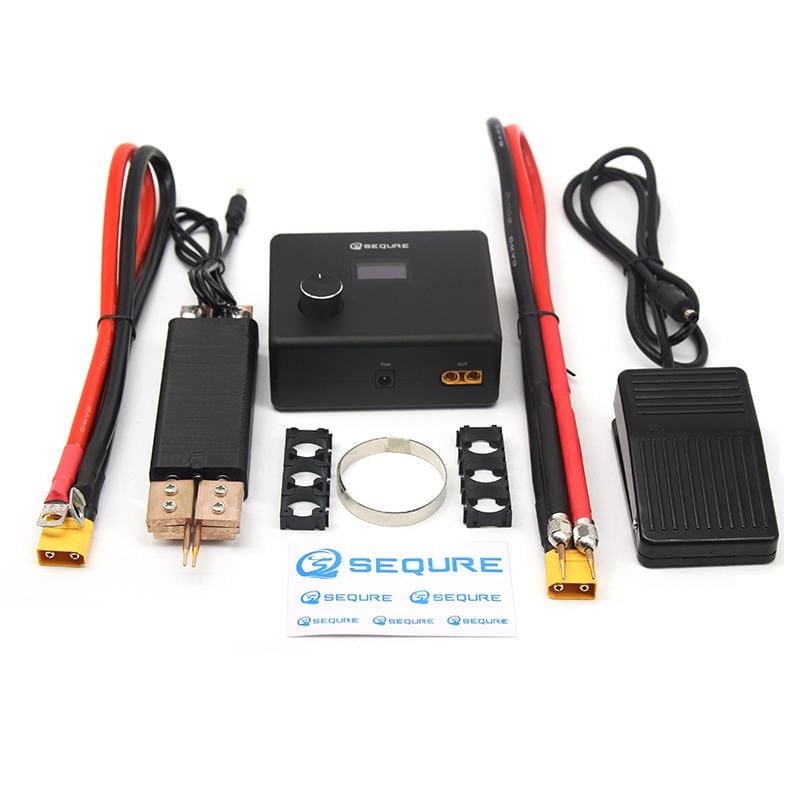

Package Description
Package one
1×Host
1×Welding pen

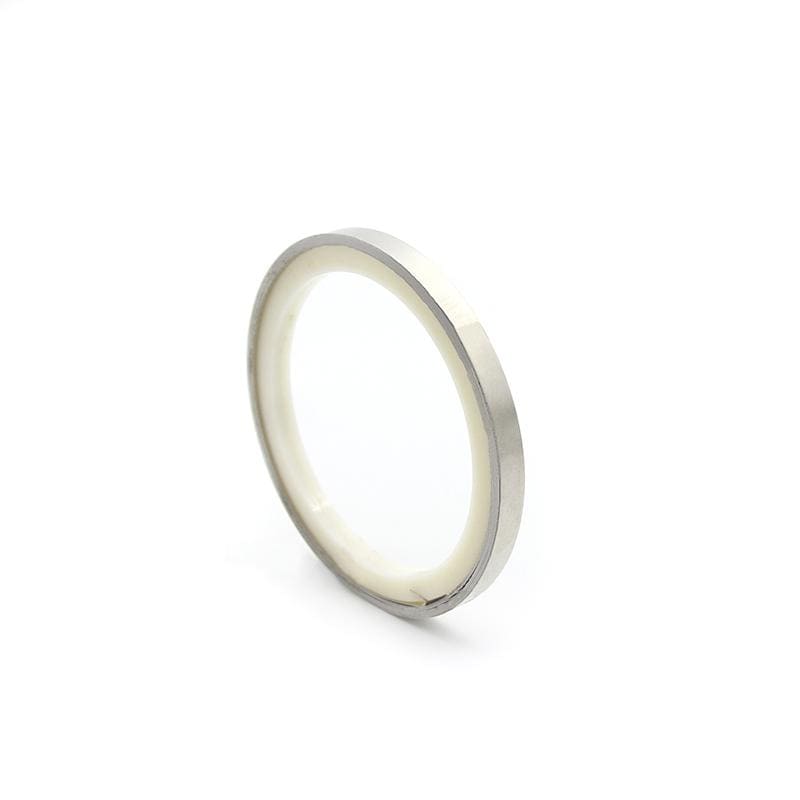

1×Nickel strip

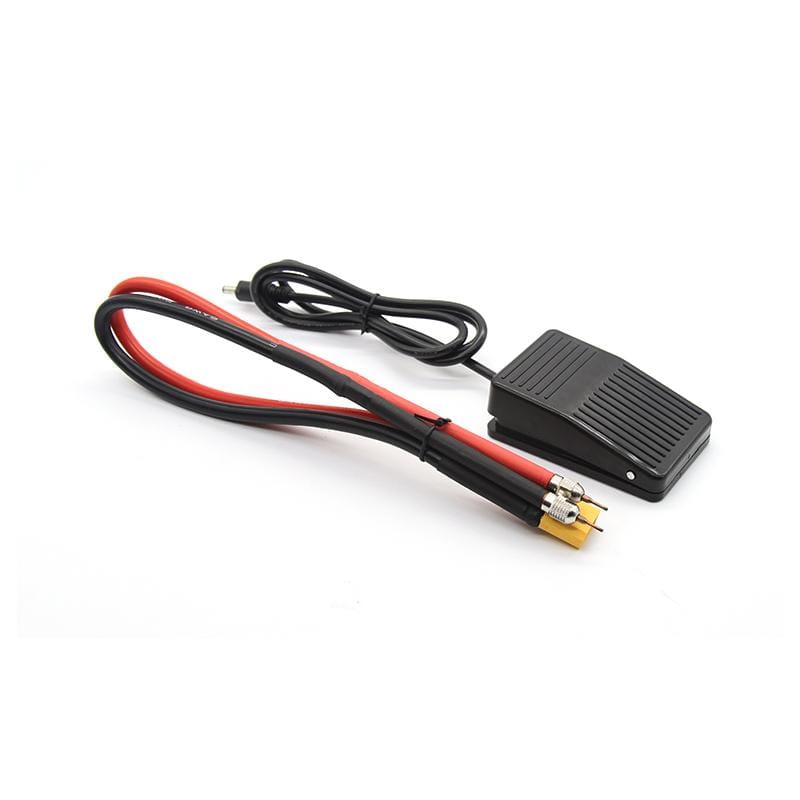

1×Foot pedal
2×Solder pin

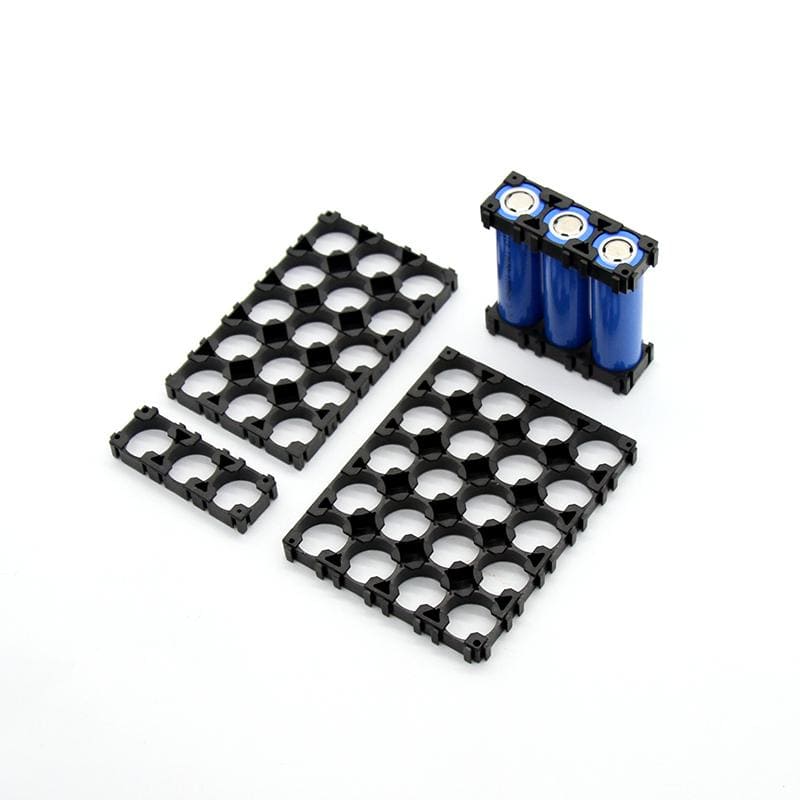

2 × battery holderPack two
1×Host

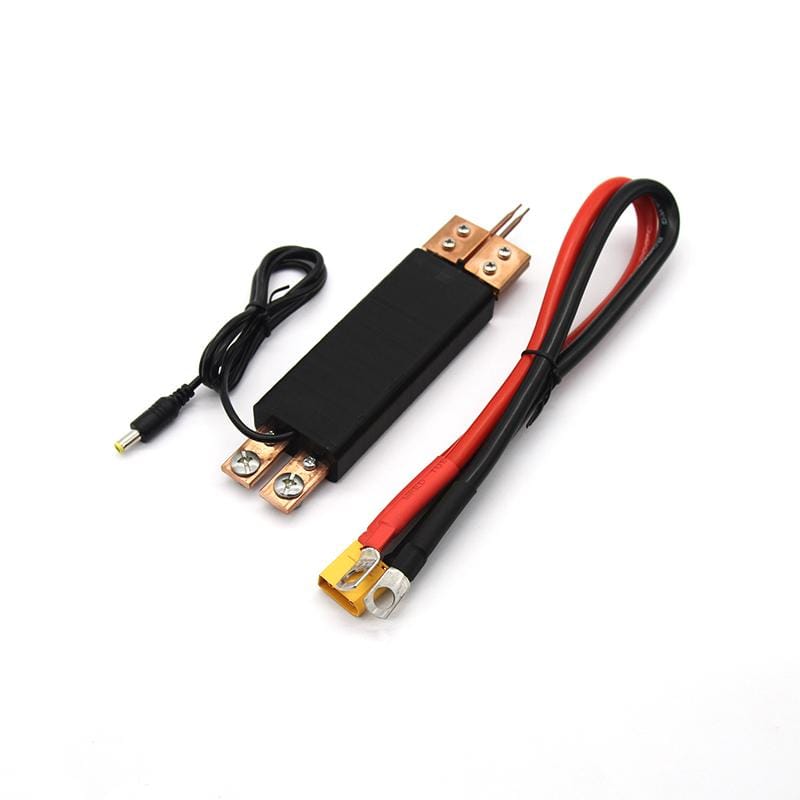

1× Spot welding pen automatic trigger
1× Soldering pen connection cable
1× Nickel strip
2× solder pin
2 × battery holderPackage Three
1×Host
1×Welding Pen
1×Foot Pedal
1×Spot Welding Pen Automatic Trigger
1×Soldering Pen Connector Cable
1×Nickel Strip
2×Battery Holder
4×Solder Pin
