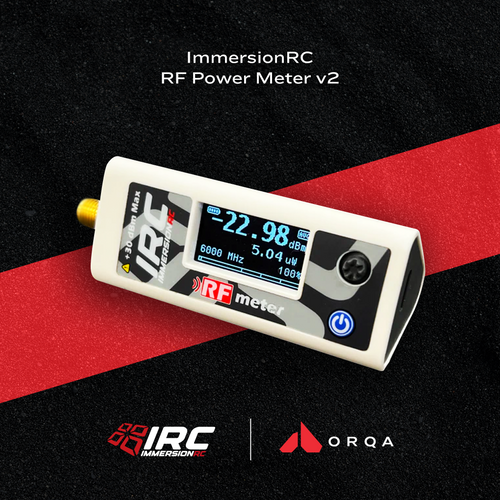

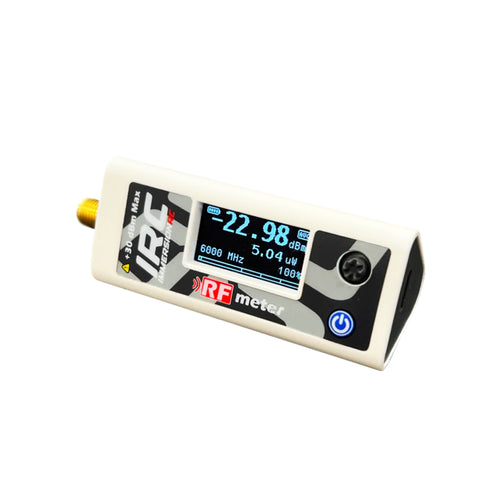

ImmersionRC Power Meter v2
ImmersionRC Power Meter v2
Brand: ImmersionRC
Couldn't load pickup availability
- Description
- Related Files
- Discussion
ImmersionRC v2 performance meter
FPV is possible thanks to two radio links: a control link and a video link. You can test these critical RF links with an RF Power Meter.
- The RF Power Meter v2 can provide accurate power measurements for constant current and pulsed RF signal current.
- The v2 includes an integrated lithium-ion battery that can power the meter for at least 8 hours. With automatic shut-off after a period of inactivity, the meter can last several days on the racetrack on a single charge.
- Charging with a standard micro-USB connector takes less than one hour.
Specifications:
Power Level: -20dBm to +30dBm
Calibrated Frequencies: 35, 72, 433, 1200, 2400, 5600-6000MHz in 50MHz steps.
Accuracy: Accuracy: +/- 0.5dB
Attenuator: 0.5-0.5dB: (Internal): 30dB
Battery: 3.7V lithium-ion cell, size 10440, 600mAh
Current consumption: 10.5L/s, 10.5L/s, 10.5L/s: Consumption: ~35mA
Battery life: ~8 hours
Auto shut-off: 5-minute time limit
Charging: Micro USB cable
Display: OLED, 128 × 64 pixels, monochrome
User input: Joystick:
Interface: USB, power control via CDC
Antenna: 5.8GHz "sniffer antenna" (linearly polarized dipole ~2dBi)
Adapter: SMA adapter: male to male
Dimensions: 8.6x6.5x3.2cm.
Weight: 40g
Package includes:
1x ImmersionRC Power Meter v2
