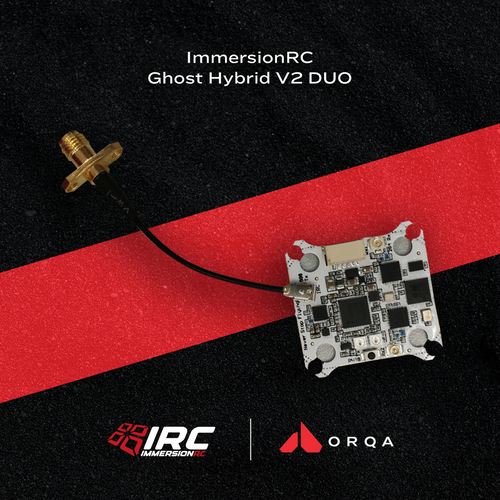

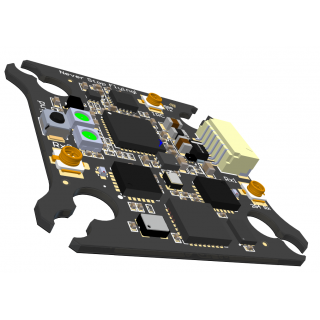

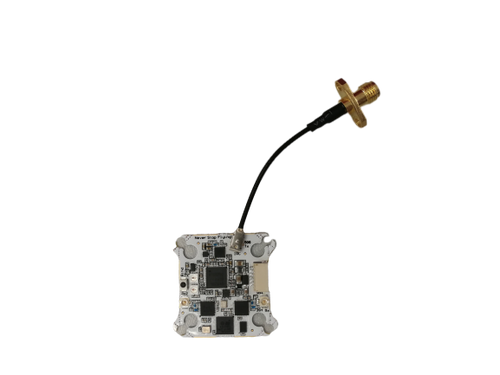

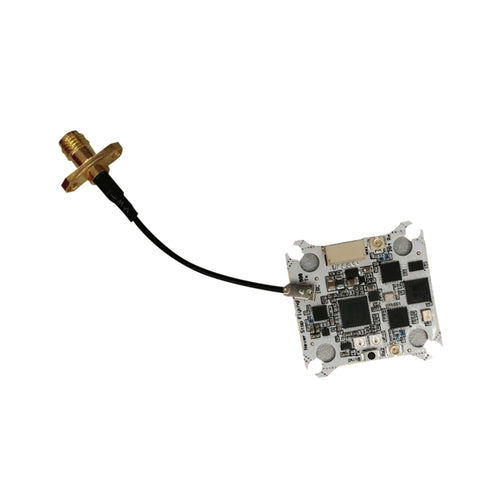

ImmersionRC Ghost Hybrid V2 DUO 5.8GHz vTx + 2.4GHz Rx All-in-One Module The ImmersionRC Ghost Hybrid V2 DUO combines a high-performance 5.8GHz analog video transmitter with a state-of-the-art 2.4GHz Ghost receiver in one ultra-compact board. Designed for racers and freestyle pilots looking for maximum efficiency, this 2.2g hybrid module offers extreme range, ultra-low latency and a simplified build process. With intelligent vTx control through the Ghost ecosystem, pilots can adjust settings from the transmitter menu or the OpenTx interface. The Hybrid supports a range of serial protocols, offers 500Hz R/C updates and features a thermally regulated 600mW VTX. Ideal for sub-250g builds, this module redefines versatility in FPV control and video transmission. Specifications: vTx frequency: 5.8 GHz (adjustable 25-600 mW) RC Link: 2.4GHz Ghost Protocol (Lora & FLRC) RC update rate: 500Hz (1kHz ready) Mounting: 20 x 20 mm (inner), 25.5 x 25.5 mm (outer) RF downlink power: +13 dBm Receiver sensitivity: -117 dBm (long range mode) Protocols: GHST, SBus, SBus-Fast, SRXL-2, SBus Inverted Firmware: OTA updateable (Rx & VTx) Video channels: all 48 standard Antenna connectors: U.FL with lock Power supply: 5 V (with OVP) Dimensions: 26 mm x 126 mm Weight: 2.2 g (without antennas) The package contains: 1 x ImmersionRC Ghost Hybrid V2 DUO
