Code: SKU:BF15683

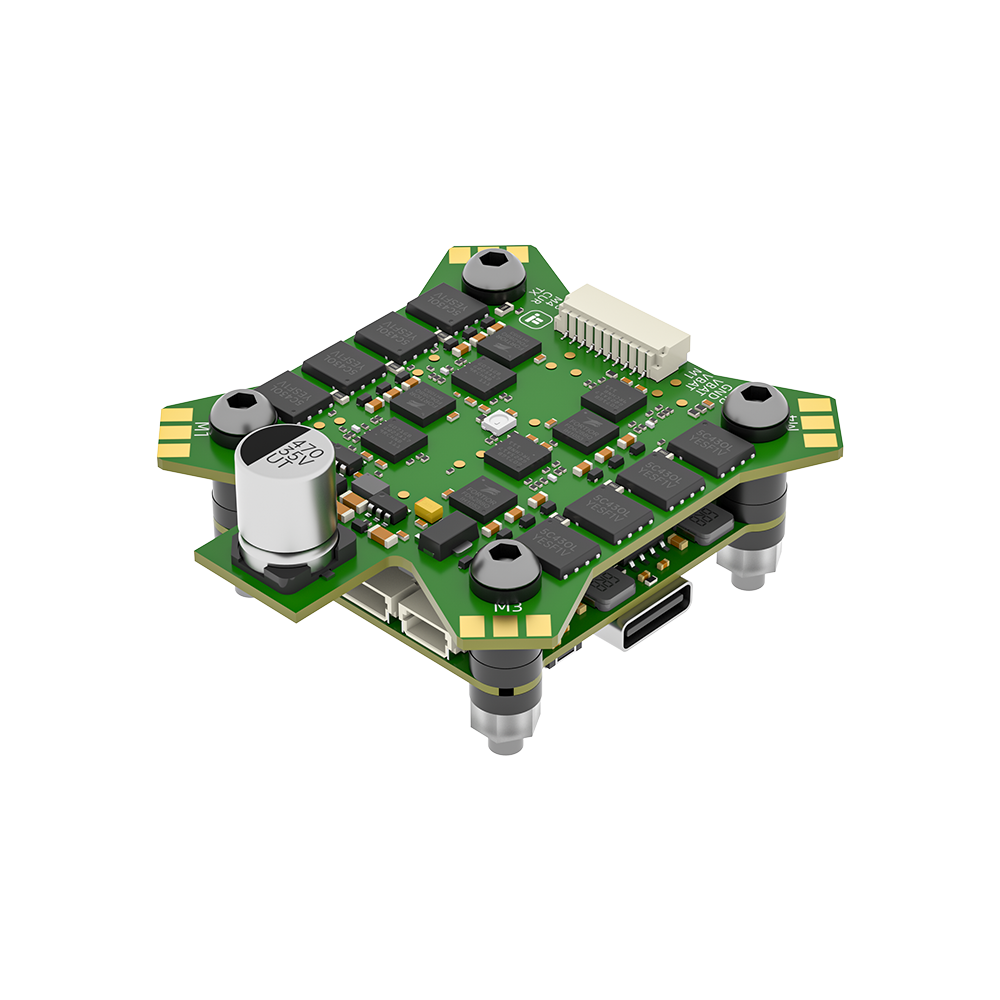

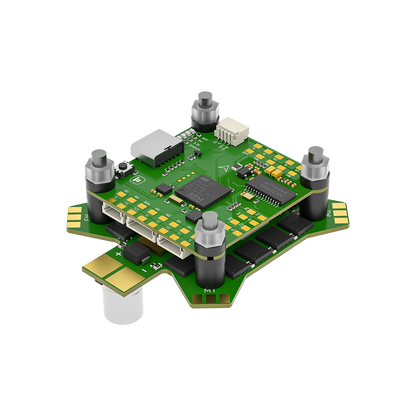

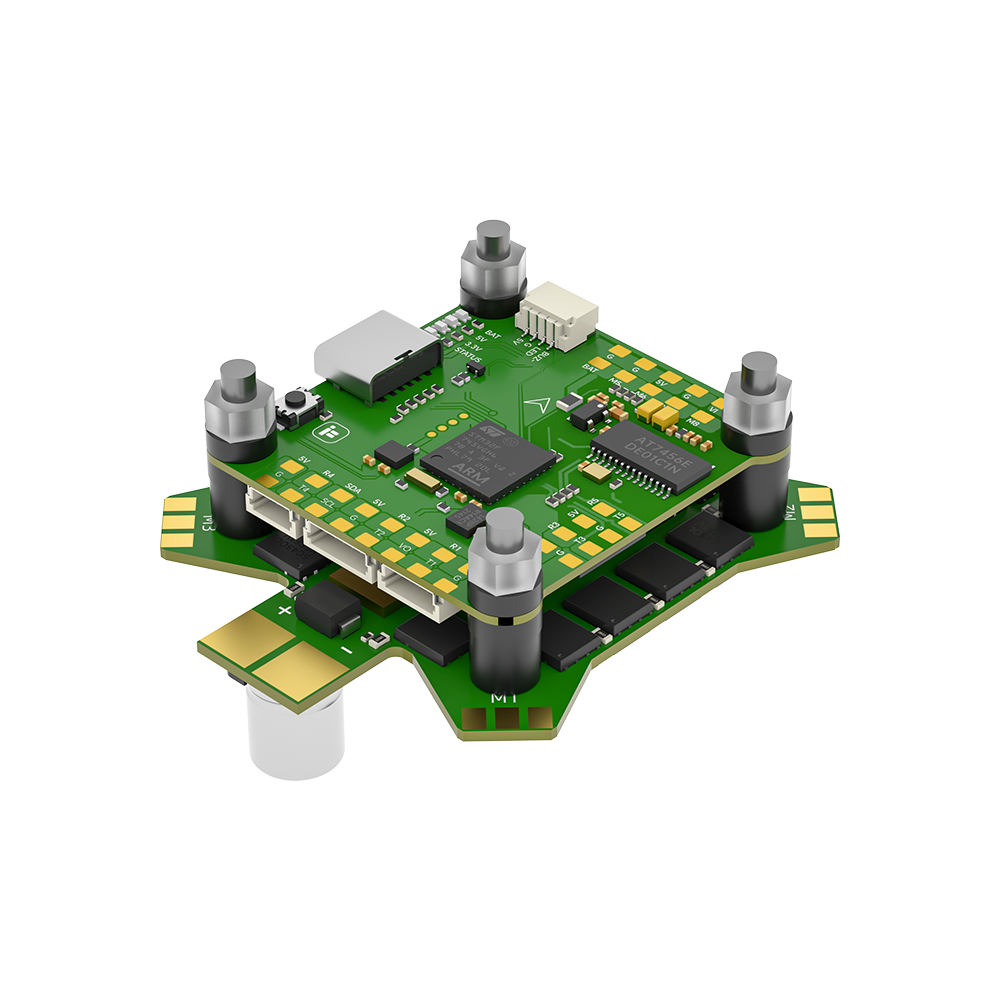

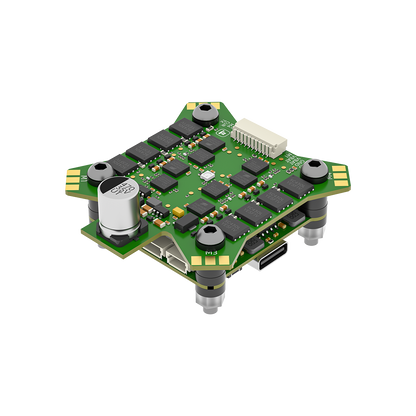

iFlight BLITZ F745 Stack (E55S 4-IN-1 ESC)
iFlight BLITZ F745 Stack (E55S 4-IN-1 ESC)
Brand: iFlight
Regular price
€103,70
Regular price
€103,70
Sale price
€103,70
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
iFlight BLITZ F745 Stack (E55S 4-IN-1 ESC)
Features:
- Improved circuit design with better components and lower electrical noise.
- DJI HD VTX connector (Plug-and-Play / No soldering required).
- Indicator LEDs on FC for visual tuning.
- Betaflight, INAV and Ardupilot firmware support.

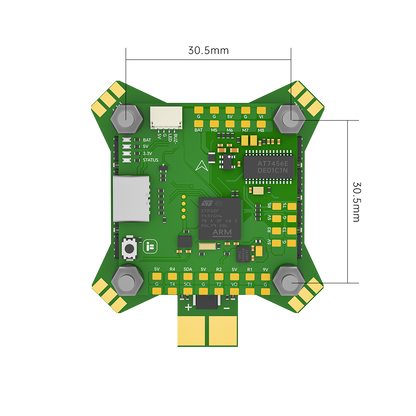

Control Unit (FC) Specifications:
- MCU: STM32F745
- Gyro: ICM42688
- Barometer: DPS310
- OSD chip: AT7456E
- Flash memory: 32MB (Blackbox flash)
- UARTS: 6
- Smartaudio / IRC Tramp VTX protocol support
- LED Driver: Yes
- Beeper Pad: Yes
- Mounting pattern: 30.5*30.5mm
- Dimensions: 36.5*35 mm
- Weight: 7.8g
-
BEC:
- Output 5V 2.5A continuous, 3A peak current (15 seconds)
- Output 9V 2.5A continuous, 3A peak current (15 seconds)
- BF Target Firmware: IFLIGHT_BLITZ_F7_AIO
- Ardupilot Firmware: arduplane_with_bl
Recommendations for involvement:
- UART 1: for VTX HD / Analog
- UART 2: for receiver
- UART 3/4/5: for GPS or other sensors requiring a serial port
- UART 6: for ESC telemetry

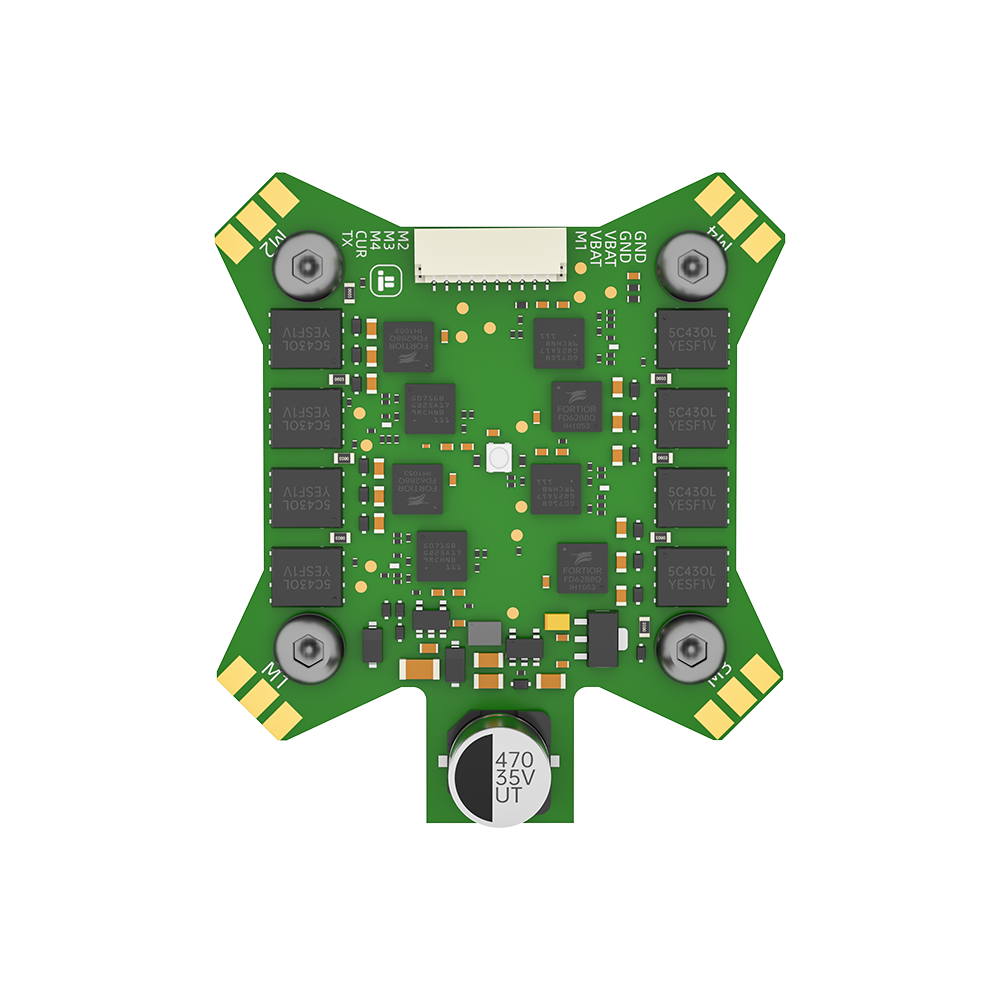

ESC Specifications:
- Mounting holes: 30.5*30.5mm/Φ4mm
- Weight: 15.3g
- Support: 2-6S LiPo input
- MCU: G071
- Continuous current: 55 A
- Peak current: 65 A
- Current sensor: Yes
- BEC: No
- Rated current: 200
- Supported protocols: DShot DShot150/300/600/MultiShot/OneShot, etc.
- Target firmware: IFLIGHT_BLITZ_G3 32.9
Package contents:
- 1 x BLITZ F745 V1.2 control unit
- 1 x BLITZ E55 4-IN-1 2-6S ESC
- 1 x silicone grommets
- 1 x harness for F7 control unit
