    Code: 19005

    Holybro PMW3901 Optical Flow Sensor

    Holybro PMW3901 Optical Flow Sensor

    Brand: Holybro

    €20,59
    €20,59 €20,59
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

    Product Description:

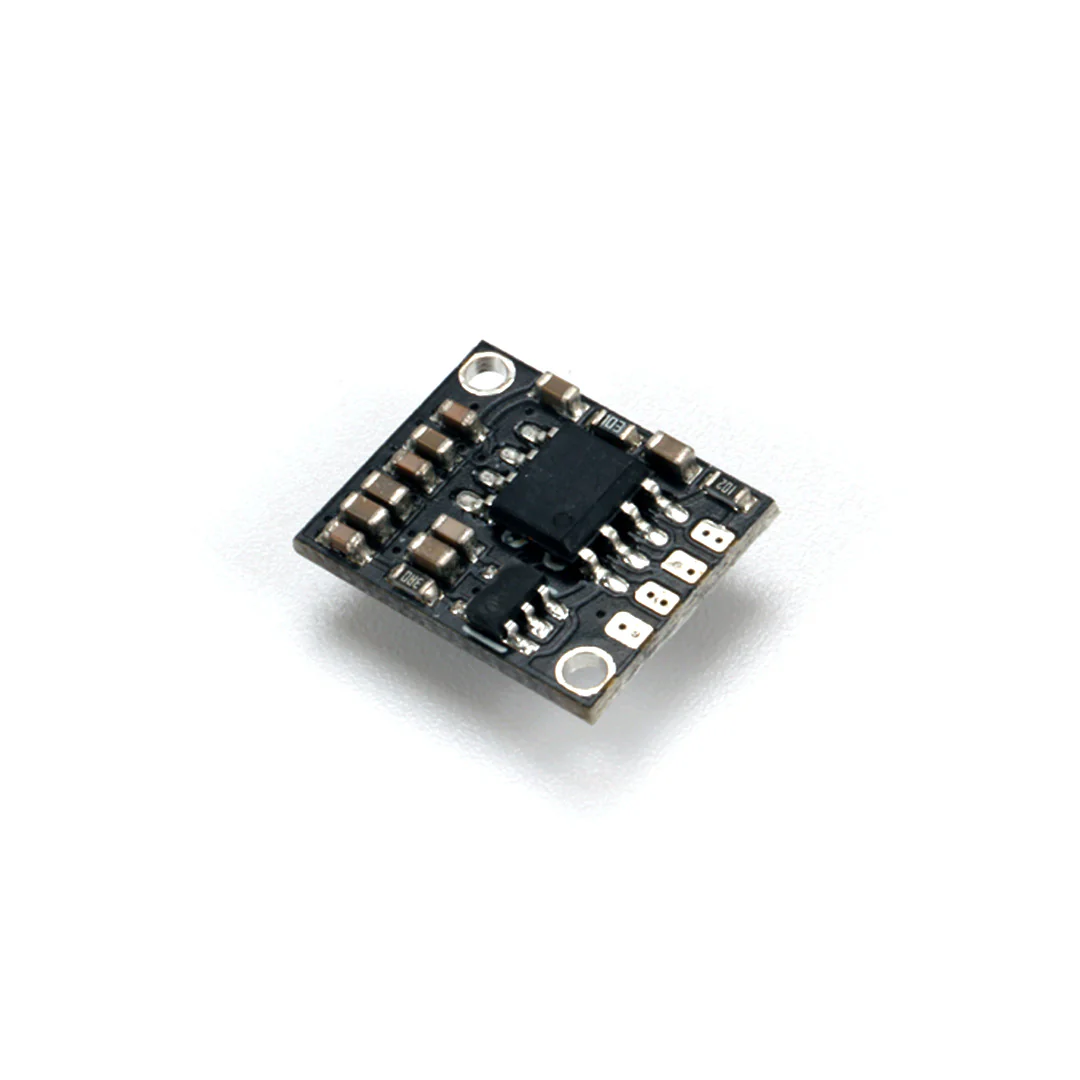

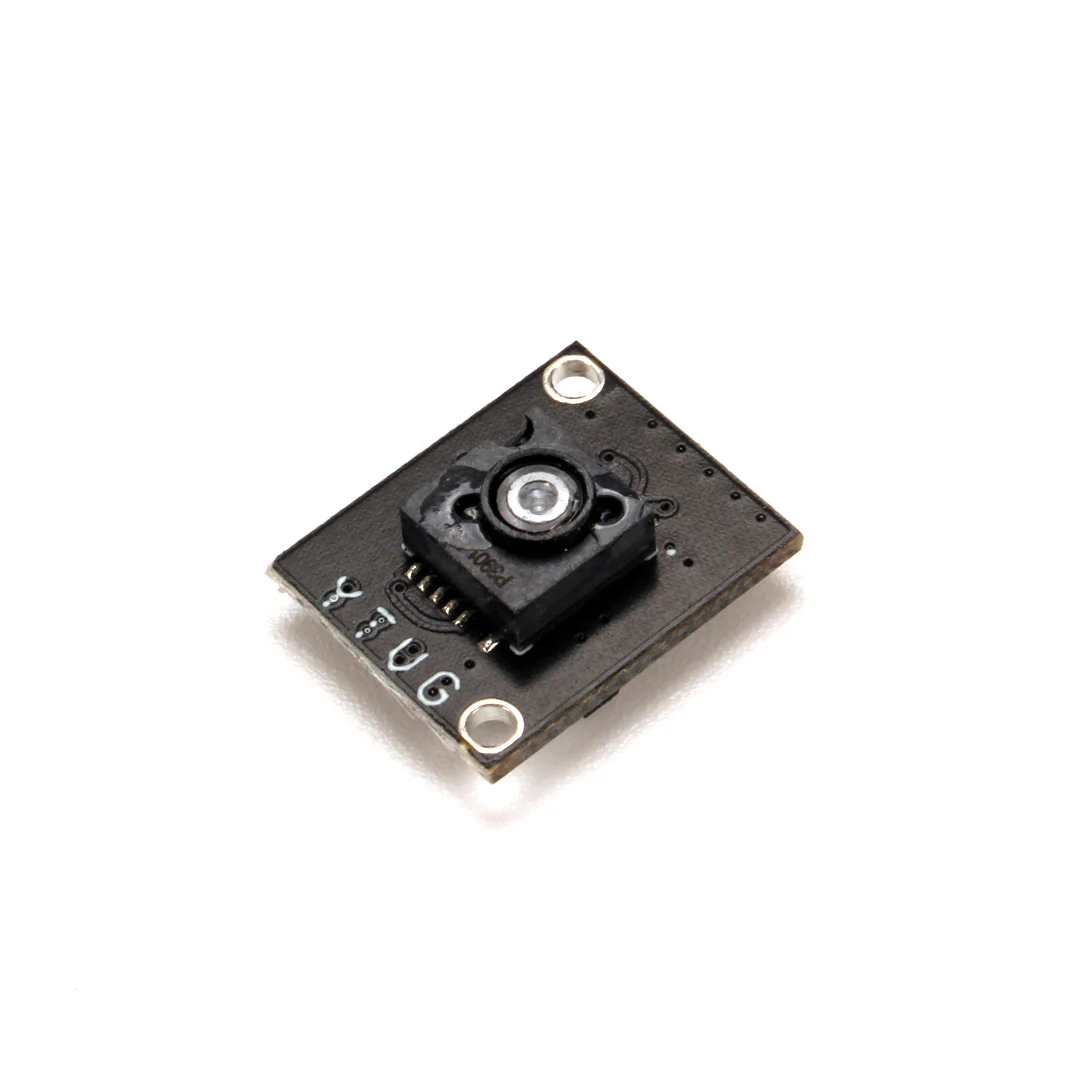

    The Holybro PMW3901 optical flow sensor is a UART version of the PMW3901 module with a built-in BEC. It comes with a pre-slotted 6-pin JST GH connector designed to connect directly to the TELEM ports on most flight controllers. Compatible with PX4 (PX4 manual) and Ardupilot (data format same as discontinued product CX-OF).

    Technical data:
    Dimensions: 14x11x5mm
    Weight: 0.6g
    Interface: UART
    Baud rate: 19200
    FPS: 95Hz
    Power supply: 2.0~3.6V
    Current: 10mA
    Data format:

    • byte0: header (0xFE)
    • byte1: number of data bytes (0x04)
    • byte2: higher byte of x-axis movement
    • byte3: lower byte of x-axis movement
    • byte4: higher byte of y-axis movement
    • byte5: lower byte of y-axis movement
    • byte6: checksum
    • byte7: surface quality
    • byte8: footer (0xAA)

    Package contents:
    1x PMW3901

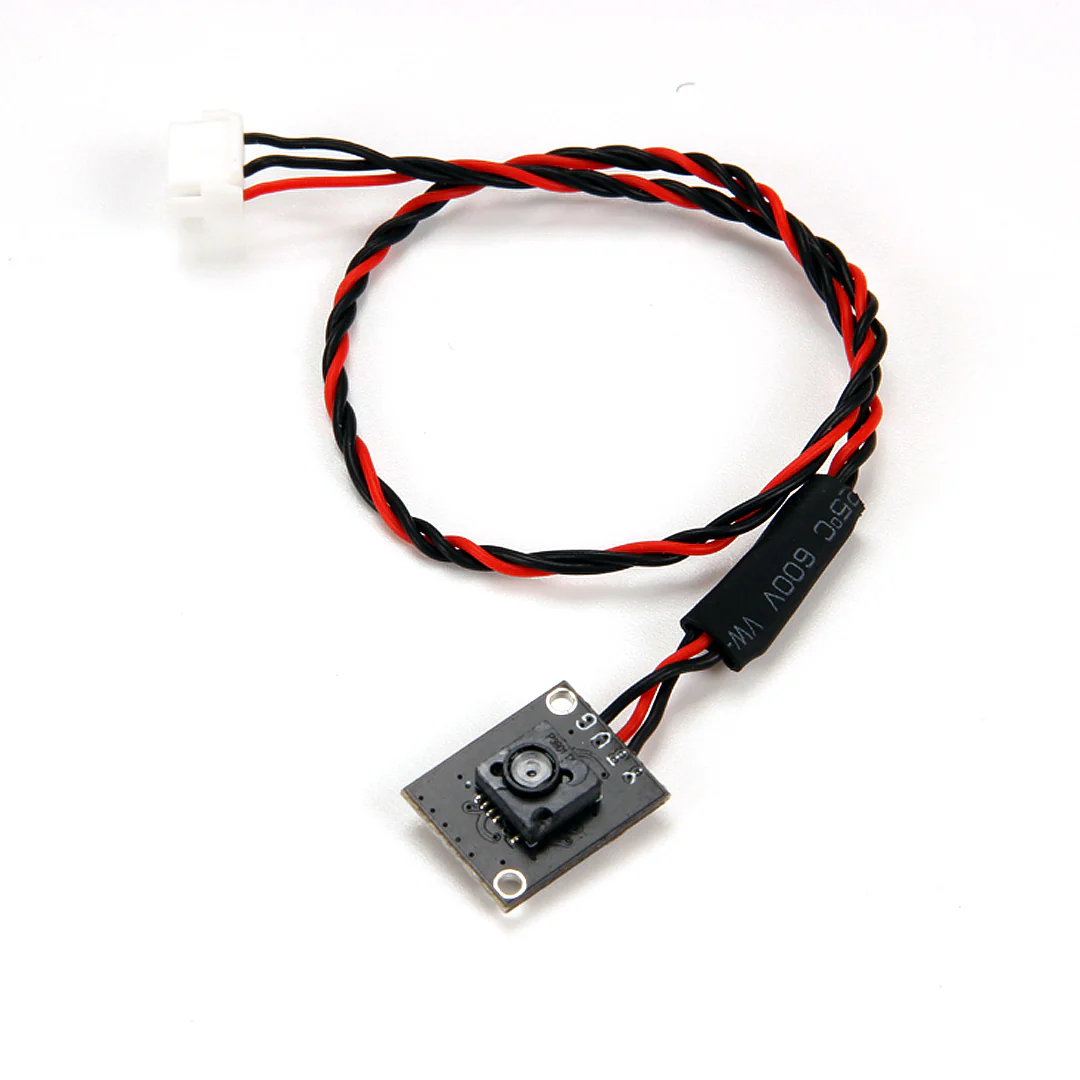

    1x GH6P 170mm cable (installed)

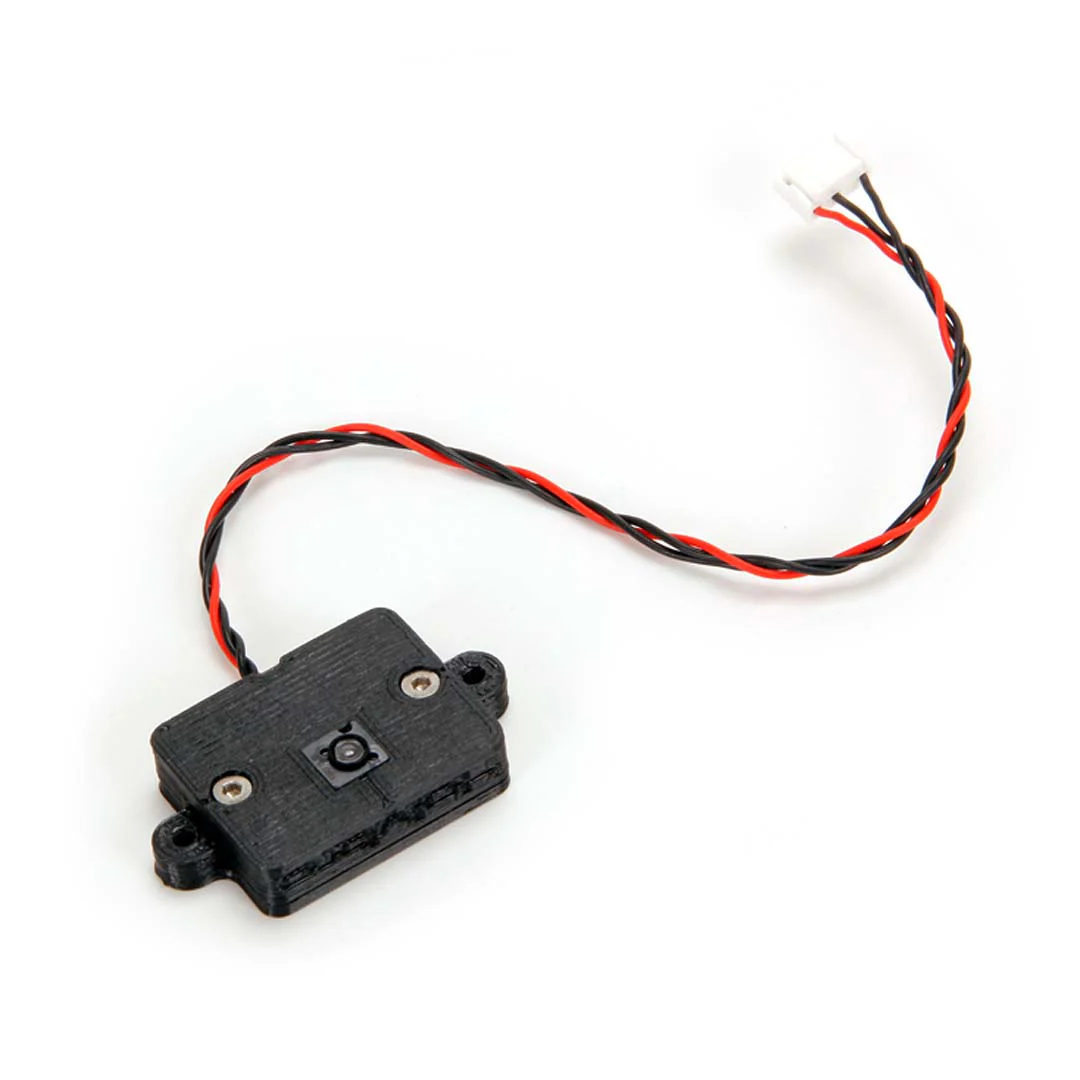

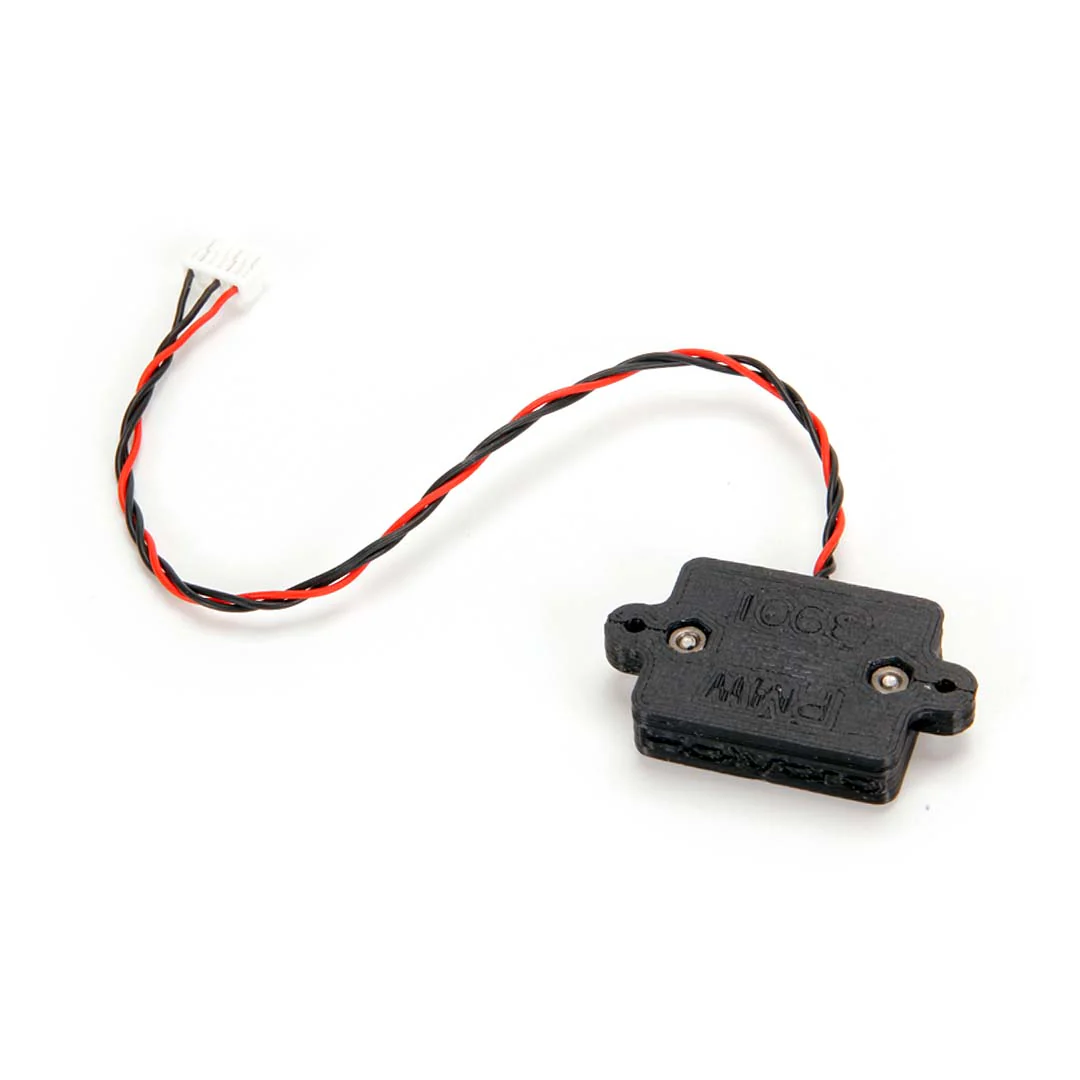

    1x TPU protective case
