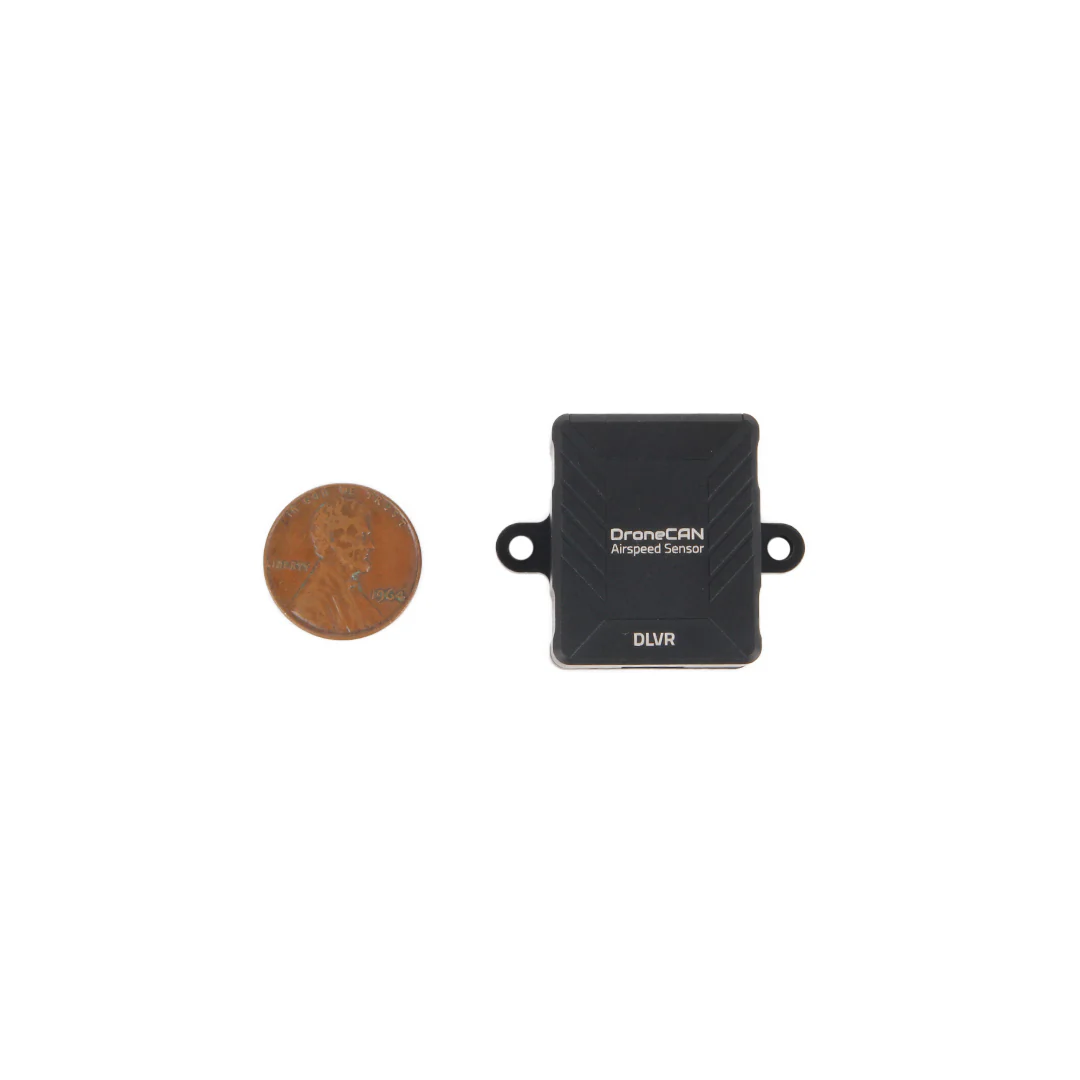

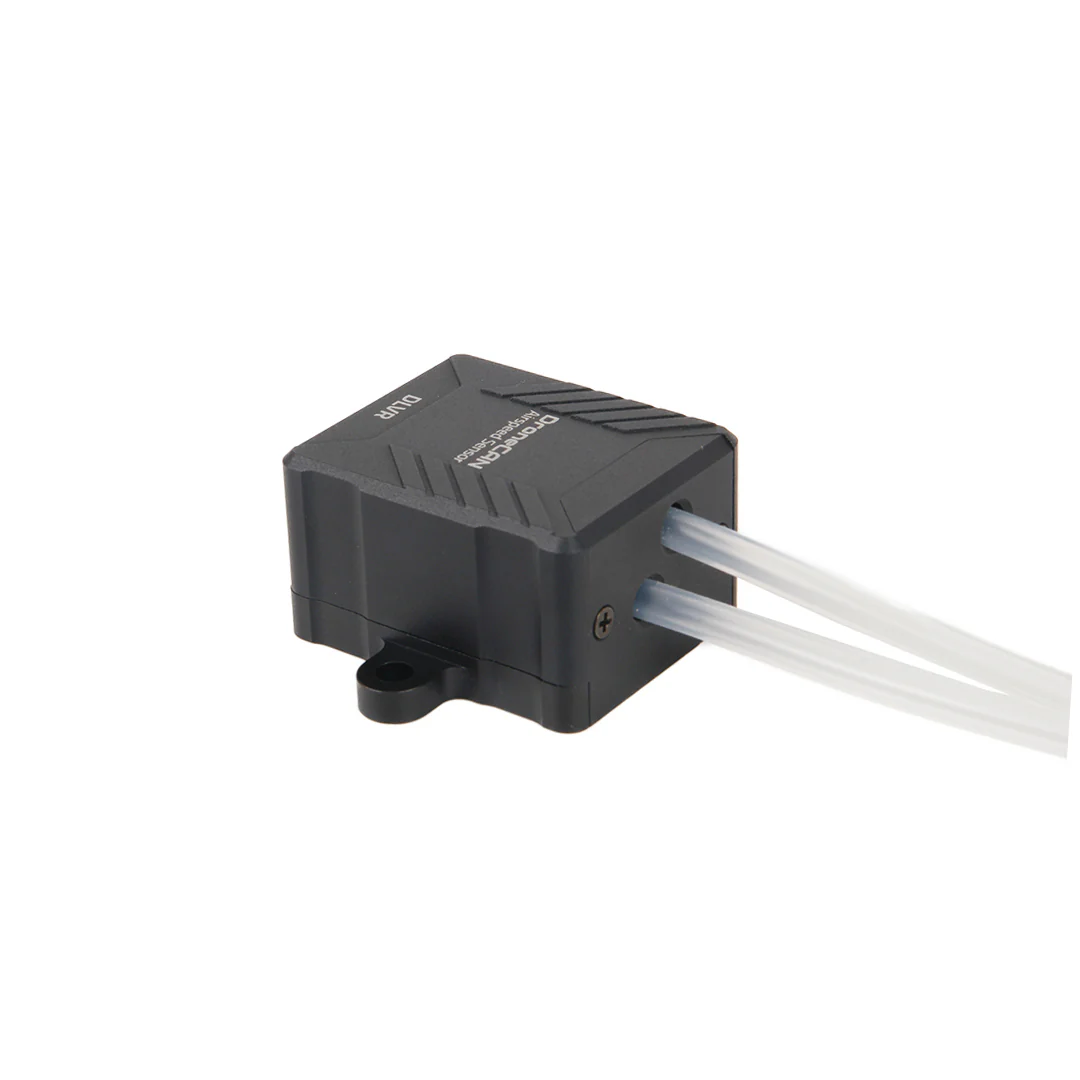

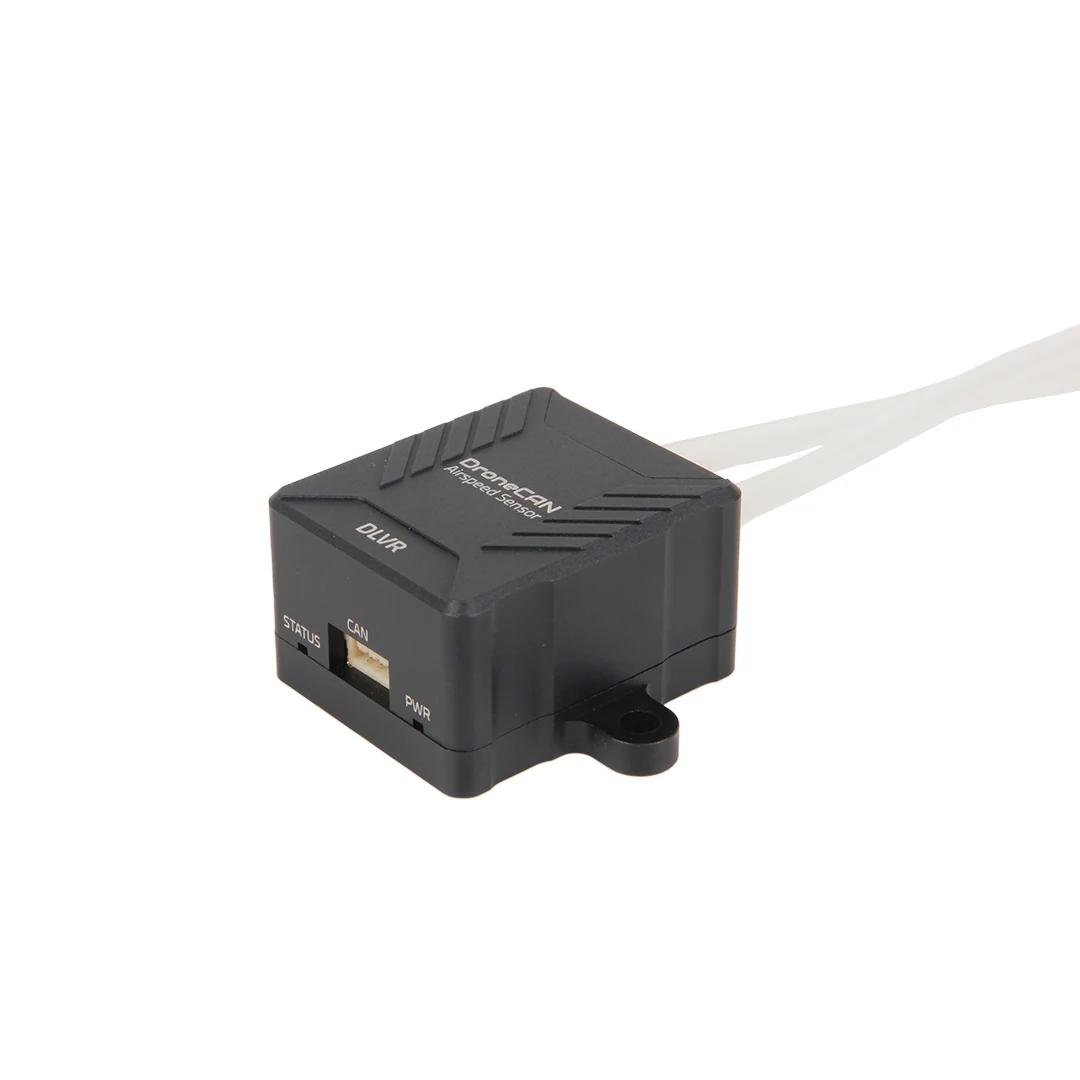

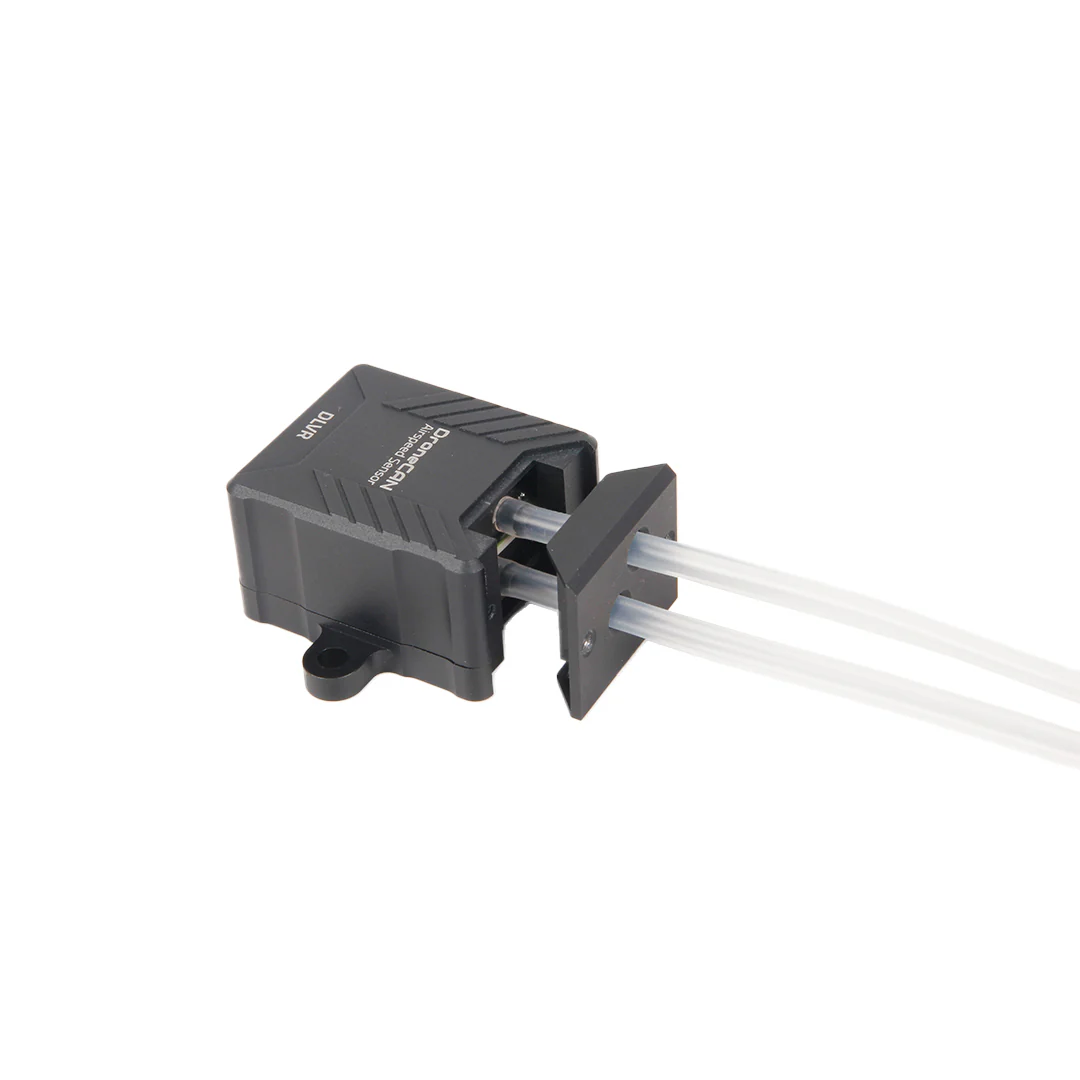

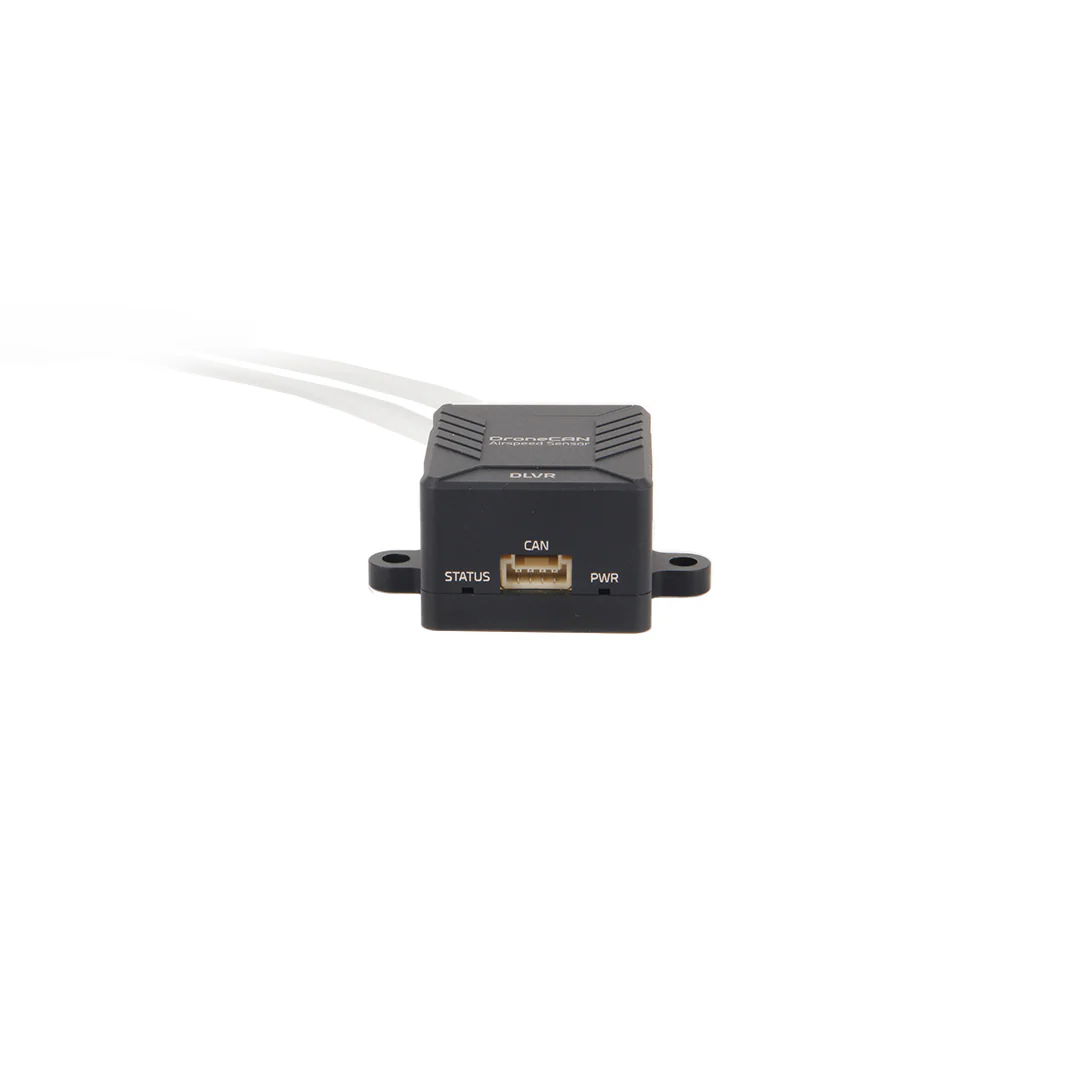

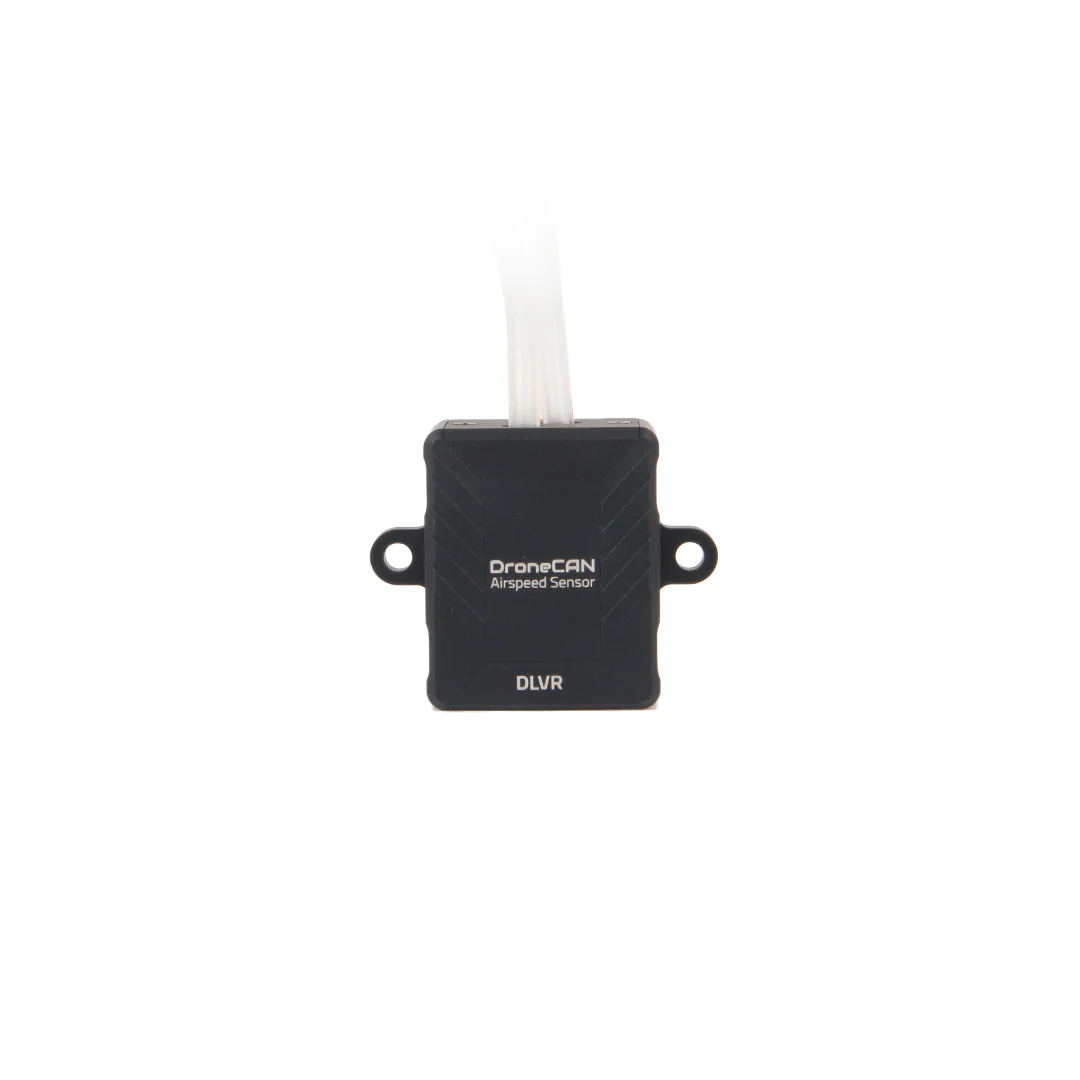

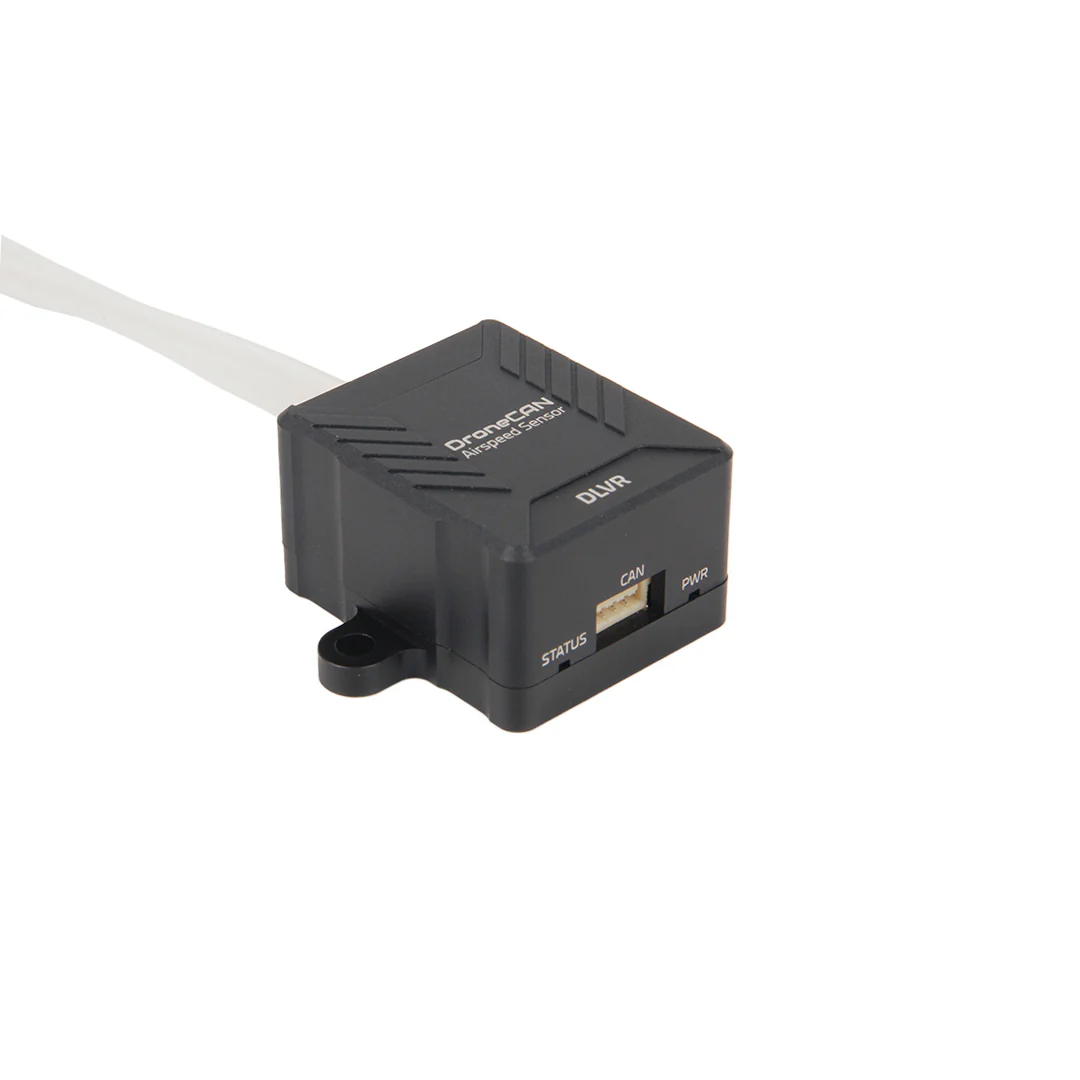

Holybro DroneCAN Airspeed is an industrial grade differential pressure measurement module designed to accurately measure airspeed in a variety of UAVs, including aircraft, VTOL and other vehicles. It is equipped with a DLVR_L10D digital pressure sensor and runs on ArduPilot AP-Periph firmware, ensuring accurate and reliable airspeed data under various flight conditions.
Properties:
- Wide pressure range: Supports measurements up to 2500 Pa and 226.8 km/h (141 mph) air speed.
- High precision DLVR sensor: Based on ALLSENSORS® CoBeam technology, providing high precision and low temperature drift.
- High accuracy: Achieves accuracy better than 1% over a wide temperature range, ensuring reliable and accurate measurements even in demanding applications.
- DroneCAN protocol: Compatible with PX4 and ArduPilot platforms.
- Aluminum construction: Durable and reliable construction.
Specifications:
- MCU: STM32G473CE, 170 MHz, 128 KB RAM, 512 KB Flash
- Sensor: DLVR_L10D
- Pressure range: 2500 Pa
- Burst pressure: 75 kPa
- Air speed measurement: 0-226.8 km/h
- Accuracy: <1.0% error
- Firmware: AP-Periph DroneCAN

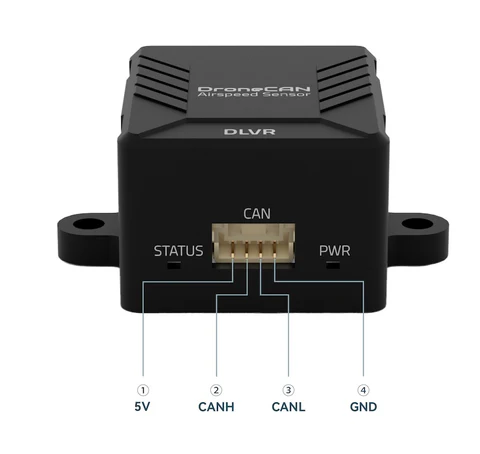

- Communication protocol: DroneCAN
- Compatible control boards: Any CAN interface control board running PX4 or ArduPilot firmware
- Working voltage: 4.75~5.25V
- Power consumption: ~100 mA

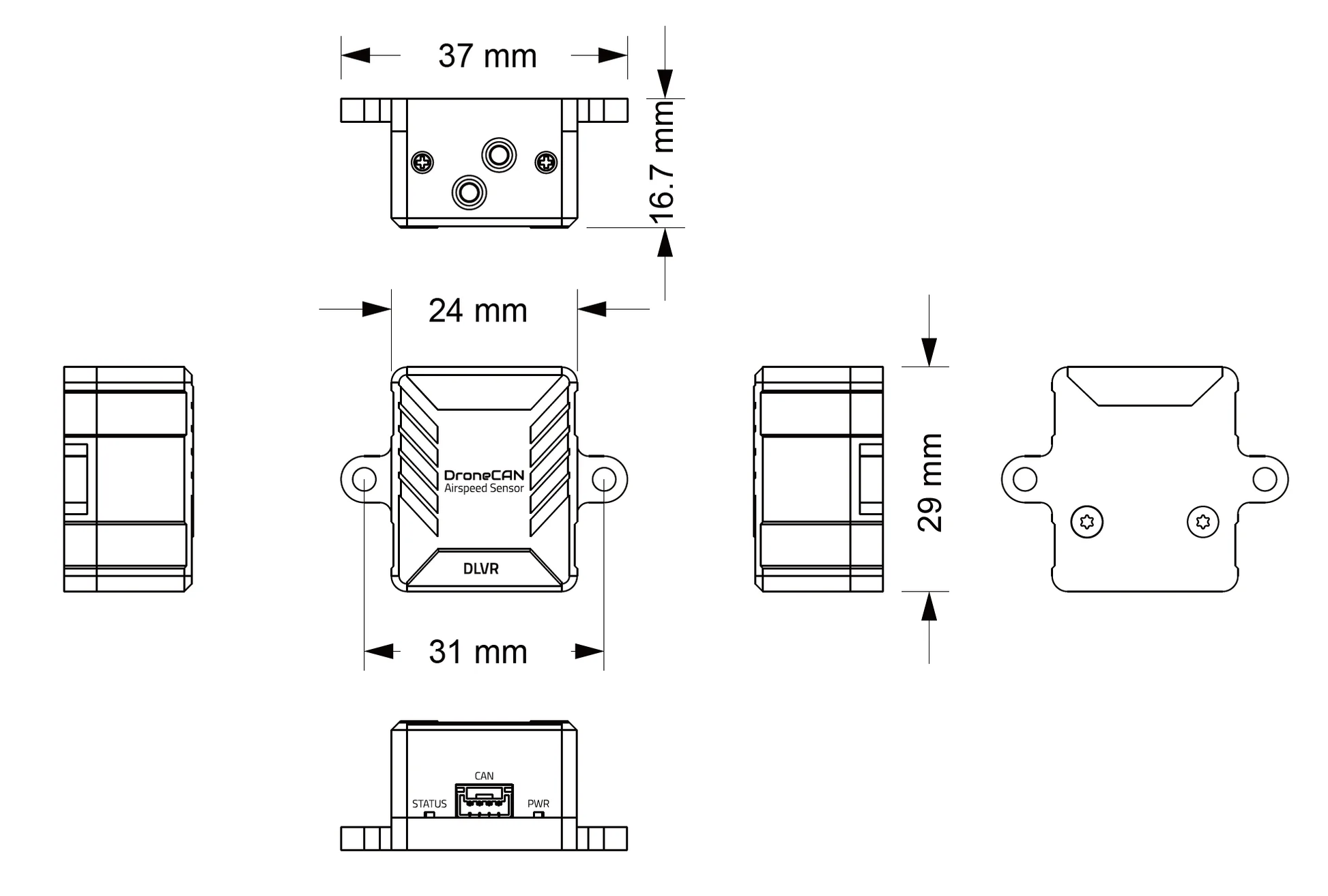

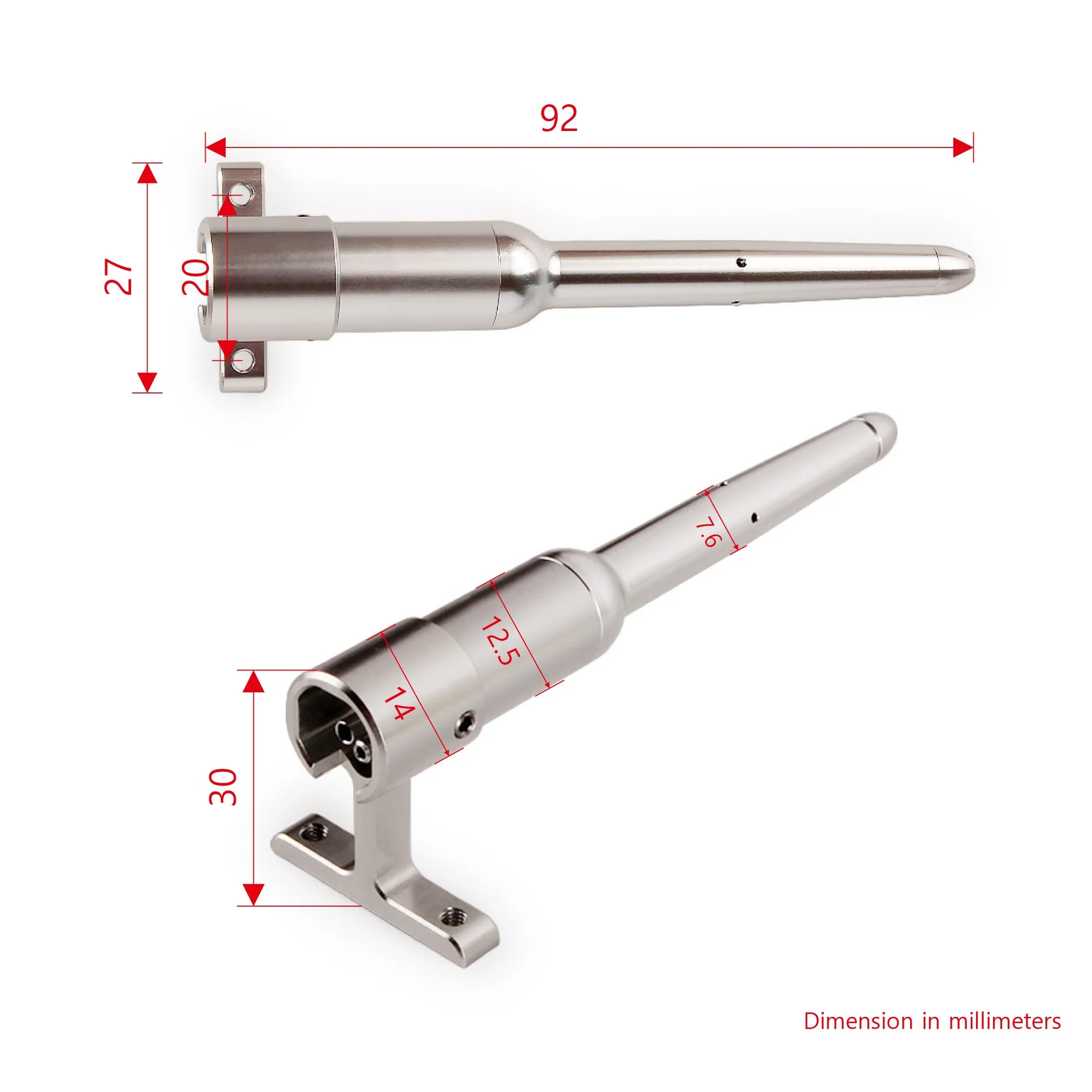

- Dimensions: 29 x 35.5 x 16.5 mm (module), 91.5 x 28 x 30 mm (Pitot tube)

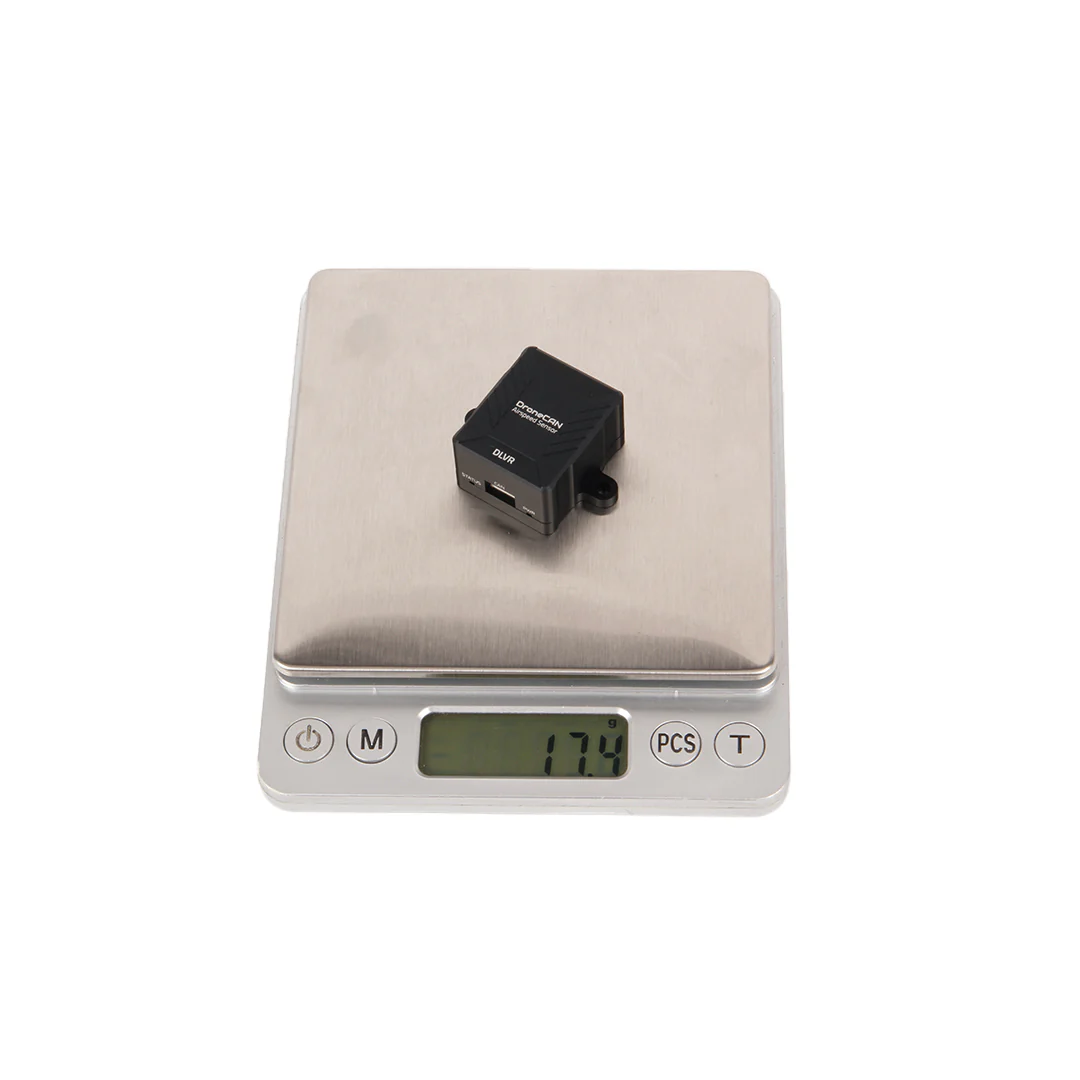

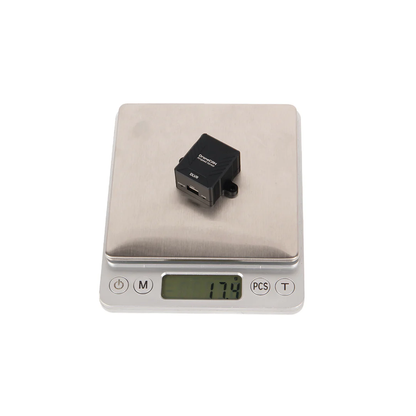

- Weight: 38.3g (including pitot tube and hoses)
- Operating temperature: -20 to 85 ℃

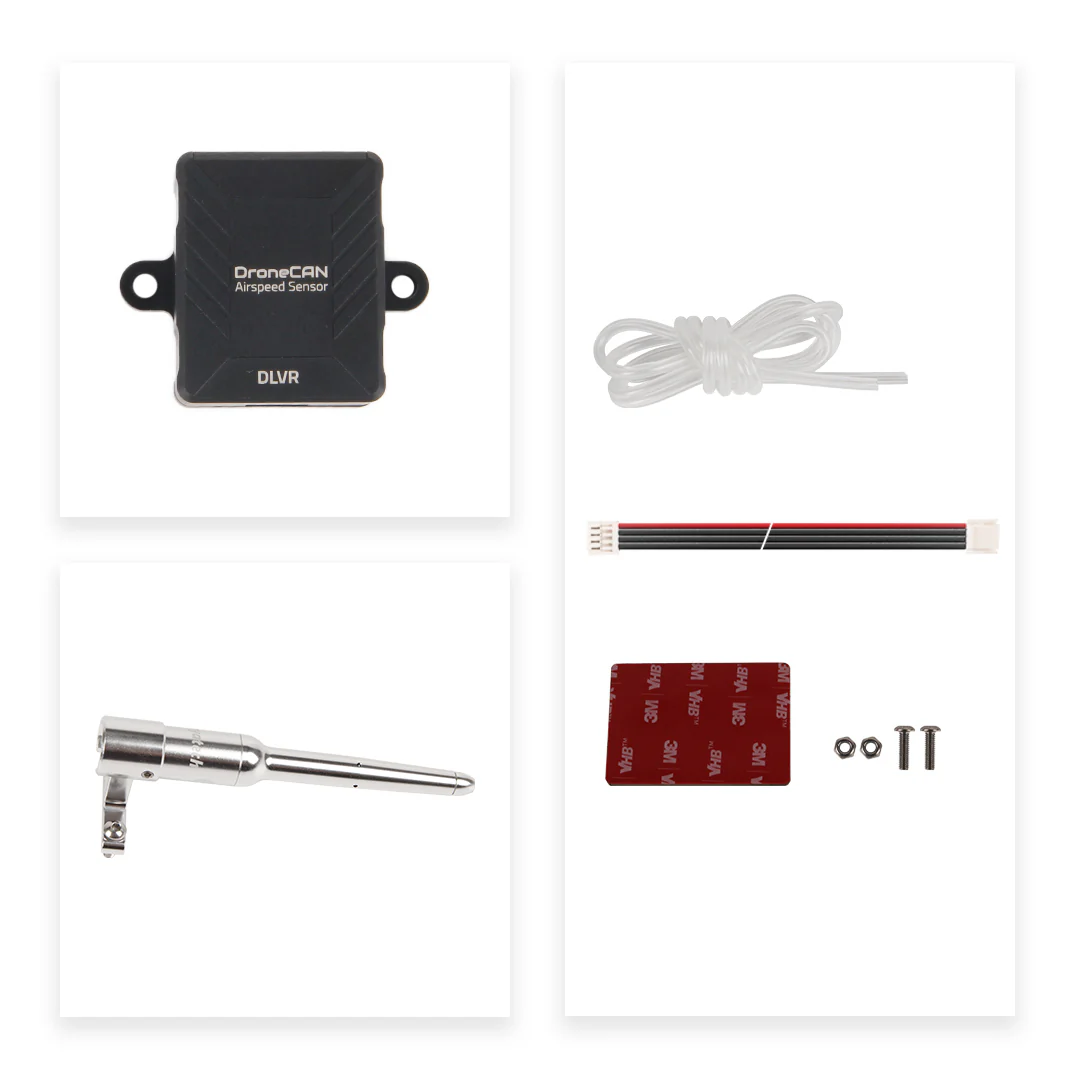

Package contents:
- 1x DroneCAN-DLVR air speed sensor
- 1x Pitot tube PT60
- 1x Rubber hose 100 cm
- 1x GH 4P cable
