Holybro Digital Air Speed Sensor (MS5525DSO) - PT40 Pitot Tube Sensor
The Holybro digital airspeed sensor has very low offset, high resolution and, best of all, does not suffer from long cable noise and ratio output offsets like other airspeed sensors. Supported on all Holybro autopilot control boards with Ardupilot and PX4.
The MS5525DSO is a new generation of Small Outline digital pressure sensors from MEAS with SPI and I2C interface, designed for high volume OEM users. The sensor module includes a pressure sensor and an ultra-low-power 24-bit ΔΣ ADC with internal factory-calibrated coefficients. It provides 24-bit digital pressure and temperature readings and various operating modes that allow the user to optimize conversion speed and current consumption. The MS5525DSO can be connected to virtually any microcontroller. The communication protocol is simple, without the need to program internal registers in the device.
This new generation of sensor modules is based on state-of-the-art MEMS technology and benefits from TE's proven experience and know-how in mass production of pressure modules that have been widely used for over a decade. The rugged thermoplastic transducer is available in single and dual port configurations and can measure absolute, gauge, composite and differential pressure from 1 to 30 psi.

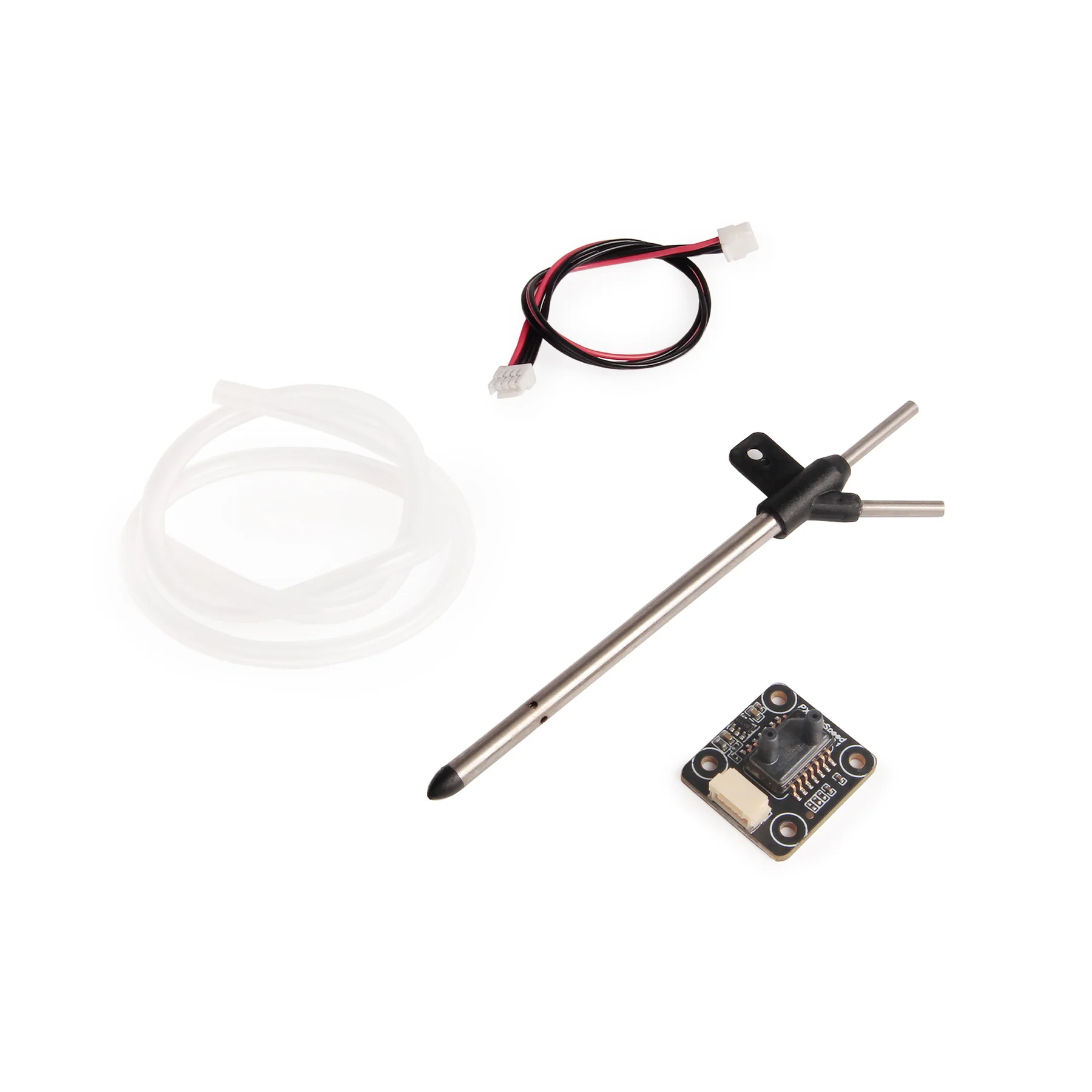

The package contains:
- 1x Digital air speed sensor (MS5525DSO)
- 1x PT40 Pitot tube
- 1x Rubber hose 40 cm
- 1x GH 4P cable
