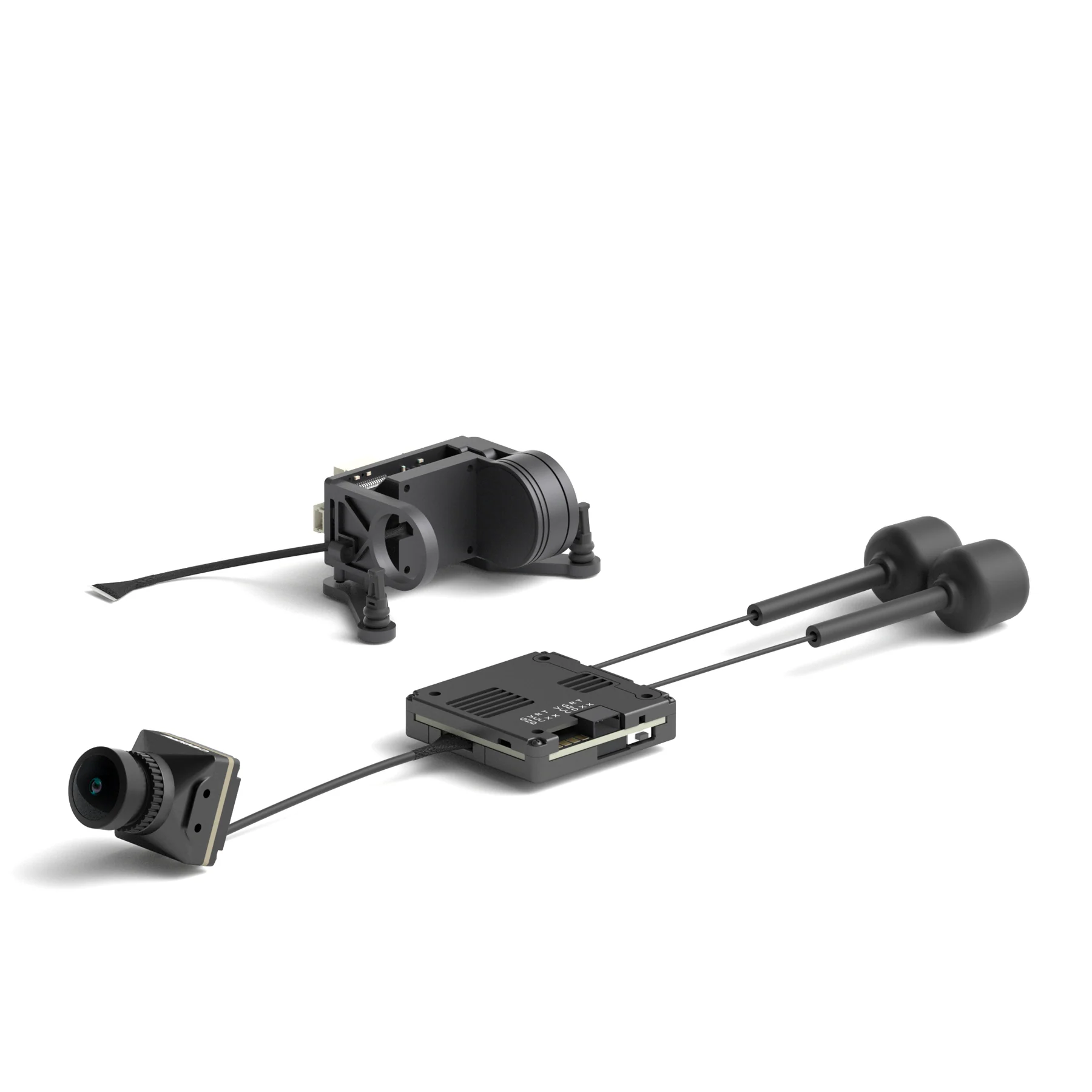

Walksnail Avatar Pro Kit HD System (Dual Band Antennas) + GM1
The Avatar HD system uses H.265 encoding, an industry-leading technology that delivers 1080p FPV image quality with low latency. It supports 1080P/60FPS, 720P/120FPS. With a 1/1.8 inch Sony Starvis Ⅱ sensor, this camera provides excellent night vision that is as clear as day. The camera supports Gyroflow, which ensures smooth and stable video quality. With a wide input voltage range of 6V to 25.2V, the VTX provides unmatched stability.
Avatar VTX is equipped with a built-in memory of 32GB, which allows you to record HD flight videos in 1080p or 720p resolution without interference. It supports high and standard frame rate simultaneously. At a high frame rate, the average delay is 22 ms.
The system is designed to carry two antennas, which ensures a more stable and powerful signal. The quality of the antenna is improved and the working performance of the entire frequency band is more stable.
Please note that this version of the Avatar Pro Kit also includes the brand new CADDXFPV GM1 gimbal for incredible video stabilization.
Specifications
Camera:
Model: Avatar HD Pro Camera
Image sensor: 1/1.8 inch Sony Starvis Ⅱ sensor
Resolution: 1080P/60fps; 720P/120fps, 720P/60fps; 1080P/120fps compatibility
Aspect ratio: 16/9; 4/3
Lens: 8Mp
FOV: 160°
Aperture: F1.6
Shutter: Rolling shutter
Minimum illumination: 0.00001Lux
Weight: 9.5g
Dimensions: 19*19*24mm
Coaxial cable: 140mm
VTX:
Model: Avatar V2 Pro Module (Dual Band Antenna)
Communication Frequency: 5.725-5.850GHz
Transmit Power (EIRP): FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
Interface 1/O: JST1.0*4 (Power in) JST0.8*6 (USB)
Mounting holes: 25.5*25.5mm; 20*20mm
Dimensions: 33.5*33.5*10.5mm
Memory: 32G
Recording: 1080p/720p
Weight: 15.4g
Operating Temperature: -20-40℃
Channels: 8
Wide Power Input Voltage: 6V-25.2V
Supported FC systems: Betaflight; Inv; Fettec; ArduPilot; Kiss
OSD: Canvas Mode
Latency: Average delay 22ms
Antenna: 2 (IPEX)
Avatar V2 Antenna:
Polarization: LHCP
Frequency Range: 5600MHz-6000MHz
Gain: 1.9dBi
VSWR: ≤1.5
Input Impedance: 50Ω
Interface: IPEX-1
Size: R15 X 45mm (without cable)
Weight: 2g
Package includes:
1x Avatar HD Pro Camera
1x VTX Avatar V2 Pro Module
2x Avatar V2 Antenna
1x Gimbal CADDXFPV GM1
1x USB extension cable
1x 4-pin silicone cable
8x M2*4mm screws
4x M2*5mm screws
4x M2*6mm screws
4x M2*14mm screws
4x M2*5*0.5mm washers
