Code: SKU:MK32-AU-DL
HD system SIYI MK32 Air Unit Dual
HD system SIYI MK32 Air Unit Dual
Brand: SIYI
Couldn't load pickup availability
- Description
- Related Files
- Discussion

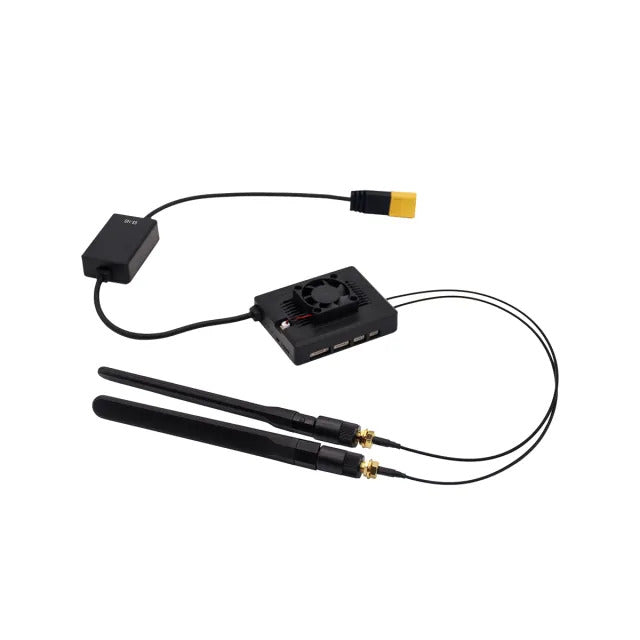

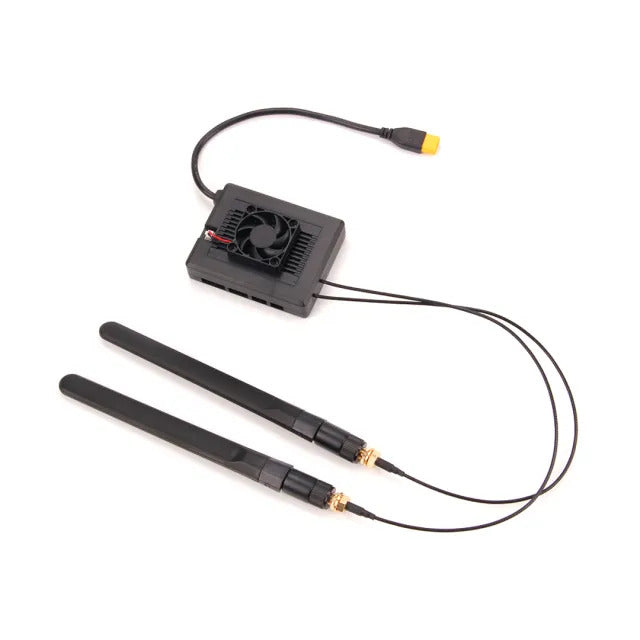

SIYI MK32 Dual Air Unit is a high-end module for unmanned aerial systems, designed to provide reliable transmission of video and telemetry over long distances. It is fully compatible with the MK32, HM30 and MK15 systems and offers a universal solution for a wide range of professional applications. Ideal for advanced unmanned systems used in aerial photography, surveillance, inspection and other scenarios where stable long-distance video and data transmission is important.
Key features:
Flight controller compatibility: Supports PIX-type flight controllers
Antennas: Standard omni-directional antenna with 5dBi gain.
Transmission security: Supports encryption to protect data
Anti-interference: Maintains a stable connection even in high-interference environments
Specifications:
Transmission range: Up to 30 km
Video quality: Length: Full HD 1080p
Delay: Approximately 150ms
Output signals: 16 S.BUS channels, 5 PWM channels
Interface:
- S.BUS: 3-pole
- Data link with FC: 4-pole UART
- PWM channels 1-5: 6-pin UART.
- Video Input: Ethernet: 8-pin
- Firmware Update: USB Type-C
Power: 11-16.8V (expandable to 4S-18S with BEC)
Dimensions: 70 × 55 × 16mm (without antenna, with fan)
Weight: 74g (without antenna)
Operating temperature: -10 °C to +50 °C
Package includes:
1× dual air unit
1× BEC 4S-18S module
