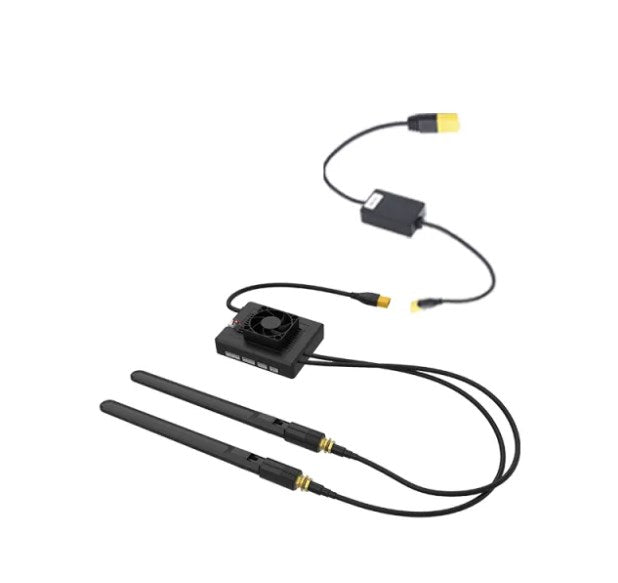

    HD system SIYI MK32 Air Unit

    SIYI MK32 Air Unit is a high-performance module designed to work seamlessly with the SIYI MK32 Enterprise ground station, providing robust long-distance image transmission and reliable data communication for various unmanned systems.

    Specifications:

    Model: MK32 / HM30 Air Unit
    Signal output: 16 S.BUS channels, 5 PWM channels
    Interfaces and ports:
    - SBUS: 3-pin
    - Datalink (to FC): UART 4-pin
    - PWM channel 1 to 5: 6-pin
    - Video Input: Ethernet: 8-pin
    - Firmware update: Type-C
    Dimensions (without antenna, including fan): 70 x 55 x 16 mm
    Weight (without antenna): 74 g
    Antenna gain (standard omnidirectional): 5 dBi
    Power supply: 11 to 16.8 V (expandable to 4S to 18S with BEC)
    Working temperature: -10 to 50 ℃
    Compatibility: For MK32 / HM30 / MK15 Enterprise version

    Package includes:
    1 x SIYI MK32 Air Unit
    1 x BEC 4S-18S module
