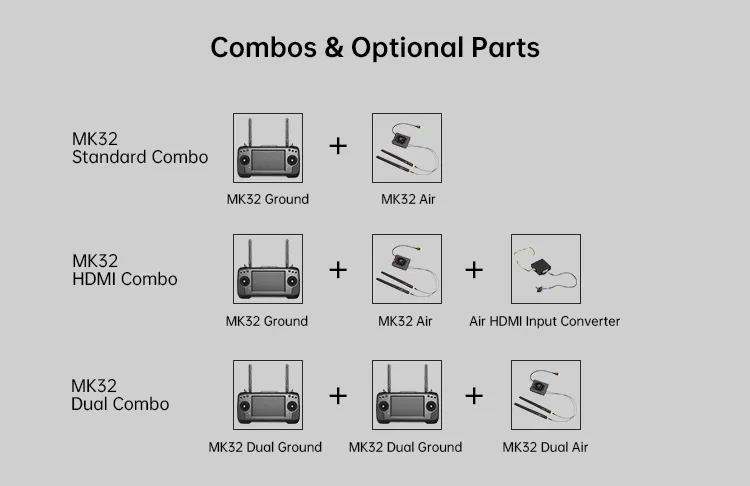

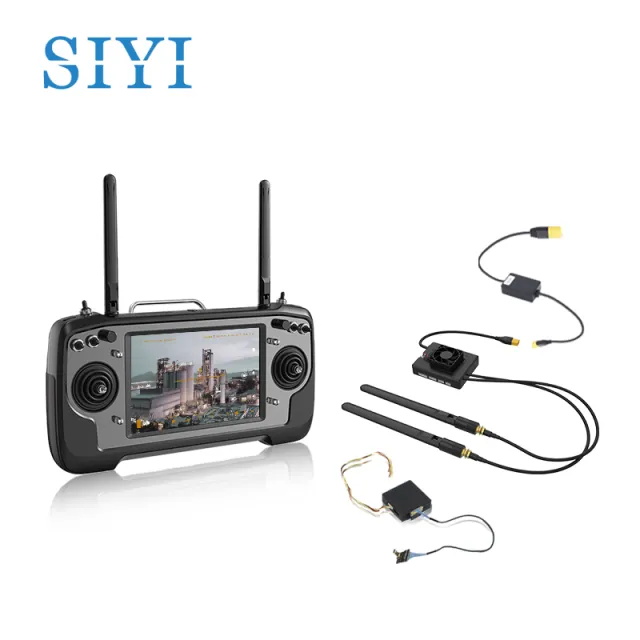

HD system Remote Controller SIYI MK32 Handheld Ground Station Standard Combo
The SIYI HM30 system is a robust long-range remote control solution designed to meet the requirements of drone operations in various sectors, including agriculture and open source applications. Thanks to its extensive range, quality video streaming and compatibility with various flight controllers, it provides a comprehensive solution for remote control of drones.
System Overview
- Maximum transmission range: Up to 15 km (without obstacles and without interference)
- Channels: 16 physical channels, 16 communication channels
-
Compatible datalink flight controllers:
- Open source controllers: PX4 / Ardupilot, models like SIYI N7
- Agricultural controllers: BOYING Paladin V2, JIYI K++ V2 / K3A Pro, VK V7AG / V9AG
Video streaming compatibility
-
Android GCS:
- SIYI App: SIYI FPV
- Open-source GCS: QGroundControl, Mission Planner
- Agricultural GCS: BOYING Agriculture, JIYI Agri-Assistant / IFLY, VK Agriculture
- Windows GCS: QGroundControl, Mission Planner (H264 only)

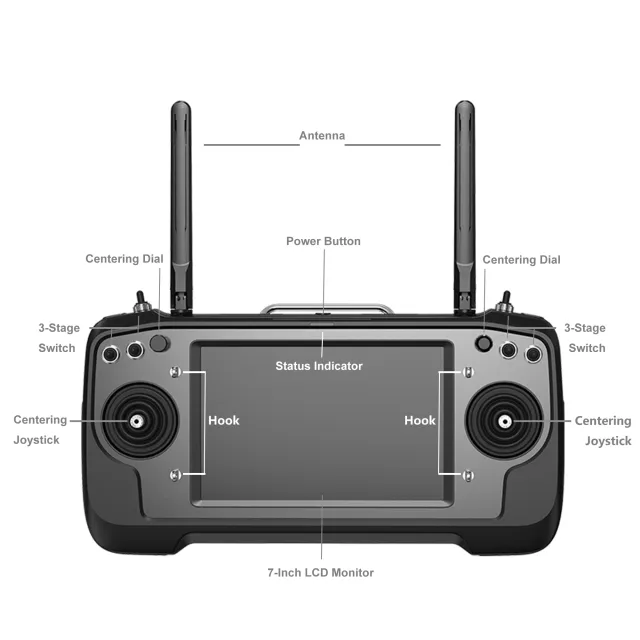

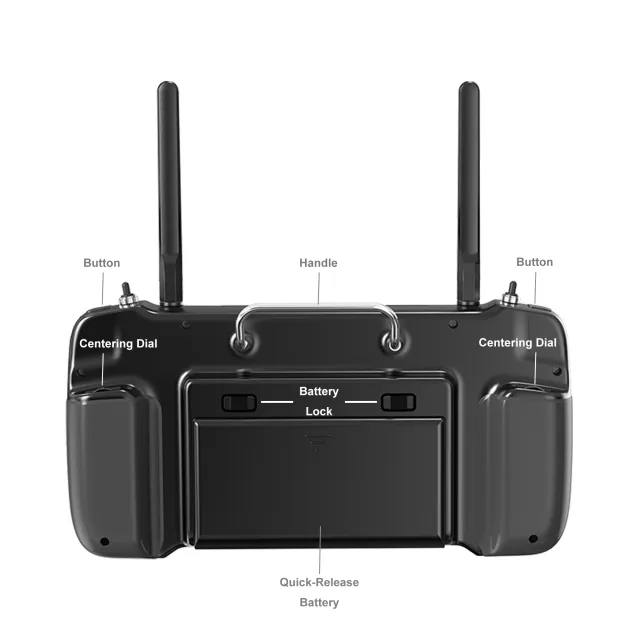

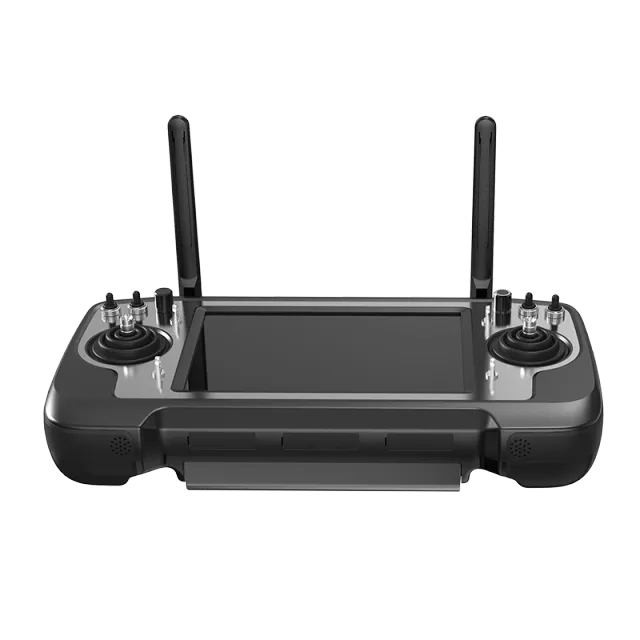

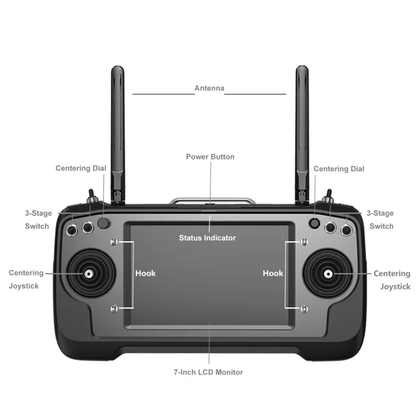

Remote control (ground unit)
- Monitor: 7" HD, LCD touch screen with high brightness
- System: Android 9.0 OS, 4GB RAM, 64GB ROM
- Battery: 10,200 mAh 7.4V 2S Li-ion (75.48 Wh) with PD 30W fast charging, charging time 3.5 hours, battery life 10 hours
-
Antenna gain:
- Omni antenna: 5 dBi
- Long-range antenna: 11 dBi
- Optional Lollipop antenna: 5 dBi
-

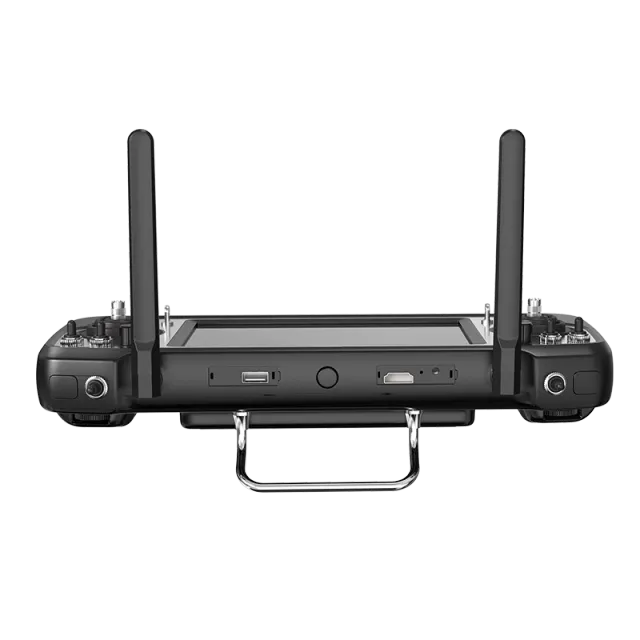

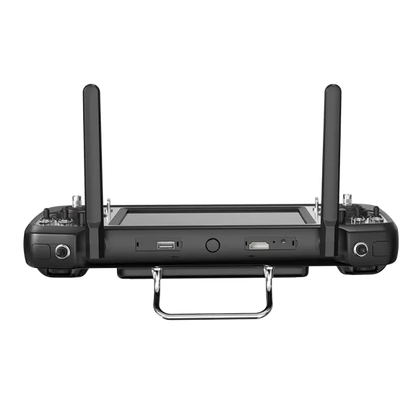

Interfaces and Ports:
- Video output: HDMI
- USB-A: For external devices (eg mouse, USB disk)
- Type-C: For charging, firmware update and file transfer
- Mobile network: SIM card slot
- External storage: TF card slot / USB-A
- LAN (Ethernet): Communication port
- Audio port: For RC signal input/output
