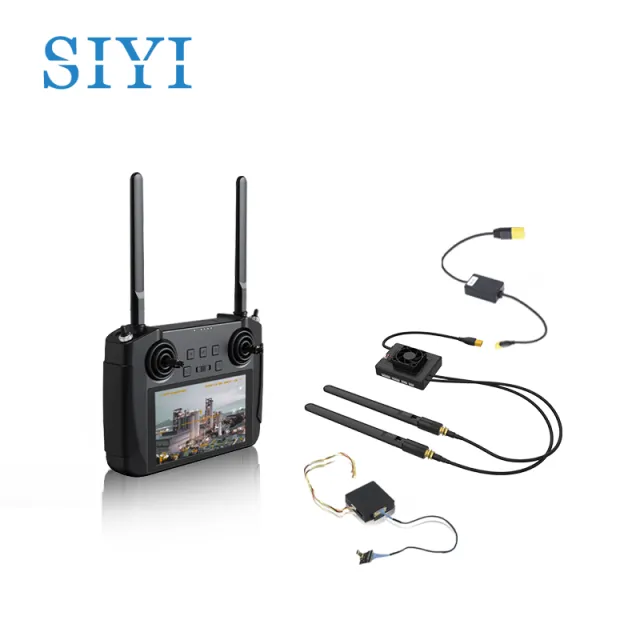

HD system Remote Controller SIYI MK15 Handheld Ground Station Standard Combo
The SIYI MK15 system is a robust and powerful remote control solution for a wide range of drone applications. Designed for long range and video streaming, it supports open source controllers and is a reliable choice for both agricultural and enterprise use.
System Overview
- Maximum transmission range: 15 km (without obstacles and without interference)
- Channels: 13 physical channels, 16 communication channels
-
Compatible datalink flight controllers:
- Open source controllers: PX4 / Ardupilot, models like SIYI N7
Video streaming compatibility
-
Android application:
- SIYI App: SIYI FPV
- Open-source GCS: QGroundControl, Mission Planner
- Windows GCS: QGroundControl, Mission Planner (H264 only)

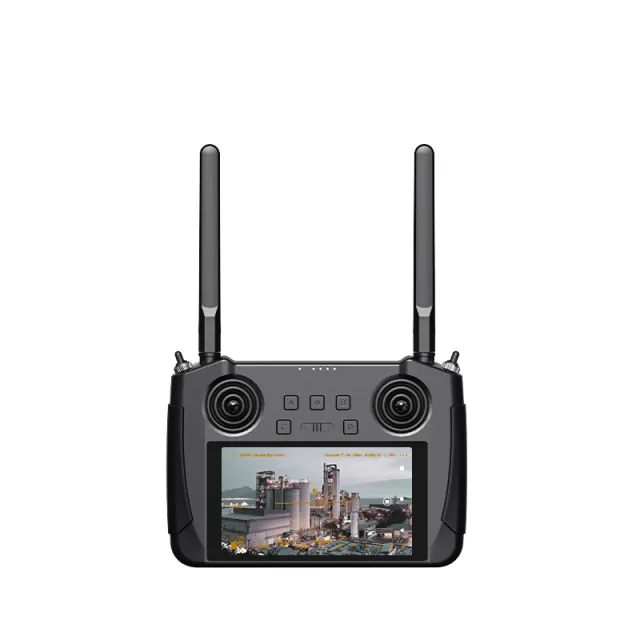

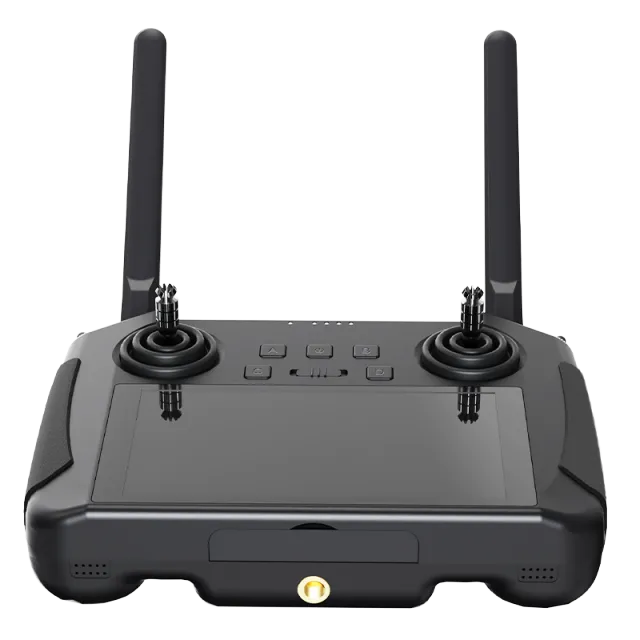

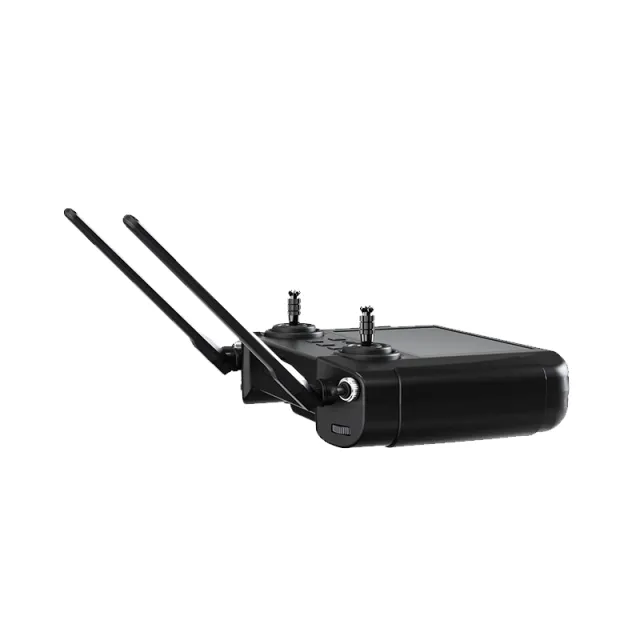

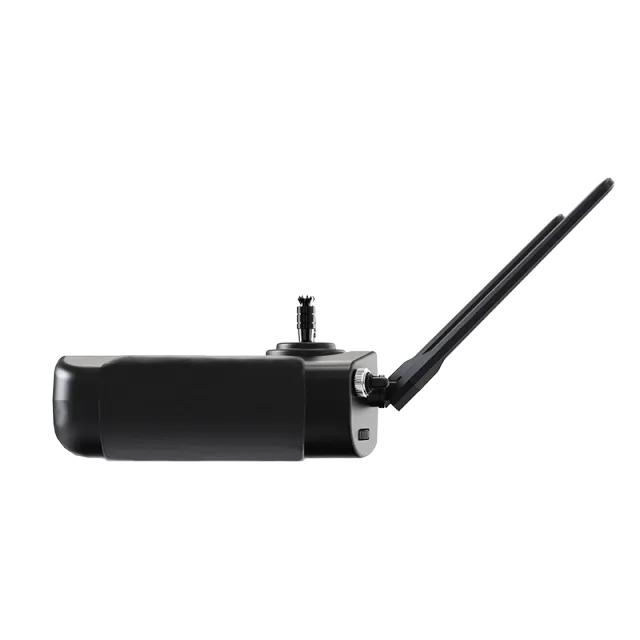

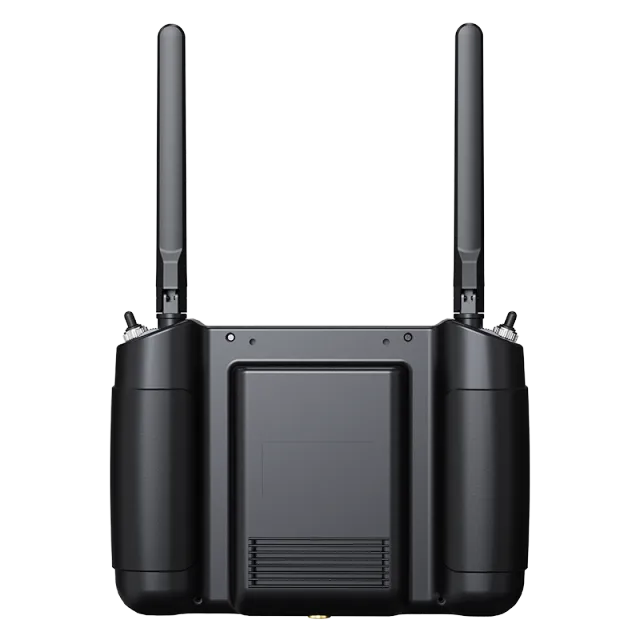

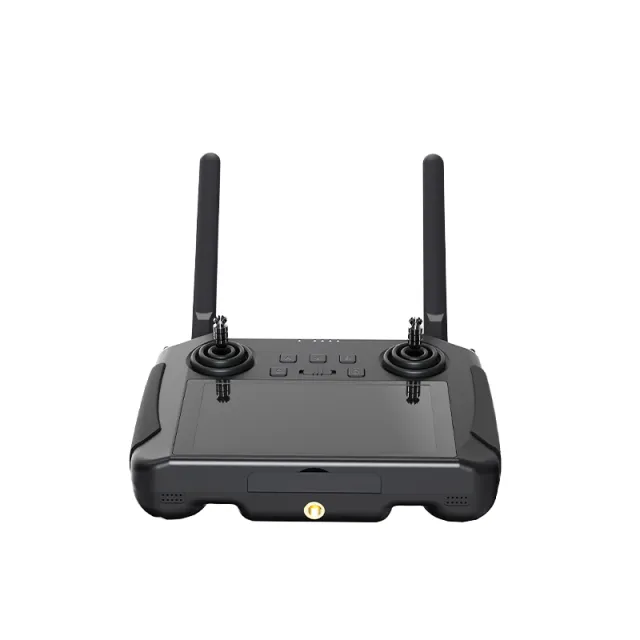

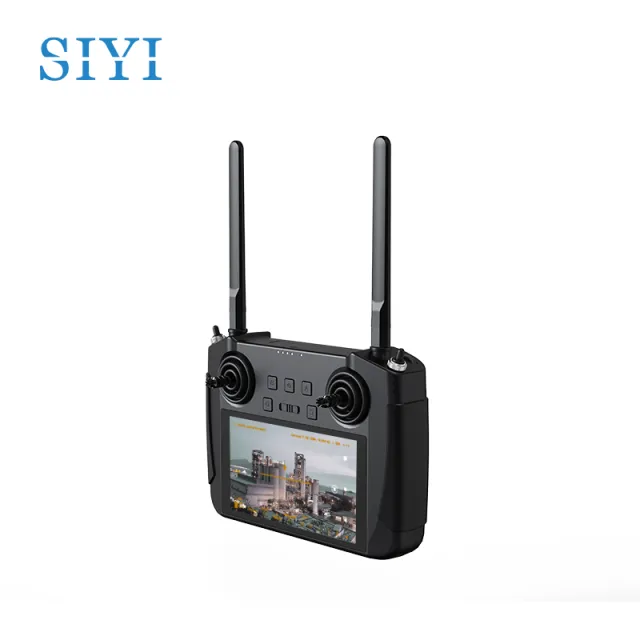

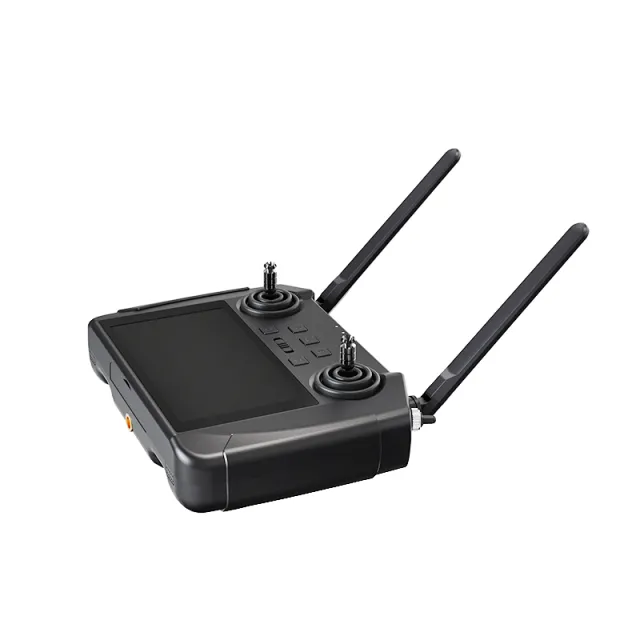

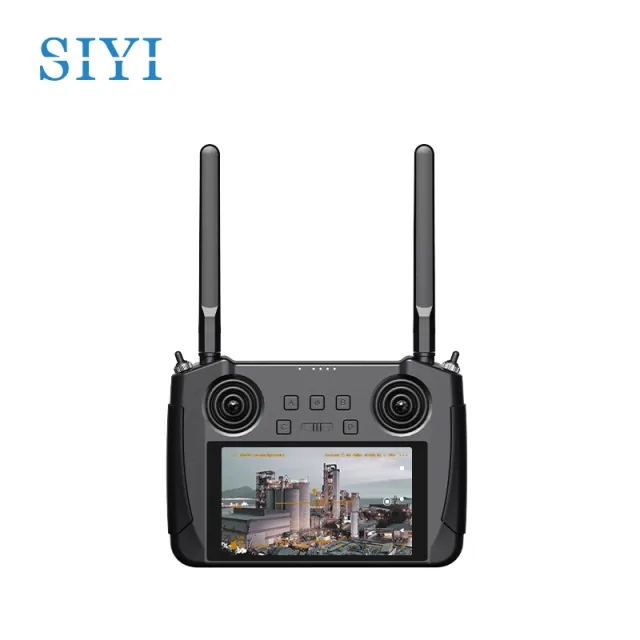

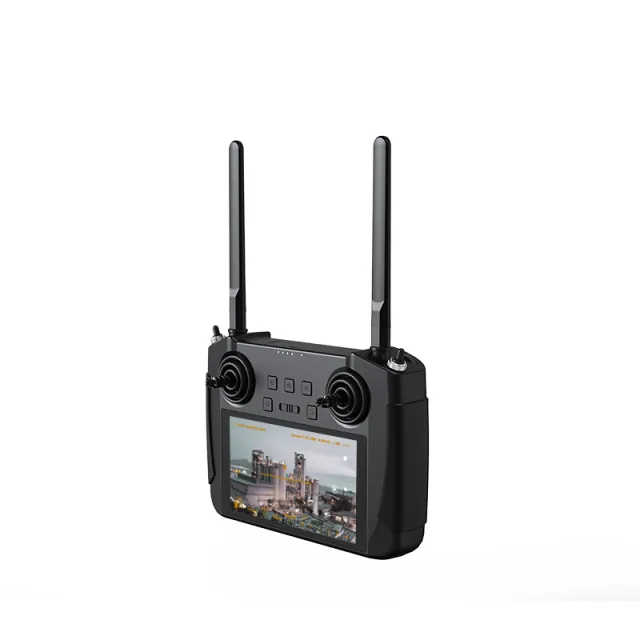

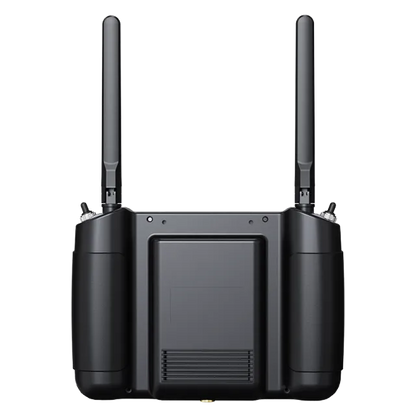

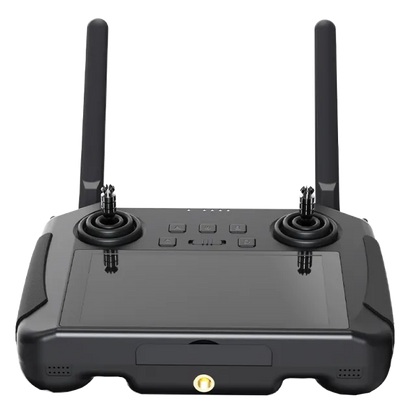

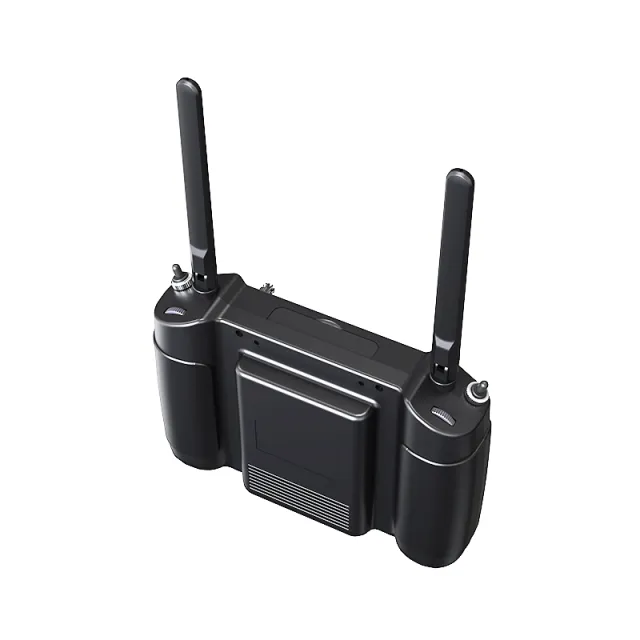

Ground unit (remote control)
- Monitor: 5.5" HD LCD touch screen with high brightness
- System: Android 9.0 OS, 2GB RAM, 16GB ROM
- Battery: 10,200 mAh 7.4V 2S Li-ion (75.48 Wh) with PD 20W fast charging, charging time 5 hours, battery life 13 hours
-
Antenna gain:
- Omni antenna: 5 dBi

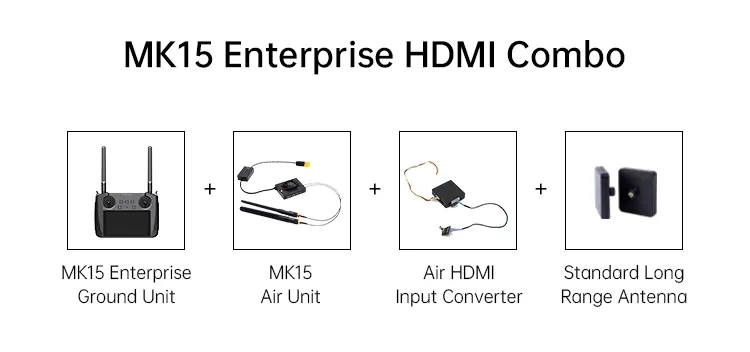

- Long-range antenna: 11 dBi (included in the Enterprise Edition)
- Optional Lollipop antenna: 5 dBi
-
Interfaces and Ports:
- HDMI video output: Enterprise edition only
- USB-A: For external devices (eg mouse, USB disk)
- Type-C: For charging, firmware update (bottom GH1.25 4Pin) and file transfer
- SIM card slot: For mobile network
- TF card slot: For external storage
- Standard tripod thread: 1/4"
- Dimensions (with folded antenna): 189 x 138 x 41 mm
- Weight (with folded antenna): 850 g
- Water resistance: IP53
- Operating temperature: -10℃ to 50℃
Air unit
- Signal output: 16 SBUS channels, 5 PWM channels
-
Interfaces and Ports:
- RC signal output: RC (GH1.25 3-Pin)
- Datalink to flight controller: UART (GH1.25 4-Pin)
- PWM Channels 1-5: PWM (GH1.25 6-Pin)
- LAN: For video input/network communication (GH1.25 8-Pin)
- Firmware Update: Type-C
- Antenna gain: Omni antenna 5 dBi, optional Lollipop antenna 5 dBi
-
Working voltage:
- MK15 Air Unit (Agricultural Edition): 4S to 18S / 16.8 to 75.6V (older versions only support 6S to 14S)
- HM30 Air Unit (Enterprise Edition, MK32): 3S to 6S / 12.6 to 25.2V (older versions only support 3S to 4S)
-
Power consumption:
- MK15 Air Unit (Agricultural): Average 3.2W, max. 12 W
- HM30 air unit: Average 2.8W, max. 12 W
- HM30 air unit with power module: Average 3.2 W, max. 12 W
- Dimensions (without antenna): 70 x 55 x 16 mm (with fan)
- Weight (without antenna): MK15 air unit 100g, HM30 air unit 74g, HM30 with power module 109g
- Operating temperature: -10℃ to 50℃
