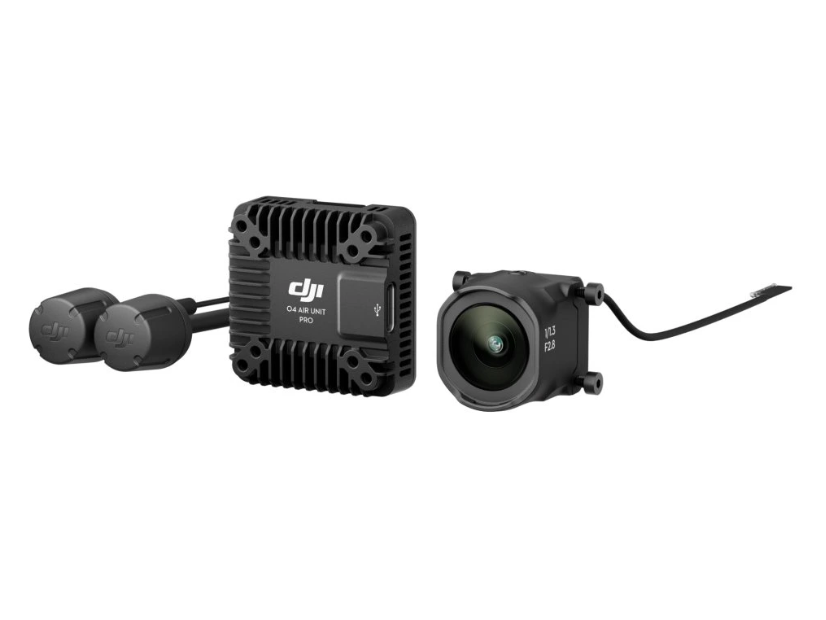

HD System DJI O4 Air Unit Pro PNP Installation Version
The DJI O4 Air Unit series is equipped with the DJI O4 video transmission system, which achieves very low latency for more responsive control. Combined with the DJI O4 Air Unit Pro design with two antennas, the maximum transmission distance can reach up to 15 kilometers. This system can automatically select the most stable frequency.
The DJI O4 Air Unit series is capable of recording 4K/60fps video. The video transmission system uses H.265 video encoding, which supports 1080p/100fps high frame rate transmission, which ensures clear and smooth real-time images. The DJI O4 Air Unit Pro goes one step further with a 1/1.3-inch image sensor that supports 4K/120fps video recording. No need for an external action camera to achieve ultra-wide-angle shots in high resolution.
The DJI O4 Air Unit Pro camera module can be used with the DJI Avata 2 ND filter set (ND8/16/32). Even in bright lighting conditions, it ensures balanced exposure and accurate colors. Thanks to this, you can flexibly control light intake and shutter speed, easily achieve natural motion blur, and your shots will be more dynamic and impressive.
It also brings a new racing mode with a video transfer latency of just 15 milliseconds and supports up to eight racing aircraft simultaneously.
Have full control over what is displayed on the screen. The DJI O4 series of aerial units support Betaflight canvas mode and OSD settings. You can customize the real-time data and the layout displayed on the glasses screen, which makes the flight data clear at a glance and increases the precision of your control.
NOTICE: This product is a PNP installation version.
Specifications:
Model: DJI O4 Air Unit Pro
Weight (including camera module): 32g.
Antenna weight: 2.1g/pc
Antenna length: 110mm
Transmitter module: 33.5 × 33.5 × 13mm (L × W × H)
Camera module: 25.55 × 20 × 23.30mm (L × W × V).
Coaxial cable: 130 mm
3 in 1 cable: 100 mm
VTX operating frequency:
- 5.170-5.250 GHz
- 5.725-5.850 GHz
Transmitter Power (EIRP)
5.1 GHz: <23 dBm (CE)
5.8 GHz: <30 dBm (FCC)
<14 dBm (CE)
< 30 dBm (SRRC)
Lowest Latency
With DJI Goggles 3 and race mode selected:
- Latency is only 15ms with 1080p/100fps video transmission quality.
With DJI Goggles N3 and race mode selected:
- Latency is only 19ms with 1080p/100fps video transmission quality.
With with DJI Goggles 2 or Goggles Integra:
- With 1080p/100fps video transmission quality, video transmission latency is less than 30ms.
Maximum video transmission range with DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC).
Live view quality: 1080P@30/50/60/100 frames per second
Communication bandwidth: max. 60 MHz
Antenna: 2 antennas, 2T2R
Channels: Supports FCC/SRRC/CE auto/manual mode
Camera
Image Sensor: 1/1.3-inch CMOS sensor
Lens FOV: 155°
Equivalent focal length: 12mm
Aperture: f/2.8
Focus: 0.6m to ∞
ISO sensitivity range: 100-25600 (auto), 100-25600 (manual)
Video Resolution:
- 4K (4:3): 3840×2880@30/48/50/60fps
- 4K (16:9): 3840×2160@30/48/50/60/100/120fps
- 2.7K (4:3): 2888×2016@30/48/50/60fps
- 2.7K (16:9): 2688×1512@30/48/50/60/100/120fps
- 1080p (4:3): 1440×1080@30/48/50/60/100/120fps
- 1080p (16:9): 1920×1080@30/48/50/60/100/120fps
Video Format: MP4
Max Video Bitrate: MP4: 130Mbps
Color Mode: Normal Mode, D-Log M
Camera Range: Standard, Wide, Ultra Wide
EIS: RockSteady 3.0+; stabilization function off (supports Gyroflow)
Hardware
Input voltage: 7.4-26.4 V
Operating temperature: -10° to 40° C
Storage:
Built-in memory: 4 GB
Supported SD cards: microSD (up to 512 GB)
Recommended microSD cards:
- Recommended cards: Lexar Professional 1066x 64GB U3 A2 V30 microSDXC
- Lexar Professional 1066x 128GB U3 A2 V30 microSDXC
- Lexar Professional 1066x 256GB U3 A2 V30 microSDXC
- Lexar Professional 1066x 512GB U3 A2 V30 microSDXC
- Kingston CANVAS GO! Plus 64GB U3 64GB/A2/V30 microSDXC
- Kingston CANVAS GO! Plus 128GB U3 64GB/A2/V30 microSDXC
- Kingston Canvas GO! Plus 256GB U3 A2 V30 microSDXC
- Kingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC
Compatibility
Supported flight control system: Betaflight 4.3.0 and higher
Supported DJI goggles and remote controllers:
- DJI Goggles 3 + DJI FPV Remote Controller 3.
- DJI Goggles N3 + DJI FPV Remote Controller 3
- DJI Goggles 2/ Goggles Integra + DJI FPV Remote Controller 2
*In order to use the DJI FPV remote controller, the flight control firmware must be configured to support the SBUS protocol.

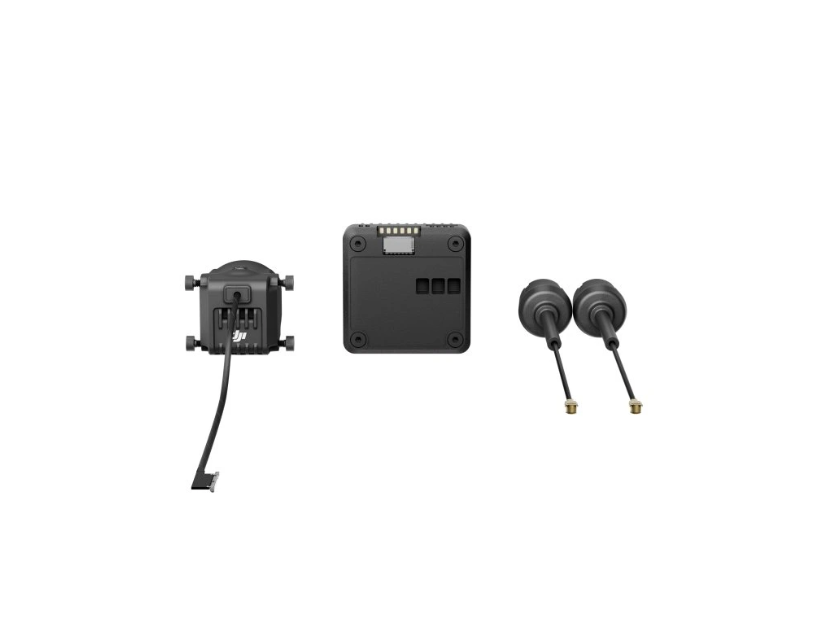

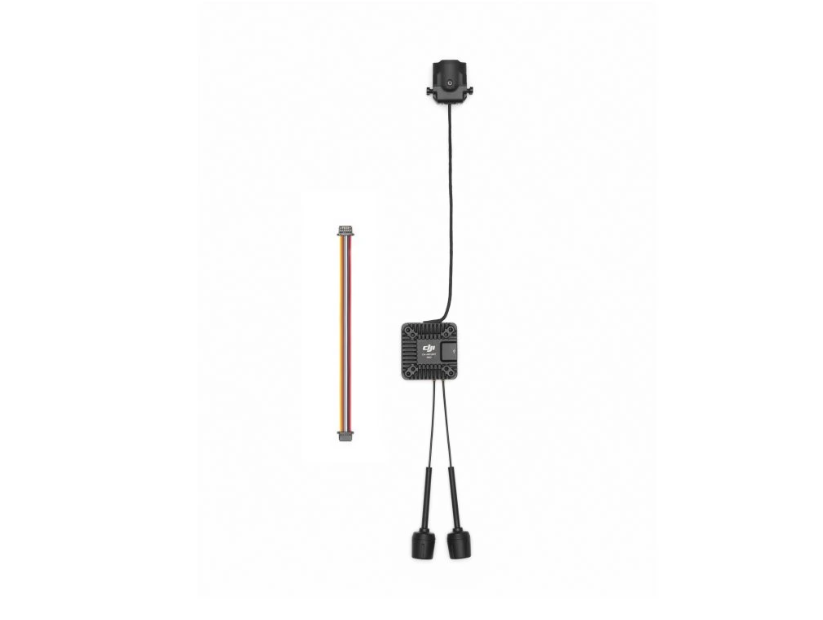

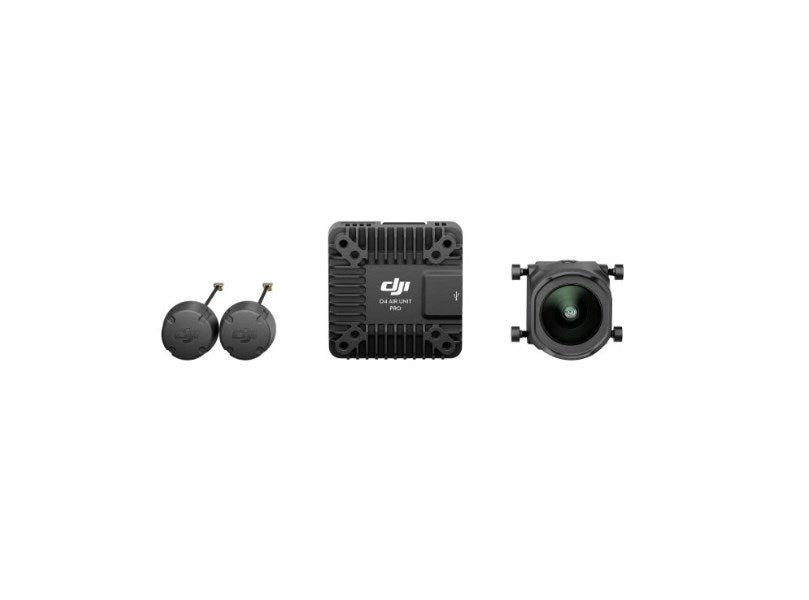

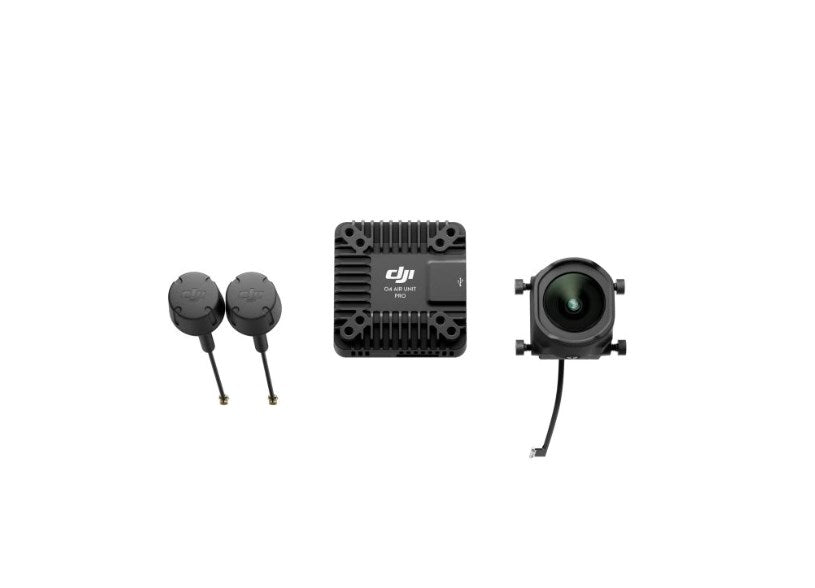

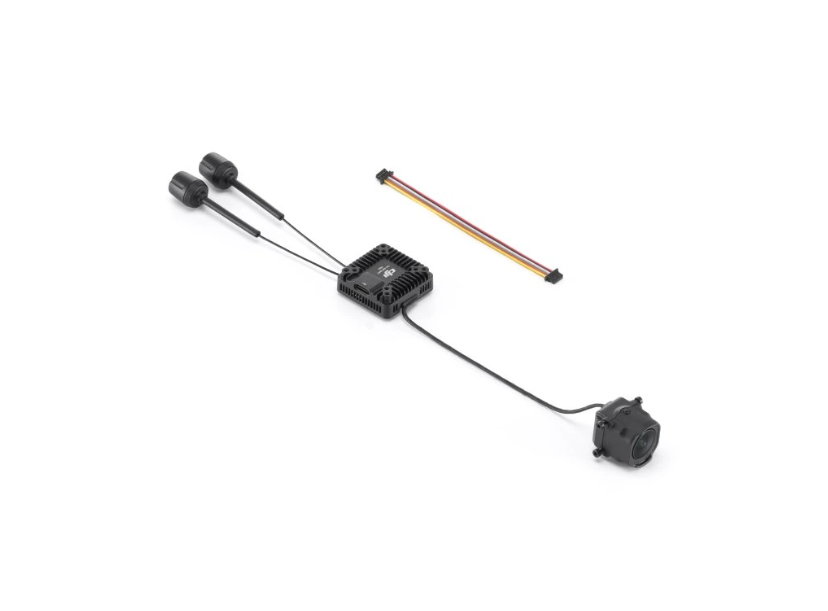

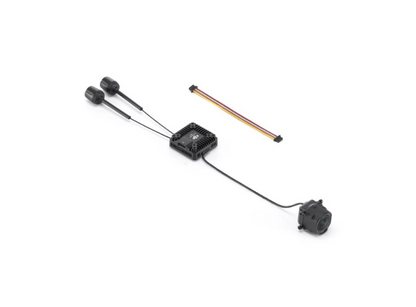

The package contains:
1x DJI O4 Air Unit Pro Camera Module
1x DJI O4 Pro Air Unit Transmitter Module
2x DJI O4 Air Unit Pro Antenna
1x DJI O4 Air Unit Pro 3 in 1 Cable
