VTX BetaFPV P1 Air Unit HD VTX

The BETAFPV P1 Air Unit HD VTX is a lightweight digital FPV video system based on the ArtLynk protocol, delivering smooth 1080p@60fps live video with ultra-low latency. Designed for HD whoops and compact FPV drones, it offers long-range, stable transmission and an immersive wide-angle view for confident and precise flying.

Features:
- ArtLynk Protocol: A low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX.
- Lightweight & Affordable HD: Weighs just 6.8g, offering a compact and affordable HD VTX solution.
- Reliable Video Transmission: Delivers smooth video with ~60ms latency and over 5km range.
- Wide‑Angle 1080p Clarity: 1/2.9” CMOS sensor and 170° FOV for a crisp, immersive live view.
- Plug‑and‑Play Compatibility: Standard 6‑pin port works seamlessly with Betaflight and BETAFPV flight controllers.
- Reliable signal stability with automatic standby power adjustment to maintain connection after crashes.

Air Unit Specification:
Weight (camera excluded): Approx. 3.61g

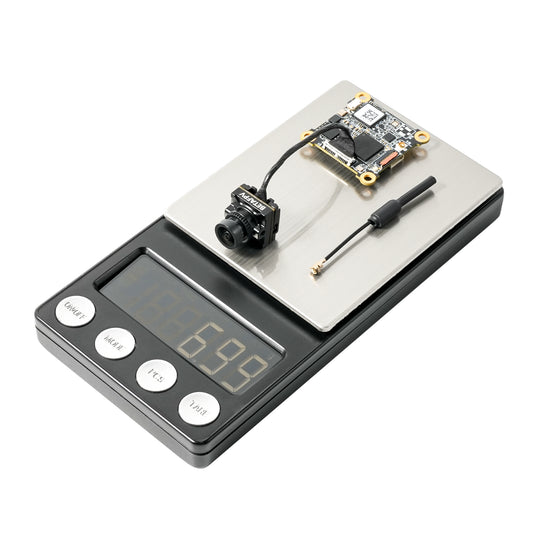

Weight (camera included): Approx. 6.5g
Antenna: Approx. 0.44g

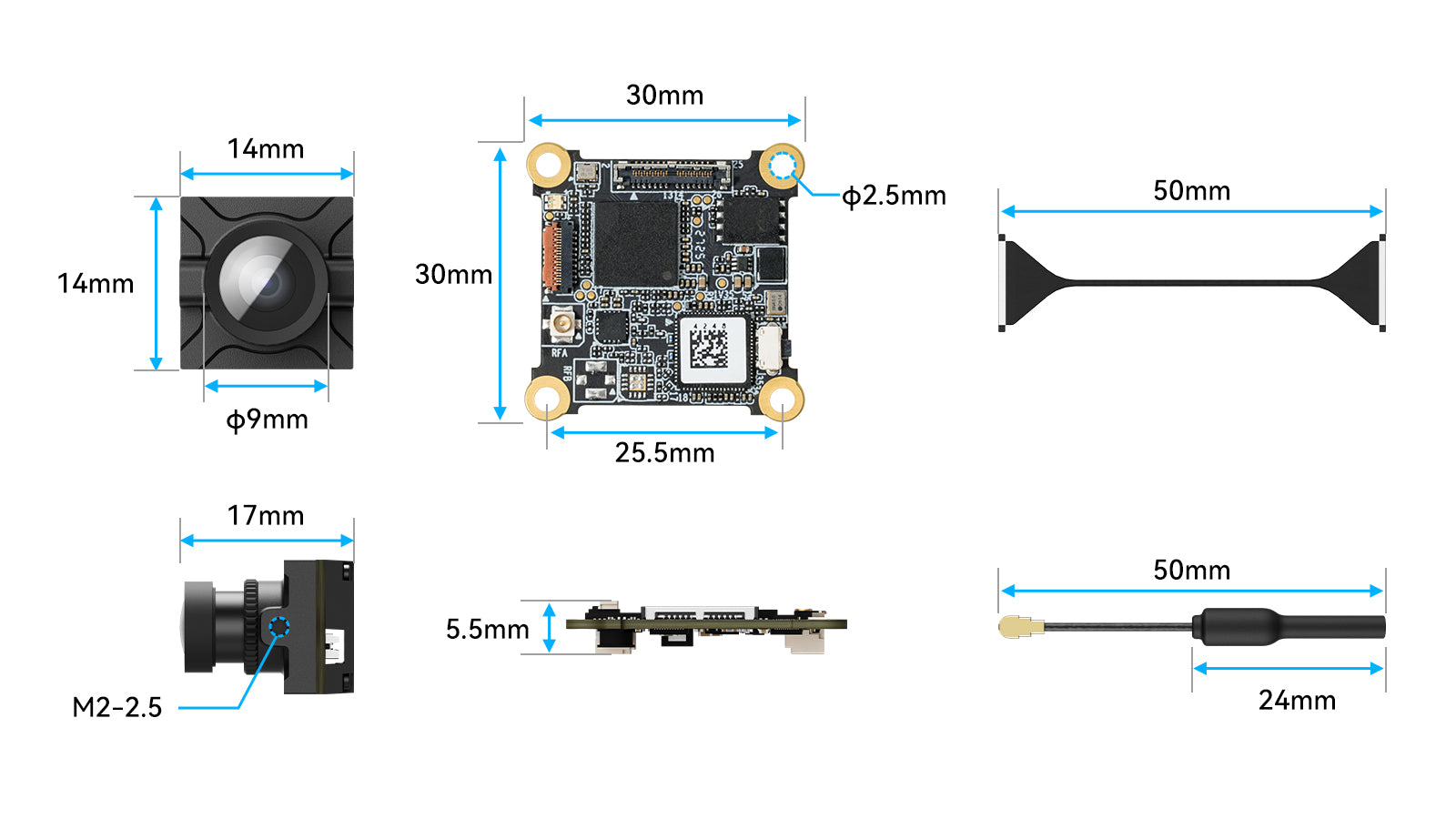

Mounting Hole Size: 25.5x25.5mm
Mounting Hole Diameter: ø2.5mm
Air Unit Dimension: 30x30x5.5mm
Camera Dimension: 14x14x17mm

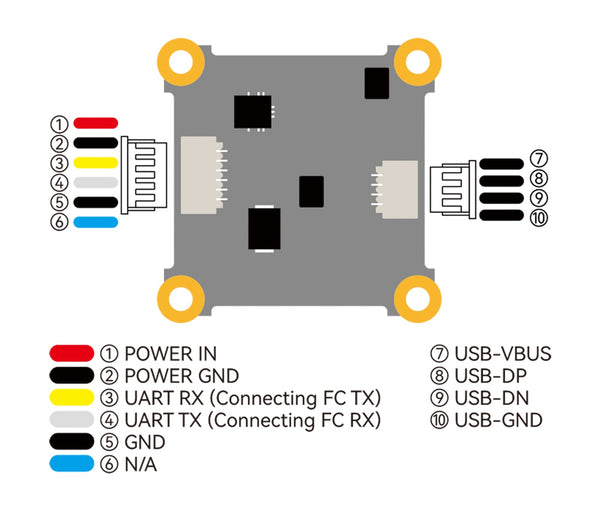

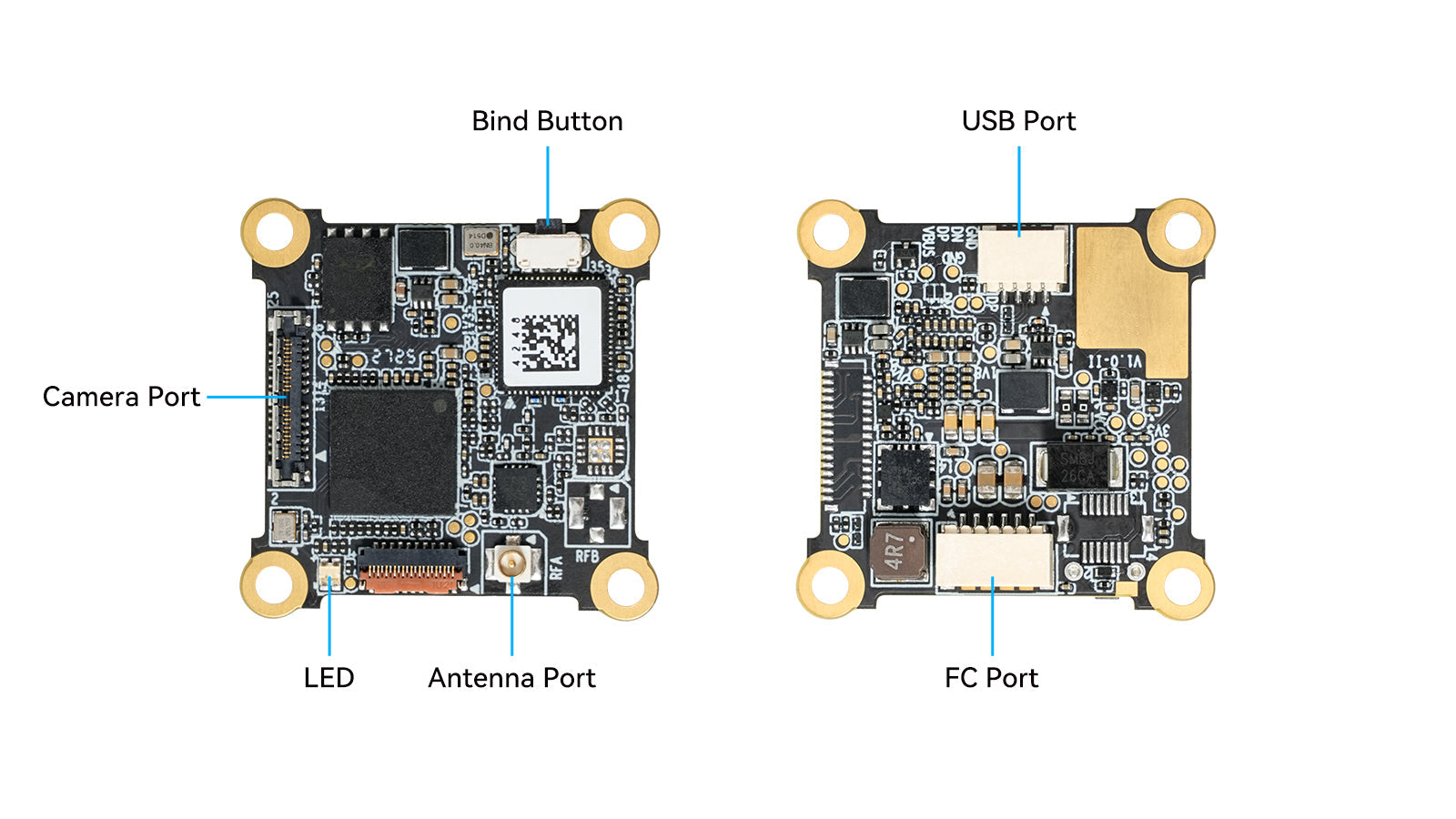

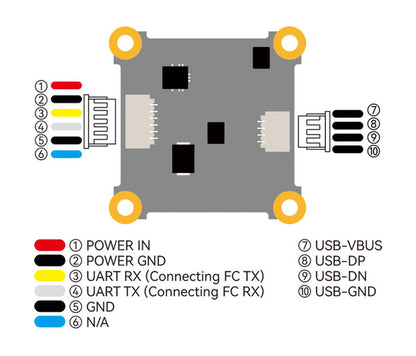

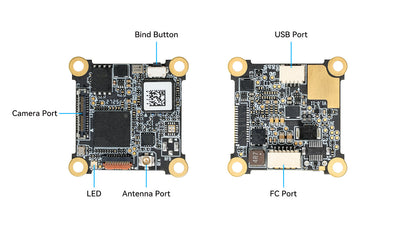

Ports: SH 1.0 6-pin (FC), SH 1.0 4-pin (USB)

VTX Specification:
Frequency: 5.1-5.9 GHz
Effective lsotropic Radiated Power (EIRP): ＜200mW (FCC/SRRC), <25mW (CE)
Video Transmission Range: >5km
Video Transmission Latency: Approx. 60ms
Live View Quality: 1080p@60fps
Bandwidth: 10MHz
Antenna: Single antenna
Channels: 3

Camera Specification:
Mounting Width: 14mm
Mounting Hole: M2
Image Sensor: 1/2.9'' CMOS
Lens: Field of View (FOV): 170°
Video Format: MP4
Max Video Transmission Bitrate: 20Mbps
OSD:Canvas mode

Firmware:
Input Voltage:5V
Operating Temperature: -10℃ to 40℃

Compatibility:
Supported FC: Betaflight FC & BETAFPV FC

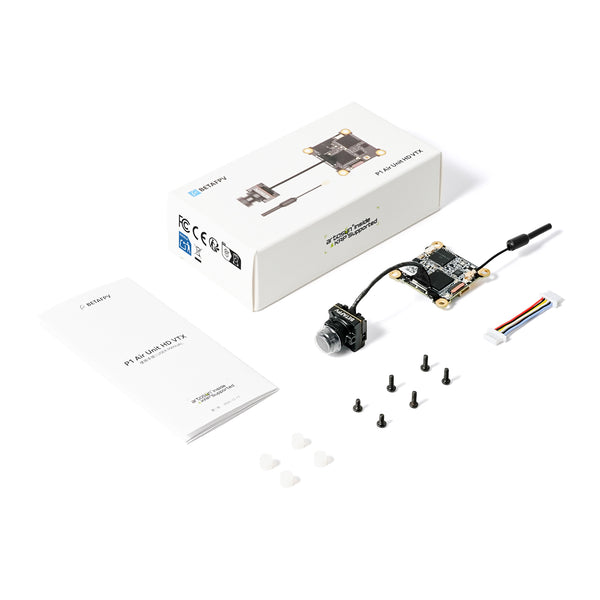

Package Include:
1x P1 Air Unit HD VTX
1x 6Pin Cable
1x Accessories Package (4xShock-absorbing Balls, 2xM2-4 Screws, 4x M2-6 Screws)
1x User Manual
