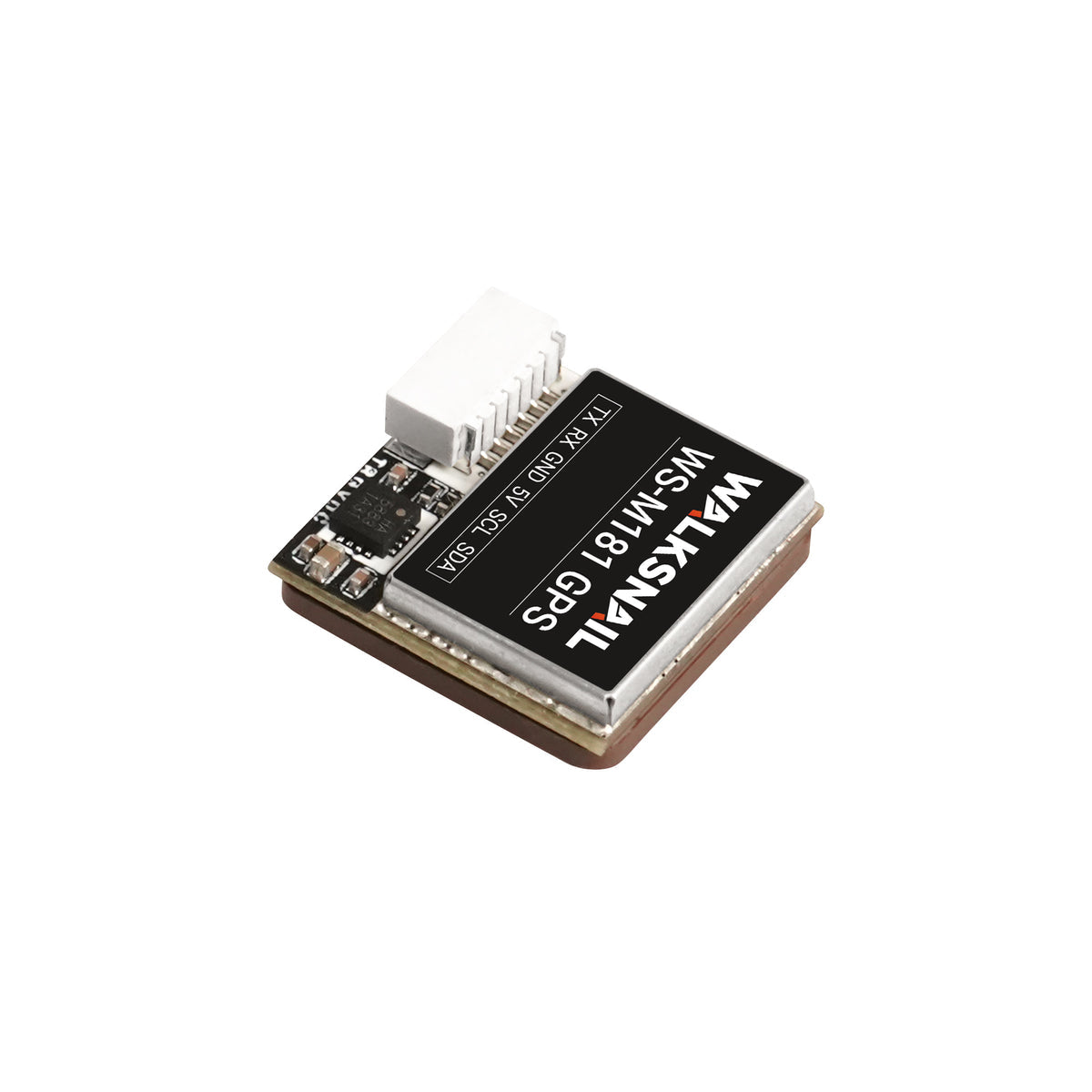

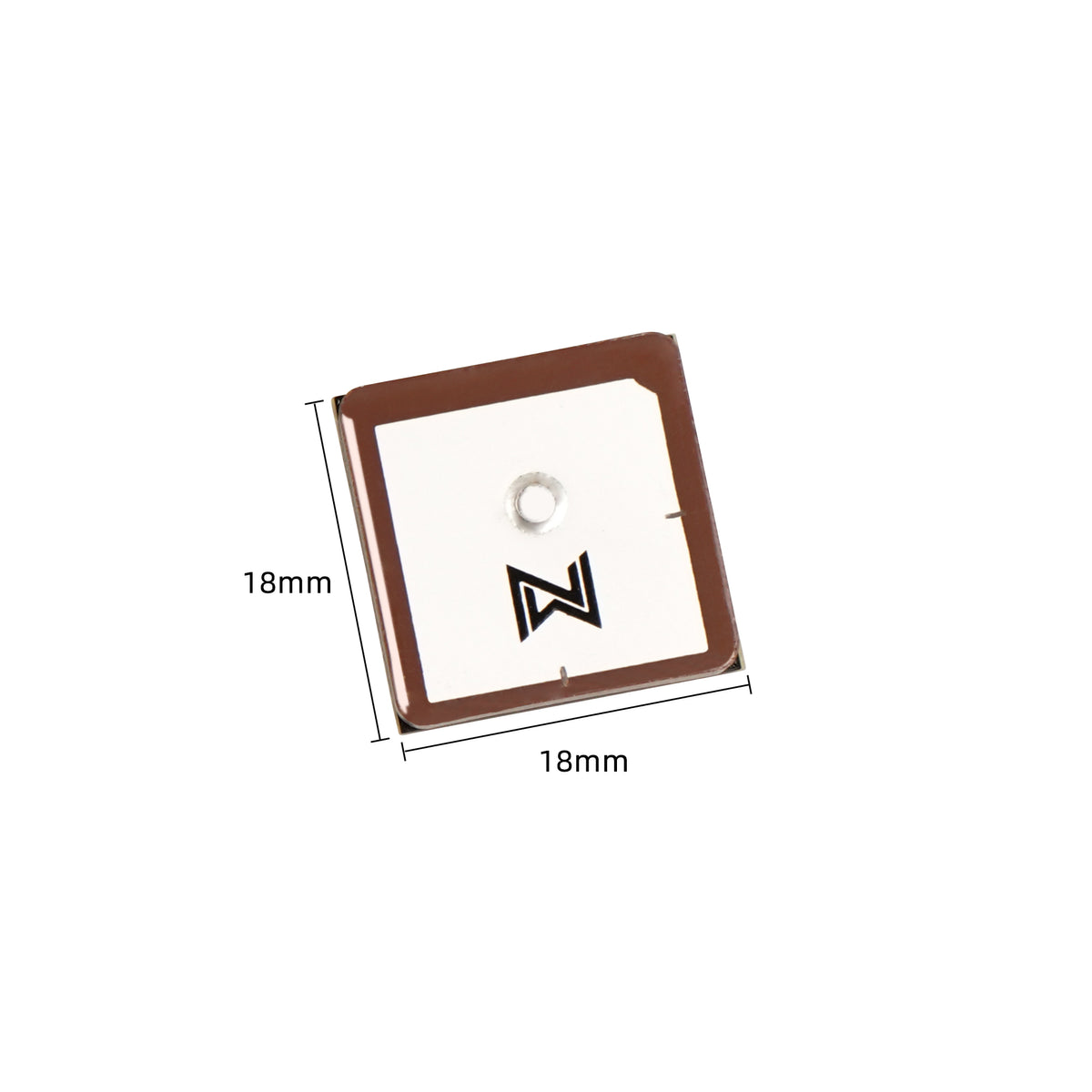

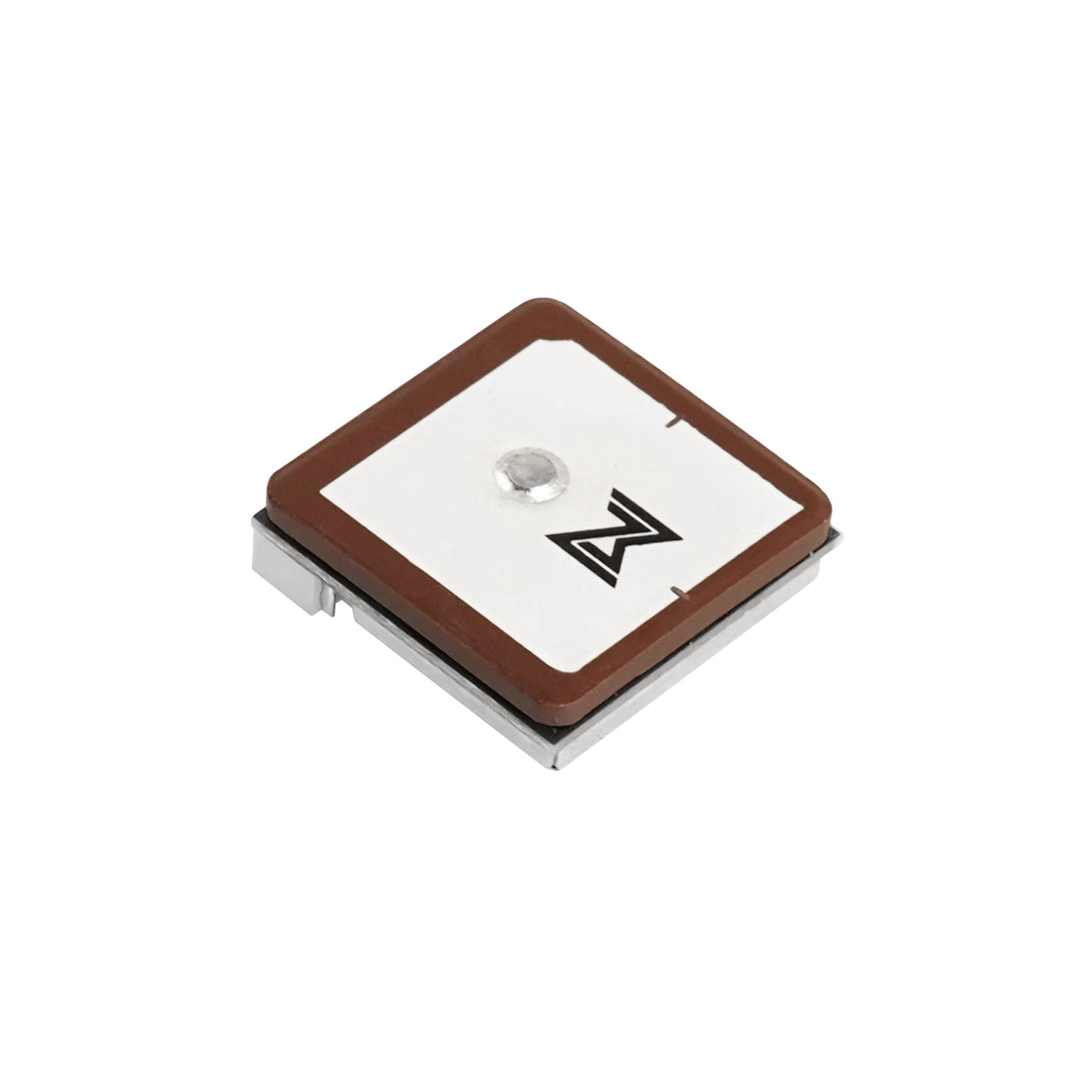

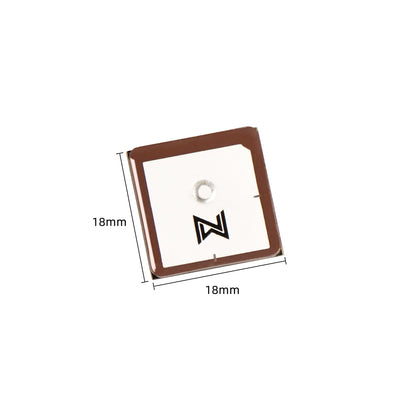

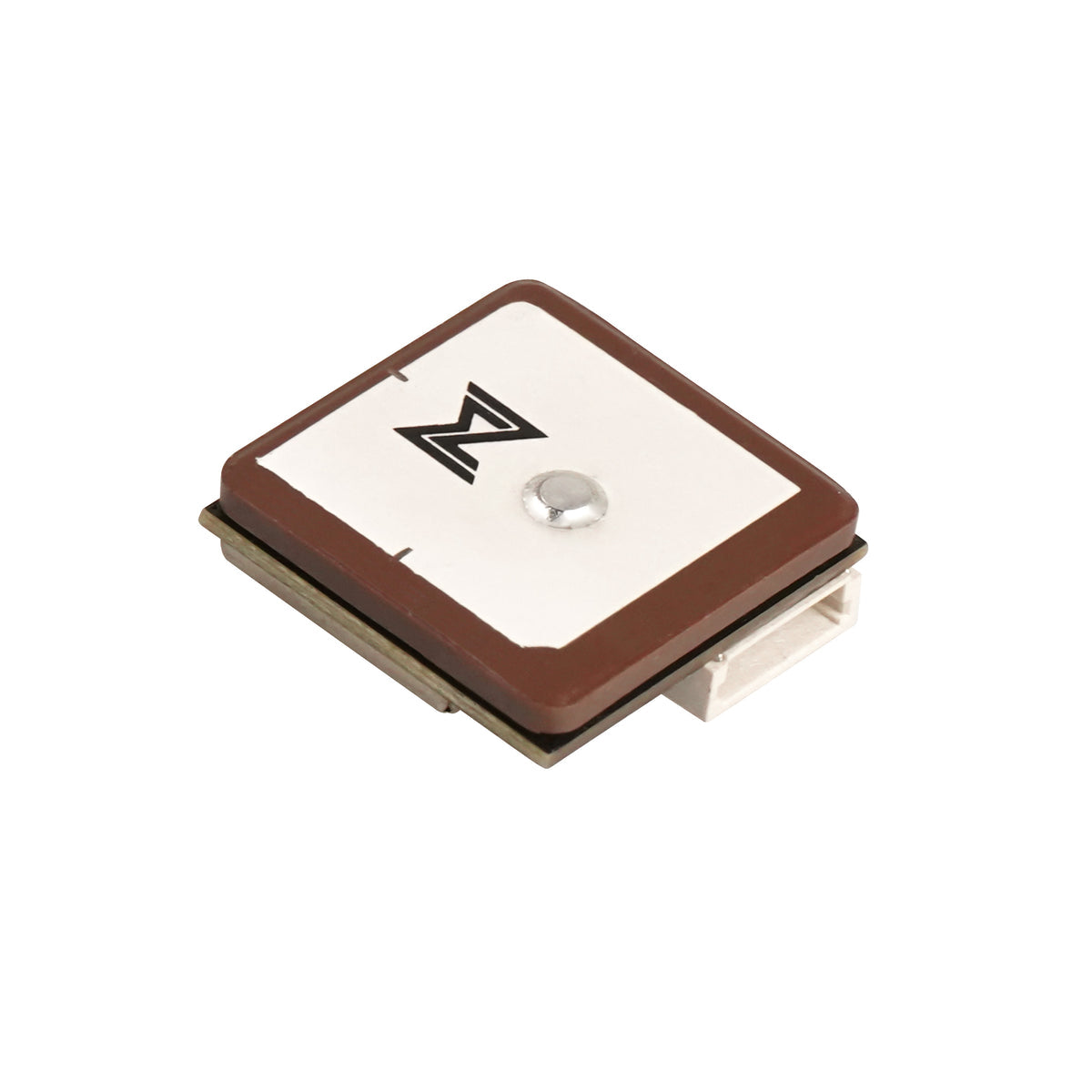

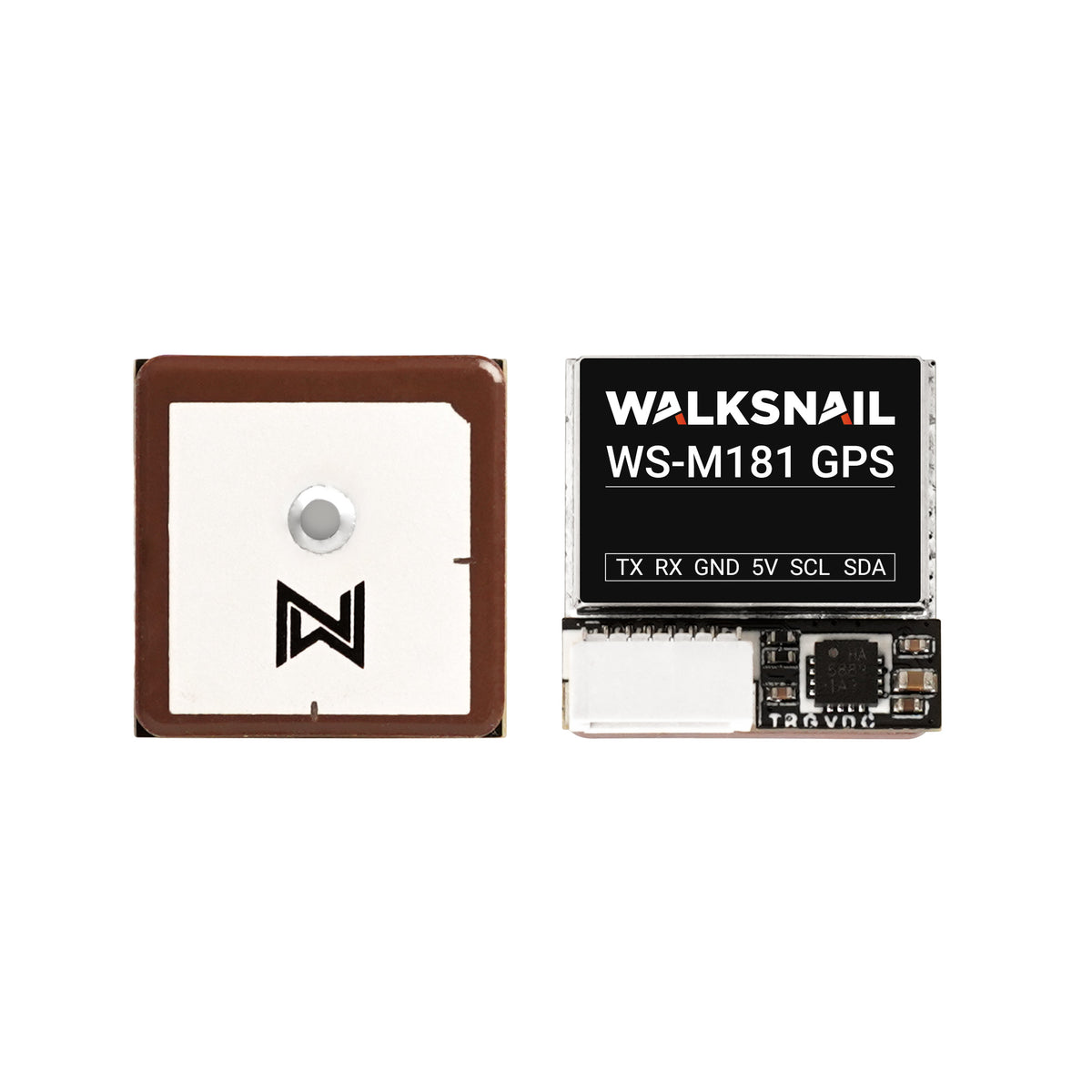

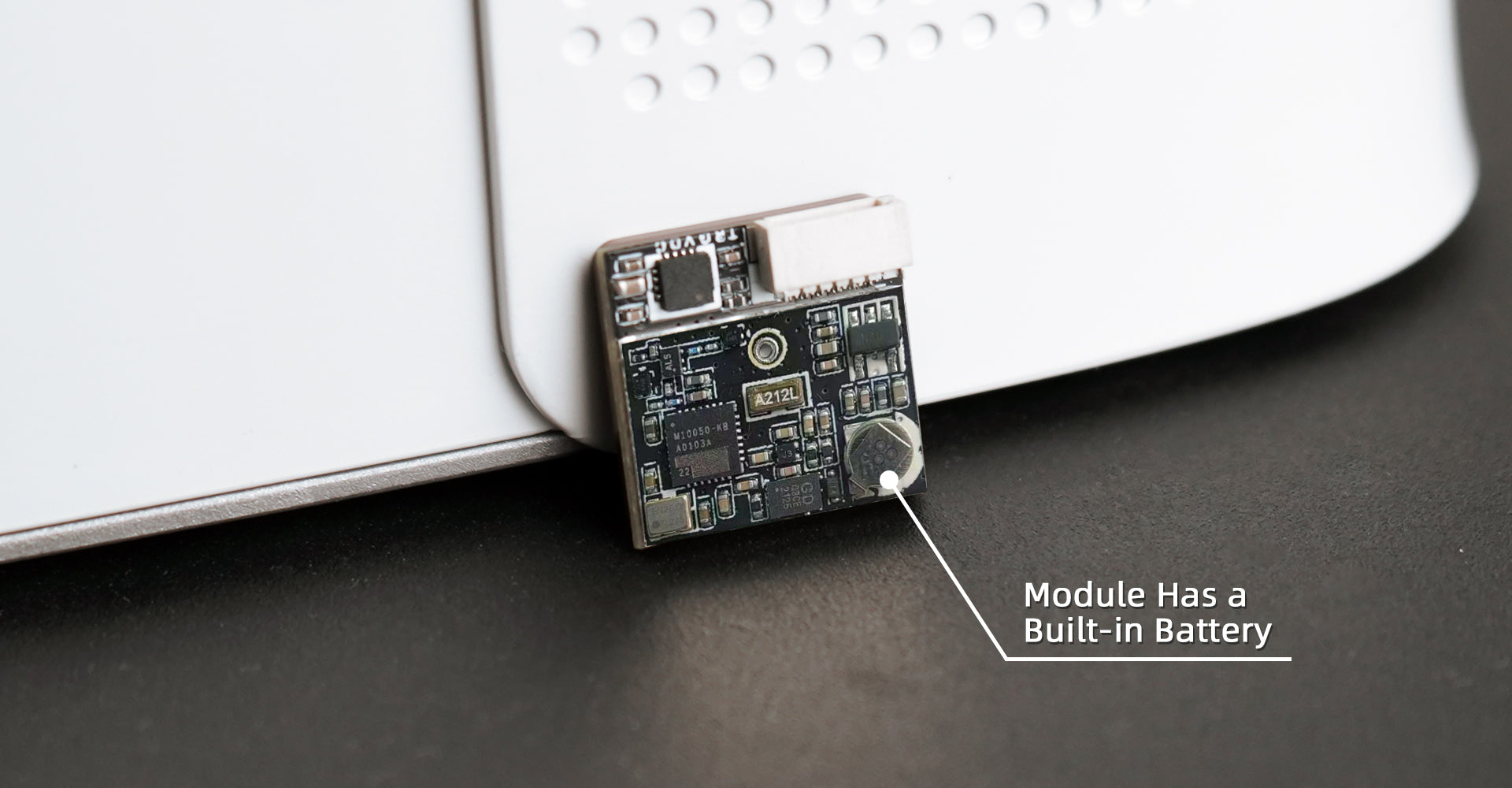

GPS Walksnail WS-M181 The Walksnail WS-M181 GPS is a compact and lightweight GPS module, ideal for FPV and quadcopters. Powered by u-blox M10 platform UBX-M10050 GNSS chipset and equipped with built-in QMC5883 MAG, this module ensures fast and stable positioning with increased accuracy. Treated with a special spraying process, the ultra-thin ceramic antenna prevents oxidation and scratching and ensures consistent performance. It offers six positioning modes, provides more flexible combinations (default GPS + GLONASS + BDS multi-mode positioning) and the ability to cover up to 32 satellites, provides flexible and reliable navigation options. Note: Because the GPS chip is a new 10th generation chip, the flight controller needs to flash Betaflight firmware 4.3.0 and above, and firmware below 4.29 uses NMEA protocol. Specifications: Name: Walksnail WS-M181GPS Chip: M10 (ten generation chip) Frequency: GPS L1, GLONASS L1, BDSB1, GALILEO E1, SBAS L1.QZSS L1 Power supply: 5V Dimensions: 18 x 18 x 4.6 mm Antenna: ceramic antenna (oil spraying process, prevent scratching and oxidation) Channel reception: 72 channel search Compass: QMC5883 Transmission speed: 115200dps Output protocol: NMEA UBLOX (dual protocol) Output frequency: 1Hz-10Hz, default 10Hz Speed accuracy: 0.05 m/s Horizontal positioning accuracy: 2D ACC1.5m (open air) Receive sensitivity: Trace-162dBm; Capture -160dBm Dynamic properties: Altitude: 50000m Speed: 500 m/s Acceleration: 4G Operating temperature: -40°C -+ 85°C Storage temperature: -40°C -+ 105°C
