Code: SKU:B015344

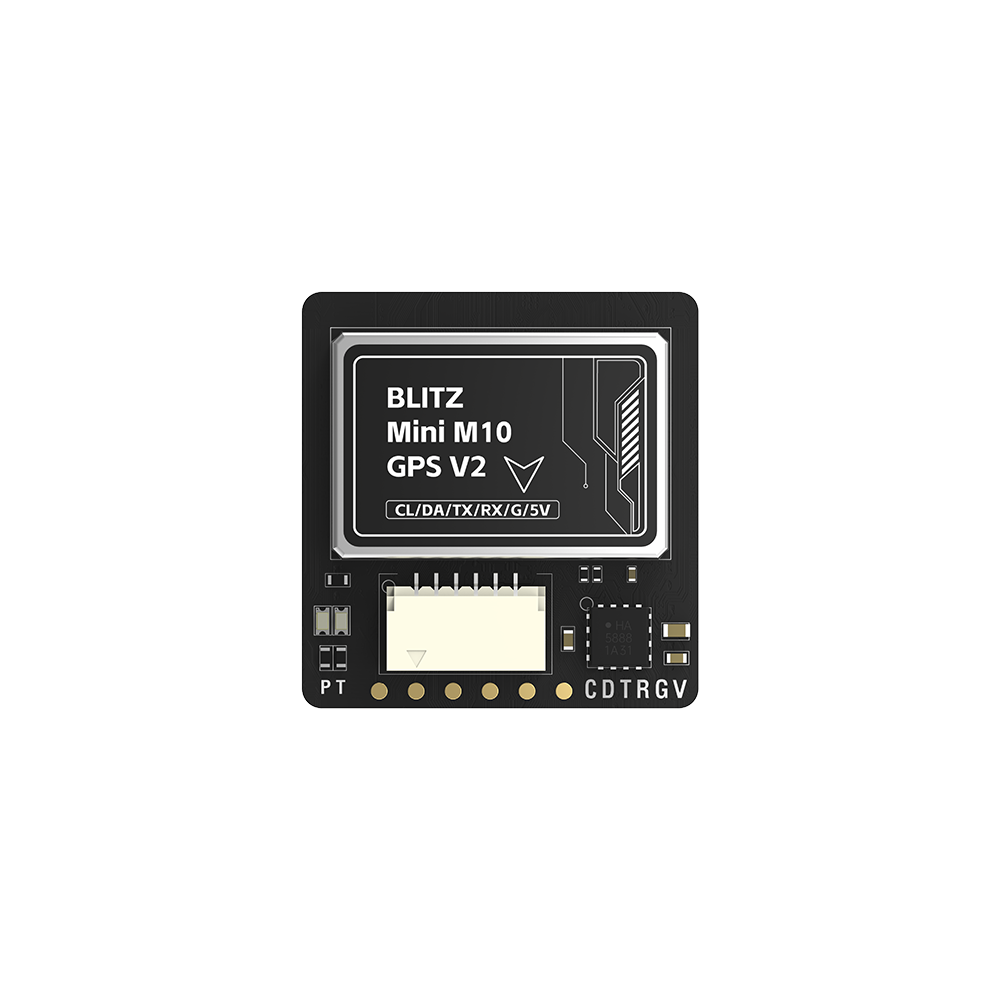

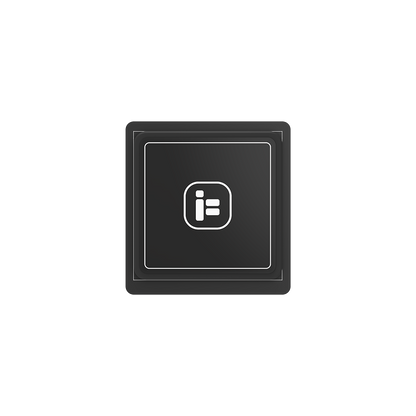

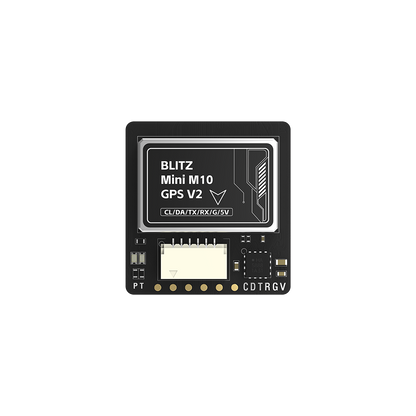

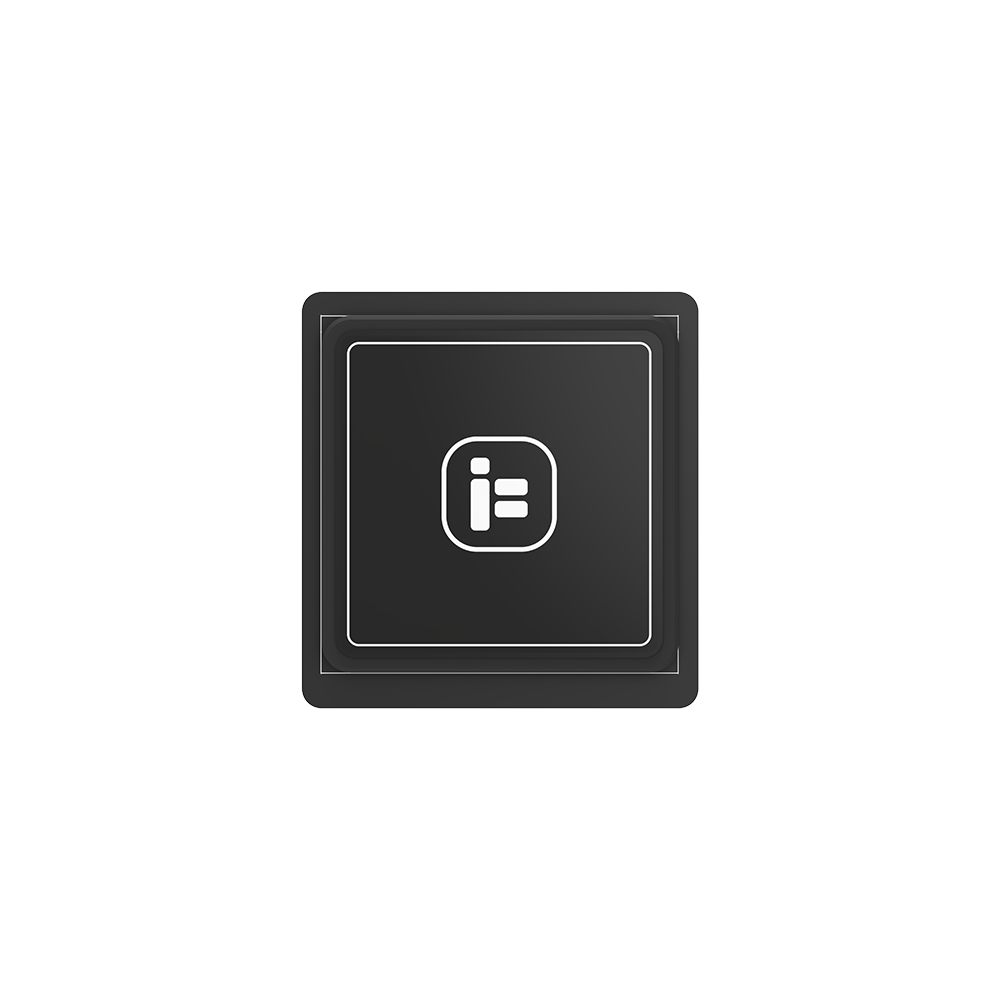

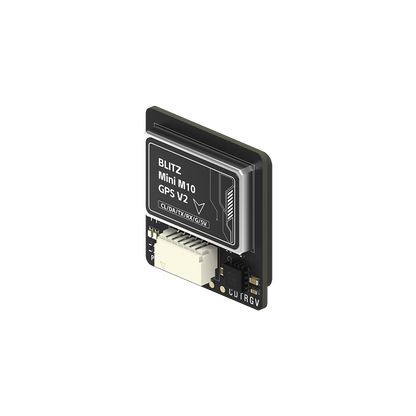

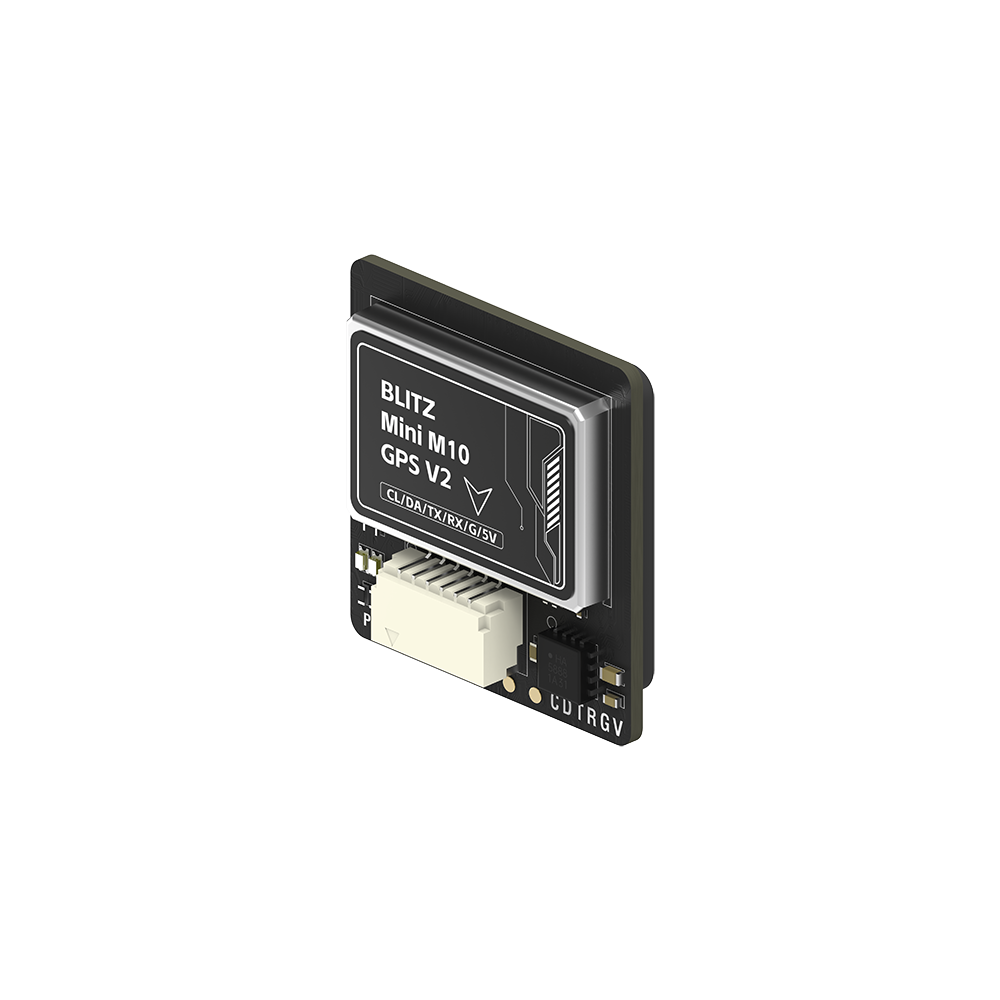

GPS Module iFlight BLITZ Mini M10 GPS V2
GPS Module iFlight BLITZ Mini M10 GPS V2
Brand: iFlight
Regular price
€39,19
Regular price
€39,19
Sale price
€39,19
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
BLITZ Mini M10 GPS V2 Newly improved BLITZ Mini M10 GPS V2, now with faster and more stable satellite search. Function - UBLOX M10 chip, low consumption, strong signal - QMC5883L integrated compass module - Built-in farad capacitor for faster hot start - High precision positioning - Integrated LNA (Low Noise Amplifier), RF filter and TCXO (temperature compensated crystal oscillator) - Refresh rate 10 Hz - Built-in flash Specifications: Compass module: QMC5883L Baud rate: 9600-460800 / 4800bps-921600bps (default - 115200bps) Sensitivity: Tracking: -167dBm Cold start: 27s Hot start: 1s Maximum height: 80000m Maximum speed: 500 m/s Speed accuracy: 0.05 m/s Maximum acceleration: ≦ 4G Refresh rate: 10 Hz GPS antenna size: 18.2 x 18.2 x 4 mm Overall dimensions: 20 x 21 x 8 mm Weight: 8g Input voltage: 3.3-5.5V GPS Pin Definition: RX/TX UART Compass Pin Definition: SDA/SLA GNSS: GPS+SBAS+Galileo+QZSS+Glonass Mini version compatibility: - With single hole TPU holder: Chimera7 Pro v2, iH3 O3, Nazgul Evoque F4/F5/F6, XL10 v6, BOB57 HD. - With dual hole TPU holder: Nazgul5 V3, Taurus X8 Pro/V3, ProTek60 Pro. - GPS TPU holder not required: Helion 10. The package includes: 1 x BLITZ Mini M10 GPS V2 1 x set of cables
