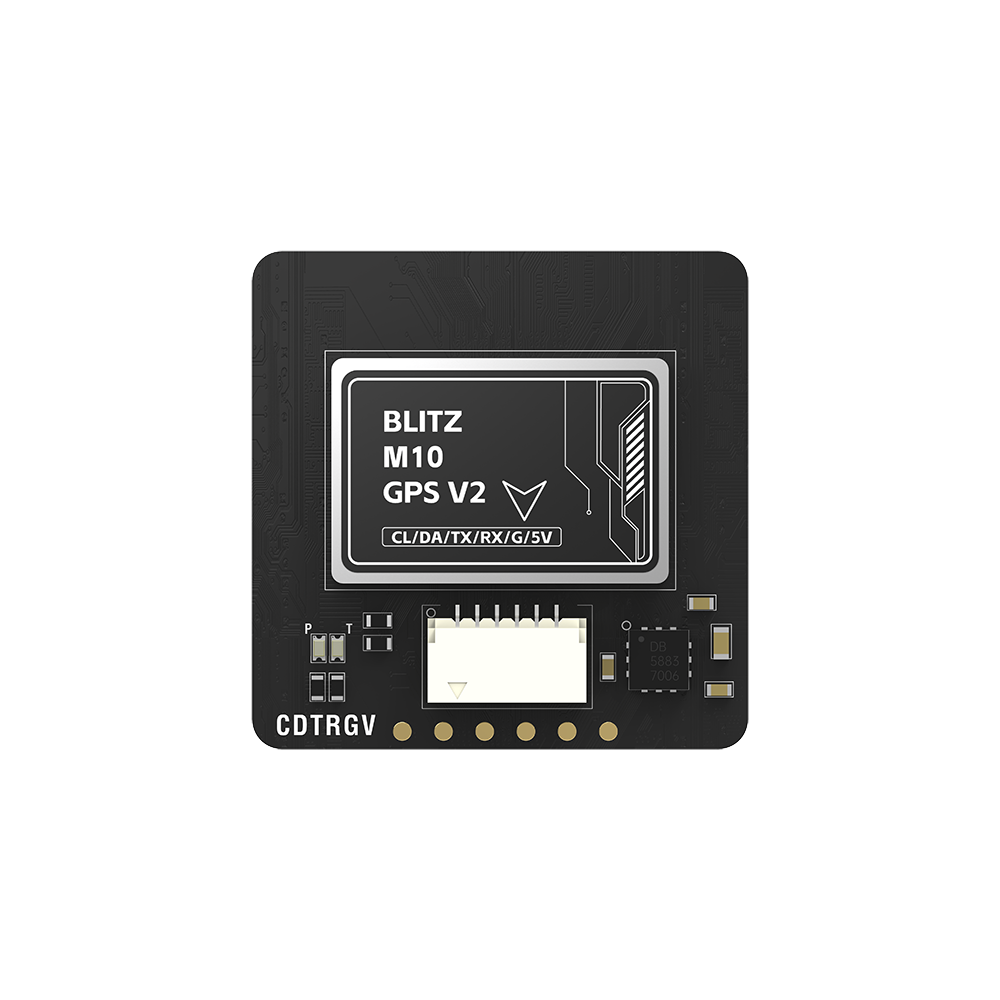

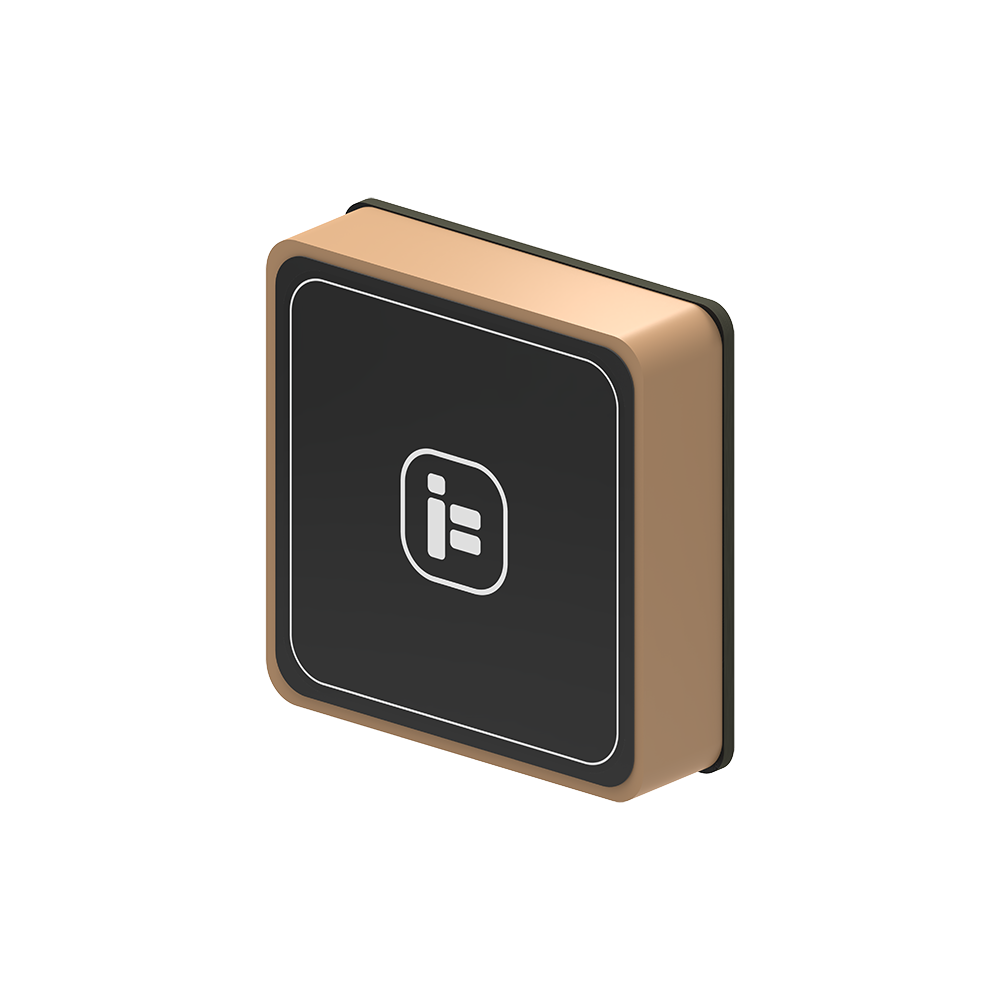

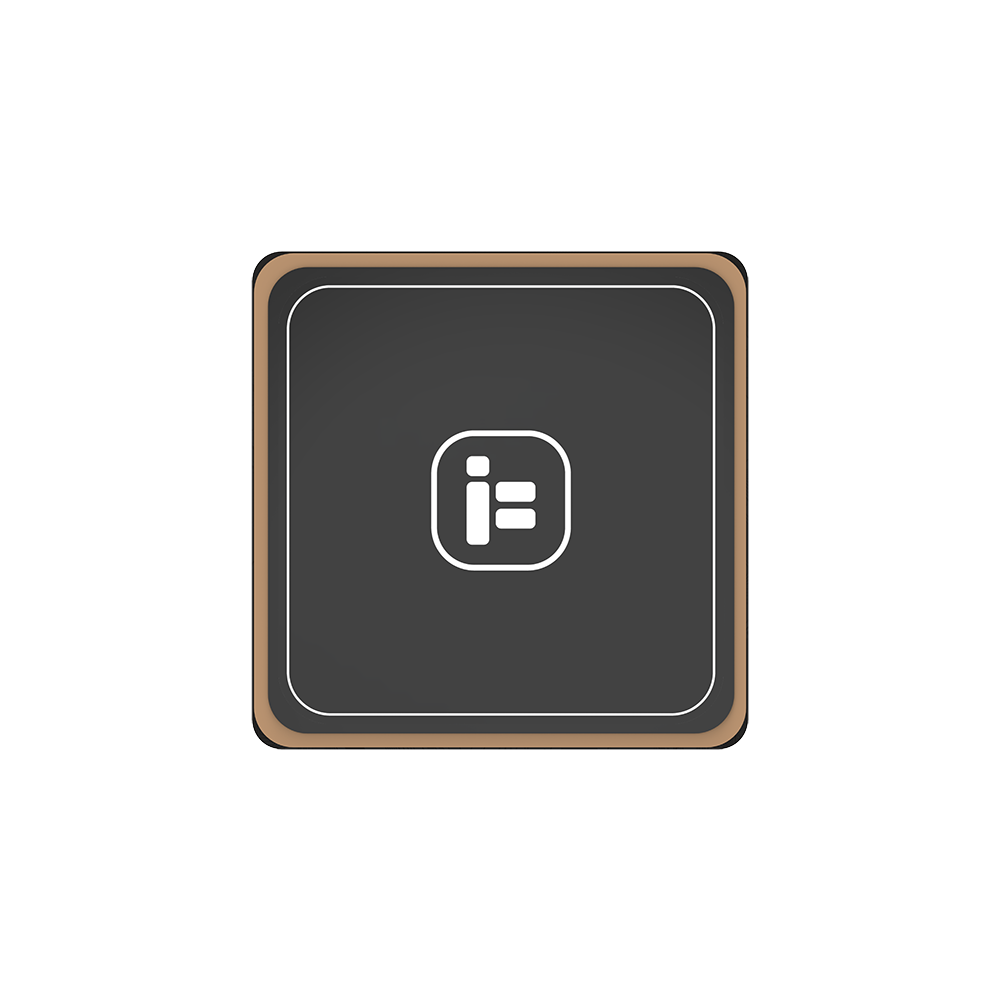

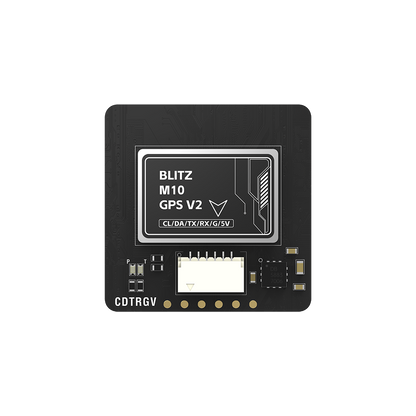

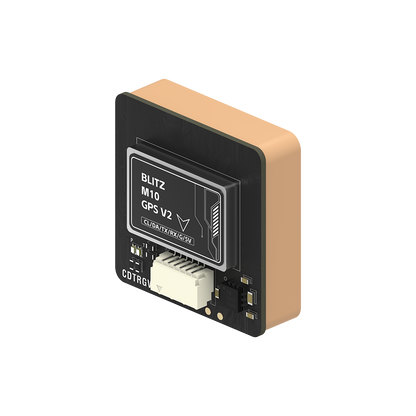

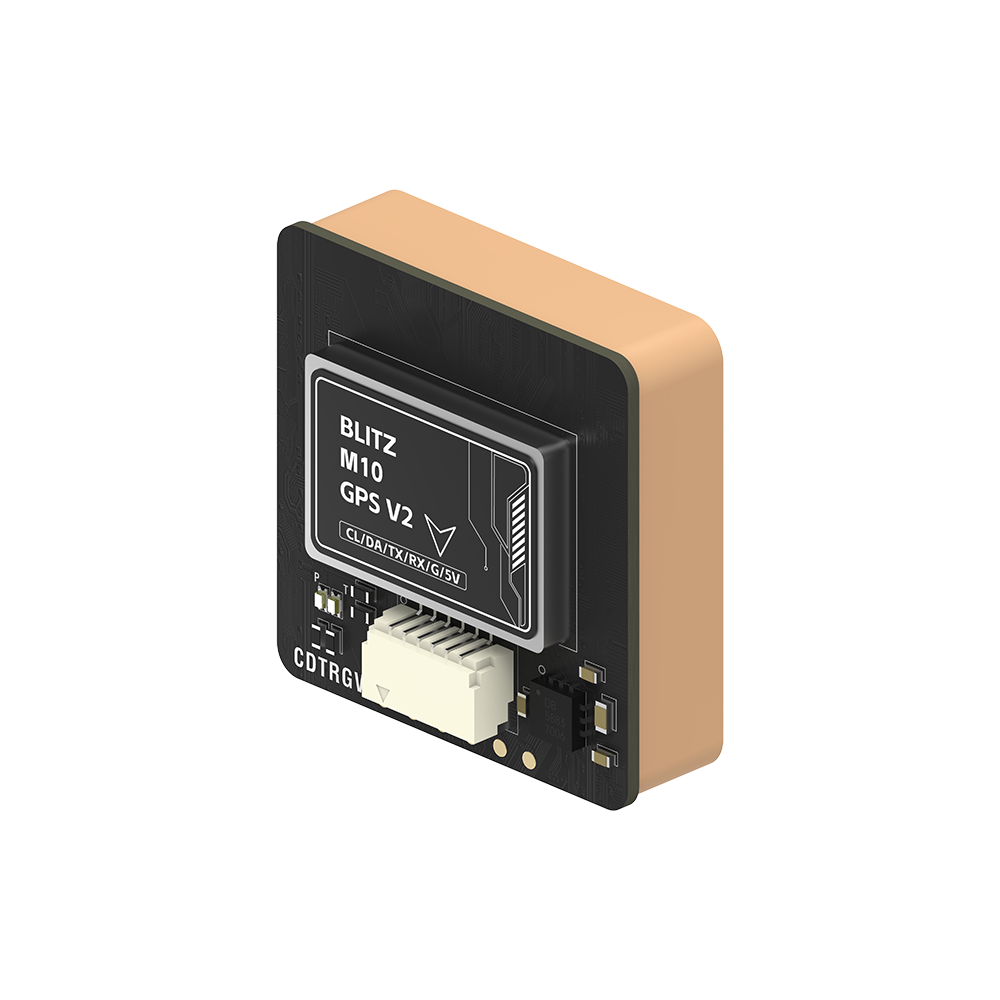

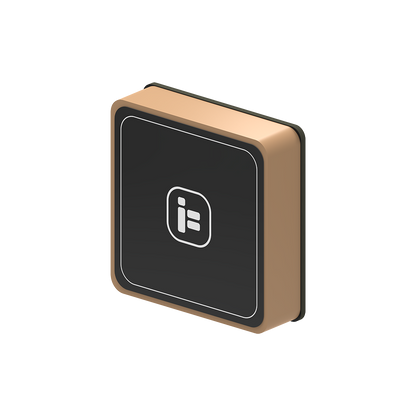

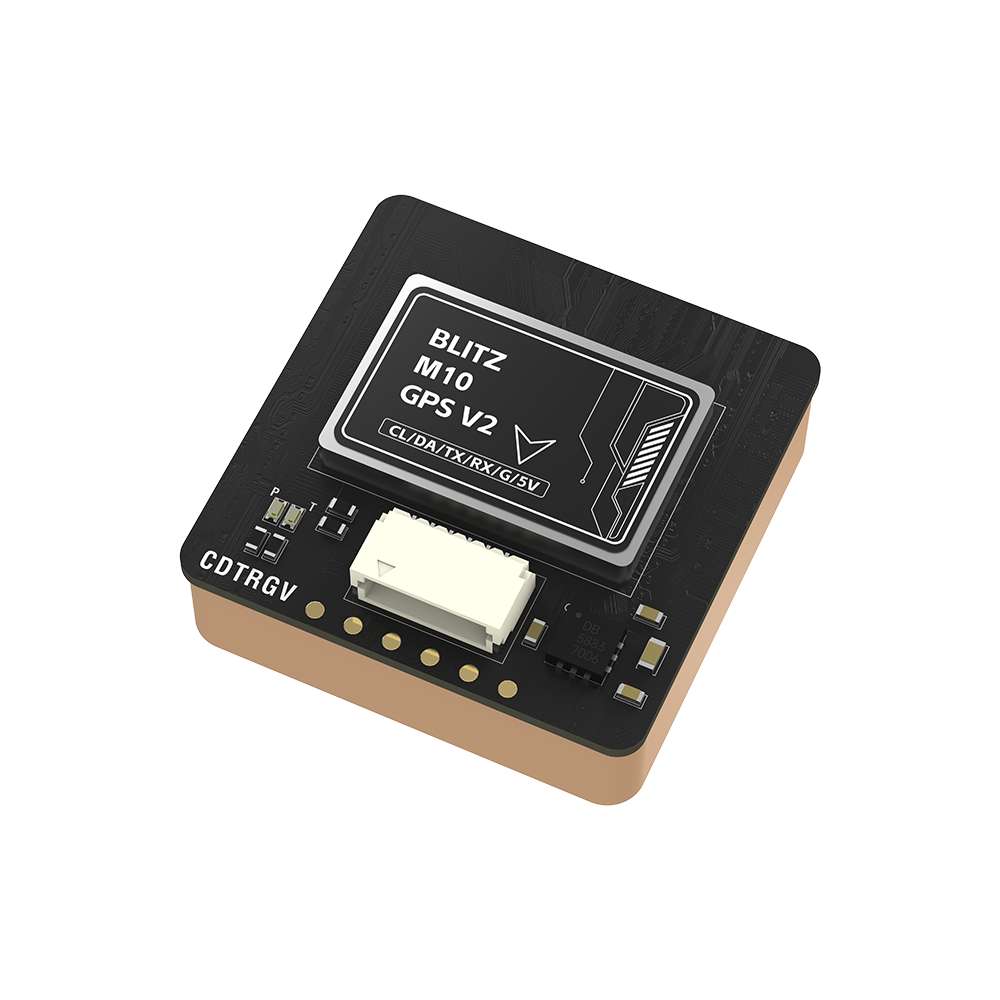

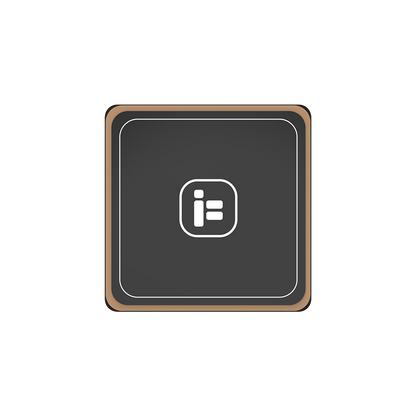

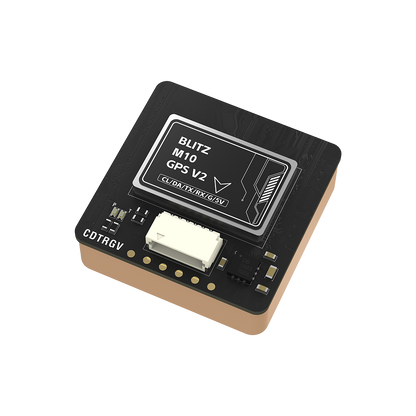

    BLITZ M10 GPS V2

Newly improved BLITZ M10 GPS V2, now with faster and more stable satellite search.

Function

- UBLOX M10 chip, low consumption, strong signal
- QMC5883L integrated compass module
- Built-in farad capacitor for faster hot start
- High precision positioning
- Integrated LNA (Low Noise Amplifier), RF filter and TCXO (temperature compensated crystal oscillator)
- Refresh rate 10 Hz
- Built-in flash

Specifications:

Compass module: QMC5883L
Baud rate: 9600-460800 / 4800bps-921600bps (default - 115200bps)
Sensitivity: Tracking: -167dBm
Cold start: 27s
Hot start: 1s
Maximum height: 80000m
Maximum speed: 500 m/s
Speed ​​accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Refresh rate: 10 Hz
GPS antenna size: 25 x 25 x 6 mm
Overall dimensions: 25 x 25 x 11 mm
Weight: 16 g
Input voltage: 3.3-5.5V
GPS Pin Definition: RX/TX UART
Compass Pin Definition: SDA/SLA
GNSS: GPS+SBAS+Galileo+QZSS+Glonass

The package includes:
1 x BLITZ M10 GPS V2
1 x set of cables
