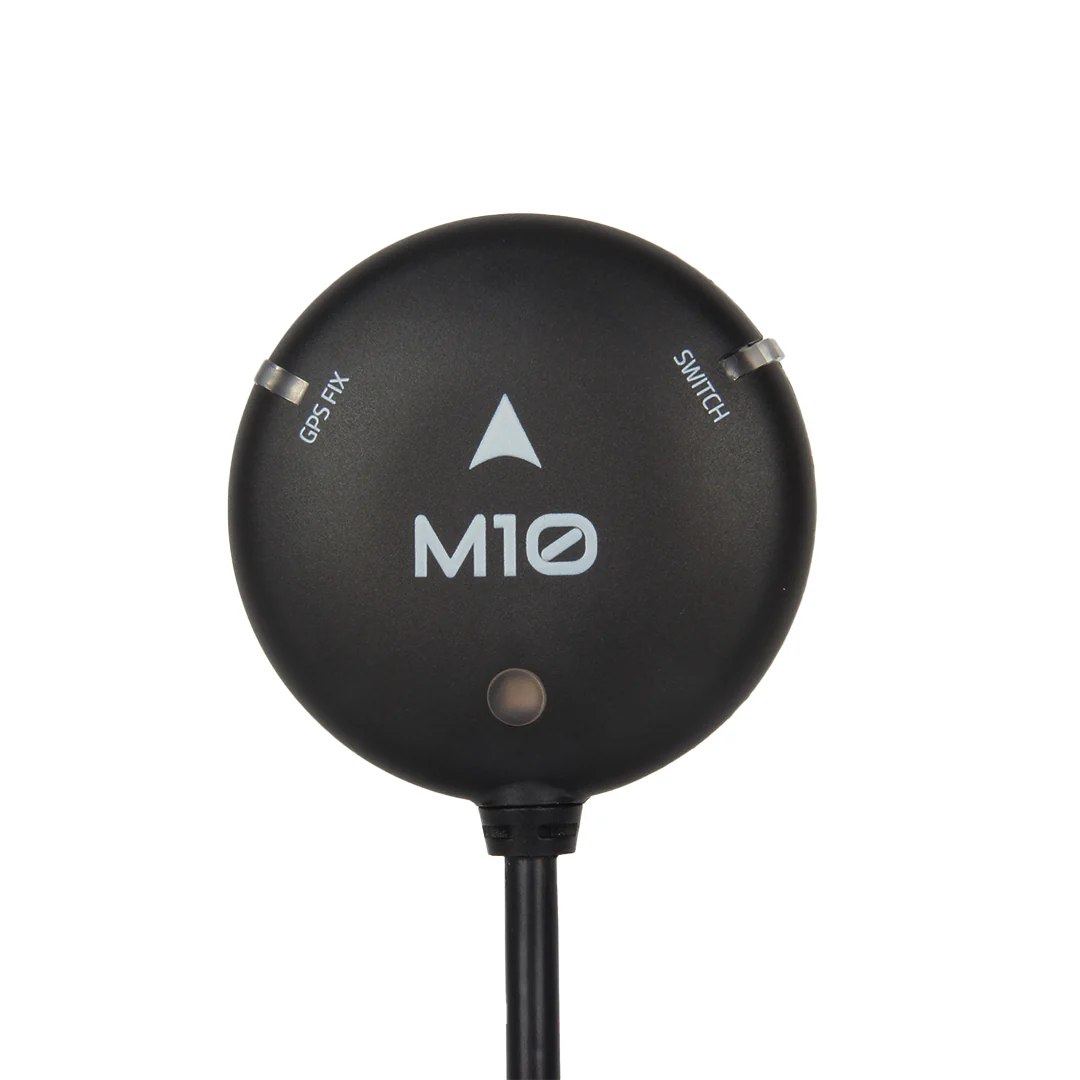

GPS module Holybro M10 GPS Module-Standard
The Holybro M10 GPS uses multi-constellation GNSS powered by the u-blox M10 series. It is a simultaneous GNSS receiver that can receive and track multiple GNSS systems simultaneously. Thanks to the multi-band RF front-end architecture, all four major GNSS constellations (GPS, Galileo, GLONASS and BeiDou) can be received simultaneously.
In addition, it has an IST8310 GPS compass, a three-color LED display, a buzzer and a safety switch. This module comes with a baud rate of 115200 5Hz. The high-gain patch antenna provides excellent performance, while the antenna's omnidirectional radiation pattern increases flexibility in device setup. The module also has active circuitry for a ceramic patch antenna and a rechargeable backup battery for quick startup.
Technical data
- GNSS receiver: Ublox M10
- Number of simultaneously monitored GNSS: up to 4 GNSS (BeiDou, Galileo, GLONASS, GPS, QZSS)
- Frequency band: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1
- Compass: IST8310
- Output protocol: UBX (U-blox), NMEA
- Accuracy: 2.0m CEP
- Navigation update rate: up to 25 Hz (single GPS), up to 10 Hz (4 simultaneous GNSS)
- GNSS augmentation system: EGNOS, GAGAN, MSAS and WAAS | QZSS: L1S
- Default baud rate: 115200
- Input voltage: 4.7 - 5.2V

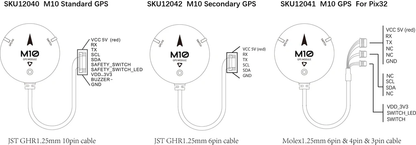

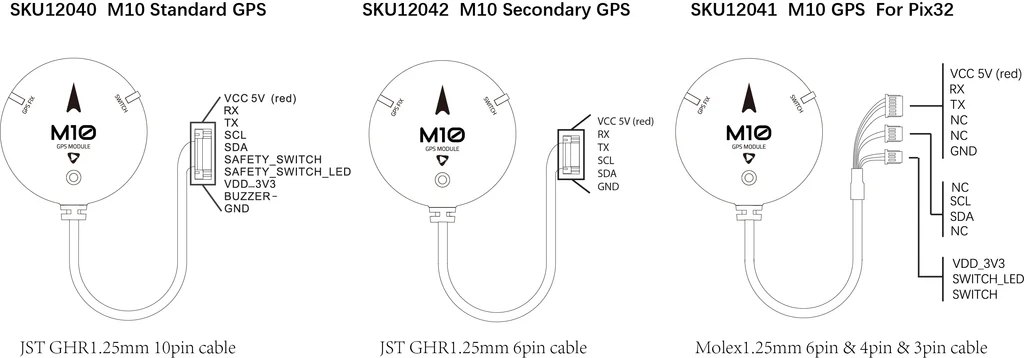

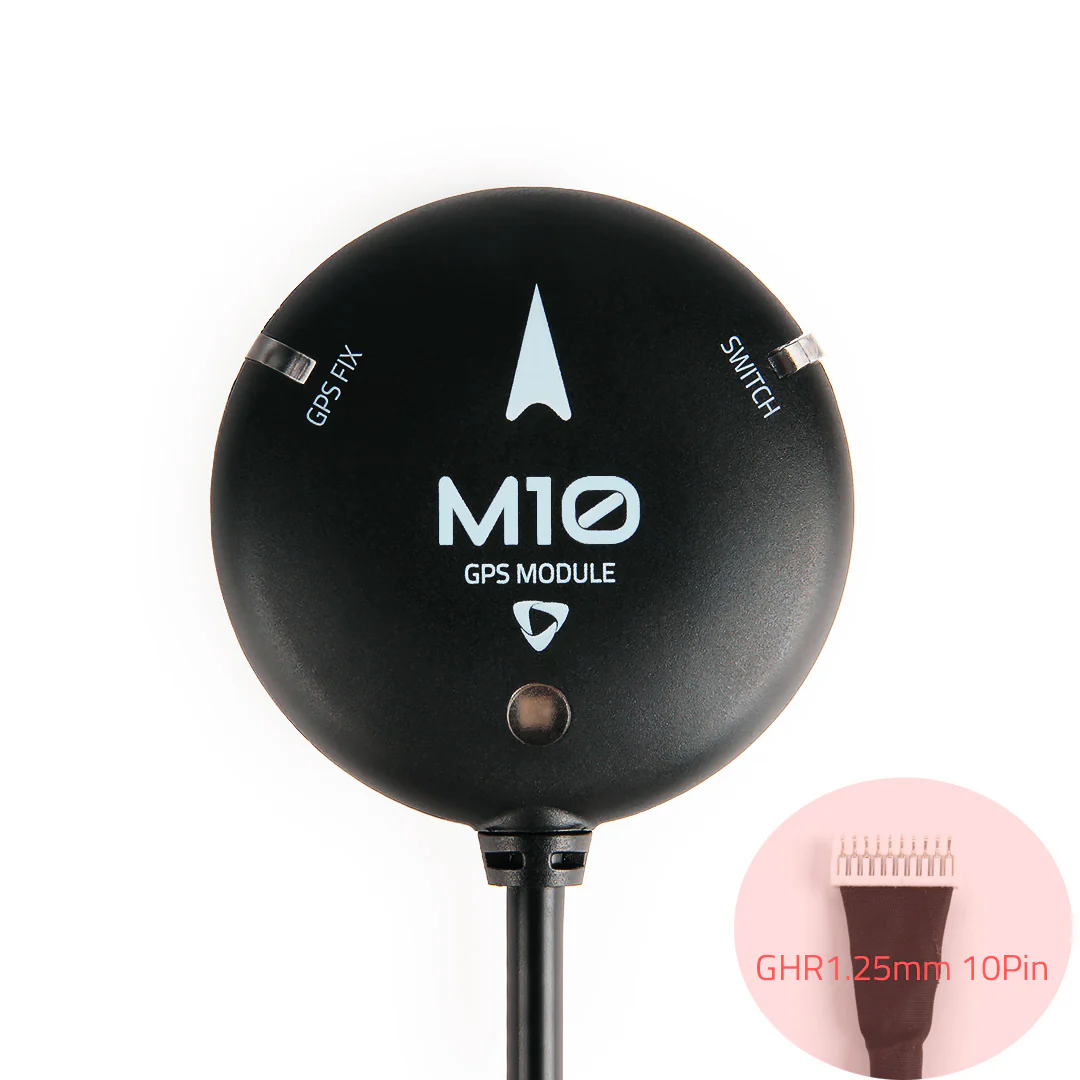

- Port type: JST-GH-10P
- Antenna: ceramic patch antenna 25 x 25 x 4 mm
- Power consumption: less than 200mA @5V
- Operating temperature: -40 ~ 80°C
- Dimensions: 50 x 50 x 14.4 mm
- Weight: 32g
- Cable length: 26cm (42cm cable can be purchased separately)
Other features:
- Tri-color LED
- Built-in buzzer
- Safety switch
- LNA MAX2659ELT+RF amplifier
- Rechargeable Faradic Capacitor
- Low-noise 3.3V regulator

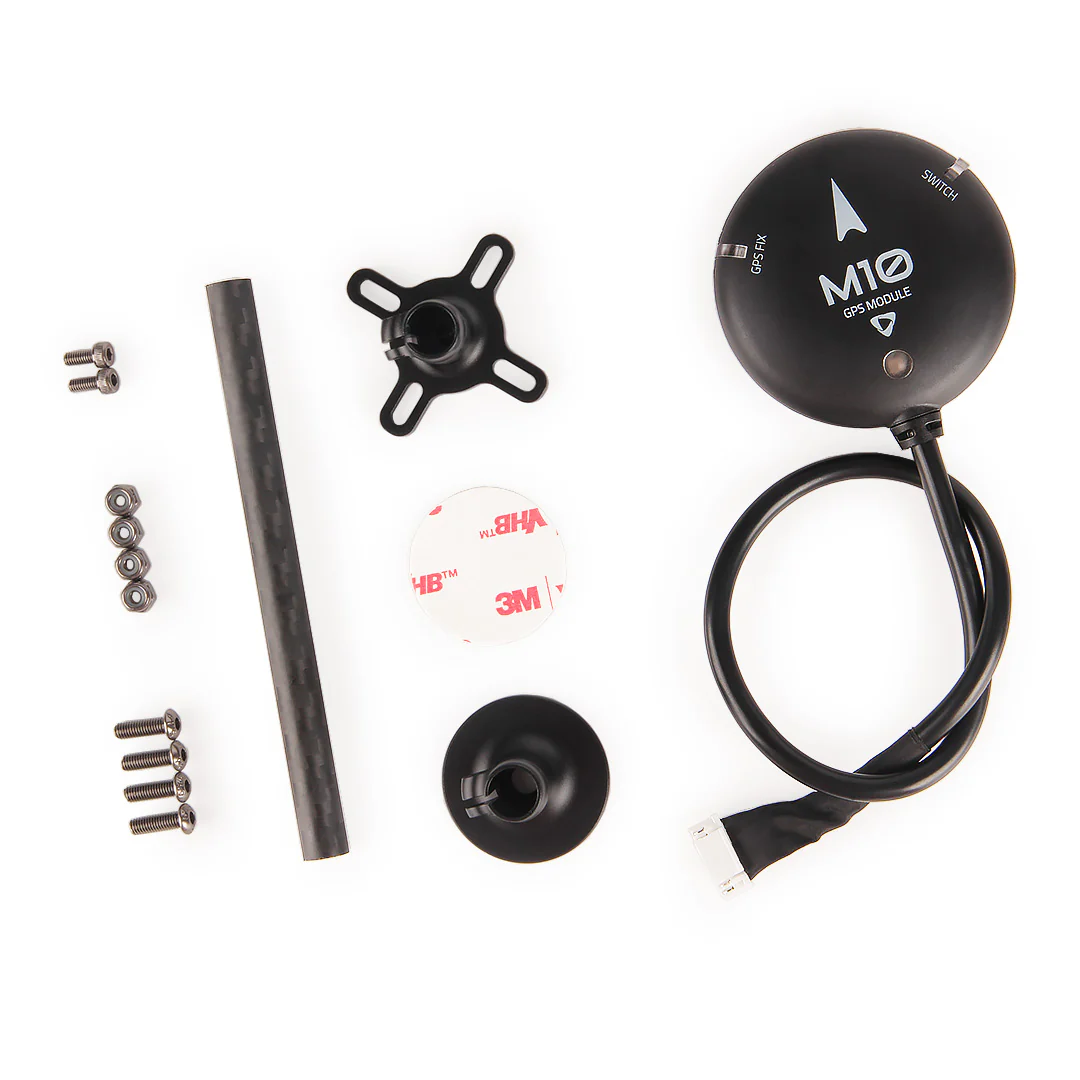

Package Contents
- M10 GPS module

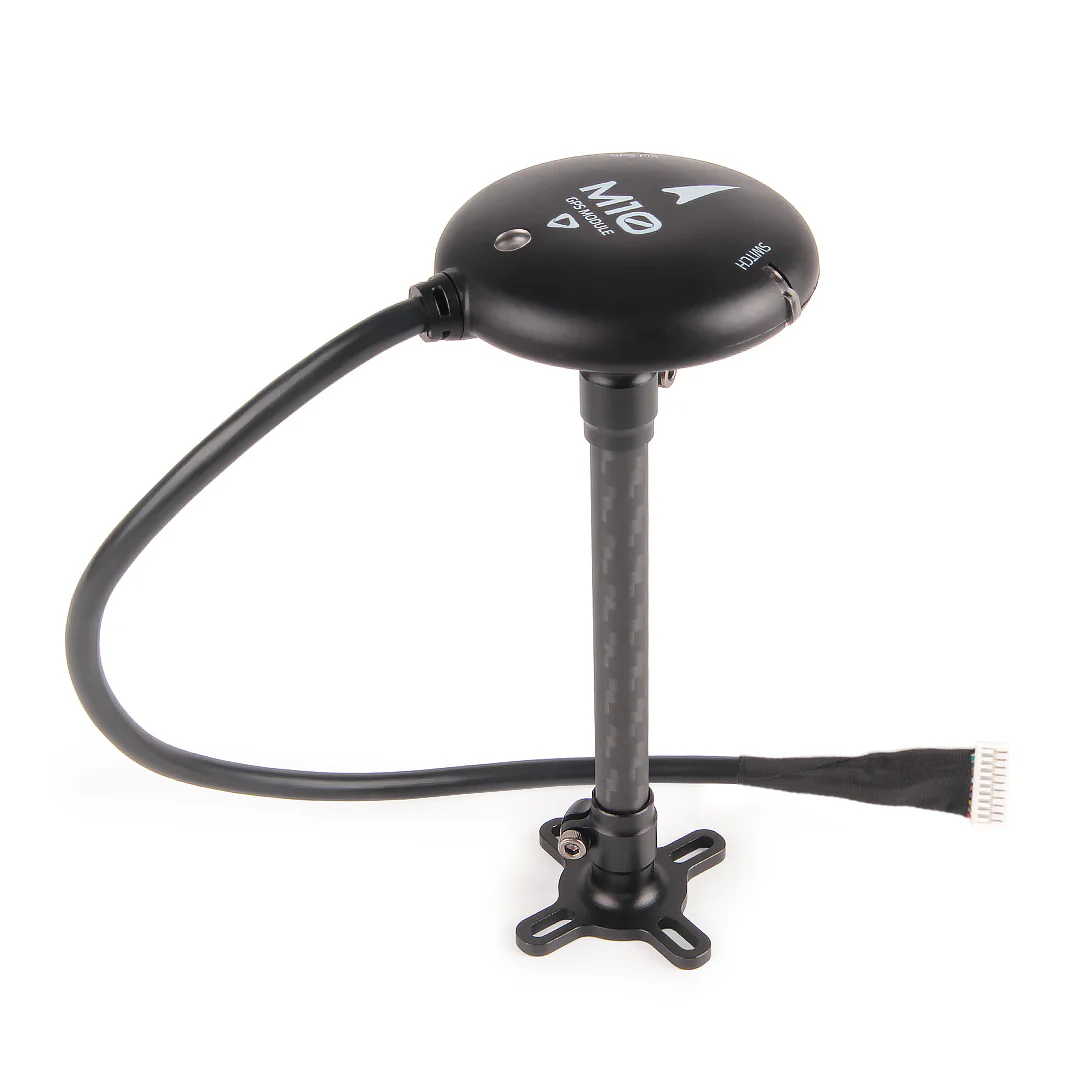

- 1x fixed carbon fiber GPS holder
