GPS Module Holybro H-RTK F9P Rover Lite 2nd GPS
GPS Module Holybro H-RTK F9P Rover Lite 2nd GPS
Brand: Holybro
Regular price
€296,99
Regular price
€296,99
Sale price
€296,99
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
GPS Module Holybro H-RTK F9P Rover Lite 2nd GPS
This system provides a multi-band RTK with fast convergence time and reliable performance, simultaneous reception of GPS, GLONASS, Galileo and BeiDou, as well as high update rates for highly dynamic and large-scale applications with centimeter-level accuracy.

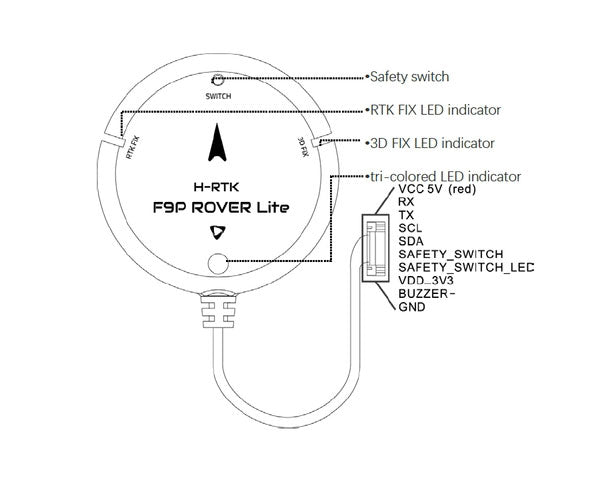

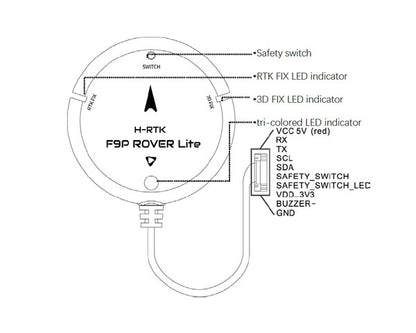

The Holybro GPS module is cost-effective, lightweight and high-performance. It can significantly reduce the cost of large projects with many drones, such as light shows or surveying. The module has a built-in safety switch and three-color LED indicator and is compatible with Pixhawk series flight controllers with open-source firmware.
Specifications:
- Usage: UAV
-
GNSS:
- GPS L1C/A (1575.42 MHz)
- GPS L2C (1227.60 MHz)
- GLONASS L1OF (1602 MHz)
- GLONASS L2OF (1246 MHz)
- BeiDou B1 (1561.092 MHz)
- BeiDou B2 (1207.140 MHz)
- Galileo E1-B/C (1575.42 MHz)
- Galileo E5b (1207.140 MHz)
-
Peak antenna gain (MAX):
- L1: 4.0 dBi
- L2: 1.0 dBi
-
Typical LNA gain:
- 20.5+1 dB
-
Time until the first correction fix:
- Cold start <29 s
- Warm start <1 s
-
RAW:
- Max. 20 Hz
- RTK Max. 8 Hz
-
Port:
- 26 cm, compatible with Pixhawk4
- GH1.25 10-pin cable included / 6-pin cable
-
Connector:
- SMA
-
Data transfer speed:
- 115200 5 Hz (default, adjustable)
-
Operating voltage:
- 4.75V-5.25V
-
Diameter:
- 76mm
-
Height:
- 20 mm
-
Weight:
- 106 g
The package includes:
- GPS Holybro H-RTK F9P Rover Lite
- H-RTK F9P Rover Lite 2. GPS (optional)

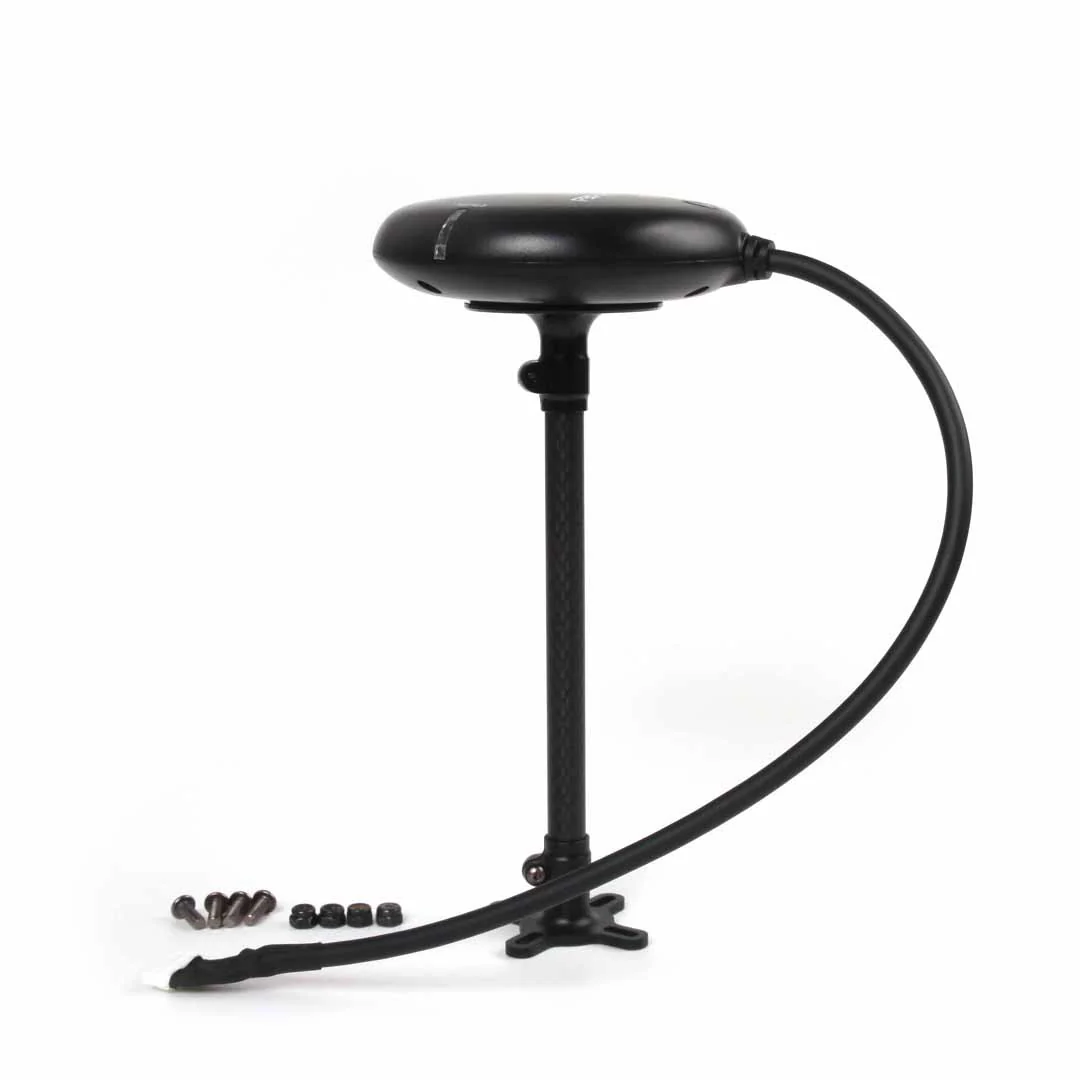

- Fixed carbon fiber GPS mount (40mm)
- GPS UART to USB Converter (for SKU12017)
- USB cable (Type-C)
