Code: SKU:12017
GPS Module Holybro H-RTK F9P Rover Lite
GPS Module Holybro H-RTK F9P Rover Lite
Brand: Holybro
Regular price
€296,99
Regular price
€296,99
Sale price
€296,99
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

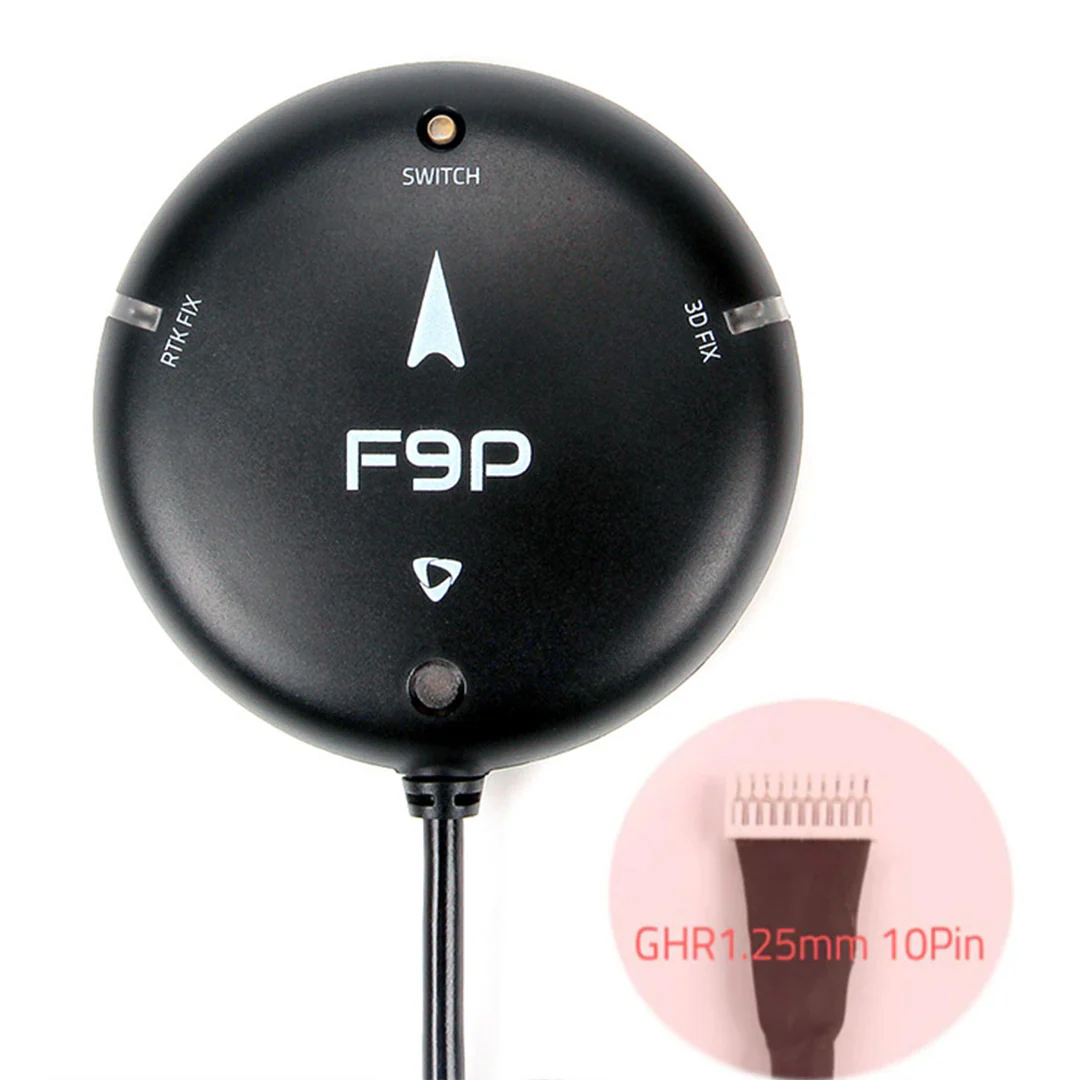

GPS Module Holybro H-RTK F9P Rover Lite
This system provides a multi-band RTK with fast convergence time and reliable performance, simultaneous reception of GPS, GLONASS, Galileo and BeiDou, as well as high update rates for highly dynamic and large-scale applications with centimeter-level accuracy.

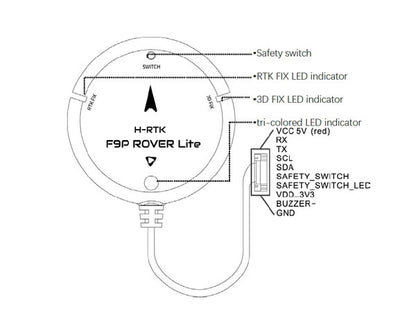

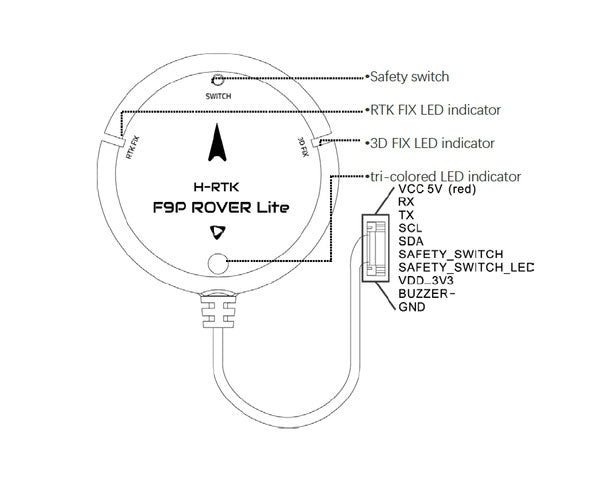

The Holybro GPS module is cost-effective, lightweight and high-performance. It can significantly reduce the cost of large projects with many drones, such as light shows or surveying. The module has a built-in safety switch and three-color LED indicator and is compatible with Pixhawk series flight controllers with open-source firmware.
Specifications:
- Usage: UAV
-
GNSS:
- GPS L1C/A (1575.42 MHz)
- GPS L2C (1227.60 MHz)
- GLONASS L1OF (1602 MHz)
- GLONASS L2OF (1246 MHz)
- BeiDou B1 (1561.092 MHz)
- BeiDou B2 (1207.140 MHz)
- Galileo E1-B/C (1575.42 MHz)
- Galileo E5b (1207.140 MHz)
-
Peak antenna gain (MAX):
- L1: 4.0 dBi
- L2: 1.0 dBi
-
Typical LNA gain:
- 20.5+1 dB
-
Time until the first correction fix:
- Cold start <29 s
- Warm start <1 s
-
RAW:
- Max. 20 Hz
- RTK Max. 8 Hz
-
Port:
- 26 cm, compatible with Pixhawk4
- GH1.25 10-pin cable included / 6-pin cable
-
Connector:
- SMA
-
Data transfer speed:
- 115200 5 Hz (default, adjustable)
-
Operating voltage:
- 4.75V-5.25V
-
Diameter:
- 76mm
-
Height:
- 20 mm
-
Weight:
- 106 g
The package includes:
- GPS Holybro H-RTK F9P Rover Lite
- H-RTK F9P Rover Lite 2. GPS (optional)

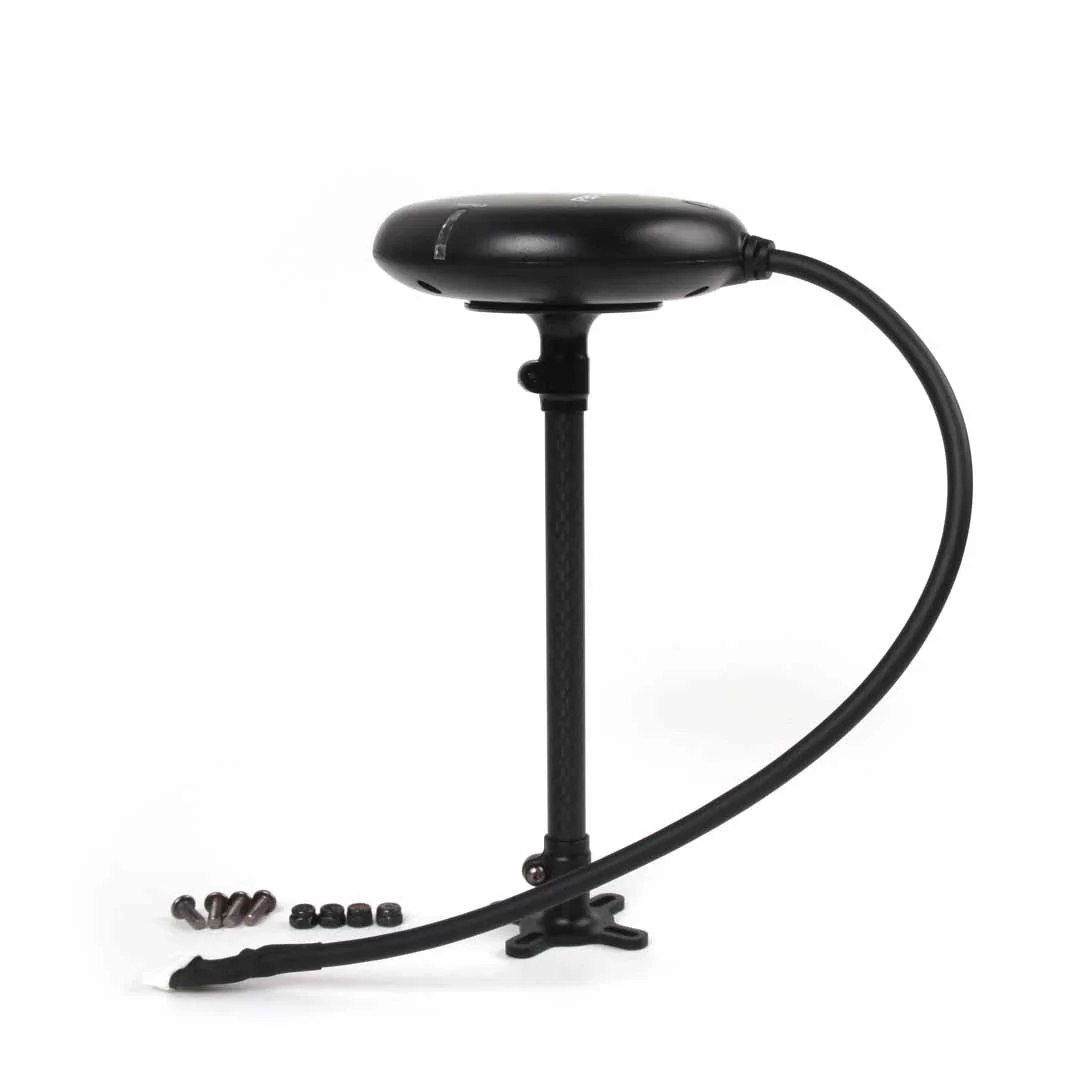

- Fixed carbon fiber GPS mount (40mm)
- GPS UART to USB Converter (for SKU12017)
- USB cable (Type-C)
