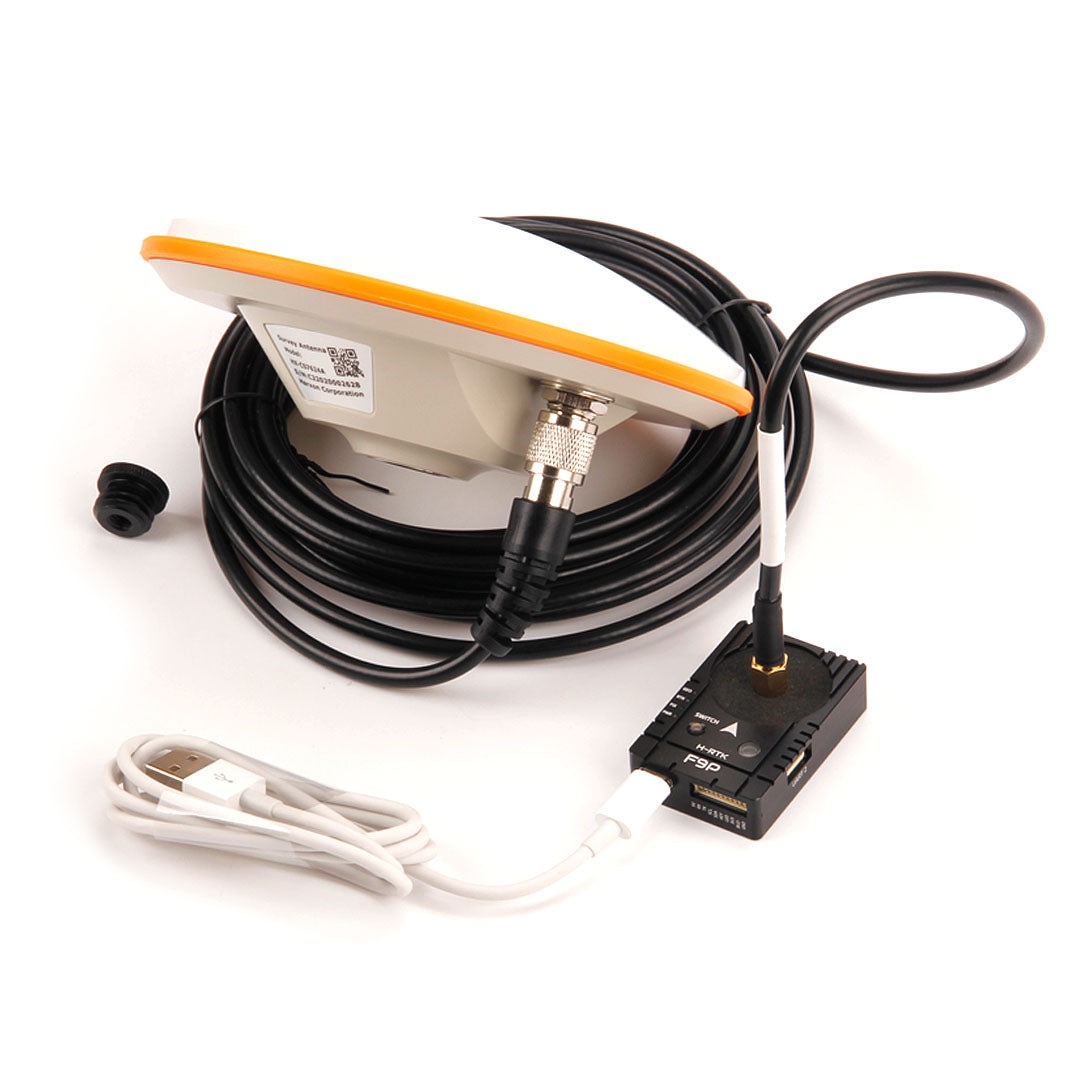

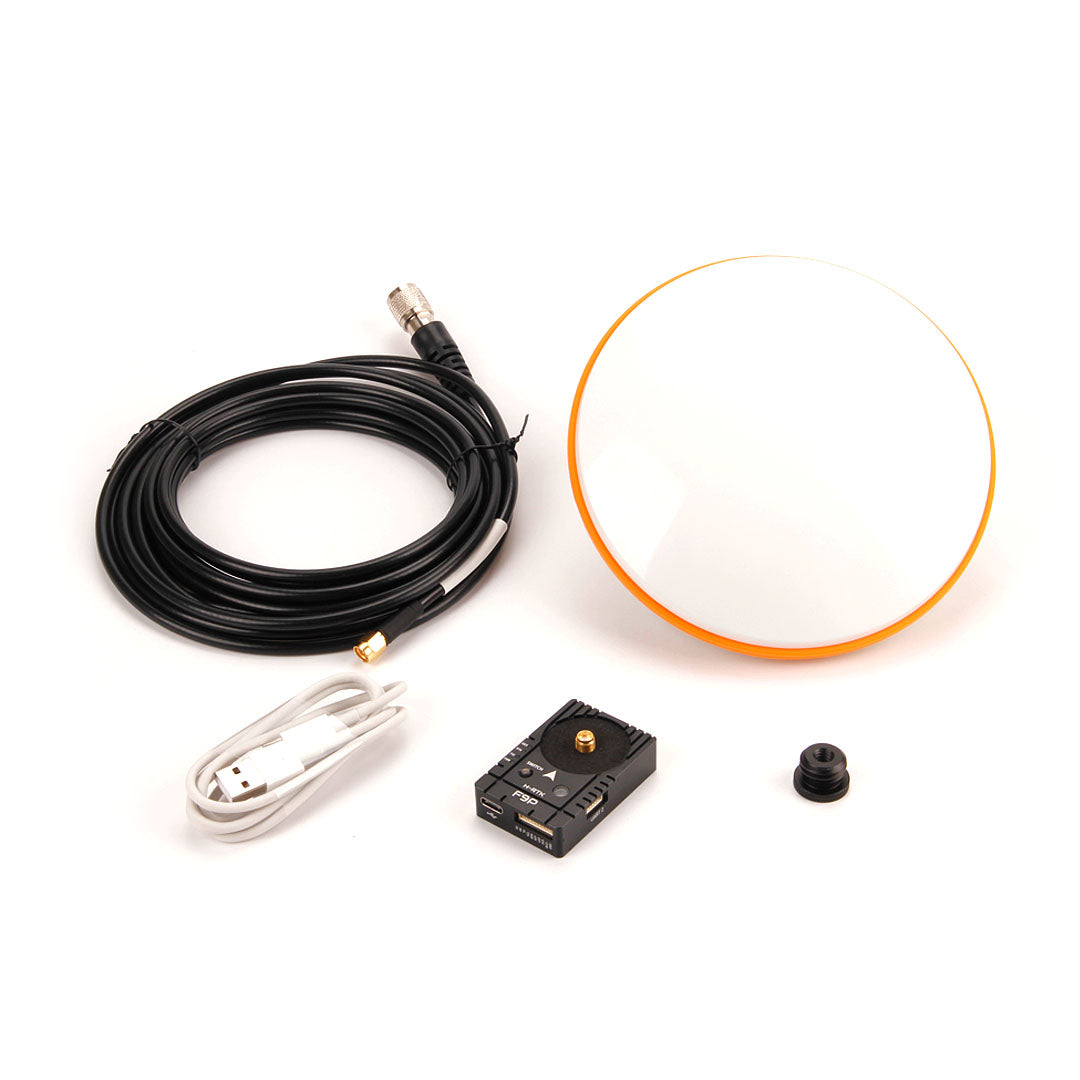

GPS module Holybro H-RTK F9P Base H-RTK F9P is the latest series of differential high precision GNSS positioning system from Holybro. This system provides multi-band RTK with fast convergence time and reliable performance, simultaneous reception of GPS, GLONASS, Galileo and BeiDou and fast update rate for highly dynamic and bulky applications with centimeter accuracy. It uses a UBLOX ZED-F9P module, an IST8310 compass and a three-color LED indicator. It also has an integrated safety switch for easy and convenient operation. Specifications: Use: Base station only GNSS: - GPS L1C/A - GPS L2C - GLONASS L1Oz - GLONASS L2OFz - BeiDou B1 - BeiDou B2Hz - Galileo E1-B/CH - Galileo E5b Peak antenna gain (MAX): 5.5 dBi LNA gain (typical): 40 ±2 dB Time to first repair: - Cold start: ≤24 s - Hot start: ≤1 s RTK Survey-In-Time: ≤5 minutes @1.5m CEP Data transfer and update speed: - RAW: 20 Hz Max. - RTK: 8 Hz Max. Mobile RTK base: max. 5 Hz Ports: - Port 1: GH1.25 10-pin - Port 2: USB Type C - Port 3: UART 2 (GH1.25 6-pin) Cable length: SMA-TNC 5 m Antenna connection type: - Board: SMA female - Antenna: TNC female Cable length SMA-TNC male-male: 5 m (included in delivery) Baud rate: 115200 5 Hz (default, configurable) Working Voltage: 4.75V~5.25V Current consumption: 5.5 V: ~250 mA Dimensions: 34.8 * 52.7 * 12.9 mm Antenna diameter: 152 mm Antenna height: 62.2 mm Weight: 469 g The package contains: 1 x H-RTK F9P 1 x High Precision GNSS Antenna (CSX627A)
