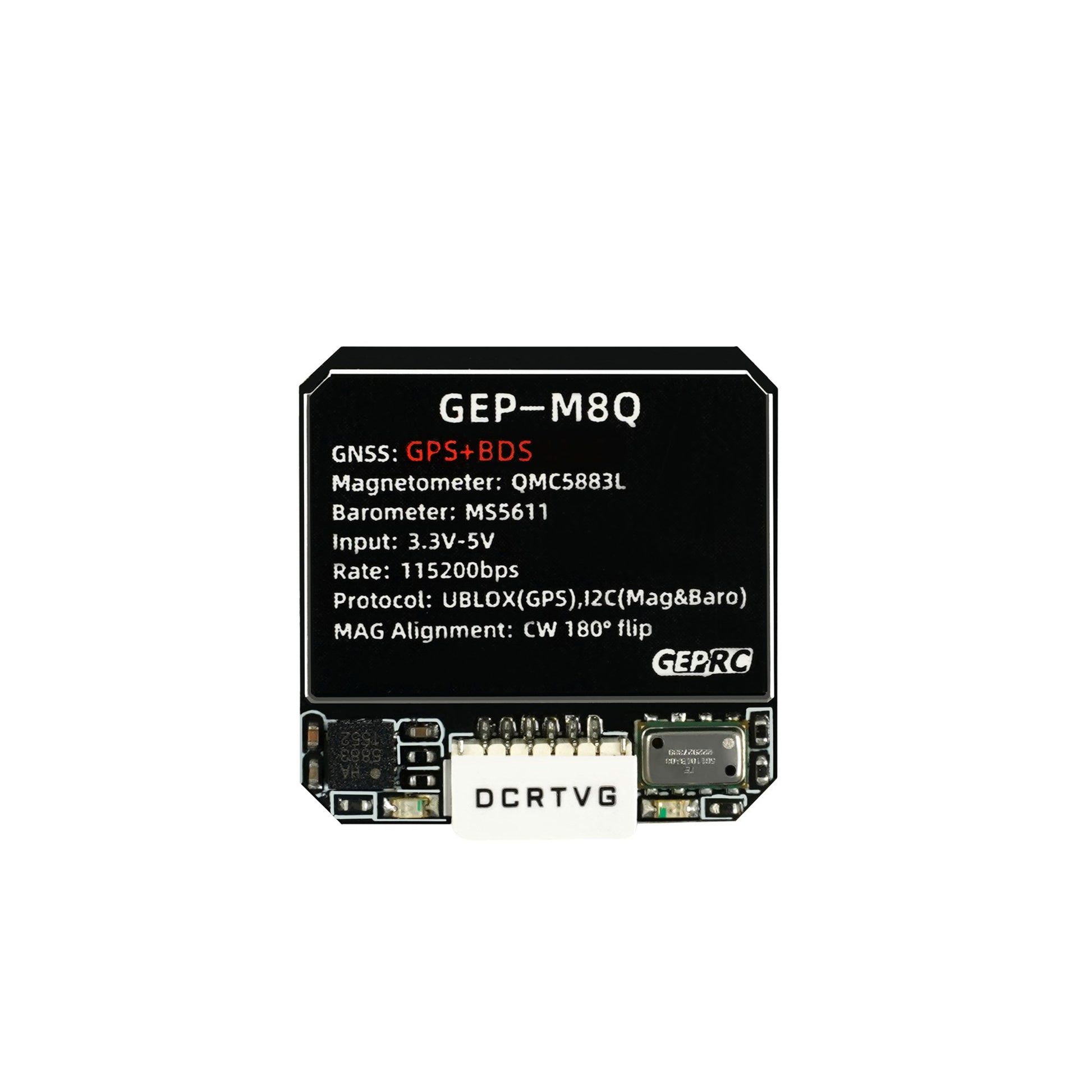

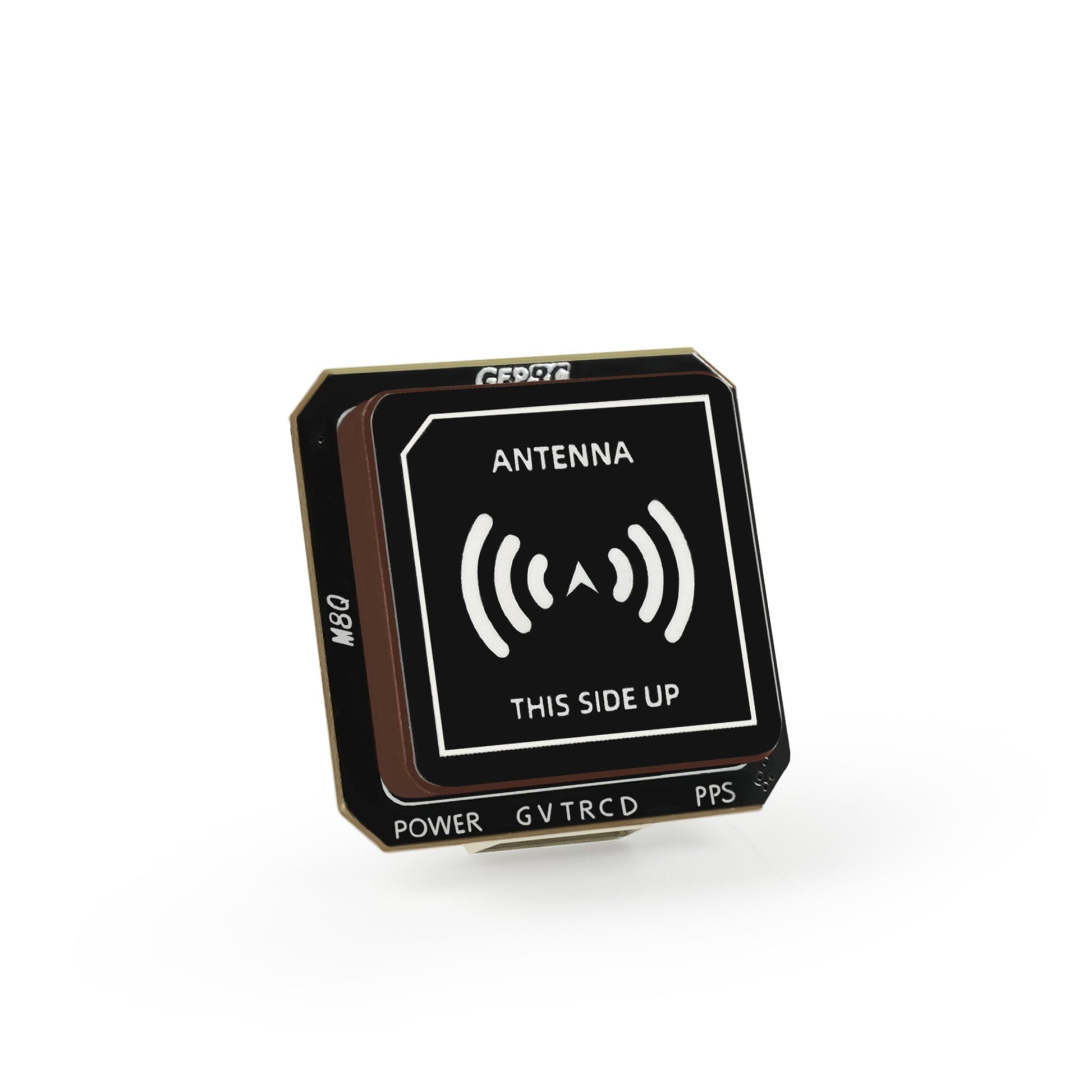

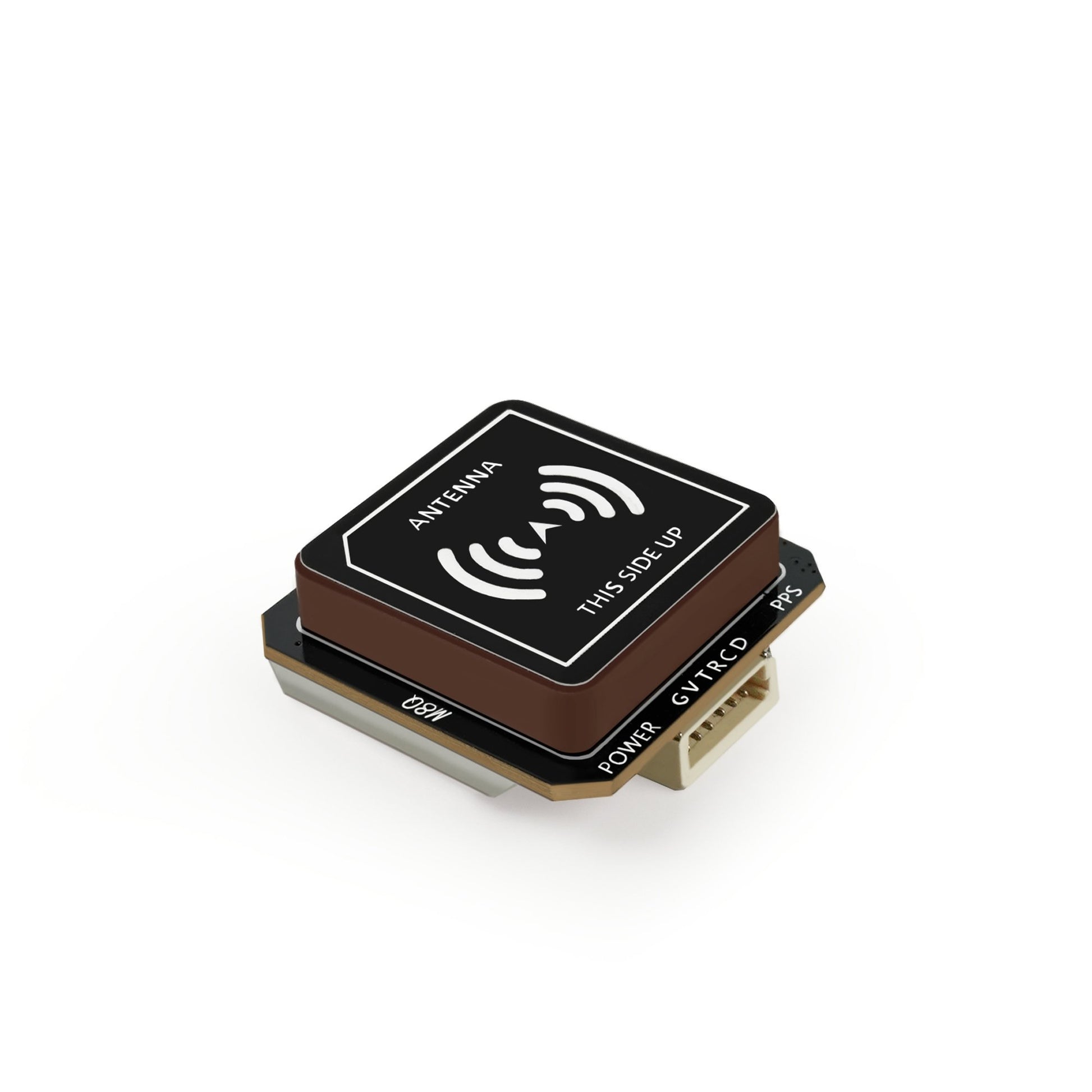

    GEPRC GEP-M8Q GPS Module (+ BDS)

Integrated multifunctional GPS positioning module GEP-M8Q based on GEP-M8U. It has small dimensions, fast positioning, stable connection and easy to use. The right circularly polarized antenna provides excellent reception capability. Built-in high-precision QMC5883L magnetometer provides accurate azimuth pointing. Integrated high-precision MS5611 barometer, you can't miss the subtle changes in altitude, more stable flight. Ideal for use on FPV drones, multi-rotor, fixed wing and other model products.

Specifications
Model: GEP-M8Q GPS module
Input voltage: 3.3V-5V
Reception format: GPS + BDS
Channel: 72 channels
Compass: QMC5883L
Barometer: MS5611
Baud rate: 115,200 bps
Output connector: SH1.0-6P
Communication protocol: UBLOX (GPS), I2C (Mag&Baro)
Output frequency: 10Hz
MAG alignment: CW 180° flip
Speed ​​accuracy: 0.05 m/s
Horizontal positioning accuracy: horizontal <2.5M, SBAS <2.0M
Timing accuracy: 30 ns
Reception sensitivity: Trace -162dBm, Capture -160dBm
Dynamic properties: Maximum height: 50000 m, Maximum speed: 500 m/s
Maximum acceleration: 4G
Size: 22mm x 22mm x 8.5mm
Weight: 8g
