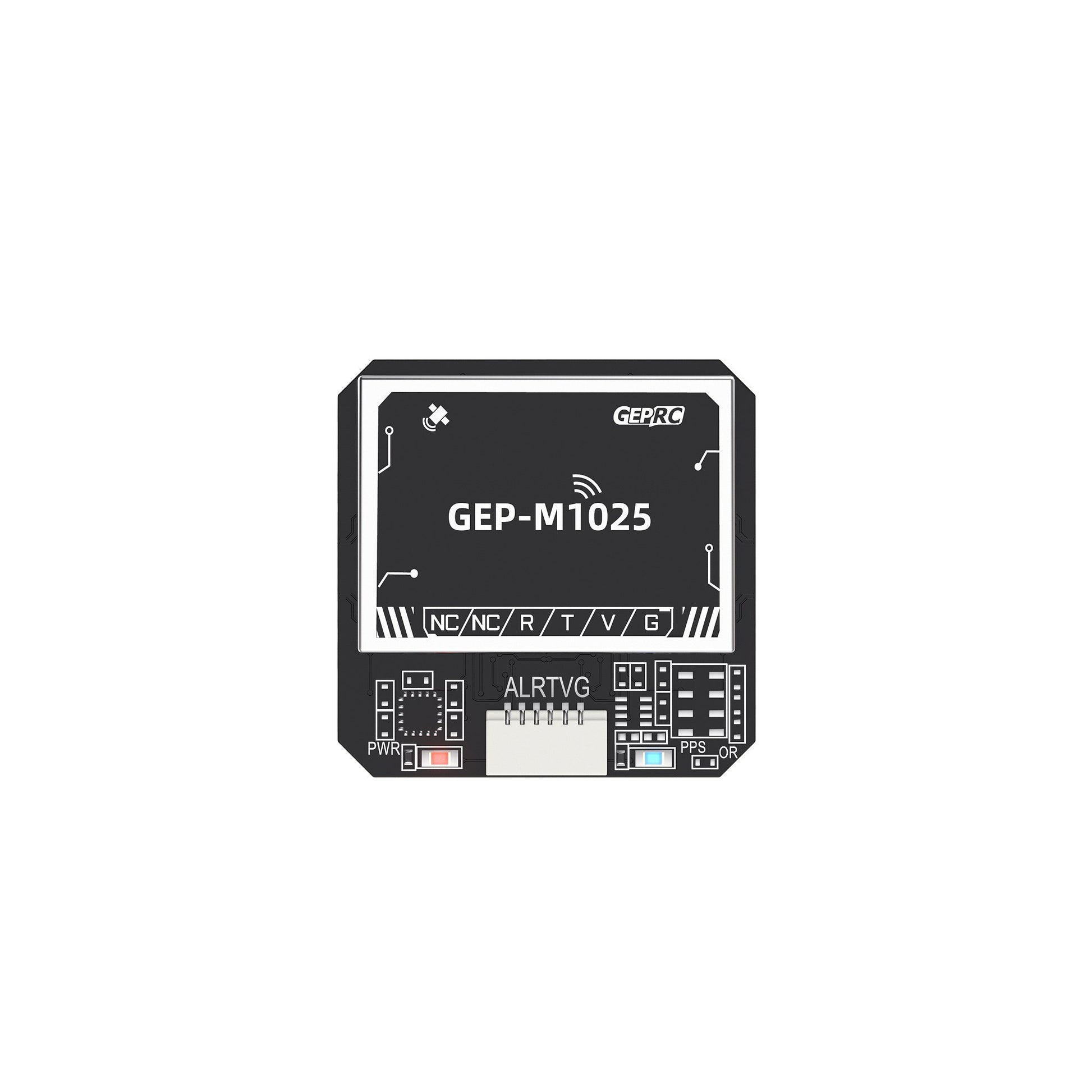

GPS Module GEPRC GEP-M1025 Series

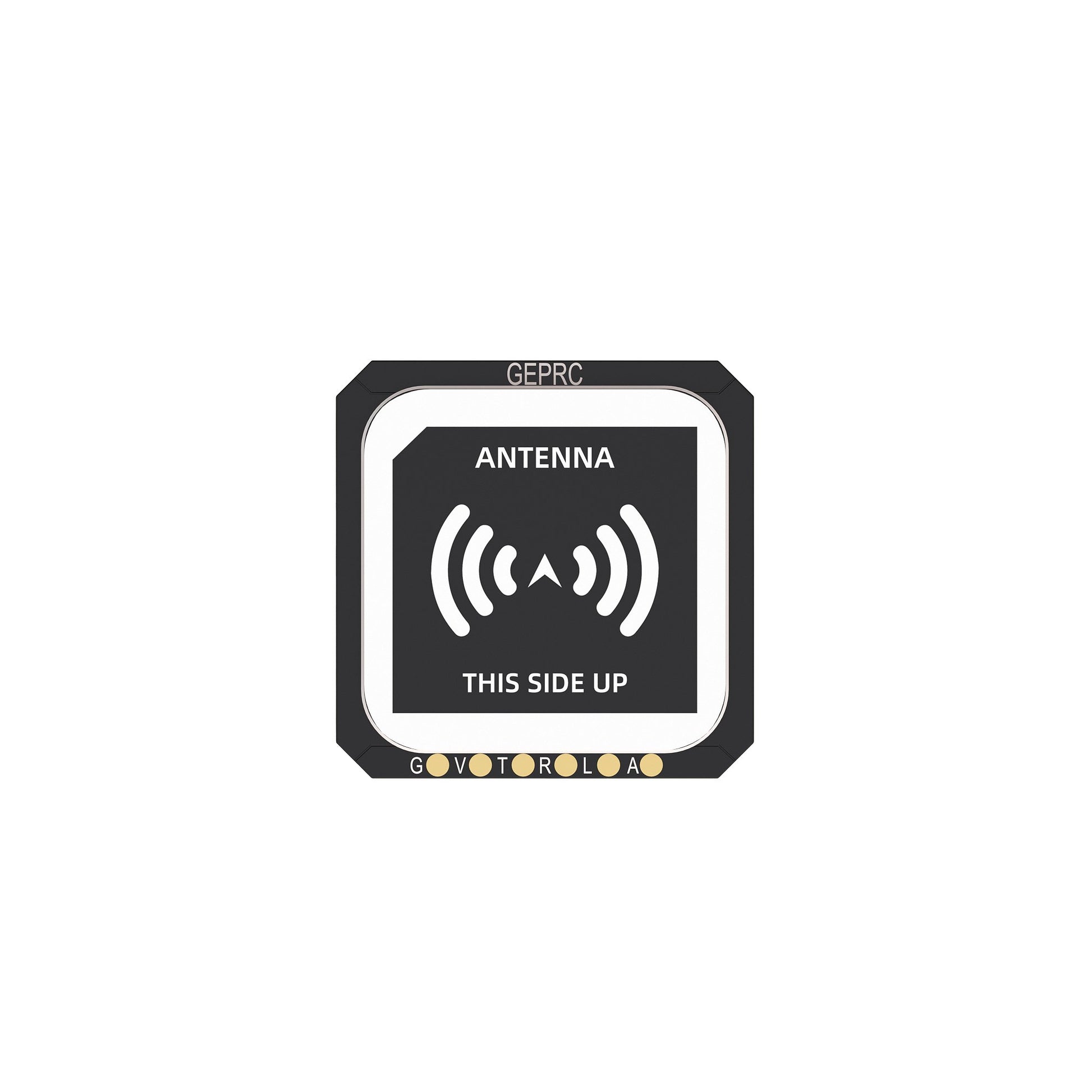

The GEPRC GEP-M1025 GPS module is a robust solution designed to improve the accuracy and reliability of your drone's navigation. Powered by u-blox's M10 chip, it supports combined GPS, BDS, Galileo, QZSS and SBAS positioning, providing accurate data even in challenging conditions. This module offers excellent reception thanks to the 25x25 mm ceramic antenna and supports up to 32 satellites for better viewing. Thanks to the built-in Flash memory chip and Farad capacitor, it ensures fast hot-start and parameter maintenance. Compact, lightweight and with excellent receiver sensitivity, this GPS module is ideal for demanding UAV applications.

Specifications:

Input voltage: 3.3V–5V
Reception frequency: GPS L1, GLONASS L1, BDS B1, Galileo E1, SBAS L1, QZSS L1
Operation mode: GPS+BDS+Galileo+QZSS+SBAS combined positioning
Channels: 72ch
Navigation satellites: Up to 32
Output protocol: UART (ublox), I2C (Baro, Mag)
Transmission speed: 115200bps
Output frequency: 10Hz
Speed accuracy: 0.05 m/s
Horizontal positioning accuracy: 2D ACC 1.5m (weather)
Timing accuracy: 30 ns
Receiver sensitivity: Tracking -162dBm, Capture -160dBm
Dynamic properties: Max height 50000m, Max speed 500m/s
Maximum acceleration: 4G
Dimensions: 29x29x8.5mm
Weight: 13g

The package contains:

1 x GEPRC GEP-M1025 GPS module
