    Compass M10Q 250 GPS 5883

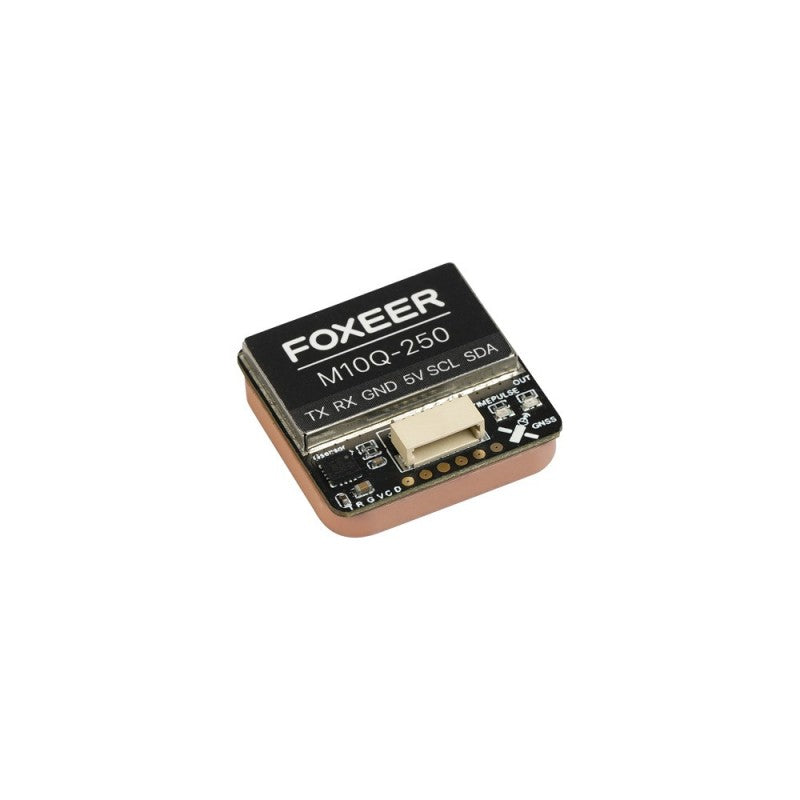

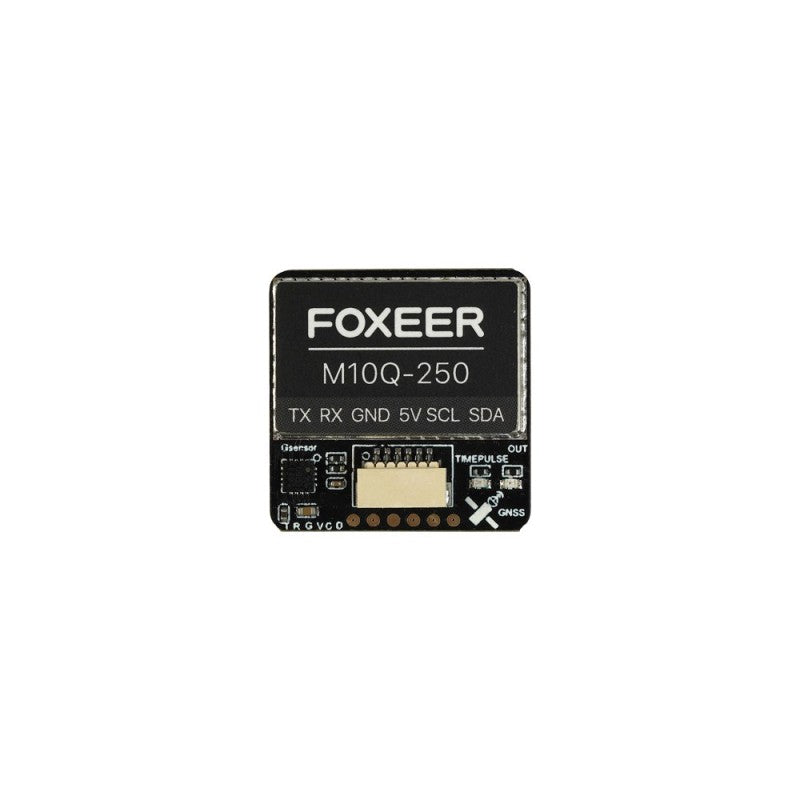

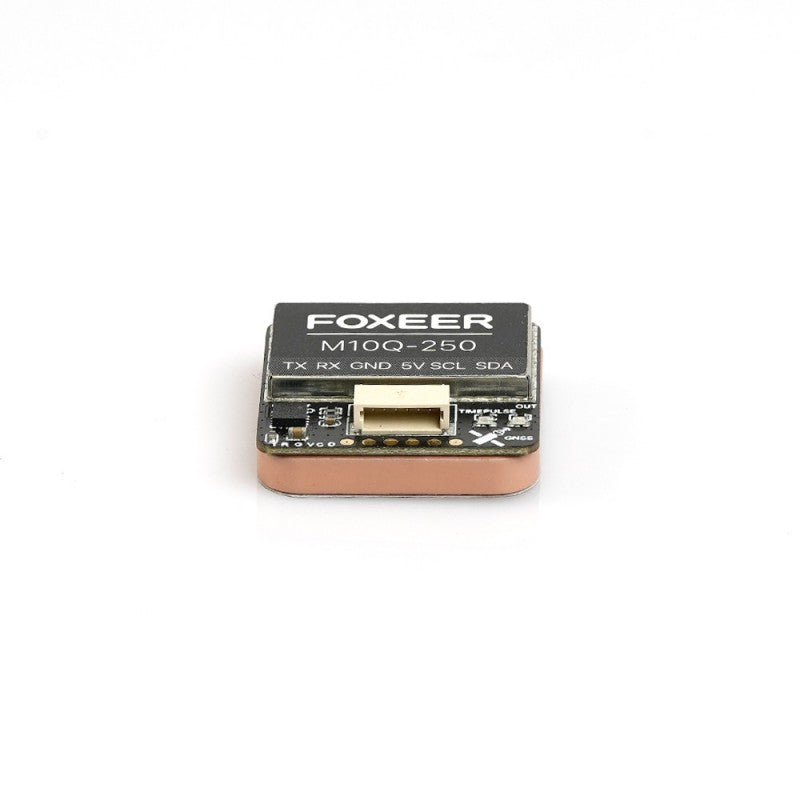

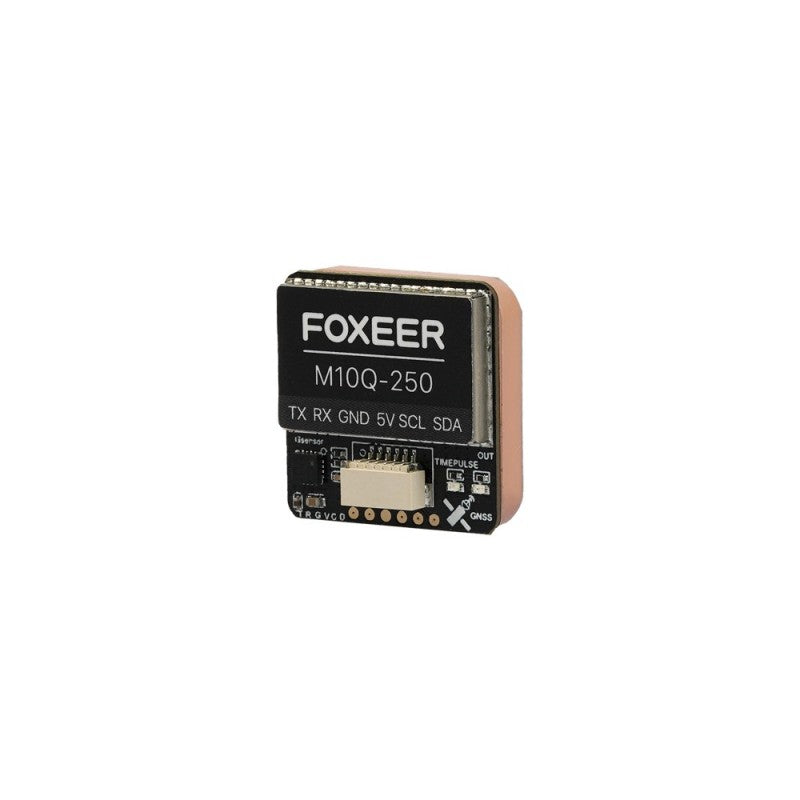

Foxeer M10Q 250 GPS 5883 Compass is a high performance GPS module designed for FPV drones. It is compact and lightweight, suitable for a wide range of drone applications.

Specifications:

Chip: M10 (10th generation chip)
Frequency: GPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1
Input voltage: 5V

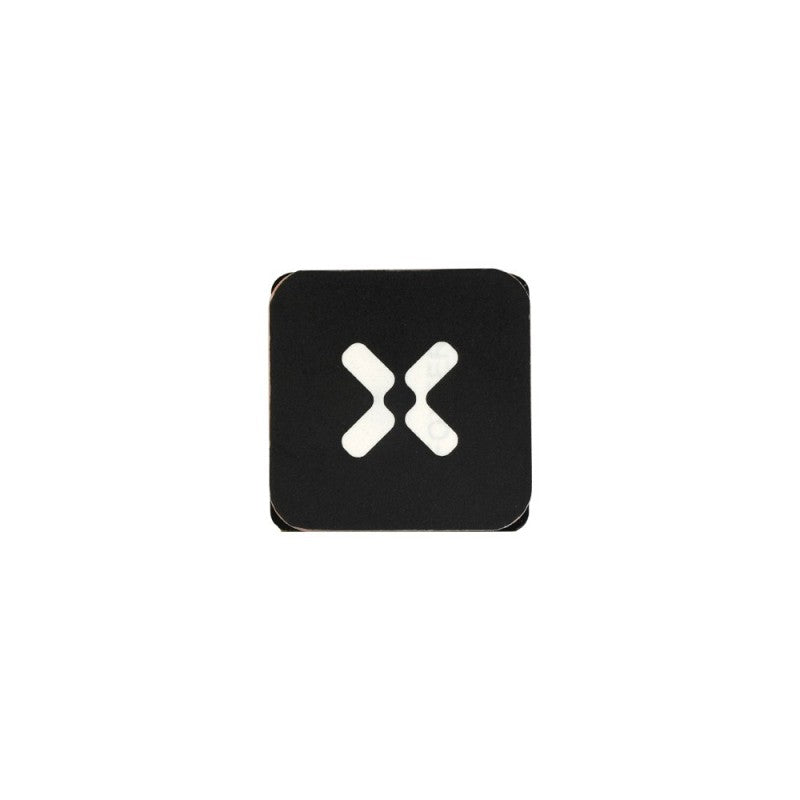

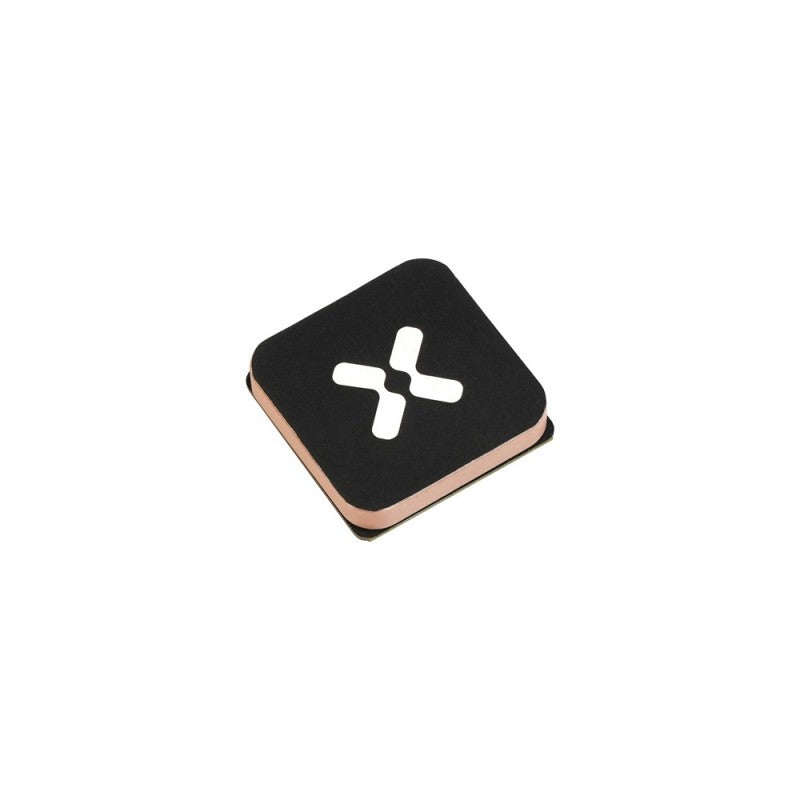

Antenna: Ceramic antenna
Channel: 72
Battery: Bilid-in
Compass: QMC5883
Compass Orientation: Plug pointing to direction of flight and antenna apparently up, BF: CW 90° Flip
Baud rate: 115,200 bps
Protocol: Dual NMEA/UBLOX
Output frequency: 1Hz-10Hz, default 10Hz
Speed ​​accuracy: 0.05 m/s
Horizontal positioning accuracy: 2D ACC1.5m (outdoor)
Receiver sensitivity: Trace -166dBm; Capture -160dBm
Dynamic characteristics: Altitude 50000m; Speed ​​500m/s; 4G acceleration
Operating temperature: -40C-+85C
Storage temperature: -40C-+105C
Weight: 12g
Size: 25*25*8mm

The package includes:
1x compass M10Q 250 GPS 5883
