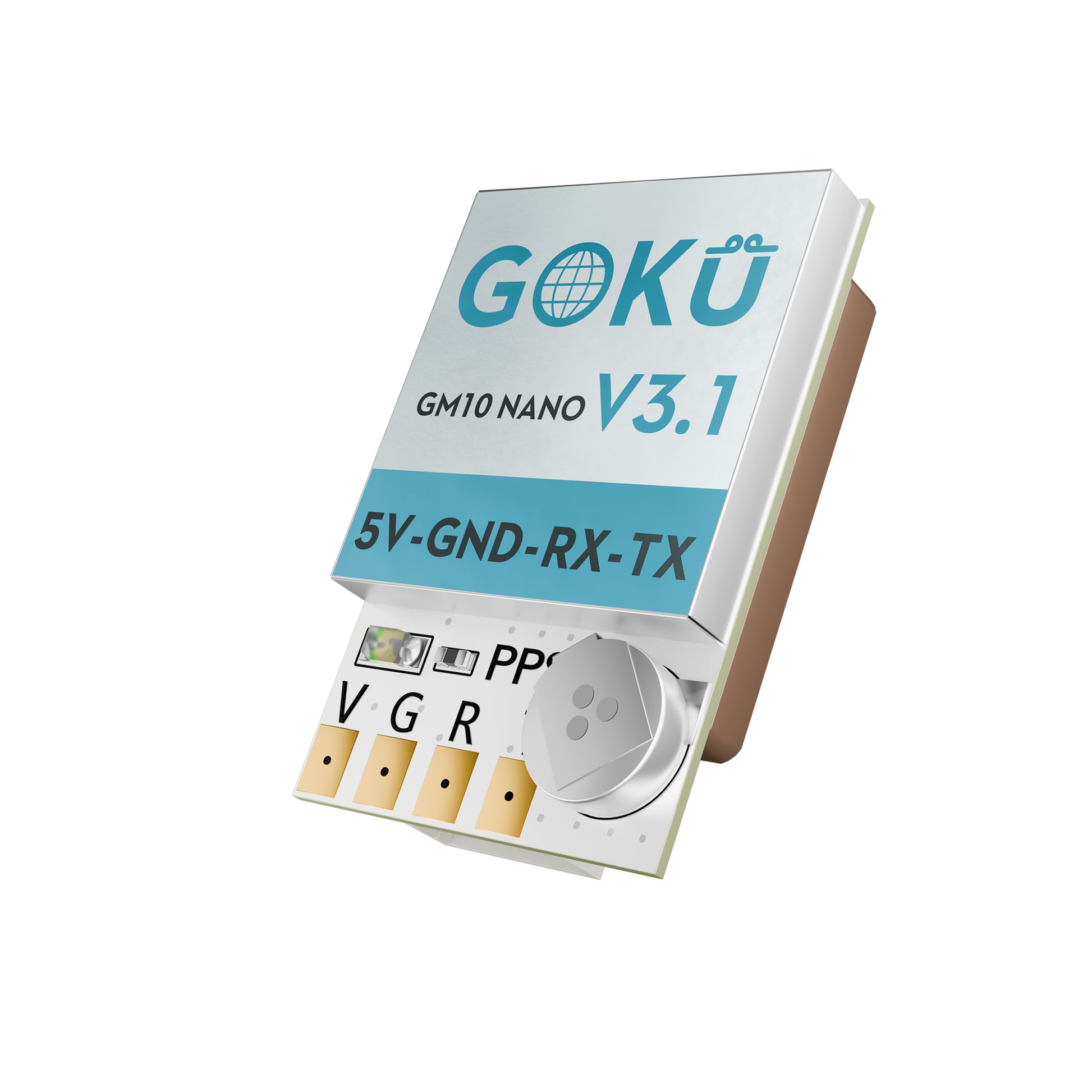

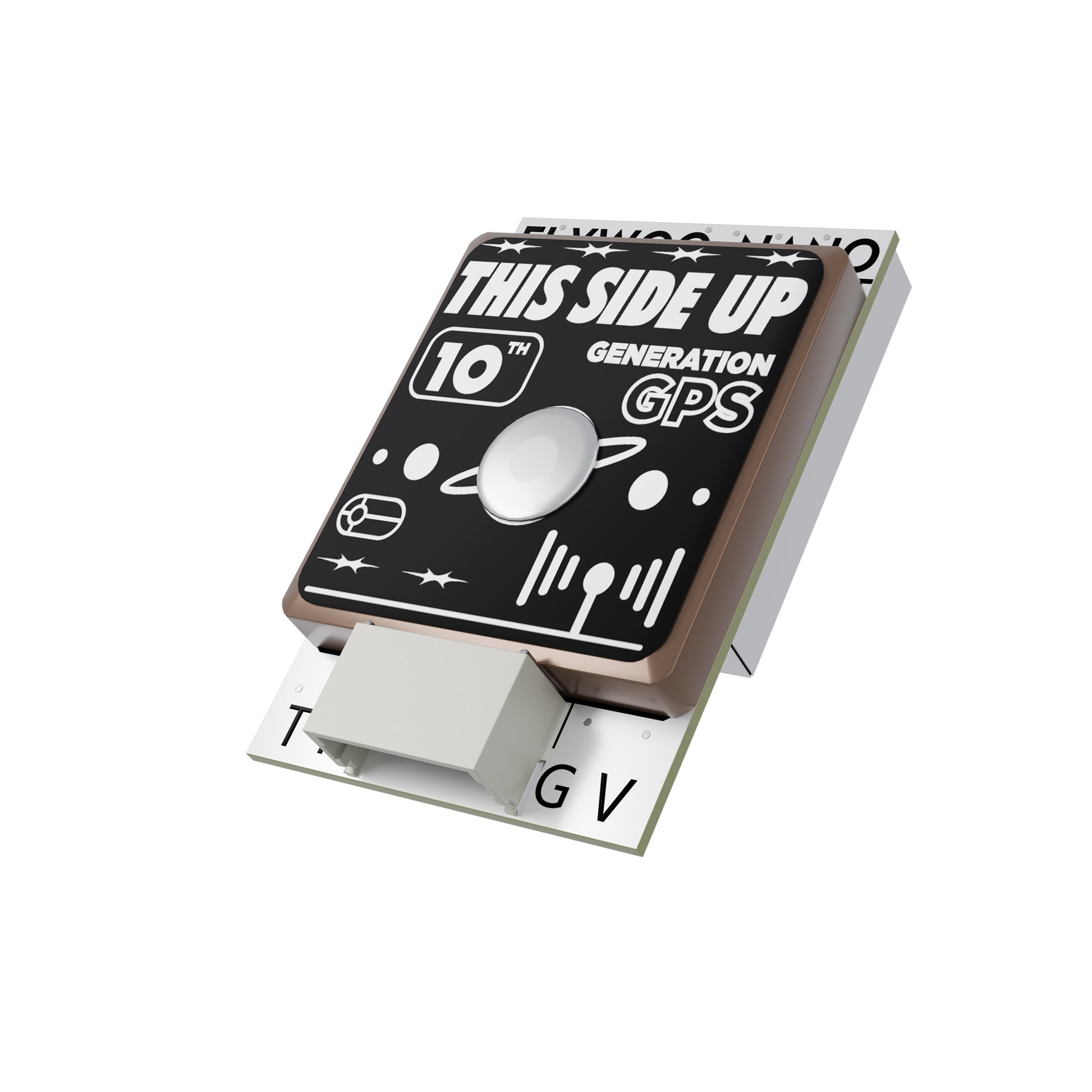

GPS module Flywoo GOKU GM10 Nano V3.1

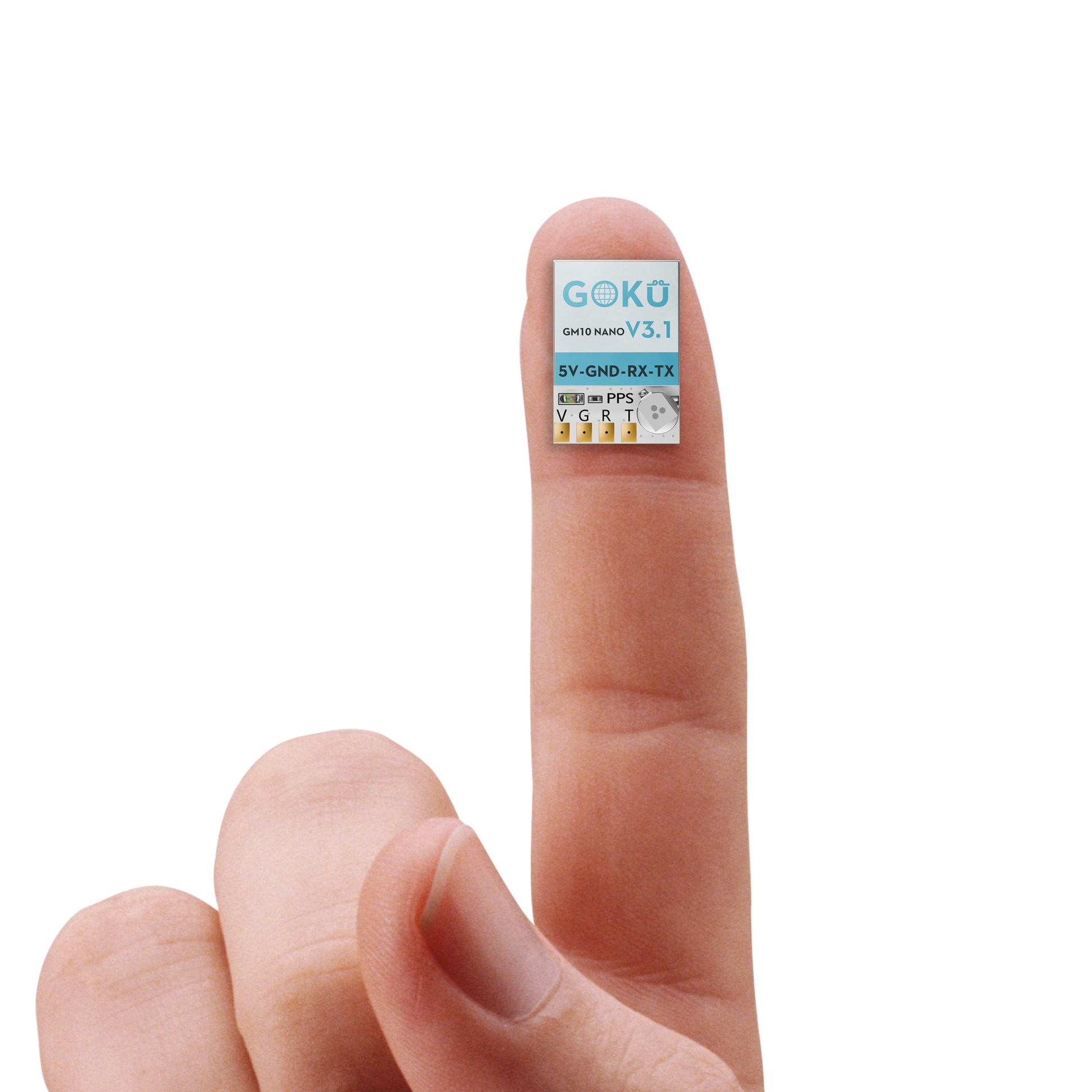

The Flywoo GOKU GM10 Nano V3.1 is one of the smallest and lightest GPS modules available for FPV drones and compact drones, weighing only 2.5g and measuring just 12 x 16mm. It is equipped with the high-end M10050 chipset (10th generation) and supports a wide range of satellite systems, including GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS, for excellent positioning accuracy. With a default output frequency of 10 Hz and 72-channel tracking, it provides fast and stable GPS targeting even in challenging conditions. The GM10 Nano is ideal for pilots looking for minimum weight and maximum performance in structures with limited space.

Specifications:

Model: GM10 NANO V3.1 GPS

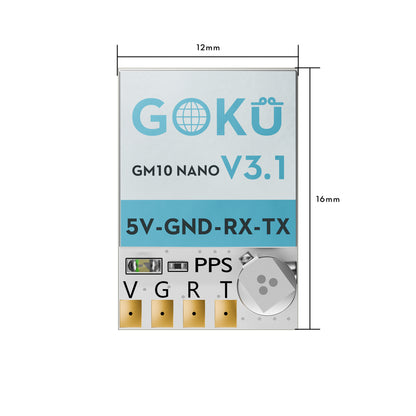

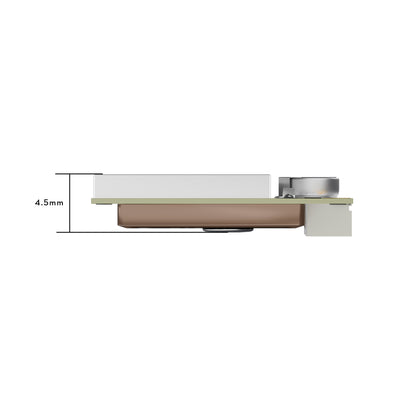

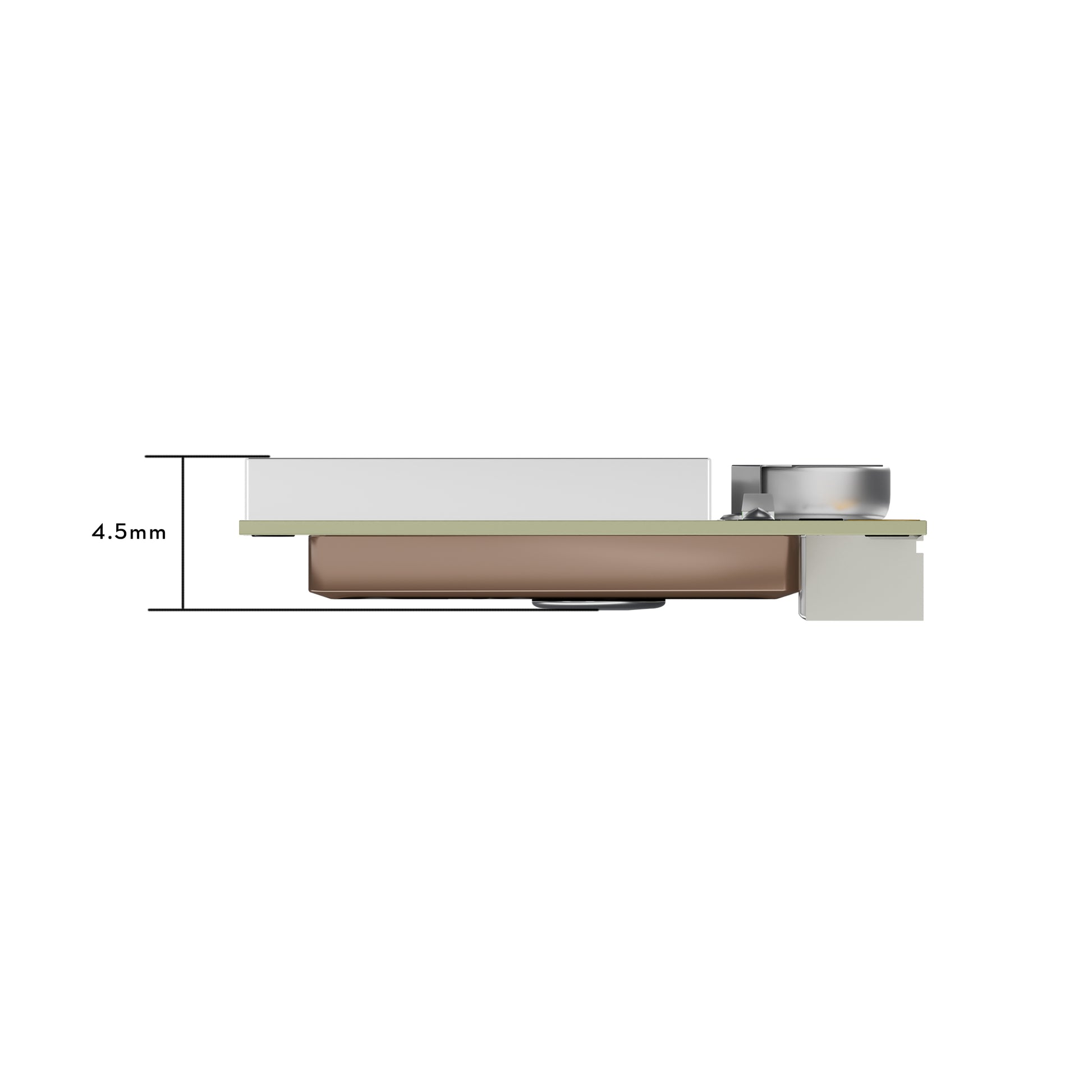

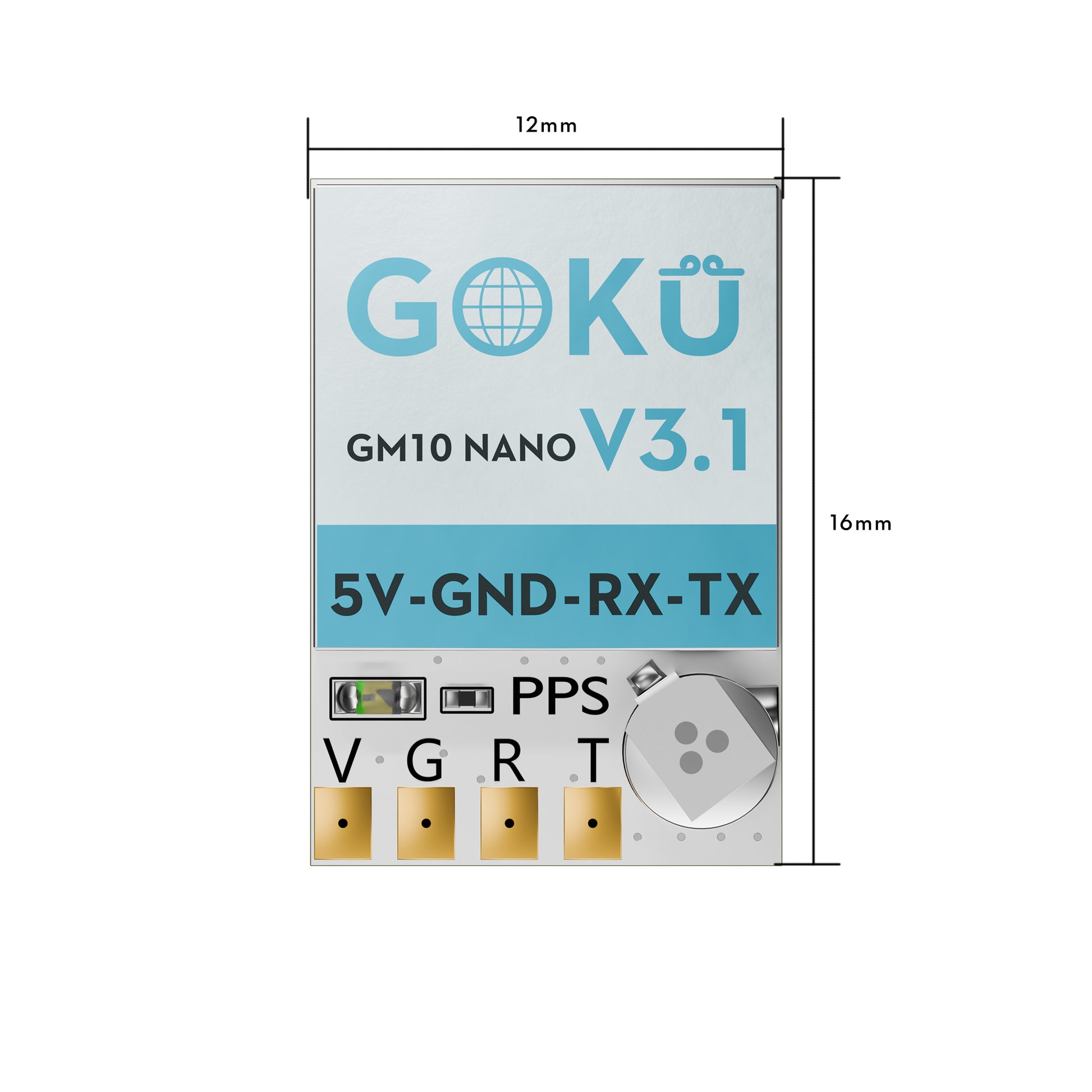

Dimensions: 12mm x 16mm x 4.5mm
Weight: 2.5 g
Connector: 4-pin pad
Chipset: M10050 (10th generation)
Supported GNSS systems: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Default GNSS protocol: GPS, Galileo, BeiDou
Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
Channels: 72
Tracking sensitivity: -162 dBm
Reacquisition sensitivity: -160 dBm
Baud rate: 4800 bps to 921600 bps (default 115200 bps)
Data level: TTL (default), RS-232
Data protocol: BF4.3.X (UBLOX), BF4.2.X (NMEA)
Output frequency: 1 Hz to 10 Hz (default 10 Hz)
Maximum altitude: 50,000 m
Maximum speed: 500 m/s
Maximum acceleration: <4g
Power supply: DC 3.3V-5V
Operating temperature: -40 °C to +85 °C
Storage temperature: -40 °C to +105 °C
PPS LED Indicator: Yellow - off until GPS is focused, then flashing
Pinout: RX, TX, 3.3-5V, GND

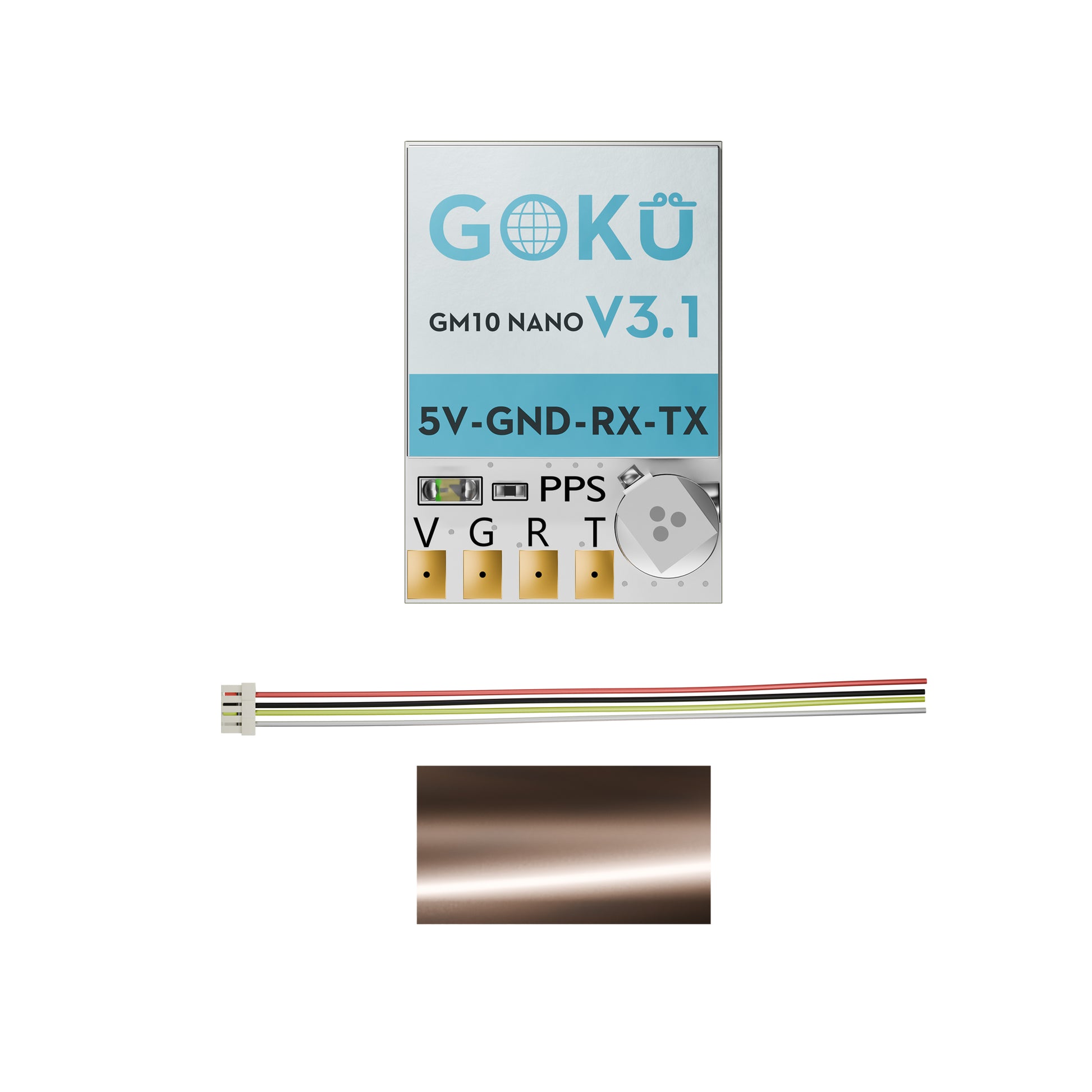

The package contains:

1 x GM10 Nano V3.1 GPS Module
1 x 100mm connection cable
1 x copper shielding foil
