    Code: G1003

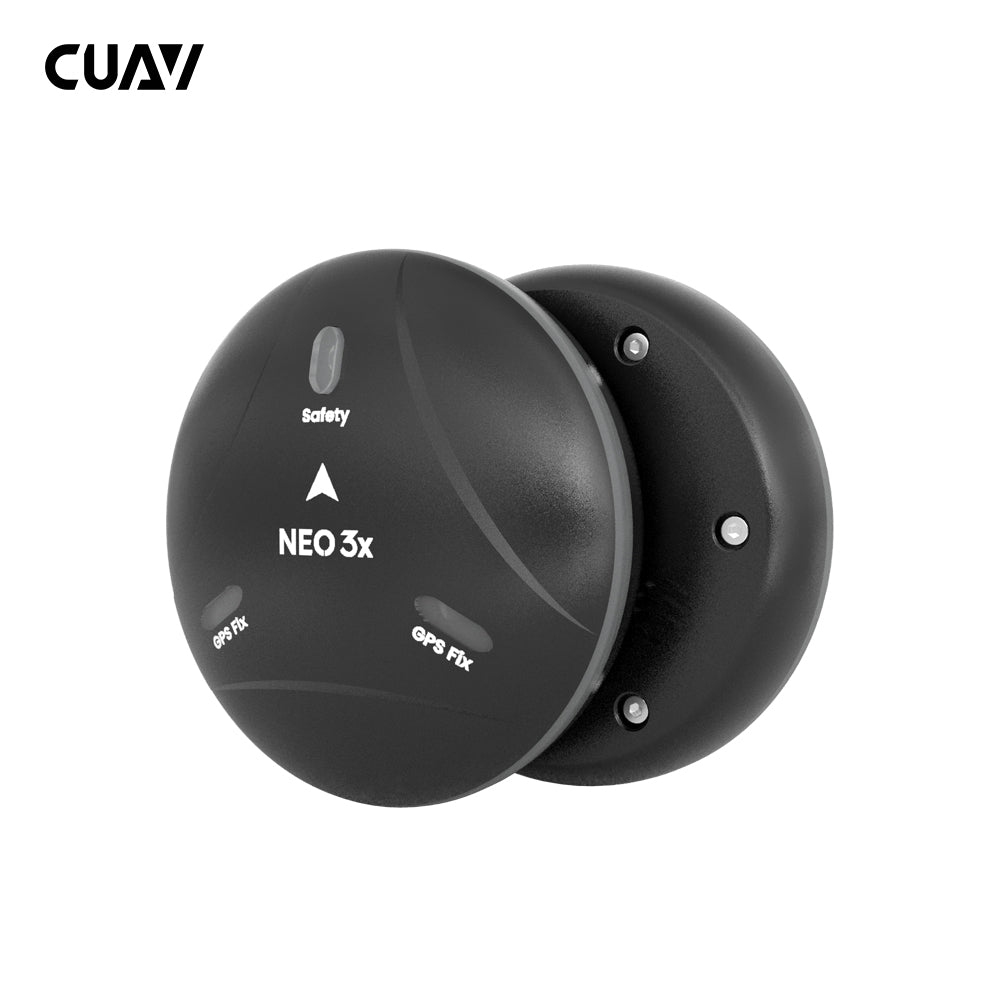

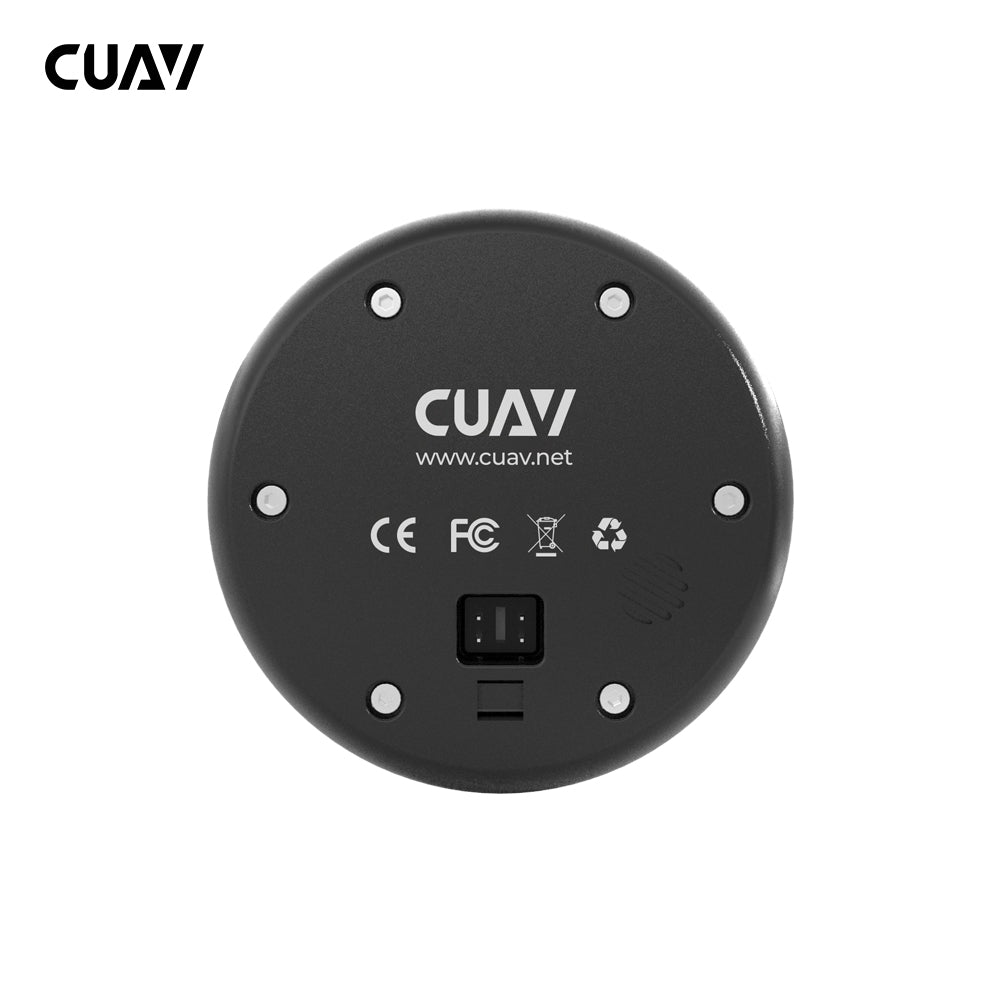

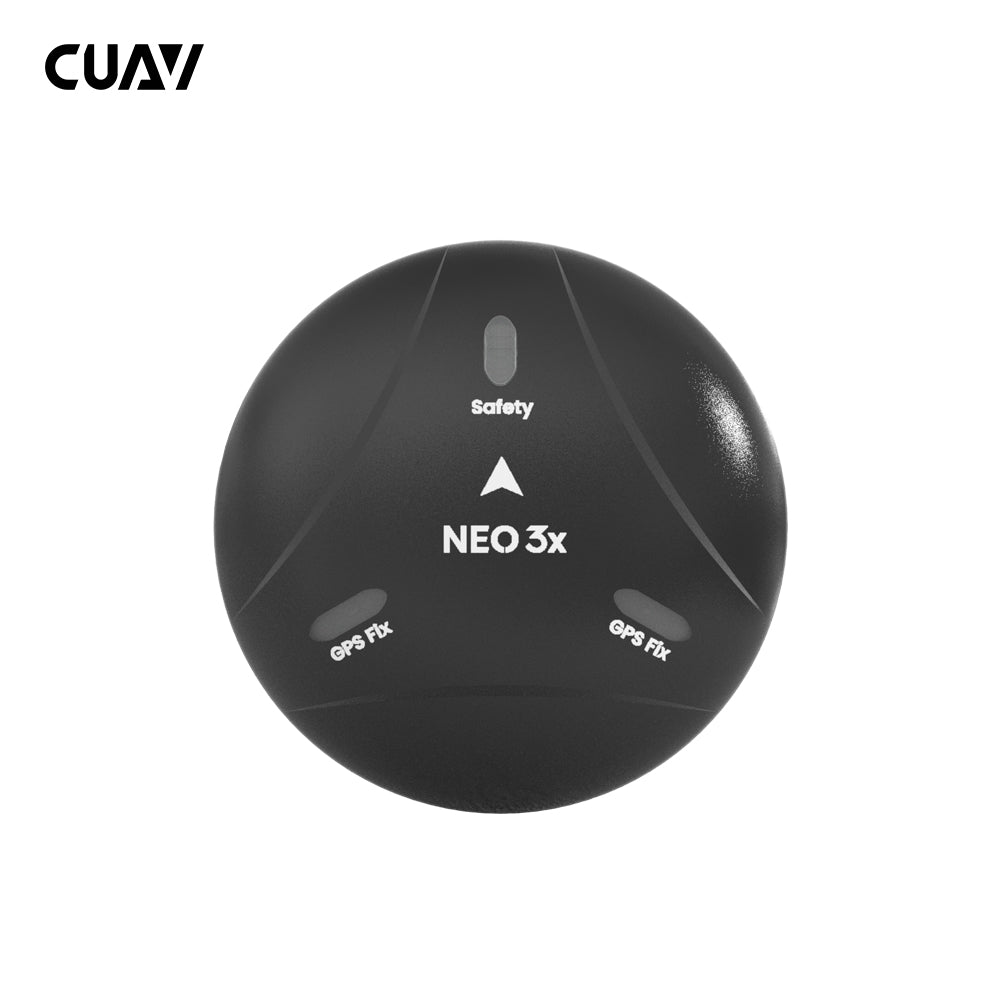

    GPS Module CUAV NEO 3X

    GPS Module CUAV NEO 3X

    Brand: CUAV

    €139,00
    €139,00 €139,00
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

    GPS module CUAV NEO 3Х

    Description

      • Processor: STM32F412
      • Protocol: DroneCAN (used for UAV communication)
      • Compass: RM3100
      • Barometer: ICP-20100
      • GNSS receiver: u-blox M9N

      GNSS specification:

      • Frequency bands:
        • GPS: L1C/A
        • GLONASS: L10F
        • BeiDou: B1I
        • Galileo: E1B/C
      • Current GNSS: 4
      • Position accuracy: 1.5 m
      • Number of satellites: 32+
      • Capture speeds:
        • Cold start: 24 s
        • Warm start: 2 s
        • Assisted start: 2 s
      • Navigation refresh rate: 5 Hz (default), 25 Hz (MAX)

      Sensitivity:

      • Tracking and Navigation: -167 dBm
      • Cold/warm start: -148 dBm
      • Recovery: -160 dBm

      Protection and environment:

      • Protection level: IP66 (dust and water resistance)
      • Operating voltage: 4.7~5.2V
      • Operating temperature: -10°C to 70°C
      • Dimensions: 67x67x21.2 mm
      • Weight: 46g (without cable)
