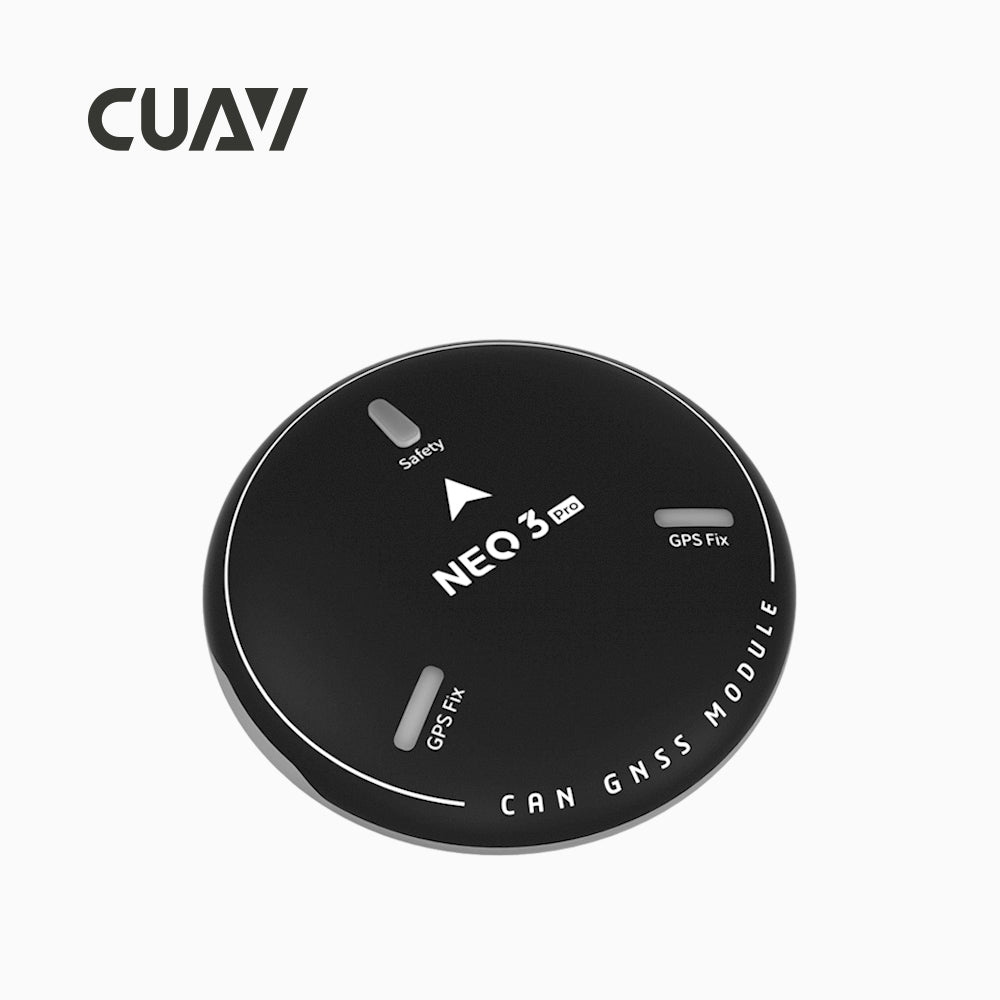

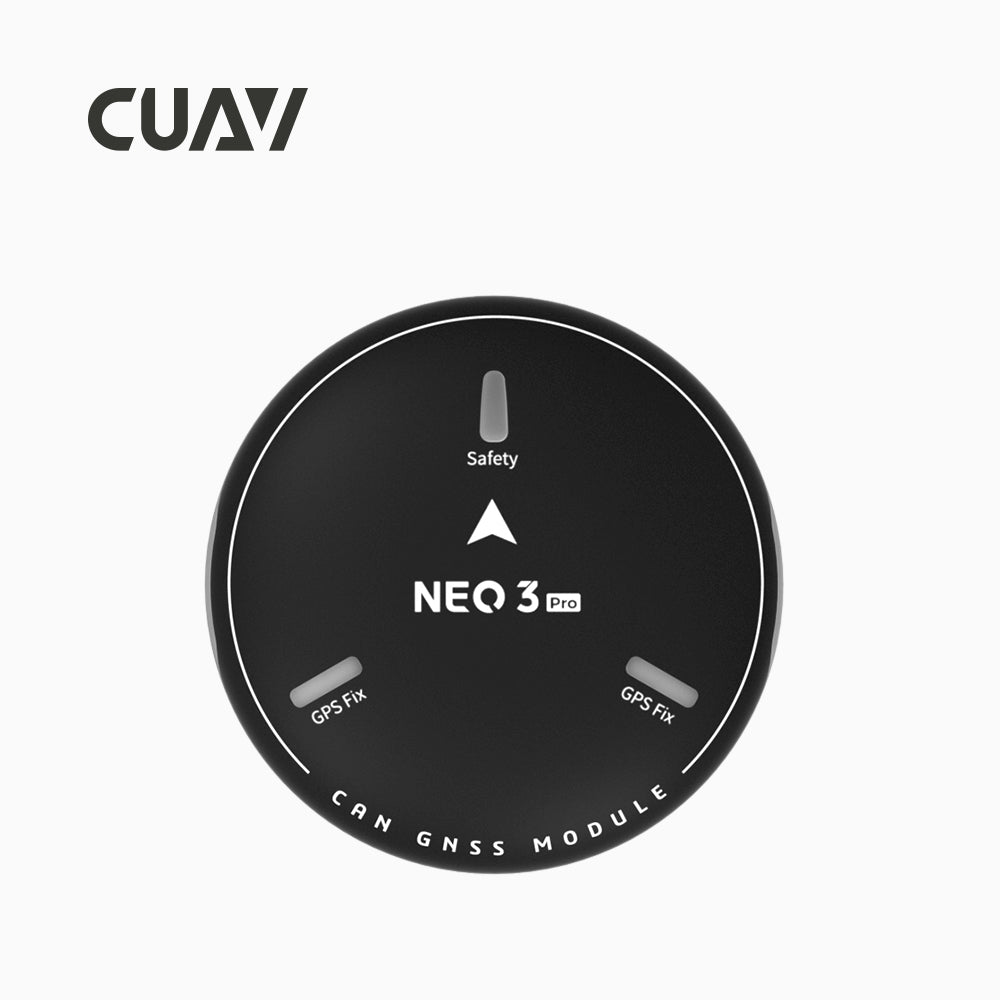

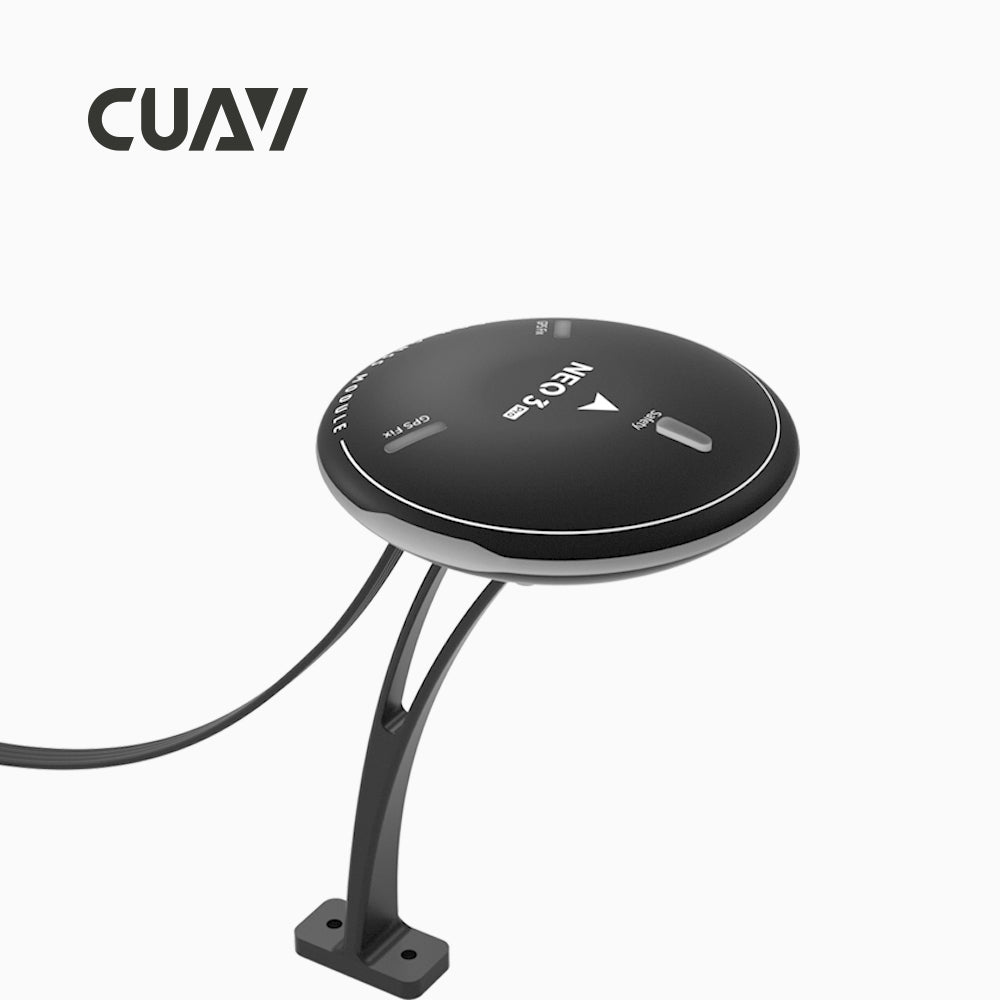

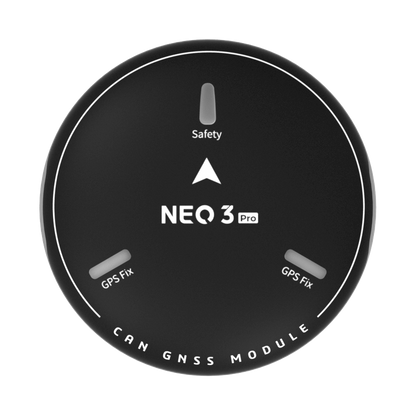

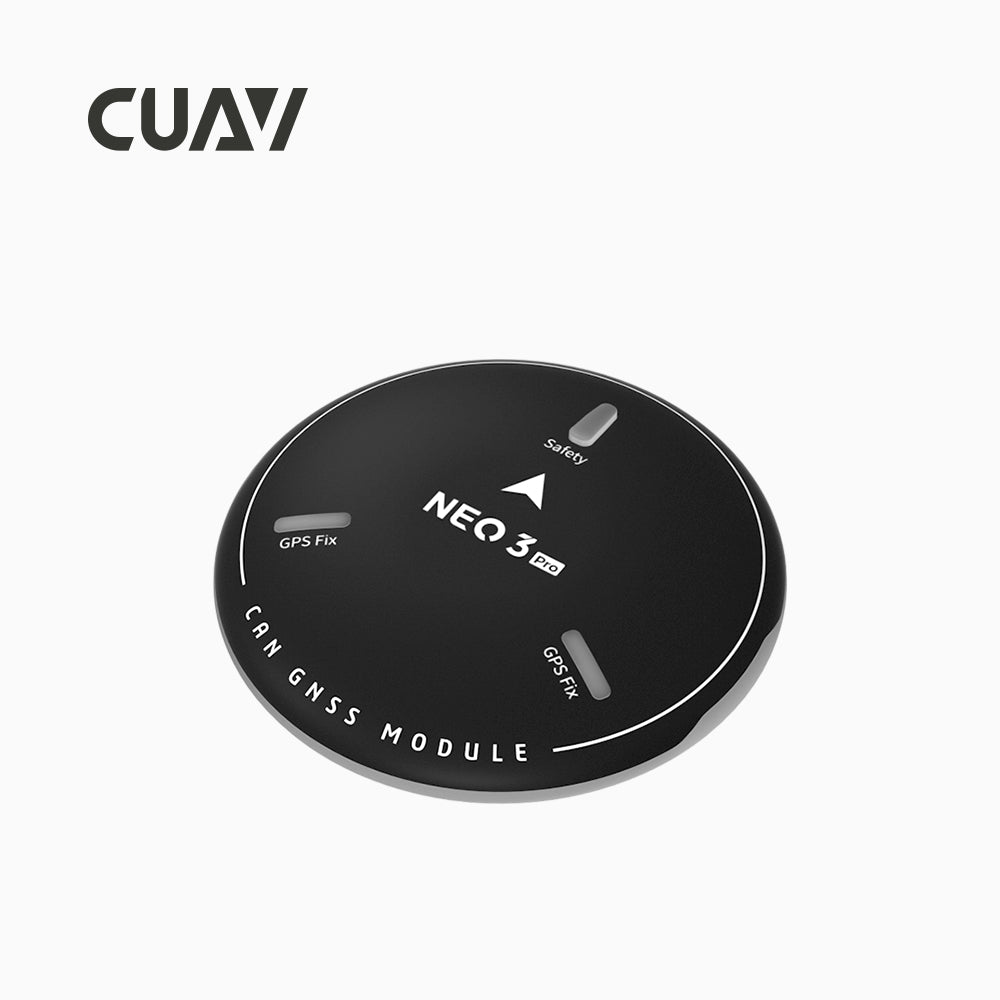

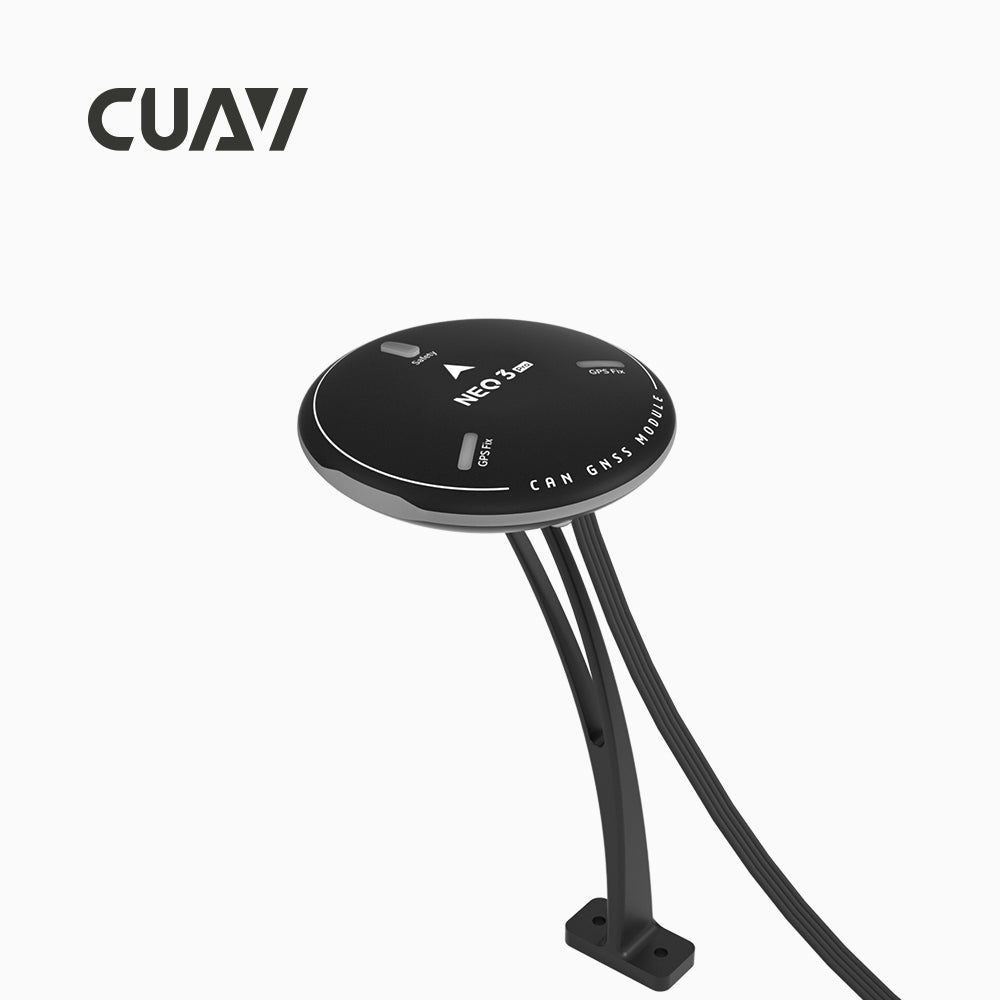

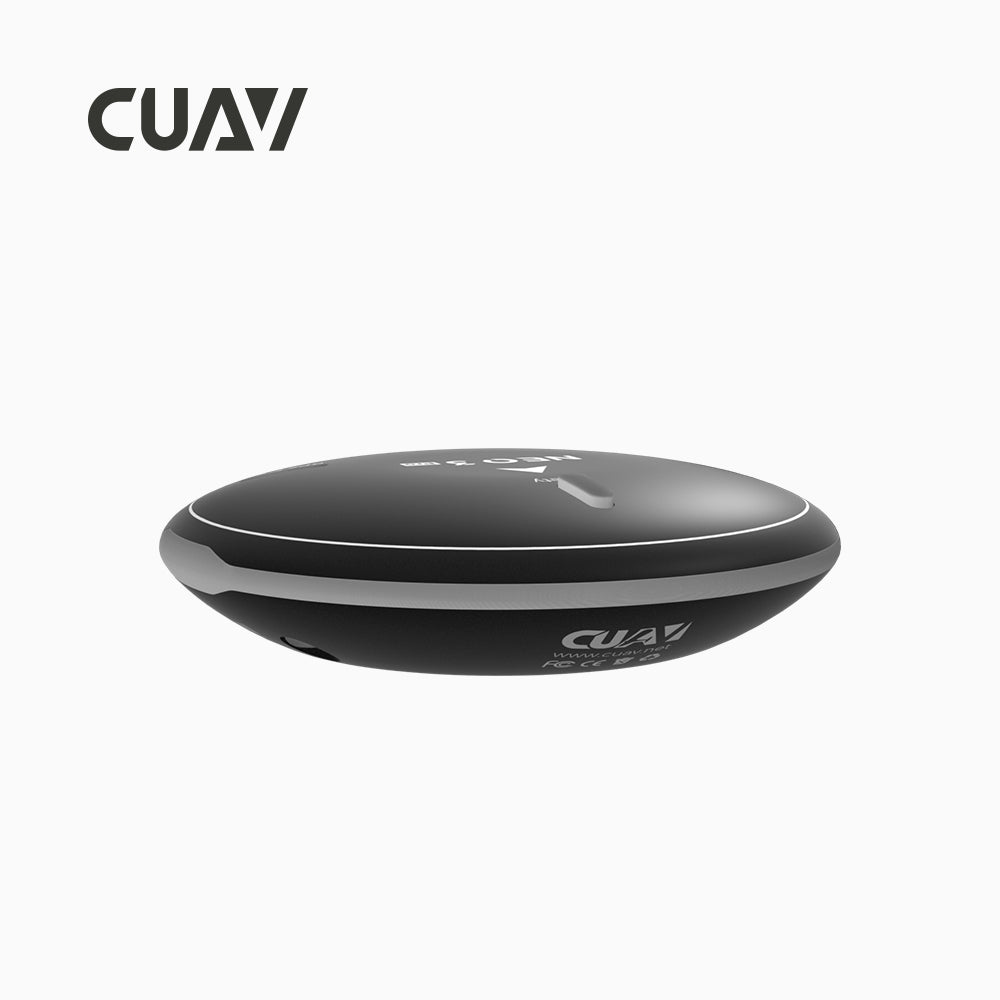

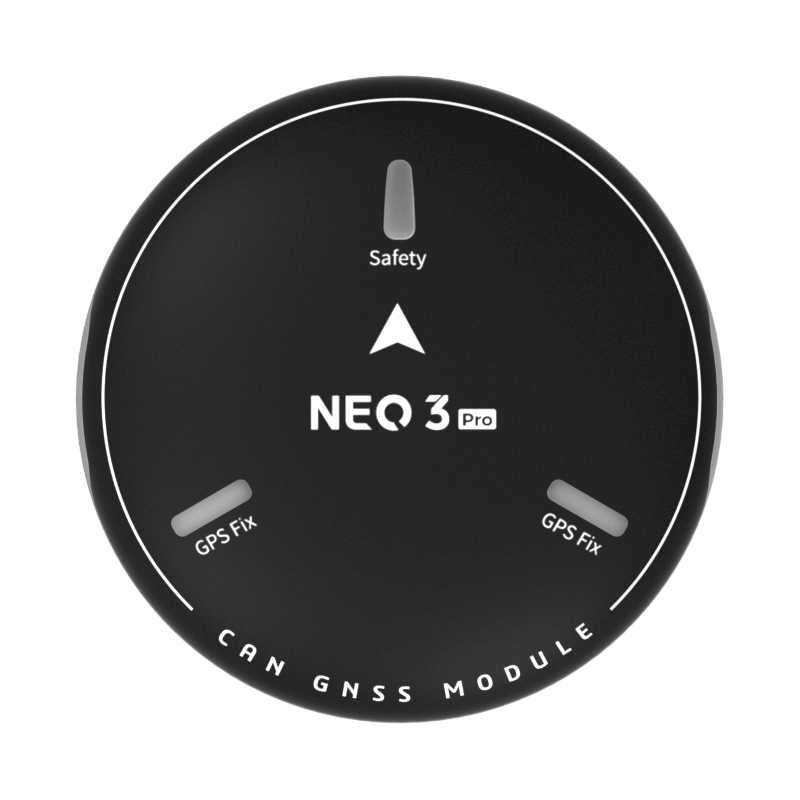

GPS module CUAV NEO 3 Pro
Properties
- Integrated GNSS module of the new generation Ublox (NEO-M9N)
- Supporting the simultaneous operation of four major satellite systems to adapt to more complex environments
- Special antenna supporting the four main satellite systems
- UAVCAN standard protocol, high real-time level, strong anti-interference
- Industrial grade sensor (RM3100) for better protection against interference
- Powerful STM32F412 processor
- Built-in high-precision barometer to cover the requirements of various usage scenarios
- Open software, native software support
- Double SAW+LNA+SAW filter effectively prevents interference of remote control, data transmission and 4G signal when receiving GPS position
Specifications
- Processor: STM32F412
-
Sensors:
- Compass: RM3100
- Barometer: MS5611
- RTK receiver Ublox M9N
-
GNSS bands:
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1I, Galileo E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN -
Number of simultaneous GNSS:
4 satellite systems simultaneously -
Maximum number of satellites:
Up to 32 -
RTK update frequency:
Up to 25 Hz -
Position accuracy:
1.5m (with SBAS; default)
2.0m (without SBAS)
Performance
- Cold start: 24 s
- Assisted start: 2 s
- Regain: 2s
- Tracking and navigation sensitivity: -167 dBm
- Cold start sensitivity: -148 dBm
- Reacquisition sensitivity: -160 dBm
- Protocol: DroneCAN
- Interface Type: GHR-04V-S
- Input voltage: 5V
- Operating temperature: -10 to 70°C

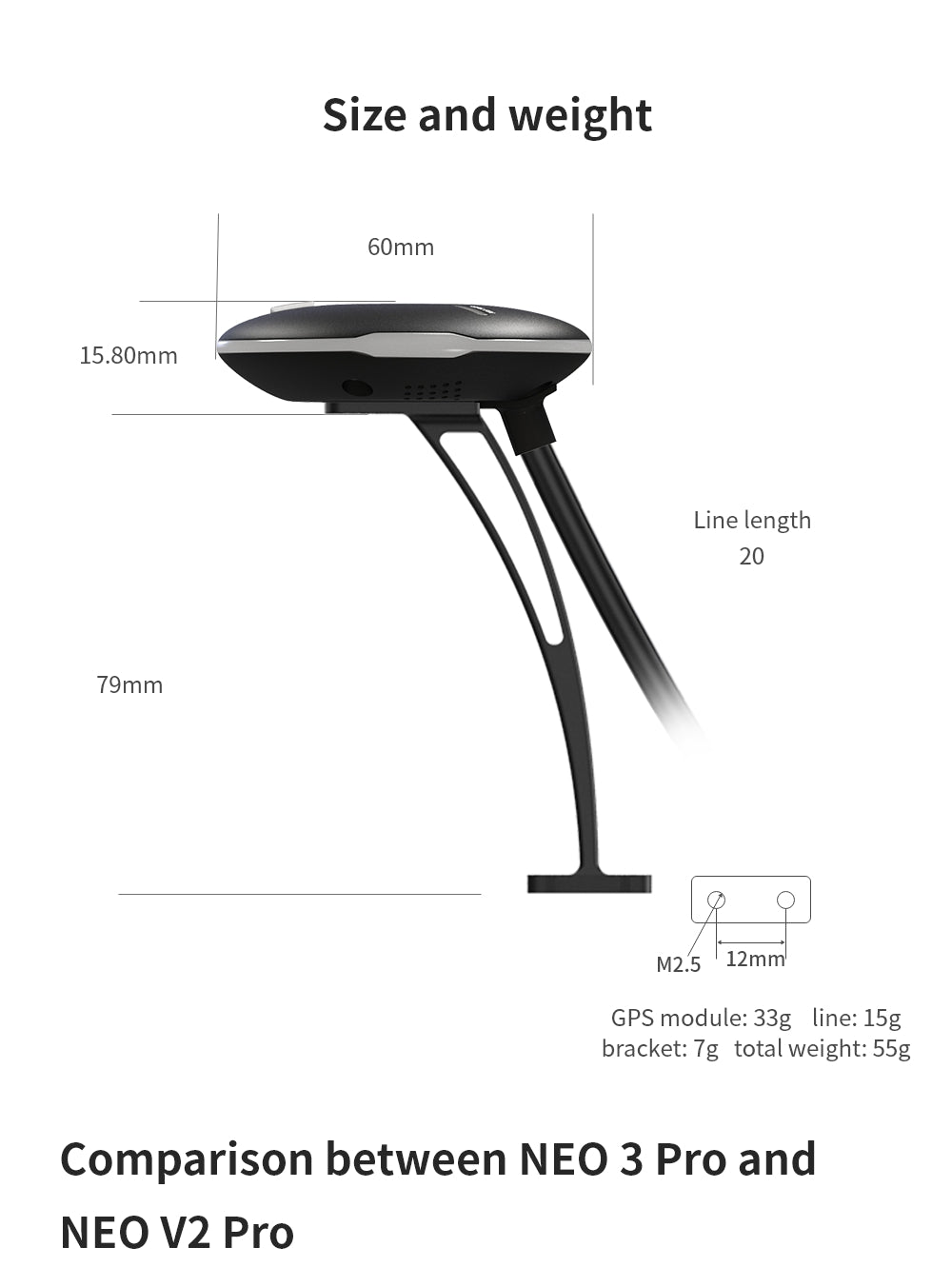

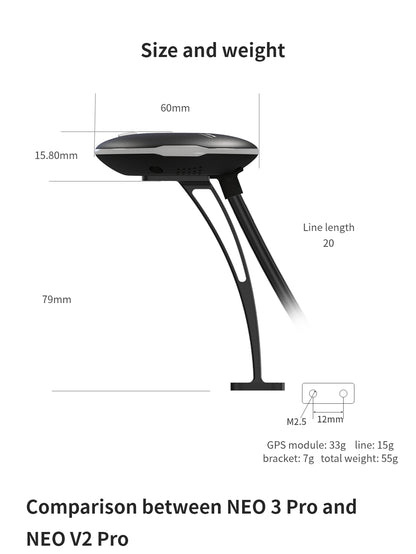

- Dimensions: 60×60×16 mm
- Weight: 33g
