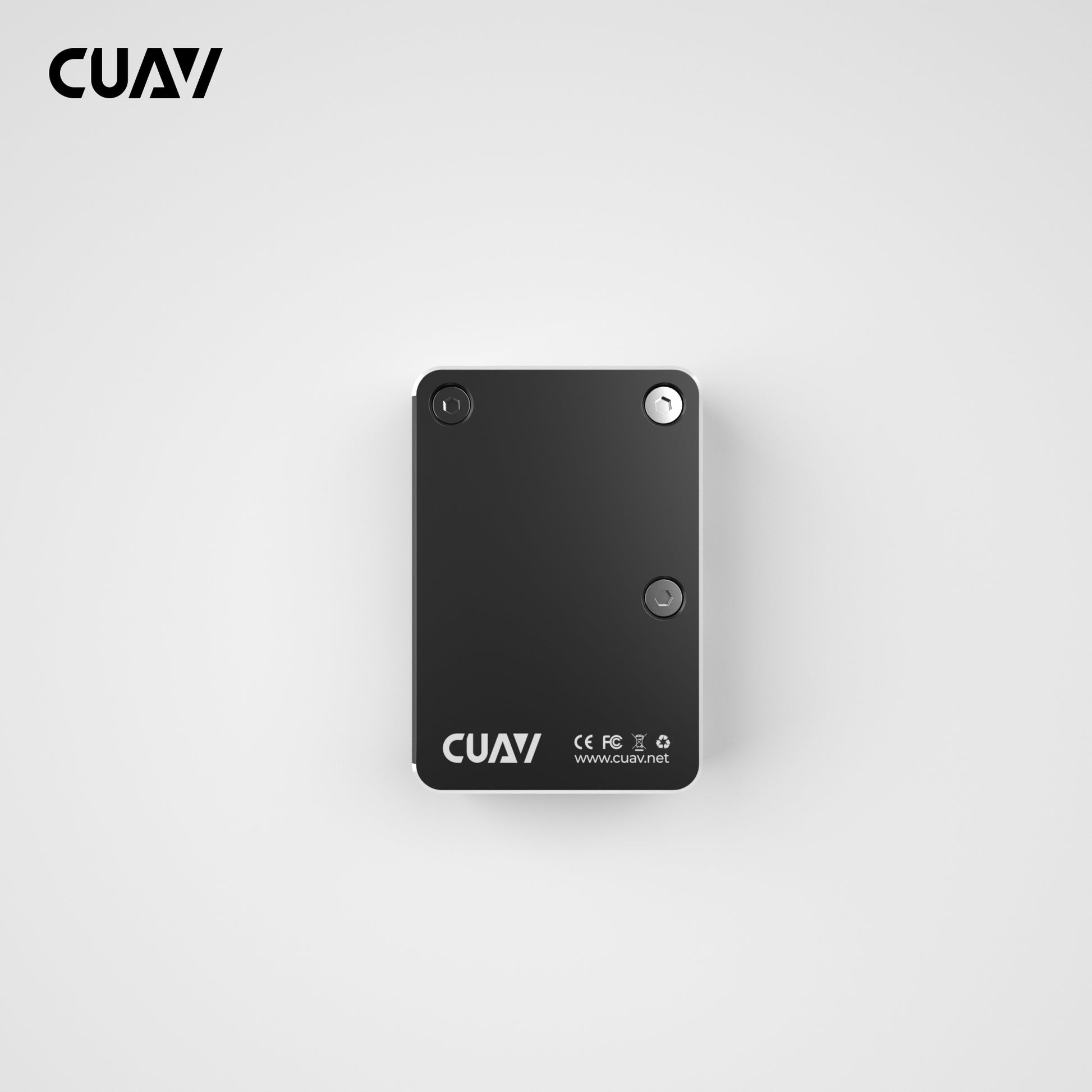

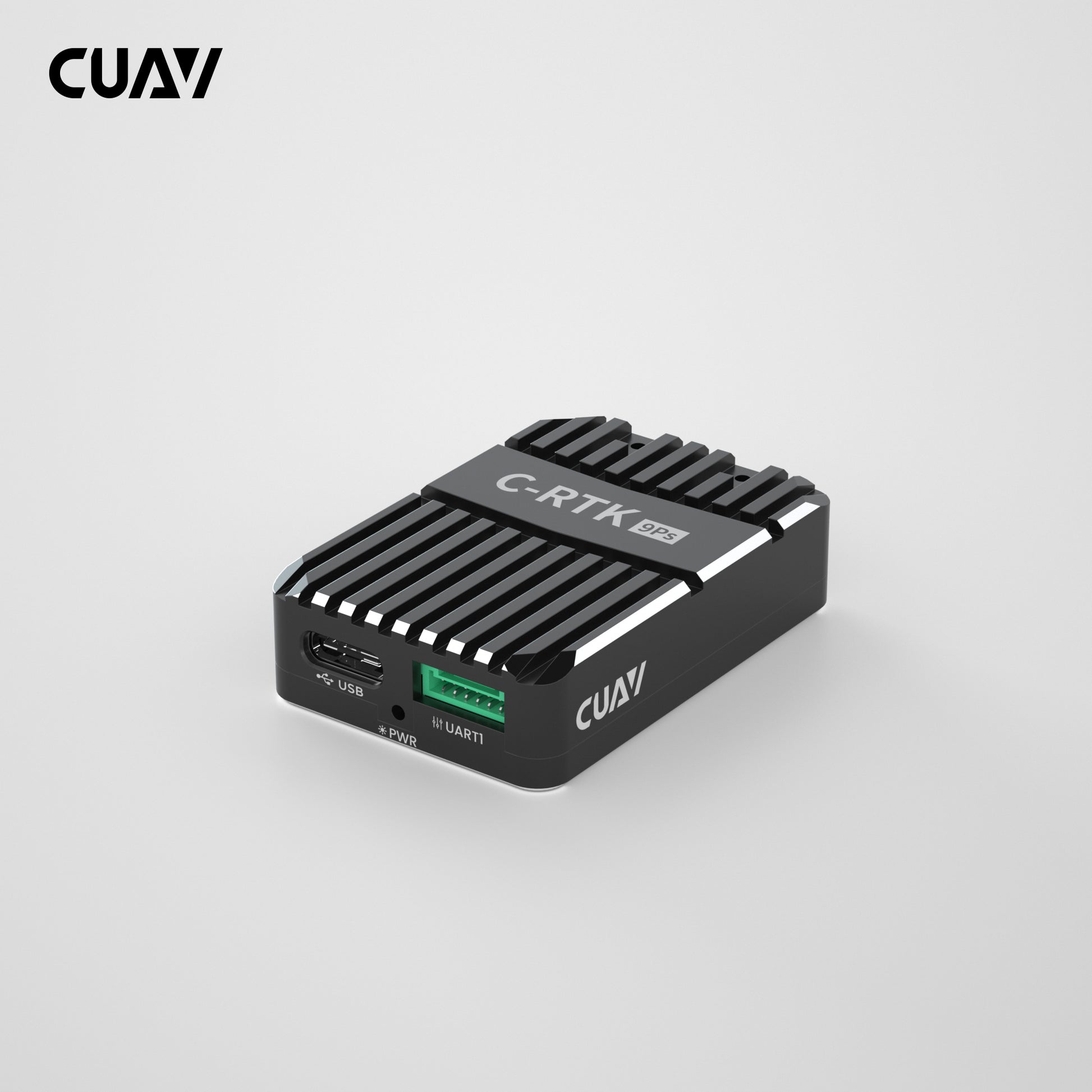

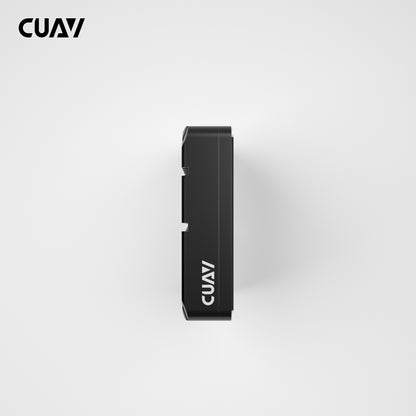

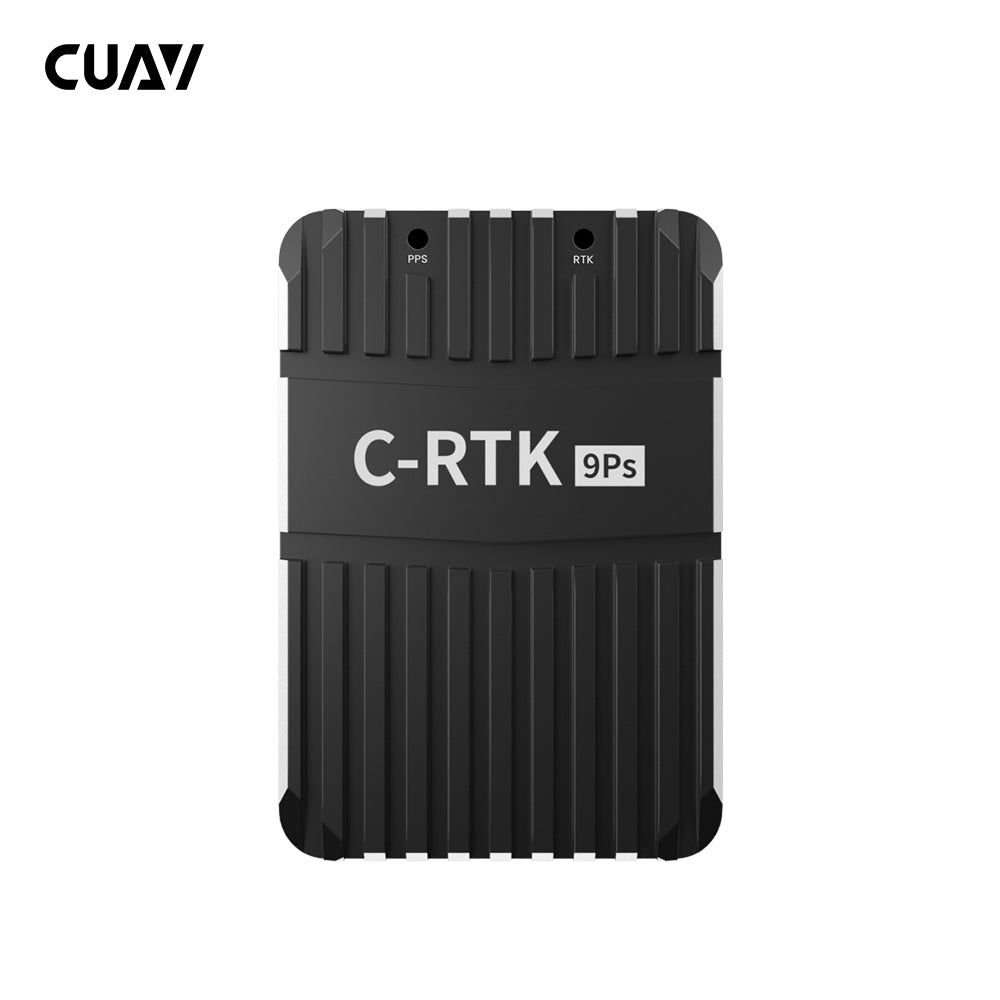

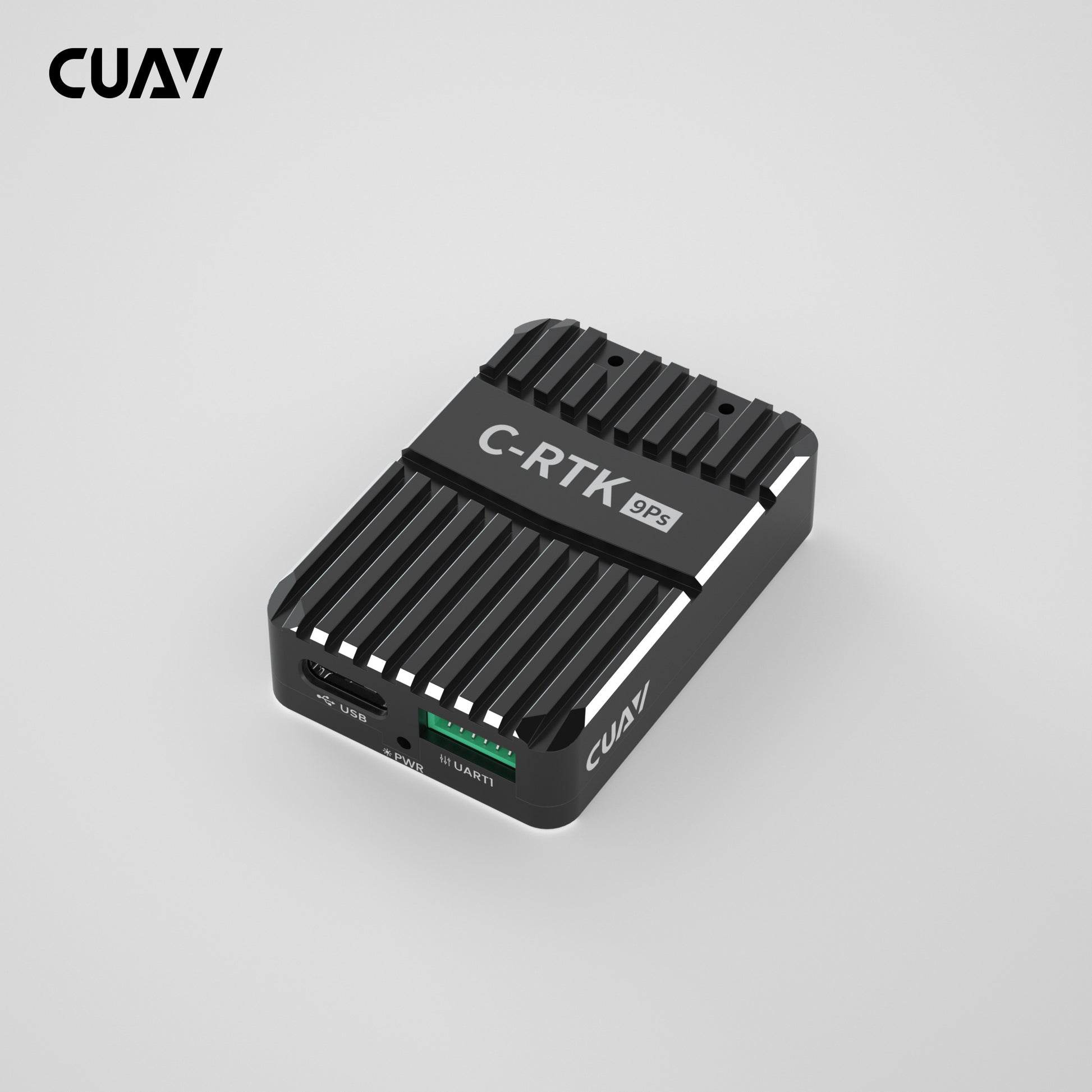

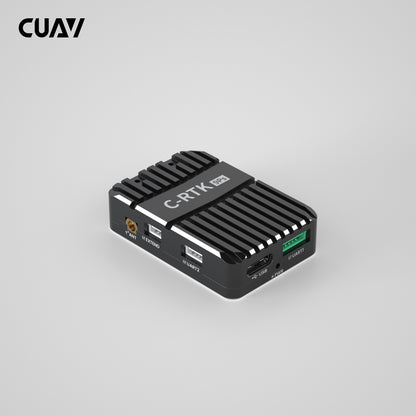

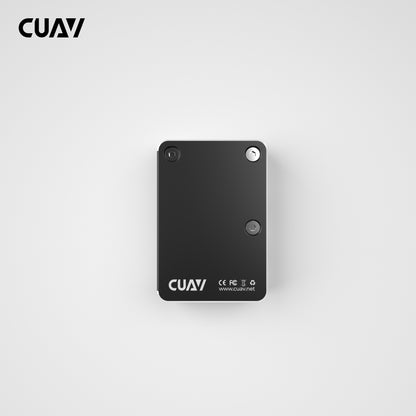

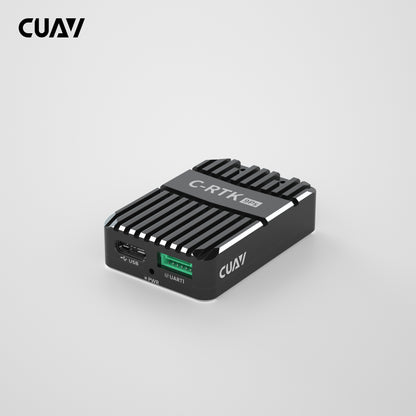

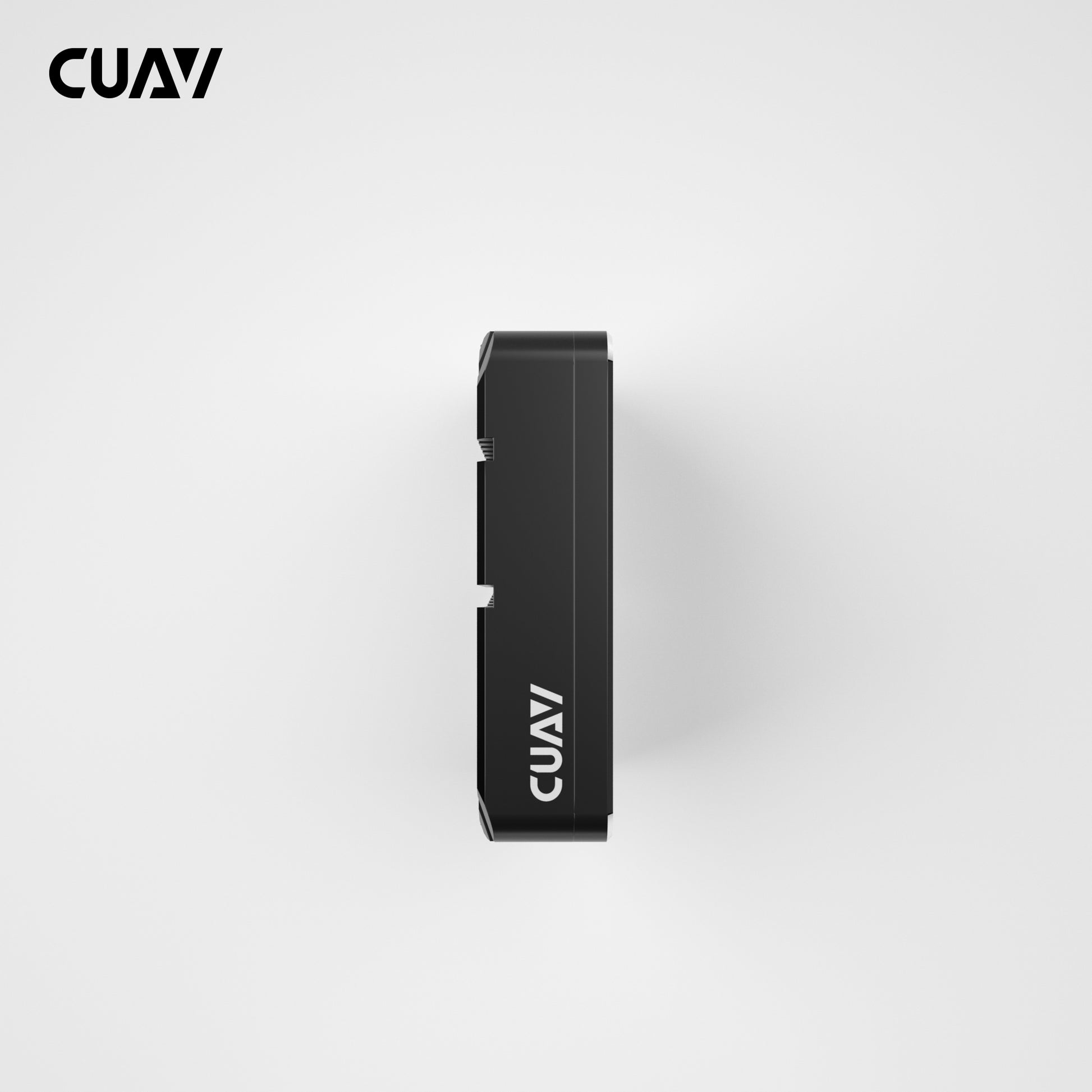

GPS Module CUAV C-RTK 9Ps (Rover unit with stand)
CUAV C-RTK 9Ps - navigation module with centimeter accuracy.
Using different satellites and frequencies, as well as advanced RTK algorithms, the base station accurately determines its position, providing differentiated data with centimeter accuracy every half second. The update frequency of the RTK algorithm is 20 Hz. This RTK module is compatible with PX4 or Ardupilot autopilots, which makes it ideal for aviation and agricultural applications, ensuring high precision during take-offs, landings and other operations. Equipped with an IST8310 compass for maximum accuracy, the dual RTK module can adapt to complex conditions and provide reliable direction without the need for a magnetic compass, which is especially convenient for flights.
CUAV C-RTK 9Ps Specifications:

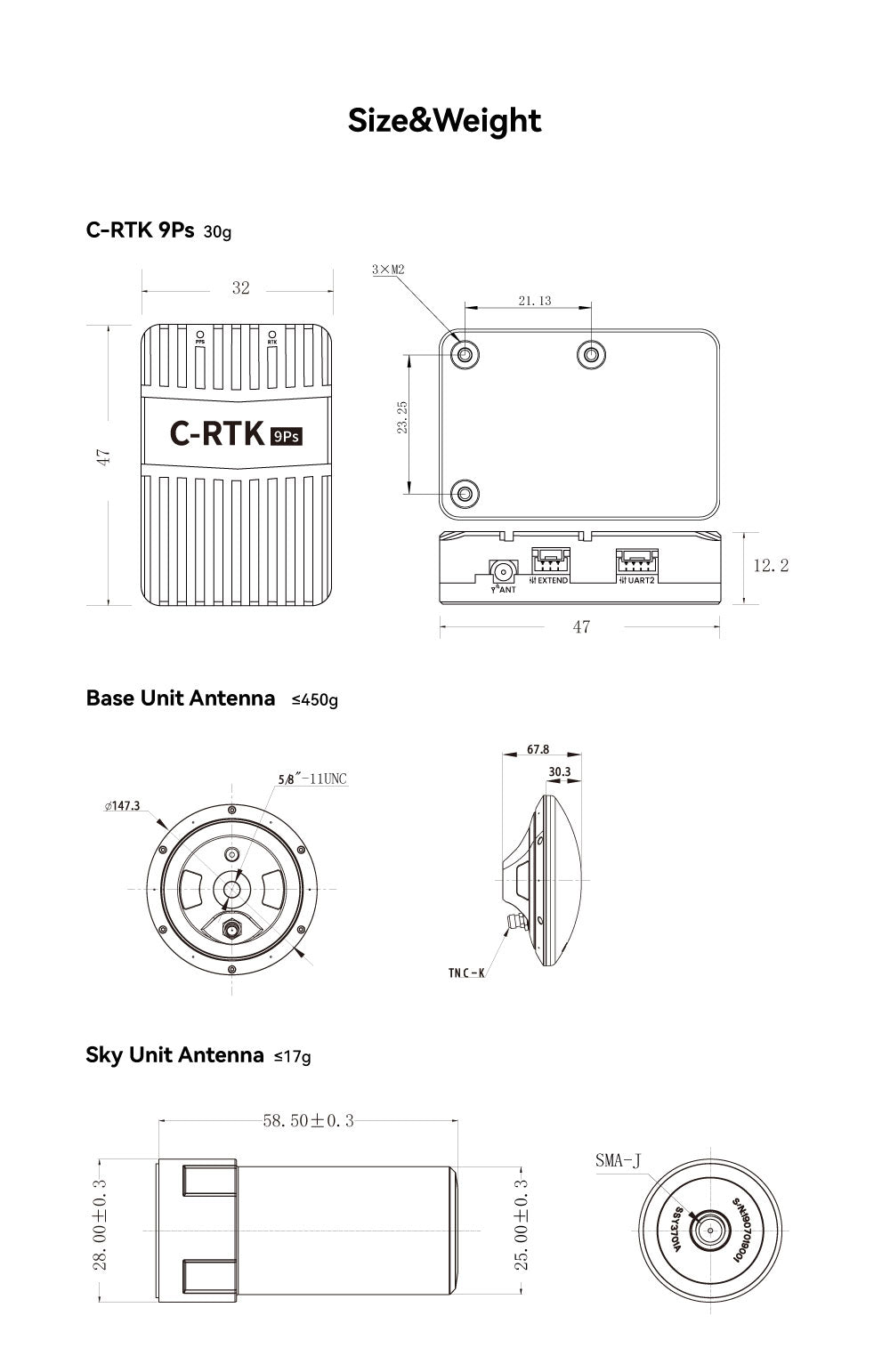

- Dimensions: 47 mm * 32 mm * 12.2 mm
- Weight: 30g (module only)
- Compass: IST8310
- GNSS: GPS, BeiDou, Galileo, GLONASS
- Number of current GNSS: 4
- RTK navigation update frequency: 20 Hz, RAW 25 Hz, PVT 25 Hz (maximum limit associated with current settings)
- Positioning accuracy: RTK: 0.01 m +1ppm CEP, GPS: 1.5 m CEP, SBAS: 1.0 m CEP
- RTK acquisition time: <60 s; Acquisition: cold start <24s, hot start <1s
- Sensitivity: Cold Start –148 dBm, Hot Start –157 dBm, Recovery –160 dBm
- Suppression: Active CW detection and removal, built-in bandpass filter
- Fraud protection: Advanced fraud detection algorithms
- Antenna performance: Rover: 2 dBi, Base: 5 dBi
- PPK: Not supported

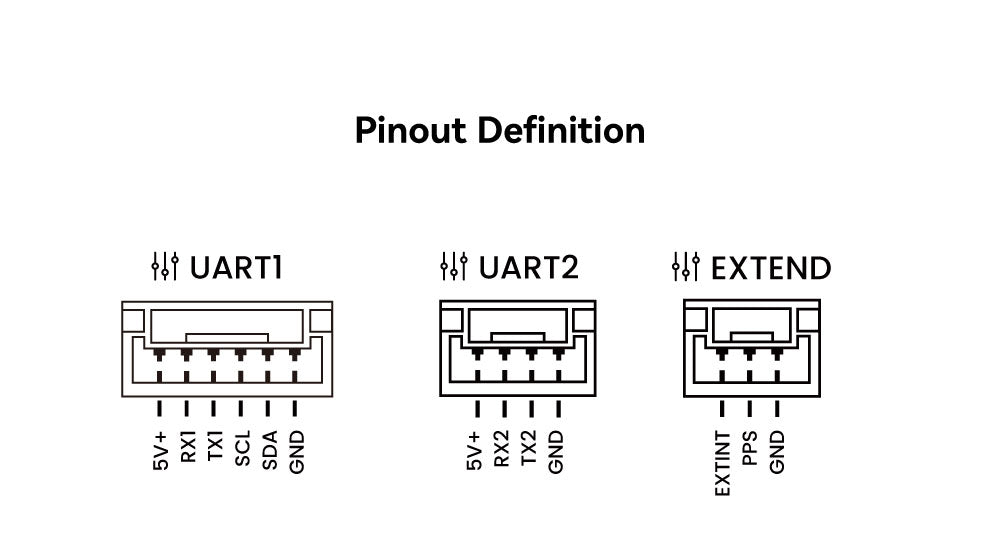

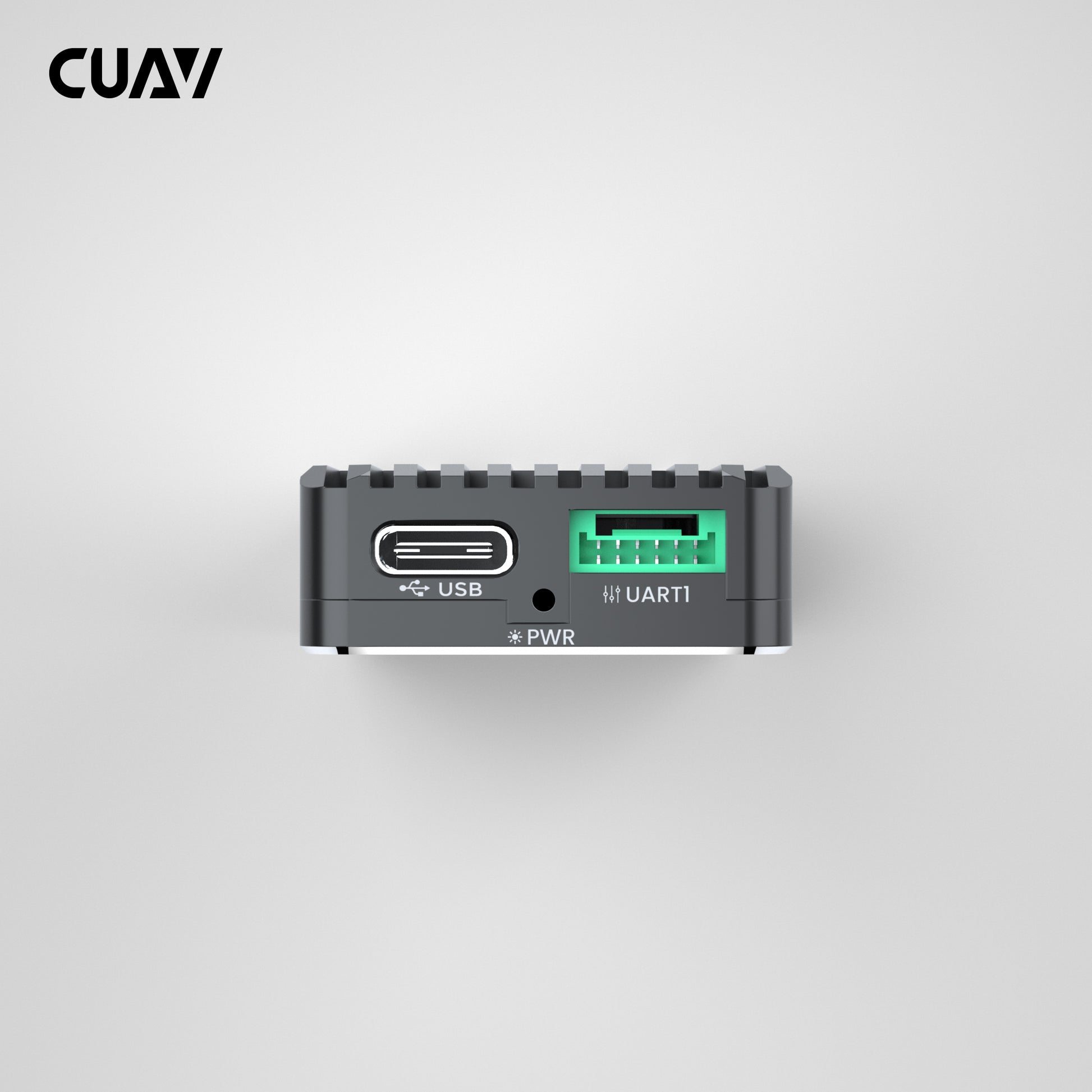

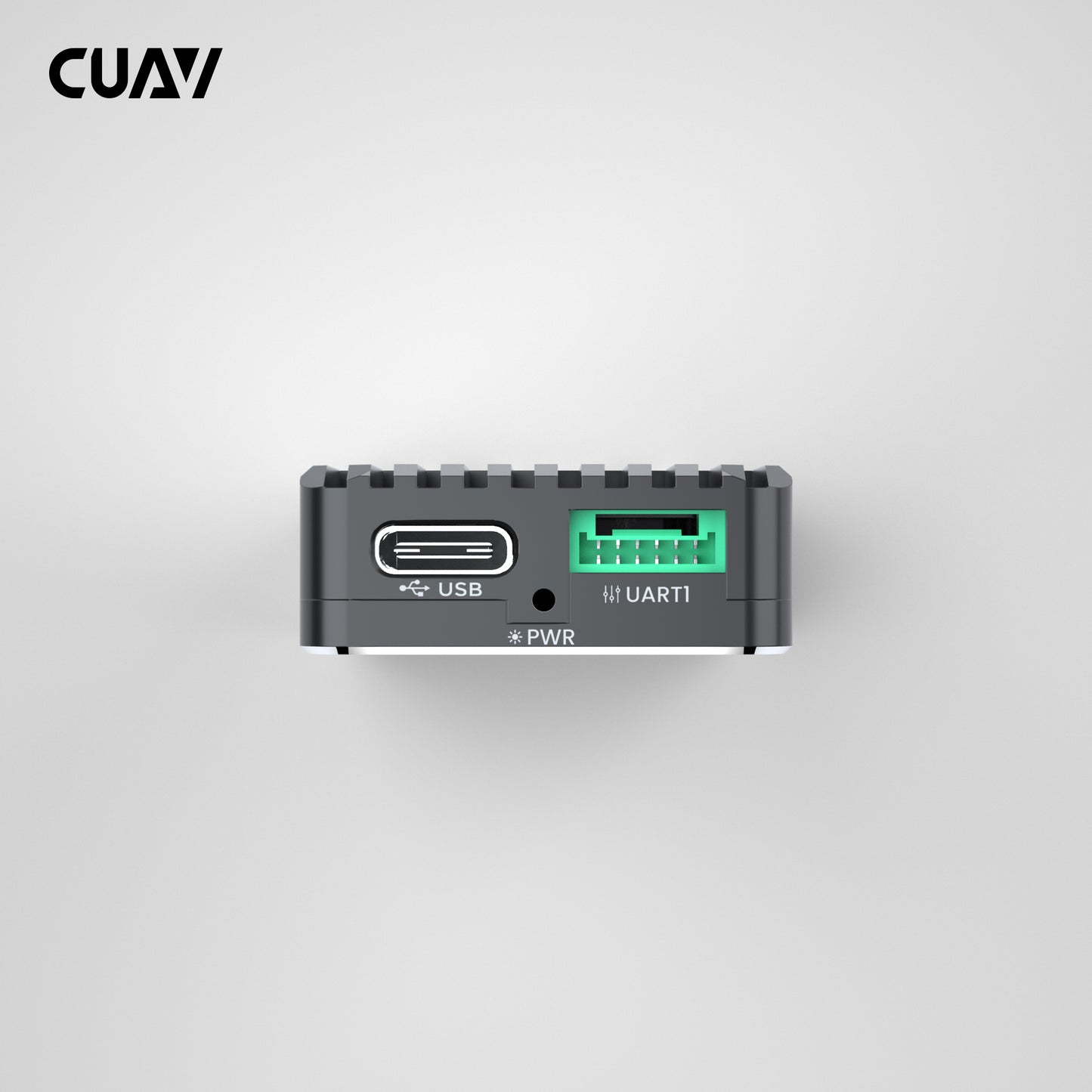

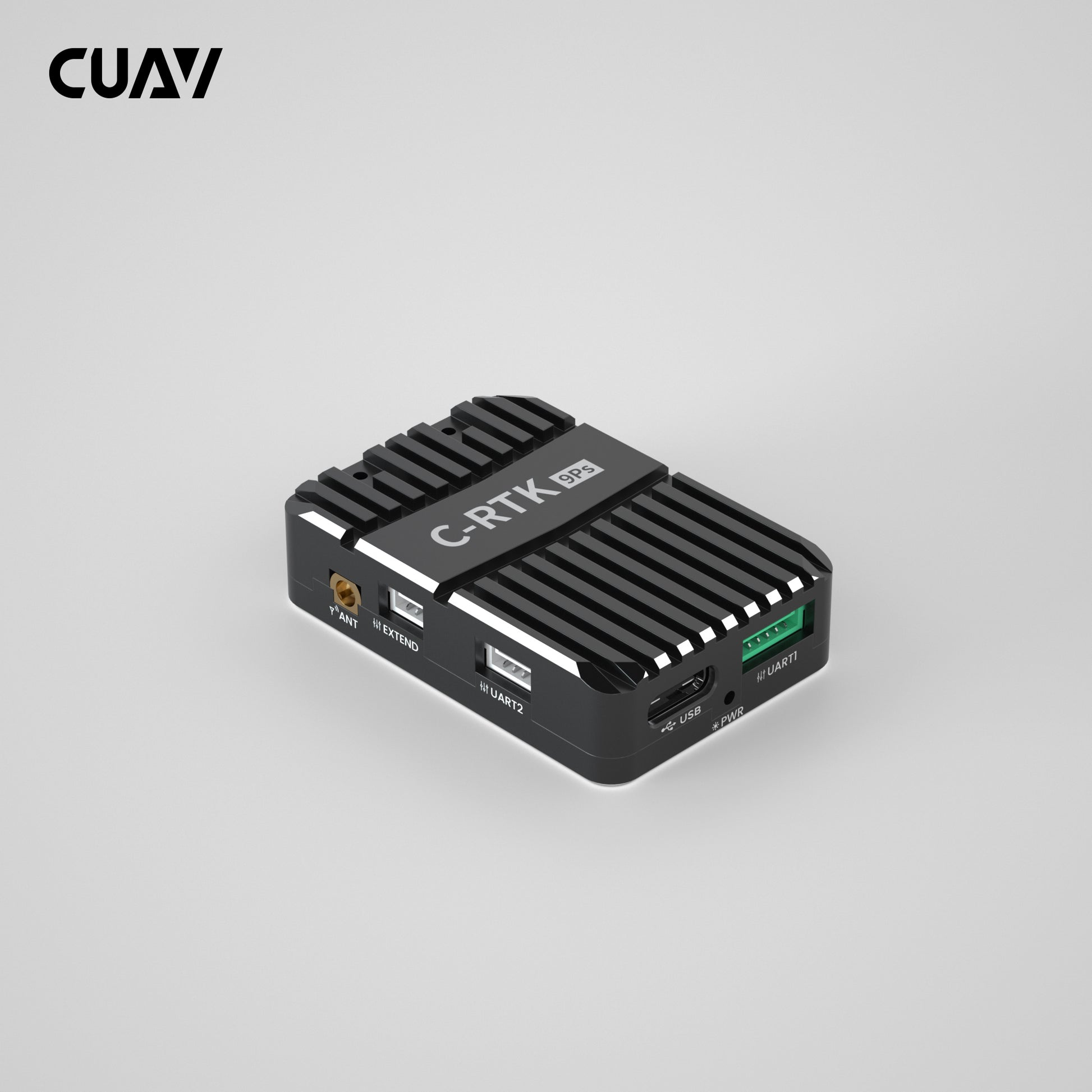

- Interface: UART 2, USB 1, antenna type MMCX
- Operating voltage: 4.5V – 6V
- Operating temperature: –40°C to +85°C
