Code: SKU:3037

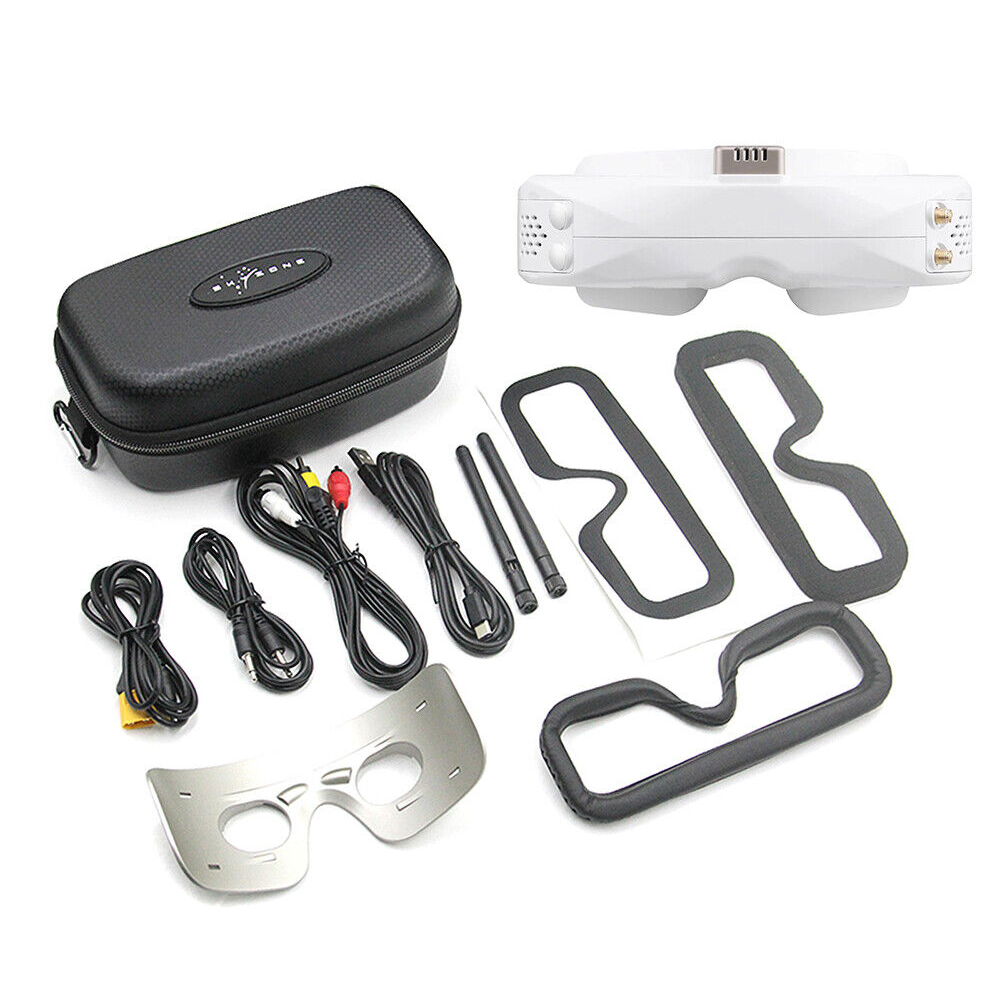

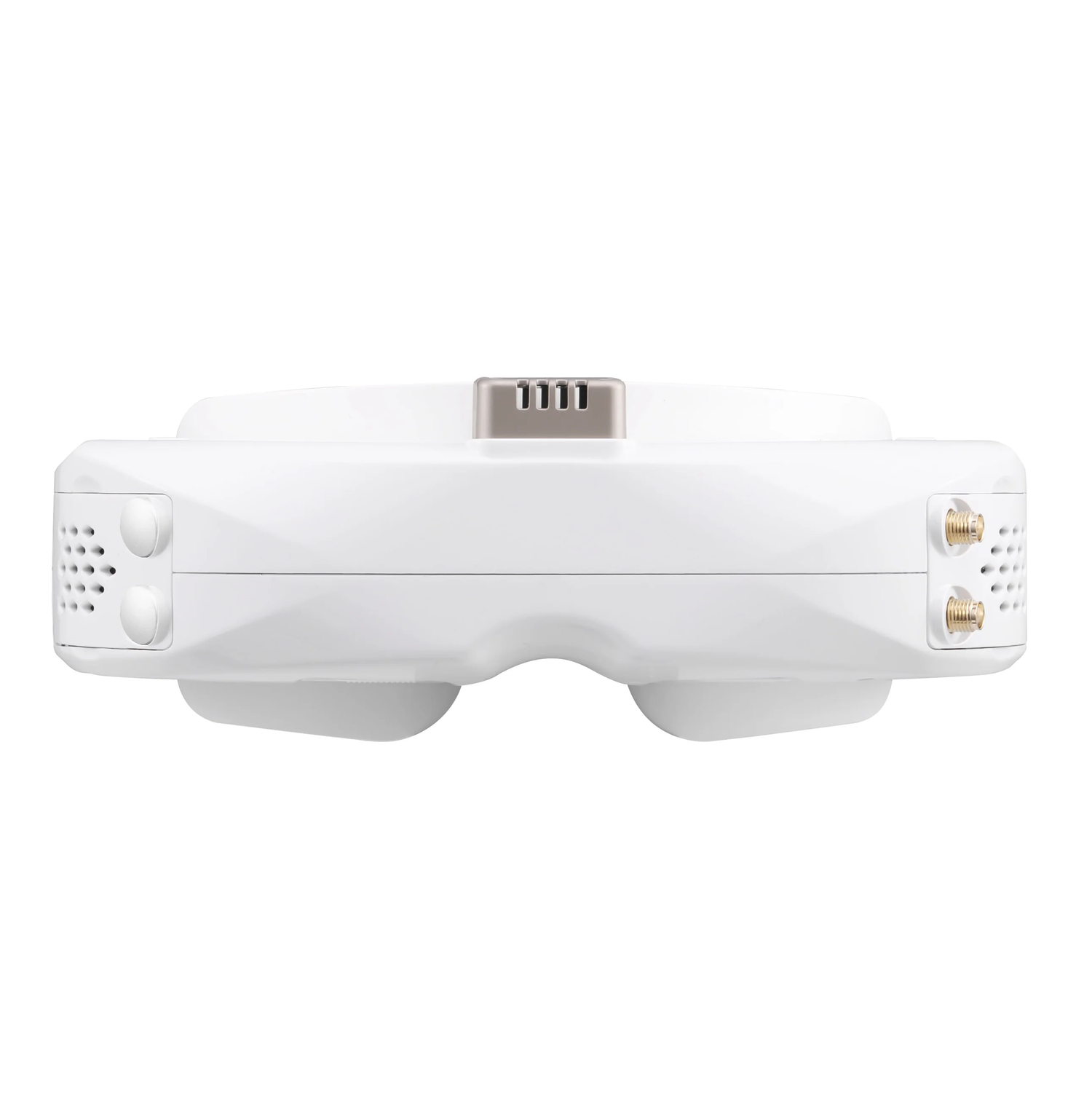

Goggles SKYZONE SKY04L
Goggles SKYZONE SKY04L
Brand: SKYZONE
Regular price
€363,00
Regular price
€363,00
Sale price
€363,00
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Analogue glasses SKY04L Features: - The SteadyView receiver combines two signals into one, making the image more stable and clear in challenging conditions. - Module shaft. Glasses have more upgrade options. - Focus settings. The new optics have a large field of view (37 degrees). and the optics have a focus adjustment function (-6~+2), you no longer need diopters. - LCOS screen. The 1280*960 screen has high definition and vivid colors, high contrast ratio, so pilots can see more details. - Advanced screen settings. Aspect ratio can be switched and 4 x reset screen settings and 3 customized settings for indoor and outdoor flights or different weather. - Pendulum wheel control. - New user interface with 10 languages, new user interface with pendulum wheel, easy navigation, 10 languages to choose for local users. - Built-in DVR. SKY04L Specifications: Screen: LCOS Resolution: 1280 x 960 FOV (diagonal): 37° Aspect ratio: 4:3/16:9 Focus: -6 +2 adjustable Interpupillary distance (IPD): 58-71 mm Receiver: 5.8GHz 48CH V3.3 Steadyview receiver Language: 10 Language Power supply: DC6.5-25.2V/USB5V Power consumption: 720mAat12V DVR: V2, H264, 60fps, MOV6Mbps, SD card support up to 128Gb Head Tracker: 3-axis accelerometer, 3-axis gyroscope Dimensions: 185*75*67mm Weight: 267g The package includes: --1x SKY04L V2 glasses --1x V3.3 Steadyview receiver module --2x front panel (wide and narrow) --1x Sponge with Velcro --1x zipper case --1x power cord --1x Headtracker cable --2x 5.8GHz 2dB antennas --1x Video/Audio cable --1x USB-C cable --1x User manual
