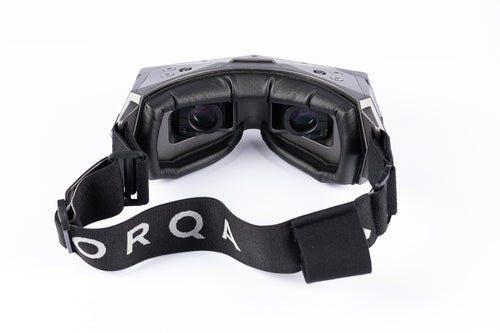

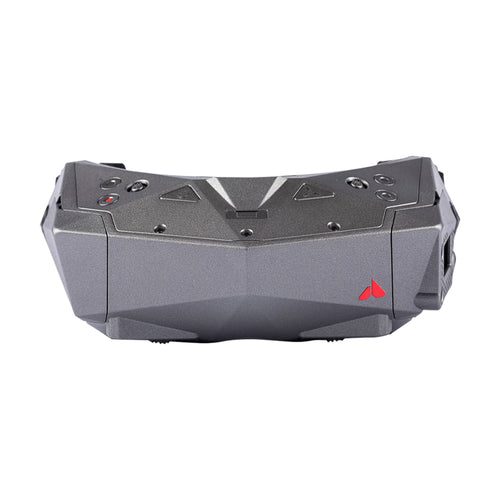

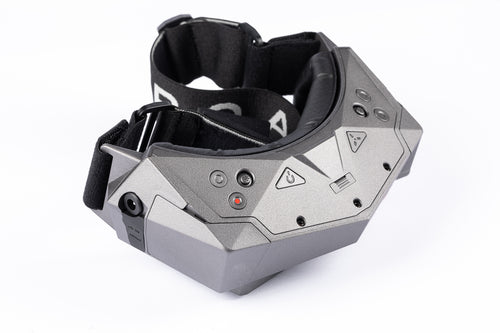

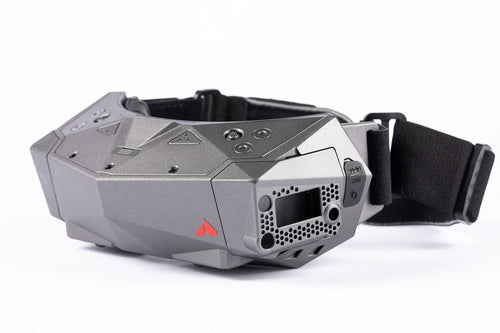

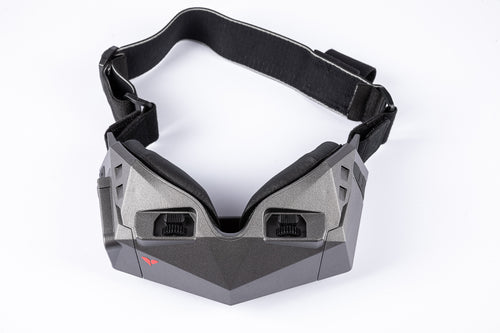

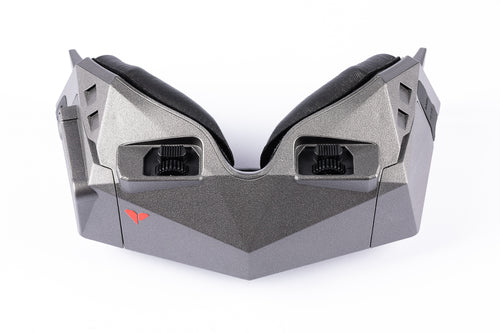

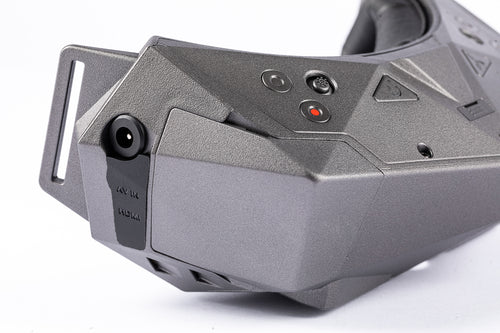

ORQA FPV Goggles.One Pilot
Orq's new flagship goggle, the FPV.One Pilot, features optimized electronics and a redesigned mechanical structure while maintaining its authentic look. This advanced headset combines modern aesthetics with sophisticated engineering.
Key features:
- Improved design: No overhead fans, each optical engine has its own fan with automatic defogging to prevent lens fogging and dry eyes.
- Sharper image: Redesigned optical engines and improved glass lenses with special coating, including new focus adjustments and IPD.
- Power protection: Overvoltage and reverse polarity protection, compatible with batteries up to 6S.
- Ready for the future: "Portal" interface for the upcoming Orqa HD digital system and other extensions.
- New Menu/OSD: A cleaner, faster and more intuitive interface with various third-party integrations.
- High quality OLED displays: 2x 0.5" OLED displays with the highest number of pixels in the industry.
- Adjustable FOV: Switching between 37° and 33° field of view.
- Built-in HD DVR: Flight recording in 1280x960 resolution at 60 fps directly from the glasses.
- European craftsmanship: Designed and made in Croatia, Europe.
- FPV.Connect Mobile App: Download flight videos, firmware updates and more with the FPV.Connect Mobile App.
-
Integration with GoPro: Full integration with GoPro models HERO 8, 9 and 10 allows users to control the GoPro camera directly, as well as perform pre-flight checks that include various information:
- Battery status
- SD card status
- Upload status
- Start/stop recording
- Toggle resolution/FPS settings
- Toggle basic preferences
Specifications:
- Color options: Gun Metal Gray
- Viewing angle: 37° at 4:3 or 33° at 16:9 aspect ratio
- Screen resolution: 1280 x 960 pixels
- Aspect ratio: 4:3 native, 16:9 (720p)
- Power supply: 6-25VDC (2-6S Li-ion battery)
- Power consumption: Typically 2.8W
- Integrated head tracker output: 3.5mm jack
- Focus settings: -4D - +4D
- HDMI video input: Micro HDMI
- Battery connector: 2.1 x 5.5 mm barrel connector
- IPD range: 56 - 74 mm
- Integrated DVR: 1280x960, 50/60 fps, H.264, mp4
- Standard receiver slot: High performance

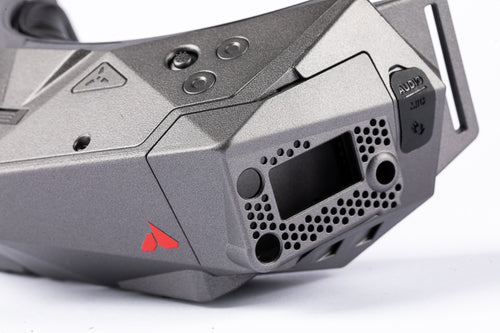

- Secondary slot for other modules: 5V, SDIO, UART
- Weight (without battery): 259 grams
- Weight (package with all accessories): 560 grams
- Dimensions: 177x107x72 mm

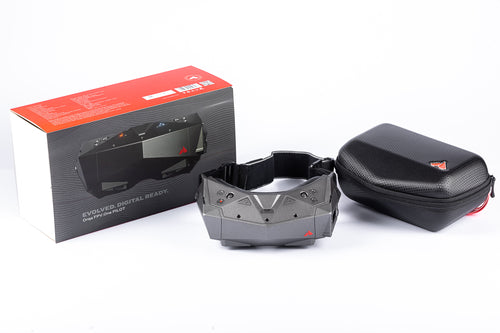

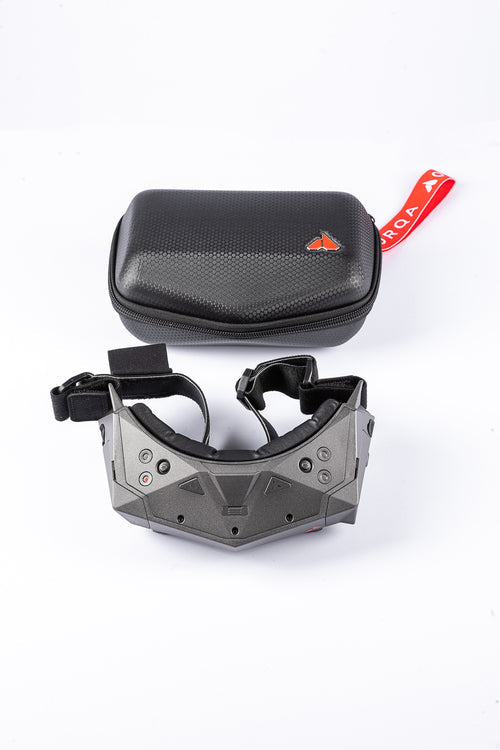

The package contains:
- 1x ORQA FPV.One Pilot Glasses
- 1x Set of foam inserts
- 1x Hard Case
- 1x Strap
