Code: SKU:HDZ3590
Goggles HDZero BoxPro
Goggles HDZero BoxPro
Brand: HDZero
Couldn't load pickup availability
- Description
- Related Files
- Discussion

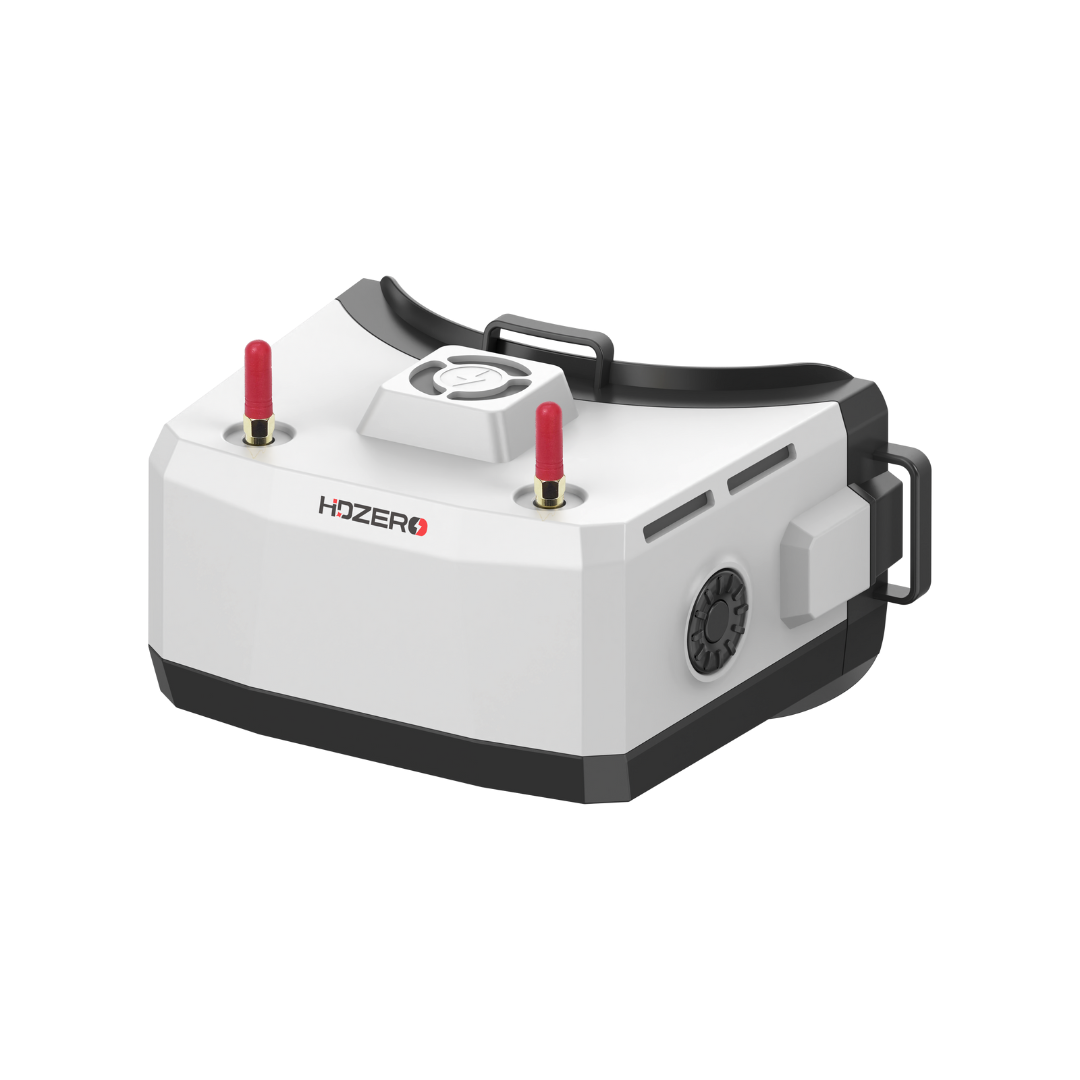

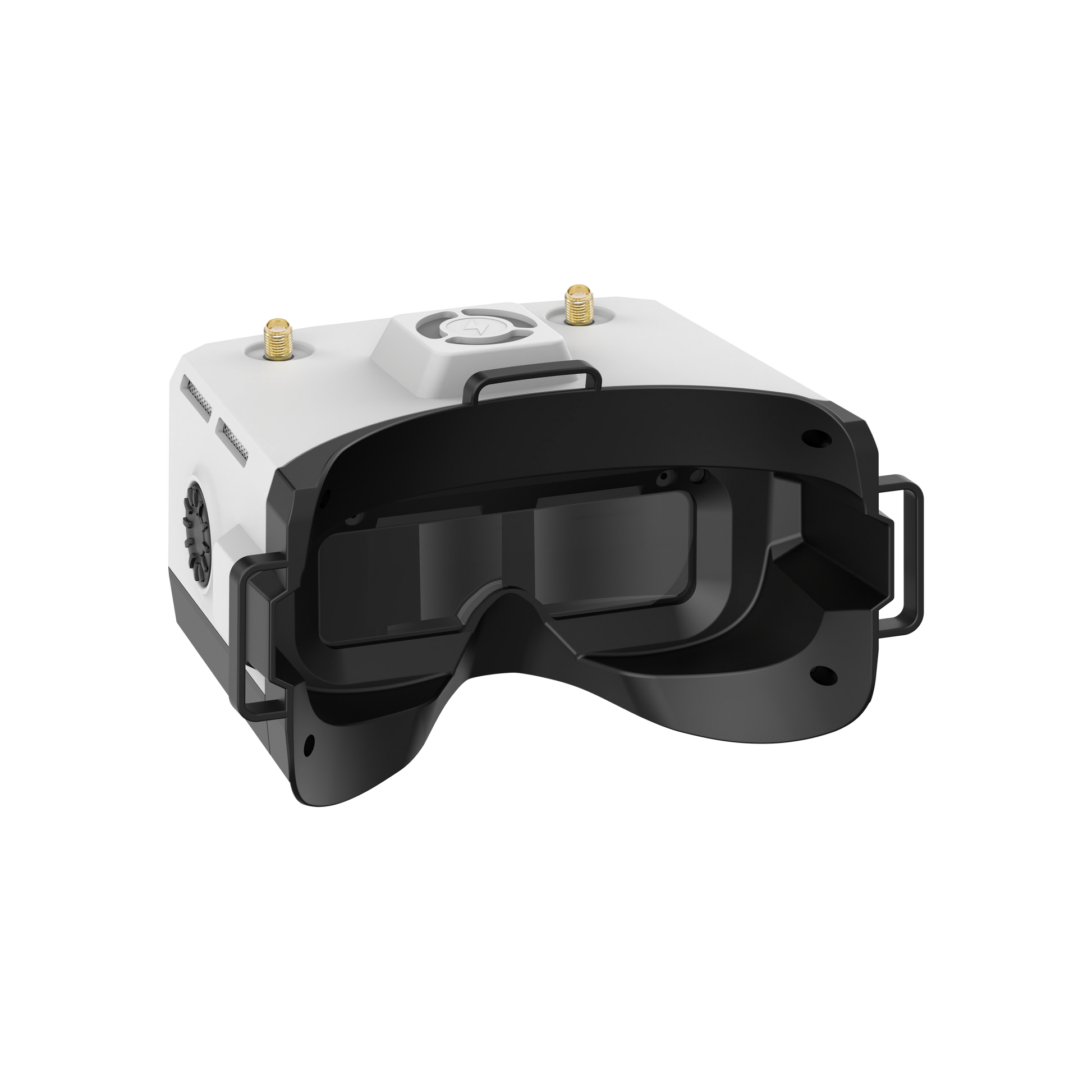

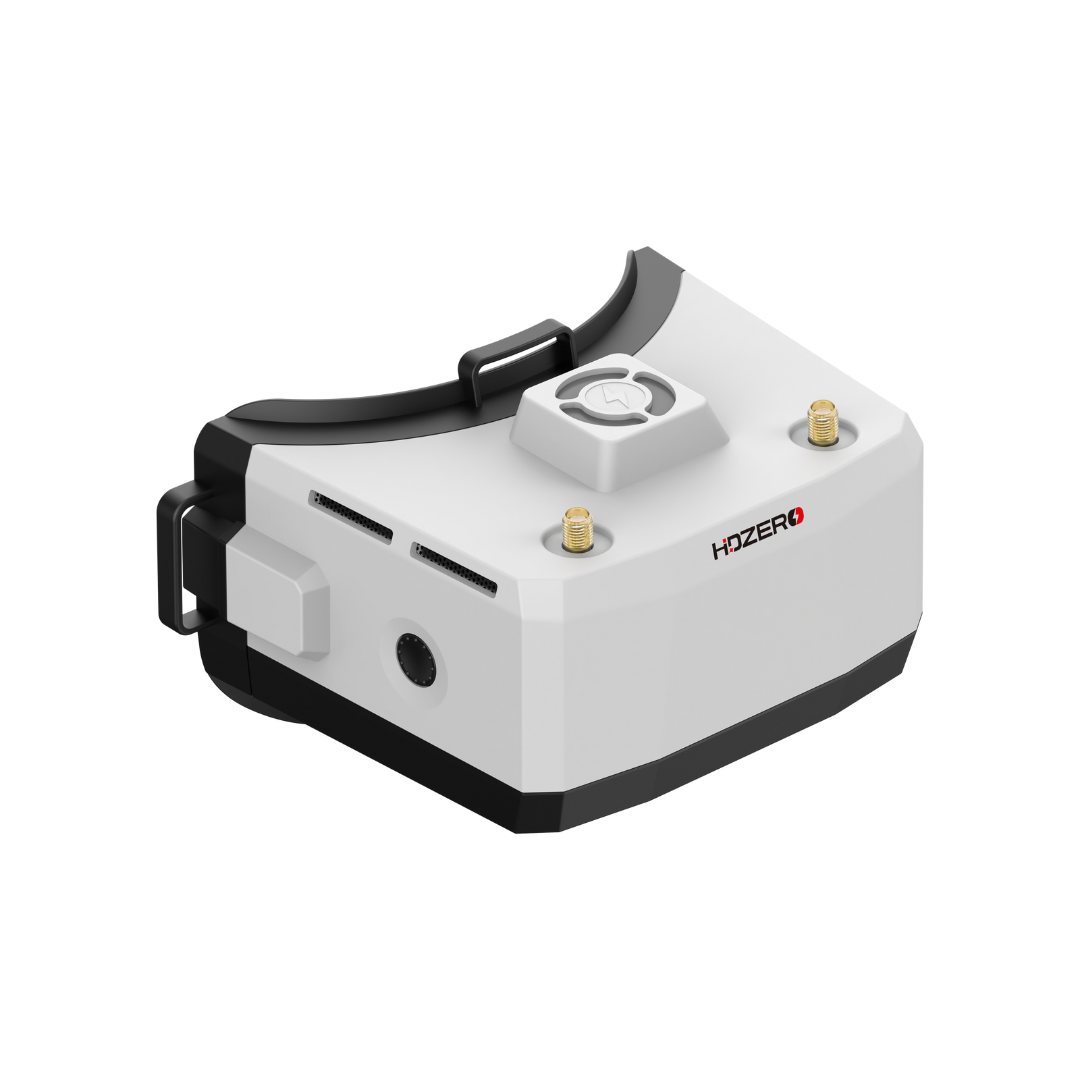

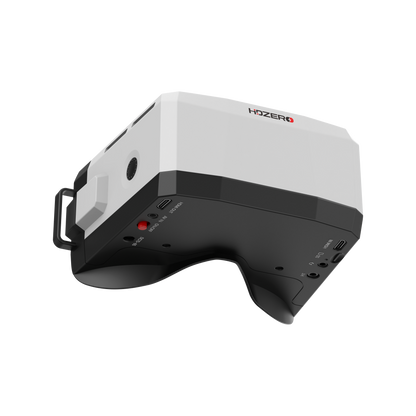

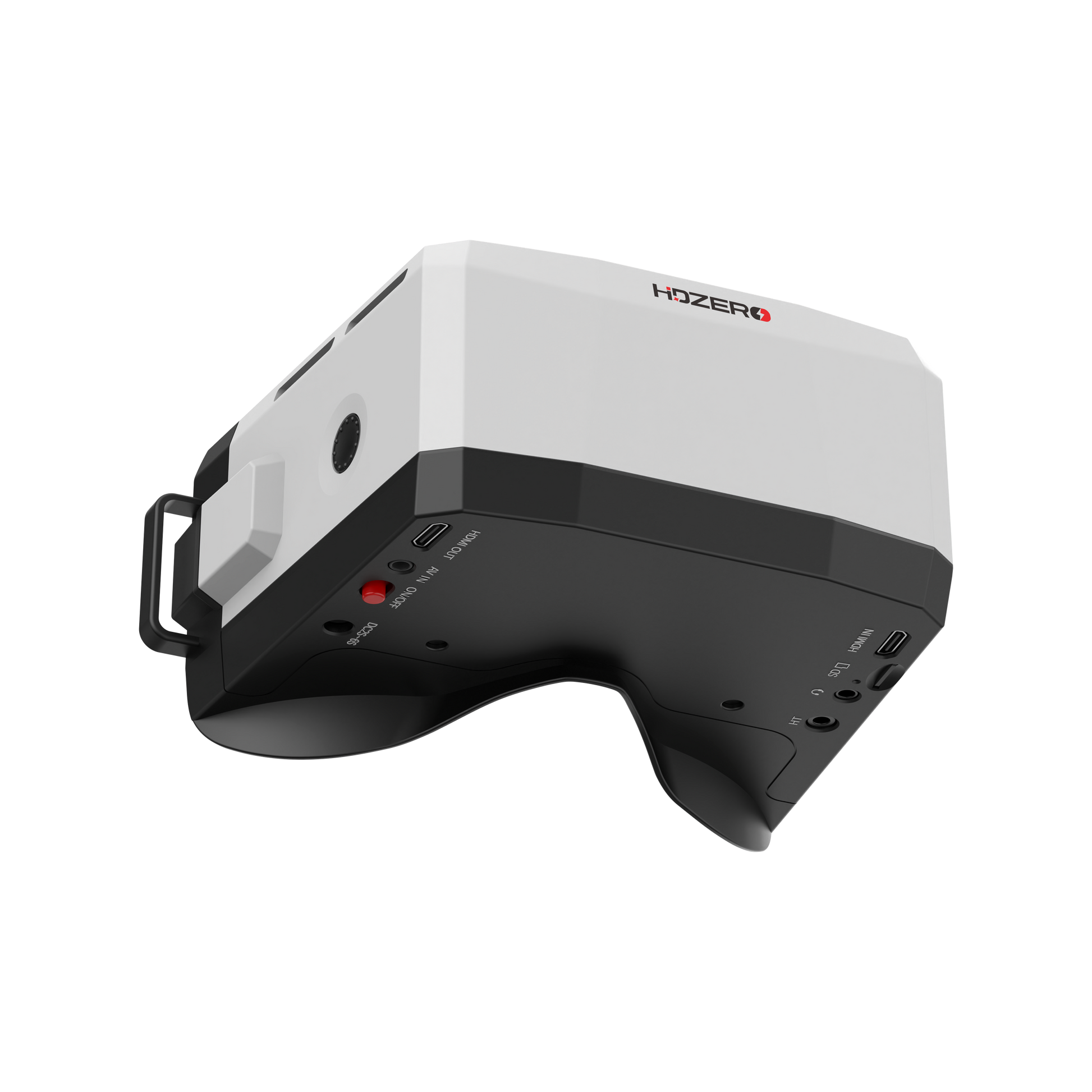

HDZero BoxPro FPV Glasses - the perfect glasses for digital, analog and HDMI video
HDZero BoxPro are high-performance FPV goggles designed for pilots looking for smooth, low-latency images at an incredible price. It supports HDZero digital, analog and HDMI input and features a 100Hz 1800 nit LCD display for an ultra-clear and smooth viewing experience.
Unlike other glasses, the BoxPro boasts a 100Hz refresh rate screen and 100Hz HDMI input, ensuring exceptional responsiveness with minimal latency. Equipped with a built-in high-sensitivity analog receiver and four antennas - two integrated high-gain patch antennas and two attached SMA linear antennas - these goggles offer excellent reception right out of the box. Whether you fly analog or digital, BoxPro delivers top performance at a fraction of the price.
Specifications:
Display: LCD 100Hz, 1800 nits, ultra bright.
Field of View (FOV): 56°
Delay:
- HDMI Input: 1ms
- Analog Camera: 3ms
- HDZero Camera: 4ms
Video Support: HDZero Digital, Analog, Mini HDMI Input and Output
Analog Receiver: Built-in High Sensitivity Receiver
Antenna setup:
- 2 built-in high-gain patch antennas
- 2 supplied SMA 5.8 GHz linear antennas
DVR and recording:
- Formats: H.265 (HDZero, analog, HDMI)
- Resolutions: 1280x720p60, 1280x720p90, 1280x720p100, 1920x1080p60
- Sound: Multiple sources (built-in microphone, line-in, AV-in)
- Recording modes: Auto and manual
Power: 2S-6S battery via XT60 connector (battery not included)
Cooling system: Adjustable fan speed for internal cooling and anti-fog
System: Open-source, Linux-based platform for customization
Package includes:
1x HDZero BoxPro Goggles
2x Linear 5.8GHz SMA Antennas (with 2 built-in high-gain patch antennas)
1x Foam Face Pad
1x Adjustable Head Strap with Battery Pocket
1x 1200mm XT60 Power Cable
1x Durable Canvas Goggle Bag
1x Lens Cleaning Cloth
