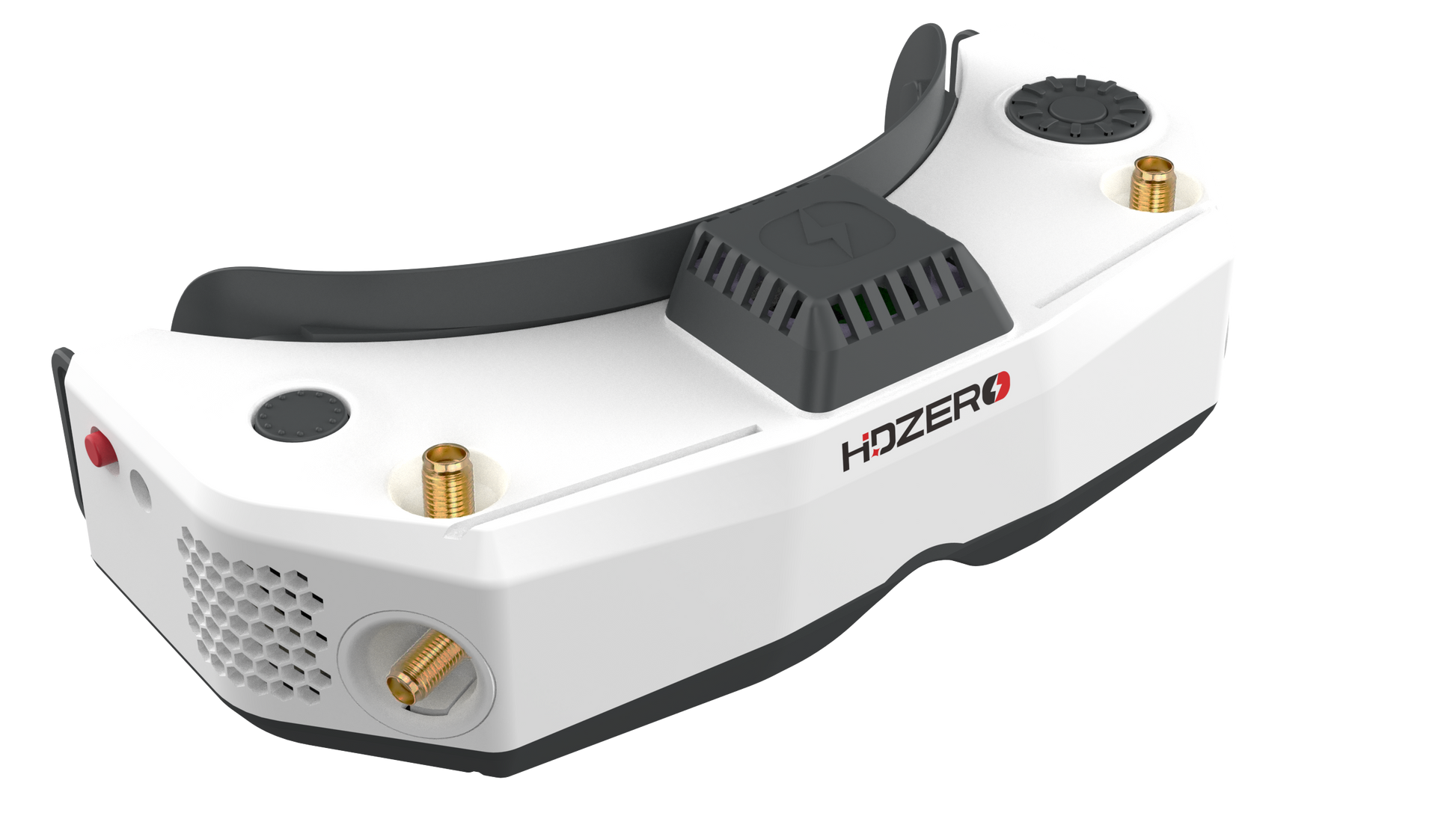

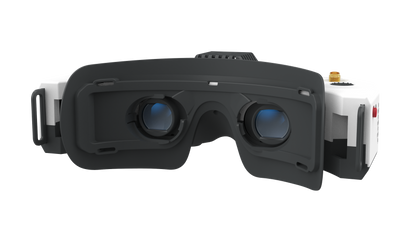

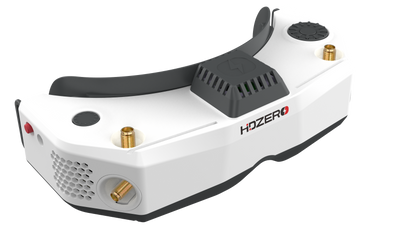

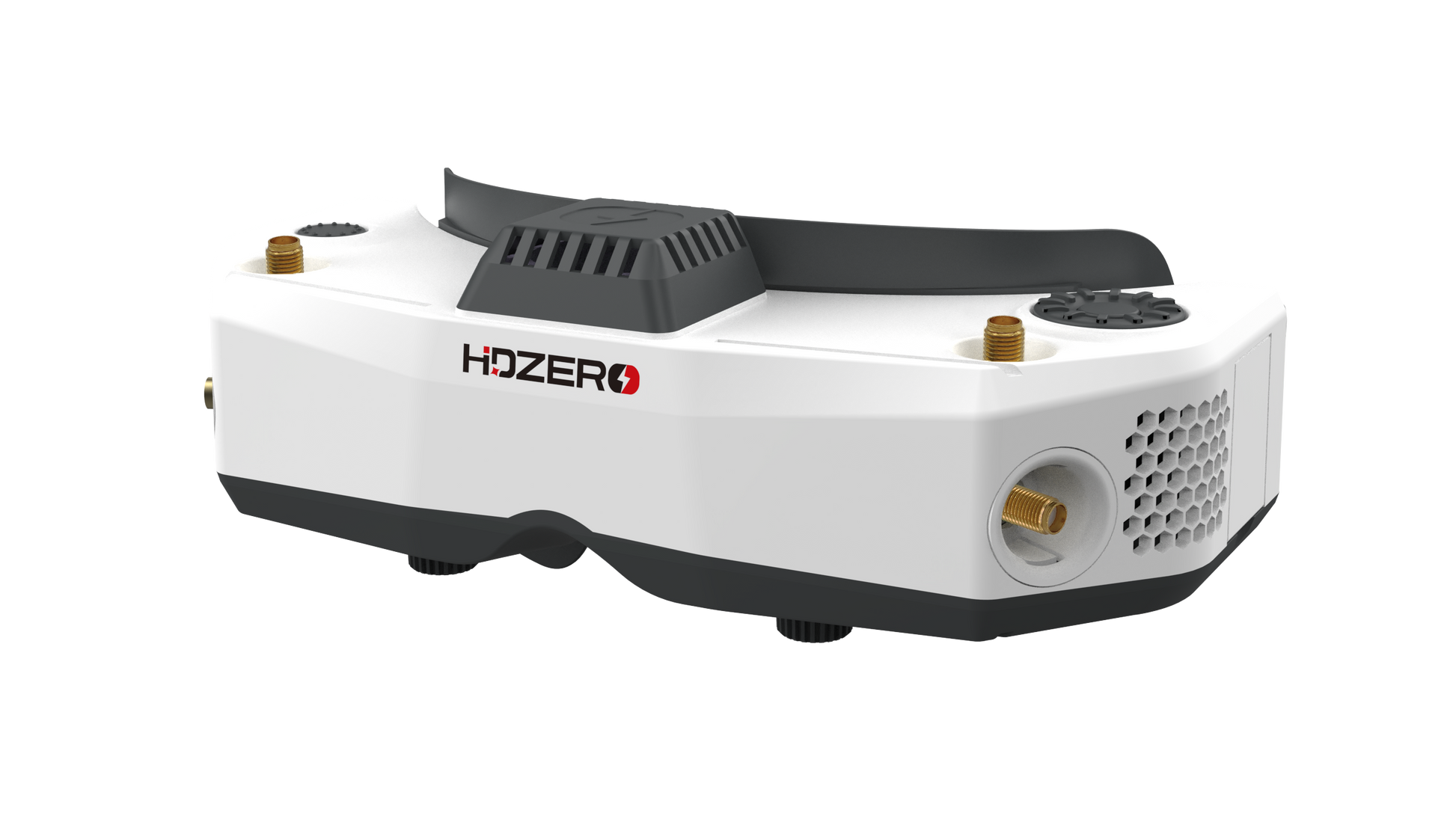

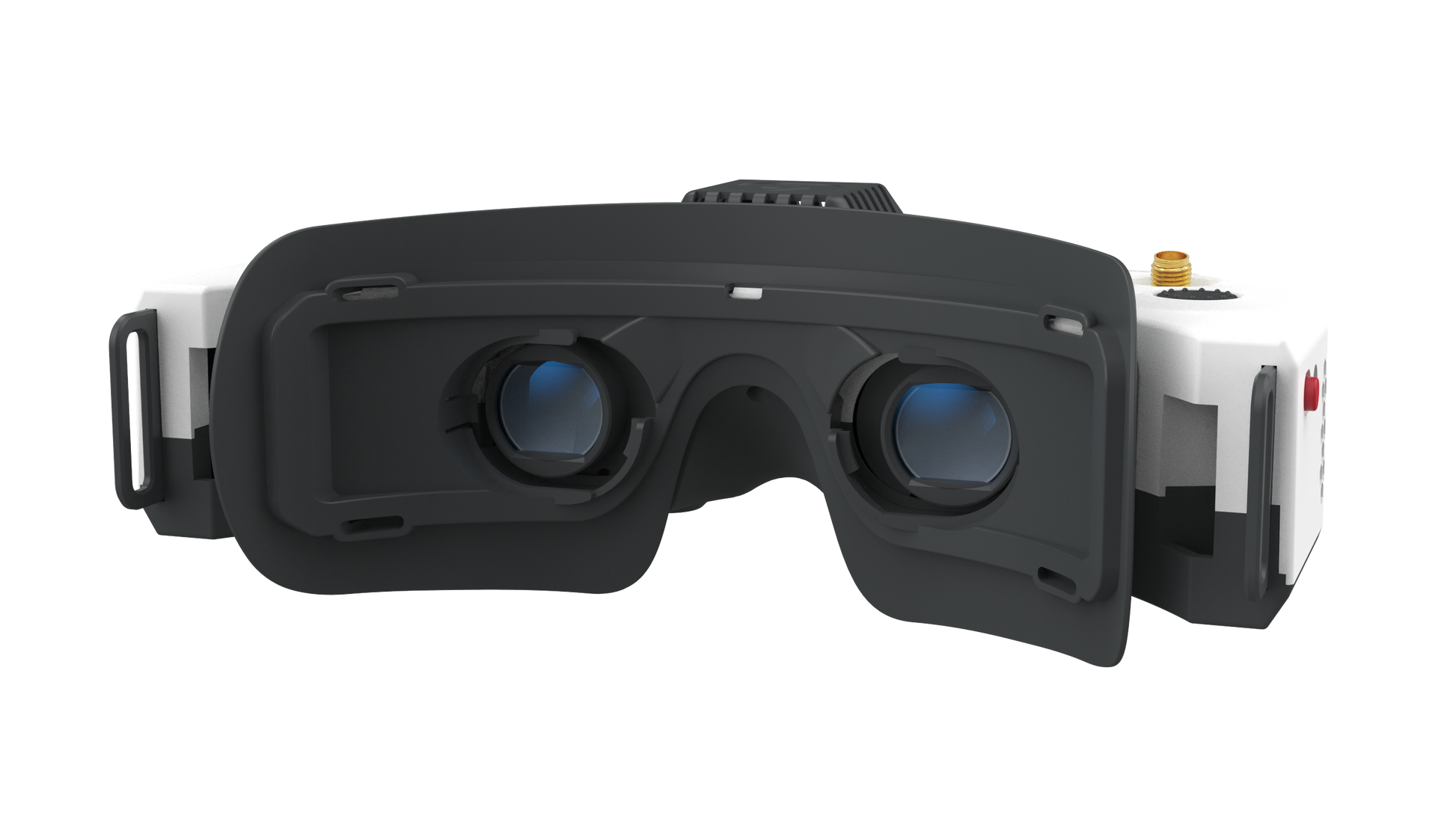

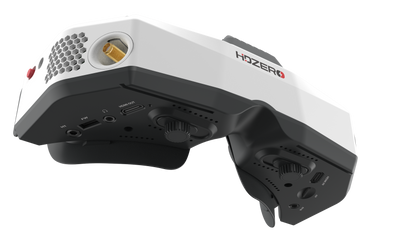

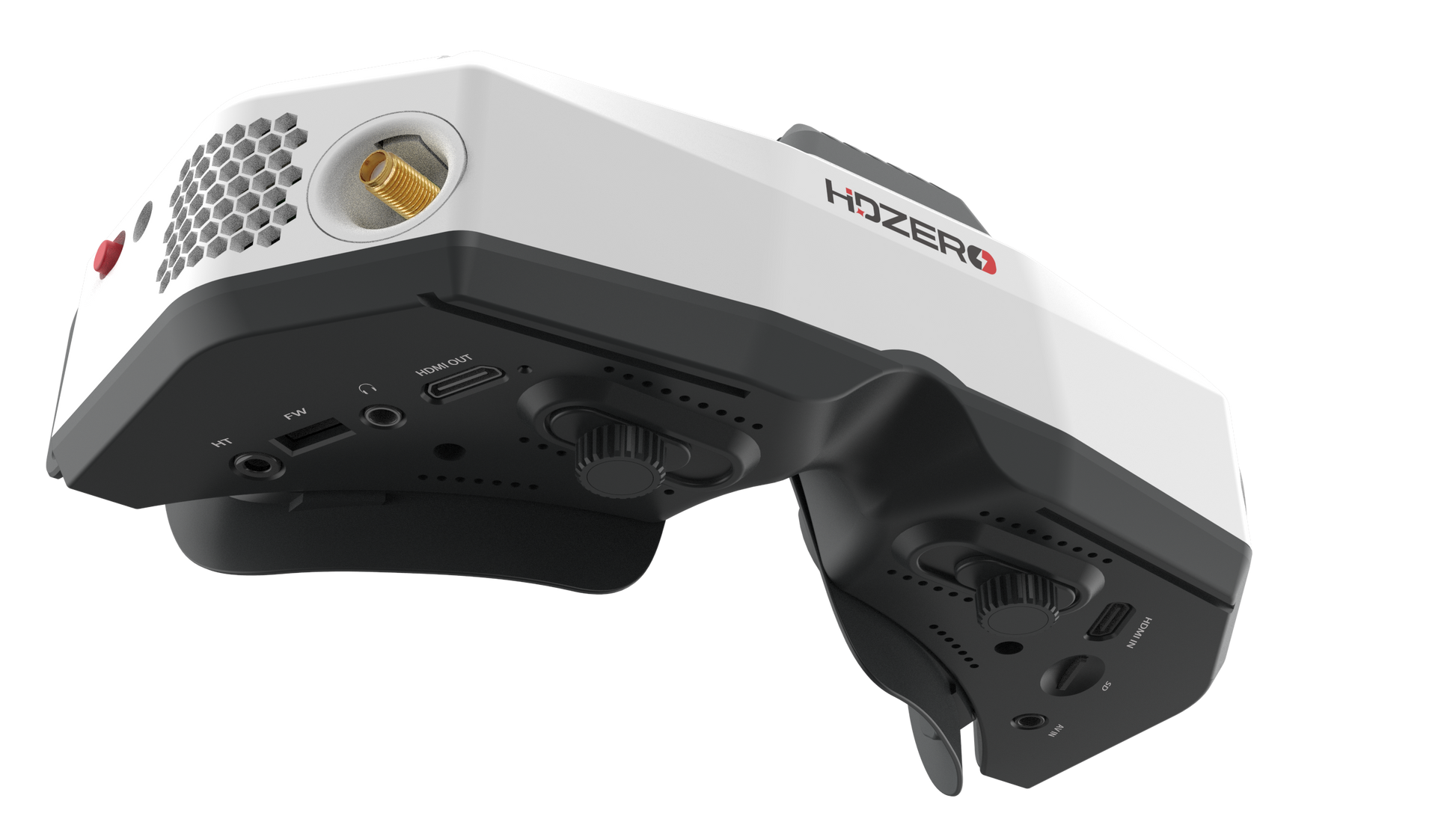

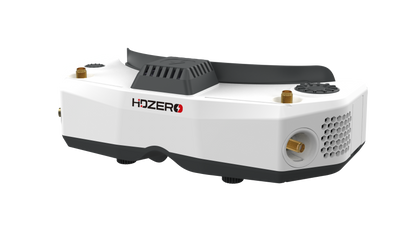

Goggle HDZero
HDZero FPV goggles are designed for pilots who demand the best in digital FPV. With high resolution, low latency and wide compatibility with various camera systems, these goggles offer a unique flying experience. The ergonomic design ensures comfort during longer sessions, while customizable features enable a personalized viewing experience. Ideal for both racing and freestyle, the HDZero FPV Goggles provide a crystal clear image that makes every flight exciting.
Features: • On/off slide switch - sure the glasses are on or off, at a glance or touch • Designed for open source, the new glasses run on Linux. All UI code is new and open-source • Dioptric inlay support • 90Hz 1080p OLED screens with IPD sliders and focus knobs • Integrating the entire display chain of the glasses with HDZero fixed latency video transmission, these glasses achieve sub-frame latencies of 3ms “glass to glass” without tearing or dropped frames • Mounting rails for patch antennas or anything else that would you like to attach • Recessed front SMA connectors so there is no need to remove the antennas when storing the glasses • Three independently controlled fans work together to cool the internals and prevent fogging. They are softly mounted to prevent screen vibration and noise • HDMI input and HDMI output • Built-in microphone for DVR • 3.5mm combo headphone/microphone jack for audio and external microphone • 3.5mm analog video/audio input for use with ground station inputs • Integrated 2D deinterlacer that adds no delay for analog input • ELRS backpack support • Built-in H.265 DVR • 6-axis smart inertial measurement to support tracking heads when tilting and turning • Side module bay for analog module that accepts most of today's analog modules • Add-on module for 2.4GHz WiFi video streaming for live broadcasting
Specifications:
HDZero camera glass-to-glasses latency: <3ms IPD adjustment range: 57-70mm Adjustable focus range: +2 to -6 diopters Full HD 1920x1080p 90fps OLED micro display FOV: 46 degrees Input voltage: 7V-21V (2S-5S)
Package includes: 1x HDZero Goggles 1x Wide Face Mask 1x Narrow Face Mask 1x Padding 1x Goggle Strap 1x 1200mm XT60 Cable 1x 150mm HDZero VTX Programming Cable 1x Strong Canvas Goggle Bag 1x Lens Cloth
