Code: SKU:CP.FP.00000113.02
Goggles HD DJI Integra
Goggles HD DJI Integra
Brand: DJI
Couldn't load pickup availability
- Description
- Related Files
- Discussion

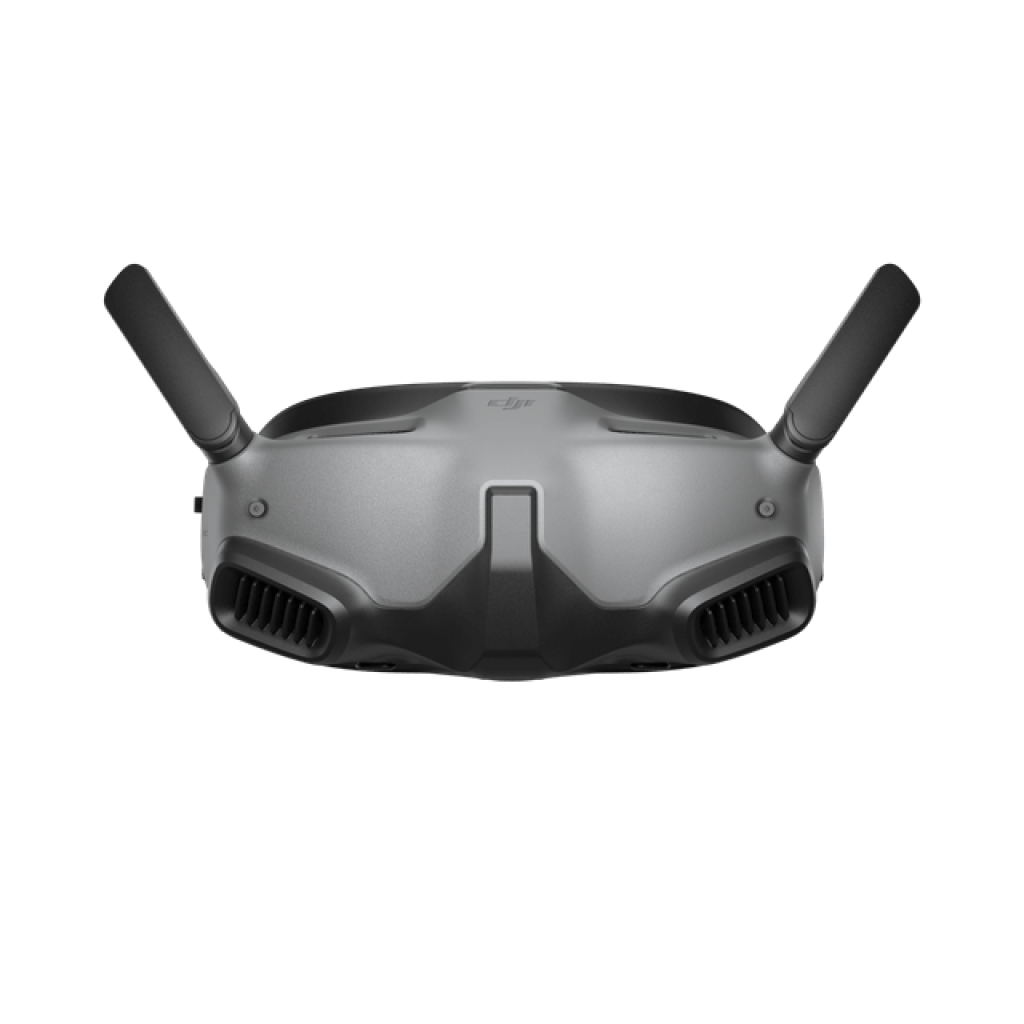

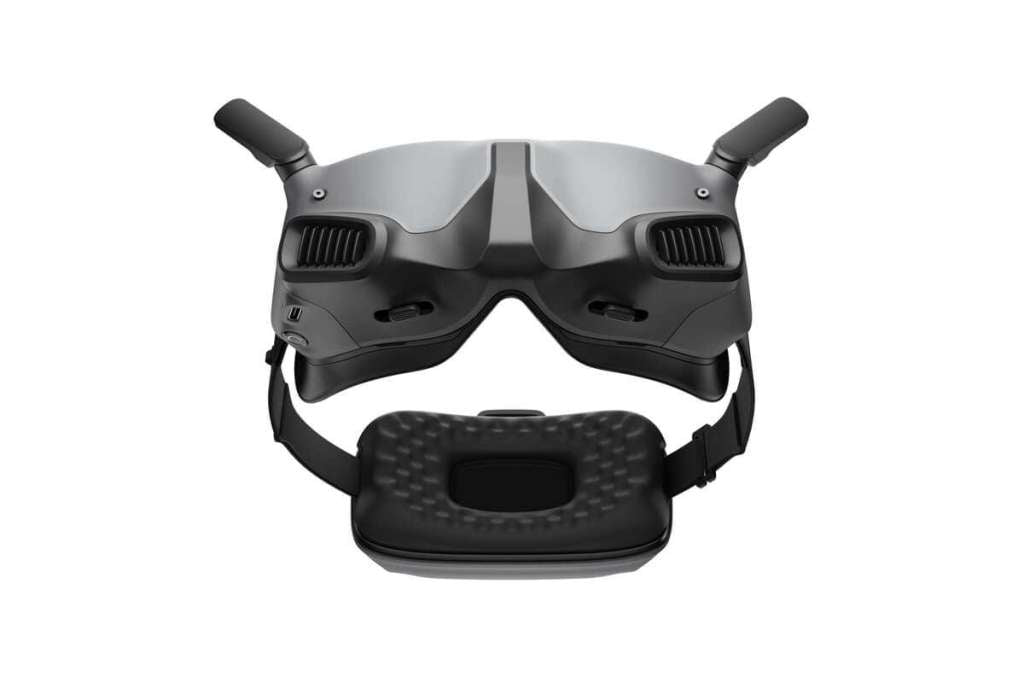

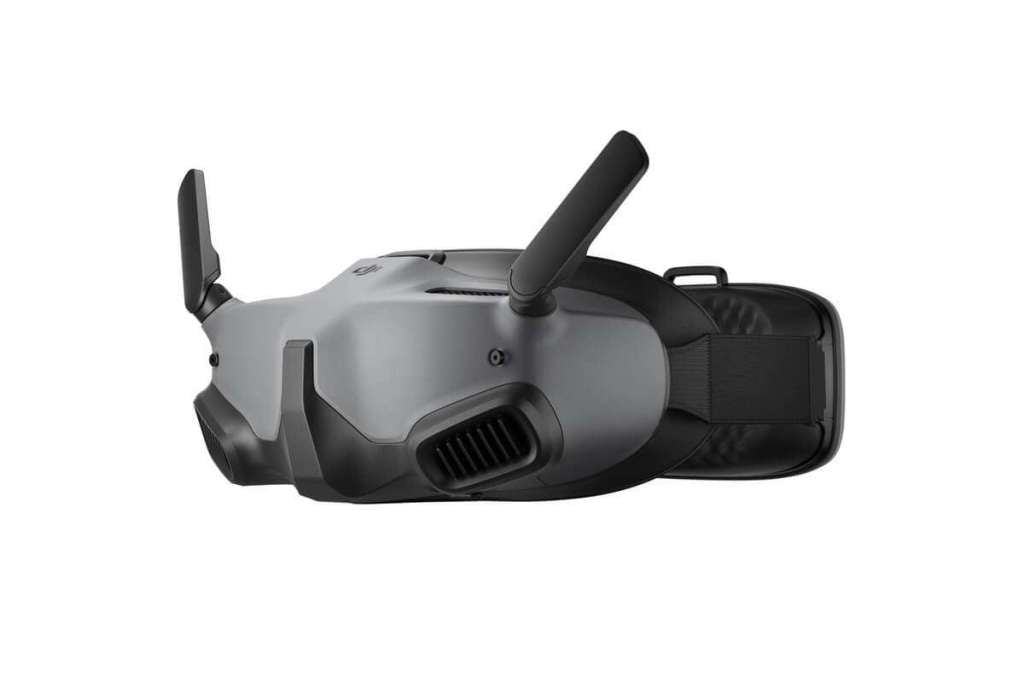

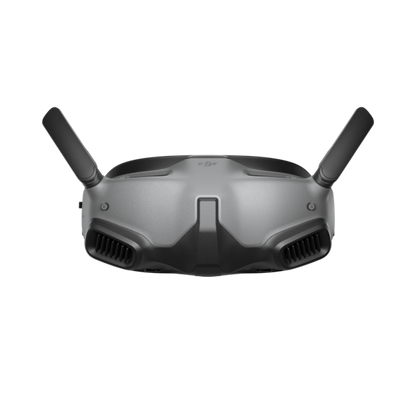

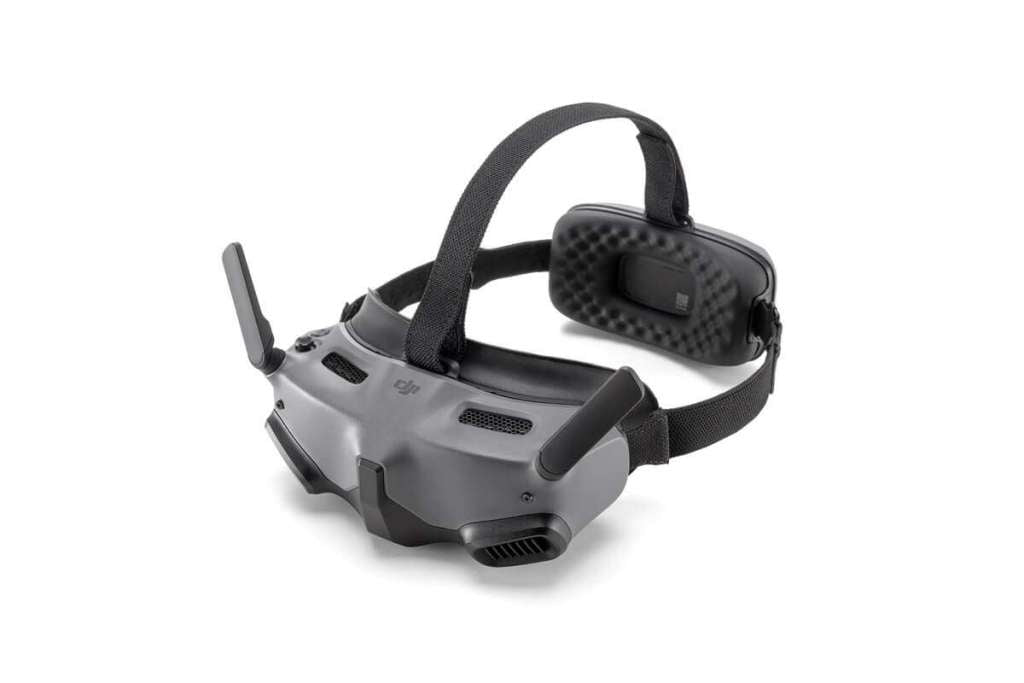

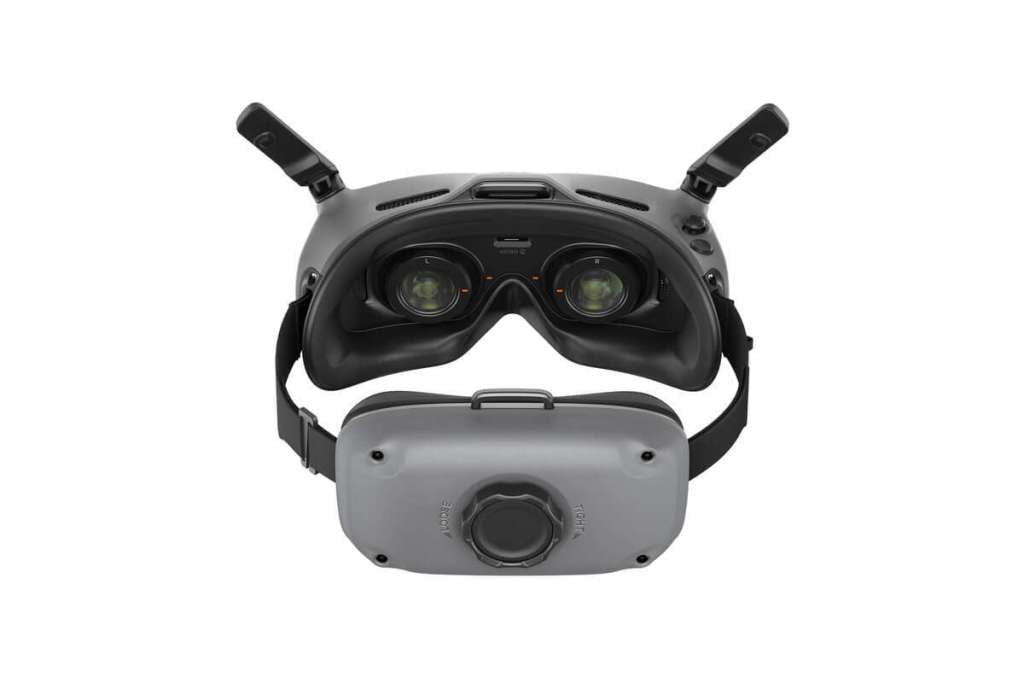

**DJI Integra Goggles**
The DJI Integra Goggles have a streamlined design with an integrated headband and battery, eliminating the need for additional cables. This lightweight and comfortable design allows for ease of use and long endurance, even during longer drone flights.
They are equipped with dual HD Micro-OLED screens that provide vivid, realistic colors with high refresh rates for smooth visual experiences. DJI O3+ video transmission ensures ultra-low latency and stable connection, which enhances the immersive flight experience. Integra glasses are compatible with several DJI drones, such as DJI Mavic 3 Pro, DJI Mavic 3 Pro Cine, DJI Mavic 3, DJI Mavic 3 Cine, DJI Mavic 3 Classic and DJI Mini 3 Pro, opening up new creative possibilities for aerial photography.
**Properties:**
- Lightweight and portable
- Integrated design
- Micro-OLED screens
- Video transmission DJI O3+
- HD low latency
**Specifications:**
**- Glasses -**
Model: RCDS13
Weight: About 410g (including battery)
Dimensions (L×W×H):
- With folded antennas: 170×104×75 mm
- With antennas spread out: 205×104×104 mm
Screen size (single screen): 0.49 inches
Resolution (single screen): 1920×1080
Refresh rate: Up to 100 Hz
IPD range: 56-72 mm
FOV (single screen): 44°
Video recording format: MOV
Supported video playback formats: MP4, MOV (video formats: H.264, H.265; audio formats: AAC, PCM)
Operating Temperature: -10° to 40° C (14° to 104° F)
Power: Built-in battery
Supported SD cards: microSD (up to 512 GB)
Recommended microSD cards:
- SanDisk Extreme U3 V30 A1 32GB microSDXC
- SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
- Lexar 1066x U3 V30 A2 64GB microSDXC
- Lexar 1066x U3 V30 A2 128GB microSDXC
- Lexar 1066x U3 V30 A2 256GB microSDXC
- Lexar 1066x U3 V30 A2 512GB microSDXC
- Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
- Kingston Canvas Go! Plus U3 V30 A2 128GB microSDXC
- Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
- Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
- Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
- Samsung EVO Plus U3 V30 A2 512GB microSDXC
**- Video transmission -**
Video transmission:
- When used with different aircraft, the goggles will automatically select the appropriate firmware to match the aircraft's video transmission specifications.
- DJI Avatar: O3+
Frequency of operation:
- 2.4000-2.4835 GHz
- 5.725-5.850 GHz
Emitter Power (EIRP):
-- 2.4000-2.4835 GHz:
< 30 dBm (FCC)
< 20 dBm (CE/SRRC/MIC/KC)
-- 5.725-5.850 GHz:
< 30 dBm (FCC)
< 23 dBm (SRRC)
< 14 dBm (CE/KC)
Transmission latency: 1080p/100fps; 1080p/60fps
Maximum transmission distance: 10 km (FCC), 6 km (CE/SRRC/MIC)
Maximum video bitrate: 50 Mbps
**- Battery -**
Weight: About 185g (including headband)
Dimensions (L×W×H): 120×51×71 mm
Capacity: 2450 mAh
Voltage: 5.6-8.4 V
Type: Li-ion
Chemical system: LiNiMnCoO2
Energy: 17.64 Wh
Charging temperature: 5° to 45° C (41° to 113° F)
Maximum charging power: 15 W (charging when turned off)
Operating time: Approximately 2 hours

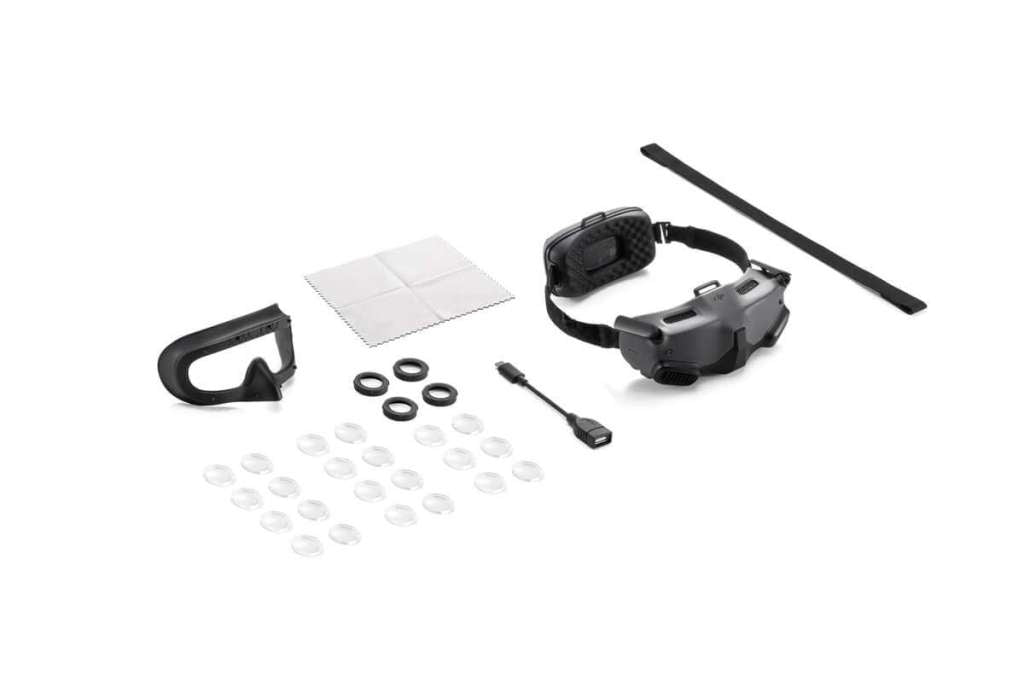

**Package contents:**
1x DJI Goggles Integra
1x USB-C OTG cable
2x frames for DJI Goggles Integra (pair)
11x DJI Goggles Integra correction lenses (pair)
1x DJI Goggles Integra upper headband
1x lens cleaning cloth
**Compatibility:**
- DJI Avata 2
- DJI Avatar
- DJI O3 Air Unit
- DJI Motion Controller
- DJI RC Motion 2
- DJI FPV Remote Controller 2
- DJI FPV Air Unit Module
- DJI Mavic 3 Classic
- DJI Mavic 3
- DJI Mavic 3 Cine
- DJI Mavic 3 Pro
- DJI Mavic 3 Pro Cine
- DJI Air 3
- DJI Mini 4 Pro
- DJI Mini 3 Pro
- DJI FPV
